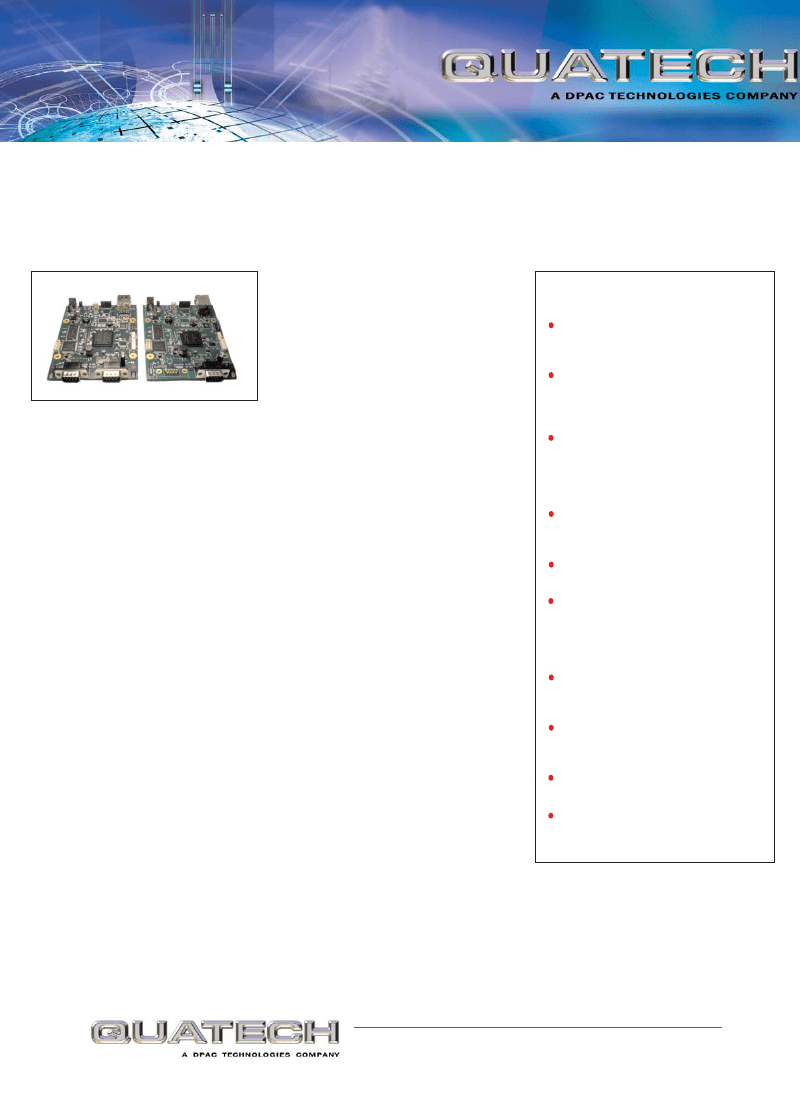

Serial Device Servers - Embedded Boards
The EMB Series is available RS-232 with 1
and 2 port configurations. Surge suppression
is standard. Each model is designed to use
the same drivers, manuals and installation
wizard to simplify deployment and use.
KEY FEATURES
Includes the fastest and easiest
Installation Wizard available
A built-in Web server makes
configuration and support available
via Web browser
Serial baud rates to 115.2kbps and auto-
negotiating 10/100 Ethernet support
means fast serial and network data
transfers
Freescale
TM
architecture is the industry
standard in networking solutions
Surge suppression standard
Operating modes such as serial tunneling,
IP multicast, virtual COM ports and other
protocols provides true flexibility and easy
integration
A PowerPC® processor eliminates data
bottlenecks and common latency issues
SNMP support for simple network
management
5 year warranty
Overcome the limitations of serial
protocols by networking-enabling
your devices
Embedded High Speed USB 2.0
Serial Adapters for custom enclosures
When you need the ultimate in device server
performance, ease of use and reliability,
specify Quatech, featuring the highest
throughput and lowest latency available in
device server technology
Now, Quatech offers Embedded Device
Server Boards. Ideal for OEM solutions,
custom enclosures and other situations
where the external Device Server shell is not
needed, Quatech Embedded Device Servers
offer all the industry-leading features as an
external line.
Serial (RS-232) devices are used in virtually
all industries. Yet, while serial protocols have
proven to be reliable and robust, there are
drawbacks – cable lengths are limited and
expensive, COM ports are often in short
supply on the host PC, and the attached serial
devices are not remotely accessible for
monitoring, service or support.
A Quatech Embedded Device Server
overcomes all these limitations. Its hardware
and drivers are invisible to connected serial
devices and their software applications,
routing data through an IP network to “virtual”
COM ports installed on the host PC by the
Installation Wizard.
Quatech, the performance leader in
device networking, makes it easy to
get started
An intuitive Installation Wizard gets you up
and running quickly, automatically searching
local and remote subnets for installed device
servers within seconds of inserting the
installation CD-ROM.
Any network settings automatically assigned
by DHCP networks are displayed for
confirmation, or enter a static IP address
easily using the Installation Wizard – you
won’t need to bother with telnet sessions,
MAC address data entry or special cables.
Quatech device servers may be managed
through the Windows® Device Manager
interface or a Web browser, so you can count
on
trouble-freeconfiguration
and
maintenance long after the initial installation
is completed.
Industry-leading performance at a
budget-friendly price
The EMB Series models offer the same low
latency, high throughput performance as our
flagship 100 and 400 series device servers.
You won’t find a device server with a better
price:performance ratio anywhere!
Designed, manufactured and supported
by Quatech in the USA
5675 Hudson Industrial Parkway * Hudson, OH 44236
Rev 1.0,
11/2006
1.800.553.1170 * +1 330.655.9000 * www.quatech.com
EMBEDDED SERIAL DEVICE SERVER SPECIFICATIONS
Ordering Information
Model
SSE-100D-EMB
DSE-100D-EMB
Ports
1
2
Interface
RS-232 w/ DB-9 Male
RS-232 w/ DB-9 Male
Signal Information:
RS-232
DCD
RxD
TxD
Each port is a fully independent asynchronous
DTE serial port with:
* Full modem control
* Hardware flow control
* Available 10-pin RJ-45 adapter
for DB-9M connector
LAN Interface
10/100 Base T (IEEE 802.3) auto-negotiation,
auto MDI/MDIX and RJ-45 Ethernet connector
OS Support
Device drivers provided for Windows NT,
Windows 2000, Windows XP and Linux
Raw TCP, Raw UDP (including broadcast and
multicast), Tunneling, AutoTCP and Intellisock
modes are O/S dependent
Please check Quatech’s web site for the latest
O/S driver support information
Speed
Each serial port supports data transfer speeds
of up to 115.2 kbps, depending on flow control
protocols used, cable length and condition, and
other factors
Surge suppression standard for EMB models
Surge suppressor is capable of sustaining up to
40-A peak, 8 x 20μs transient surges, a
clamping voltage of 30V and a peak energy
dissipation of 0.1 Joules.
Receiver Inputs:
RS-232
Voltage Rating:
-15V, +15V
Receiver Skew:
120 ns (typical), 250 ns (max)
Transceiver Outputs:
RS-232
High Level Output:
+5V (min), +5.4V (typ)
Low Level Output:
-5V (min), -5.4V (typ)
Transmitter Skew:
50 ns (typ), 200 ns (max)
Parity, Stop Bits:
Parity configurable as:
None, Even, Odd
Data bits configurable as:
5, 6, 7, 8
Stop bits configurable as:
1, 1.5, 2
Protocols and Software:
Management: UDP, TCP/IP, HTTP, DHCP,
ARP, ICMP, SNMP (MIB II)

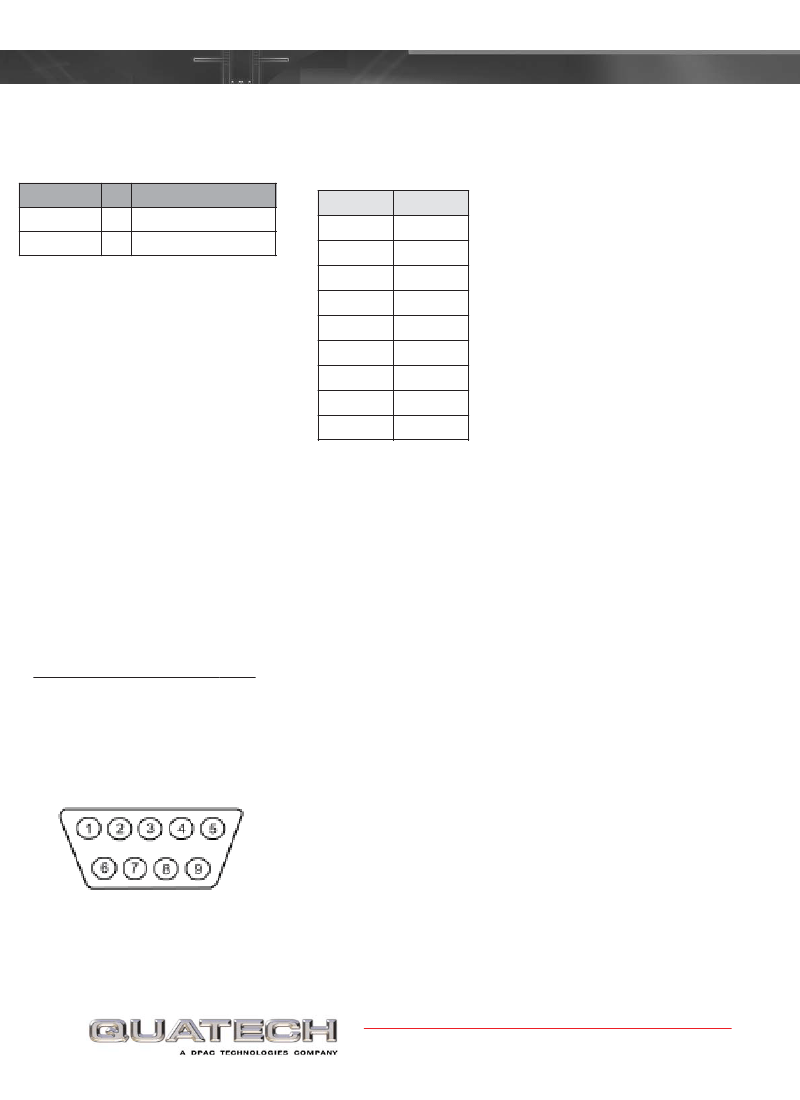

DB-9 Male Serial Connector, External View
Initial IP address configuration: DHCP, static IP
(set through Installation Wizard) or a custom
UDP datagram utility (with command line
interface) for unattended installations
Quatech provides several ways to manage,
monitor and configure device servers after
installation:
DTR
GND
DSR
RTS
CTS
RI
DB-9M
Pin #
1
2
3
4
5
6
7
8
9
* Windows® Device Manager (Quatech Device
Manager in Windows NT)
* On-board HTML pages accessible from a
standard web browser
* Simple Network Management Protocol
(SNMP)
* Intellisock™ TCP socket services
Communication modes: Normal, Tunneling,
Raw TCP, Auto TCP, Raw UDP and Intellisock
TCP advanced socket services
Hardware:
Processor: Freescale
TM
PowerPC®
SDRAM: 8 MB
FLASH Memory: 2 MB
Firmware stored in FLASH may be upgraded
via LAN interface
Typical Power Consumption
+5V, 0.4A (4W)
Environment
Operating:
0° to 70°C
Storage:
-40° to780° C
Humidity:
10% to 90% non-condensing
Size
SSE/DSE-100D-EMB:
Height: .61” (1.54 cm)
Width: 3.50” (8.89 cm)
Depth: 4.50” (11.43 cm)
Certifications
FCC, CE
Accessories
DB-9M to Screw Terminal Adapters
International Power Cords
5675 Hudson Industrial Parkway * Hudson, OH 44236
Rev. A
11/2006
1.800.553.1170 * +1 330.655.9000 * www.quatech.com
