ED10WG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> ED10WG

ED10WG: DescriptionIC,ENCODER/DECODER,CMOS,TSSOP,20PIN,PLASTIC; CategoryWireless rf/communication Telecom circuit; File Size497KB，9 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

ED10WG Overview

IC,ENCODER/DECODER,CMOS,TSSOP,20PIN,PLASTIC

ED10WG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip
package instruction	1.27 MM PITCH, SO-20
Reach Compliance Code	compliant
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.8 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	TSSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	2.65 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Telecom integrated circuit types	MANCHESTER ENCODER/DECODER
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

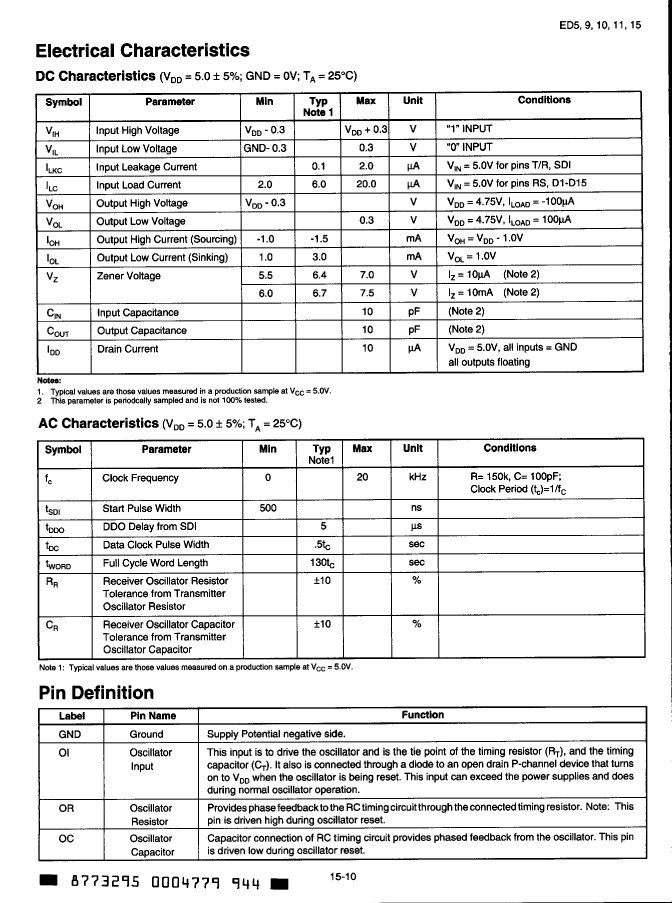

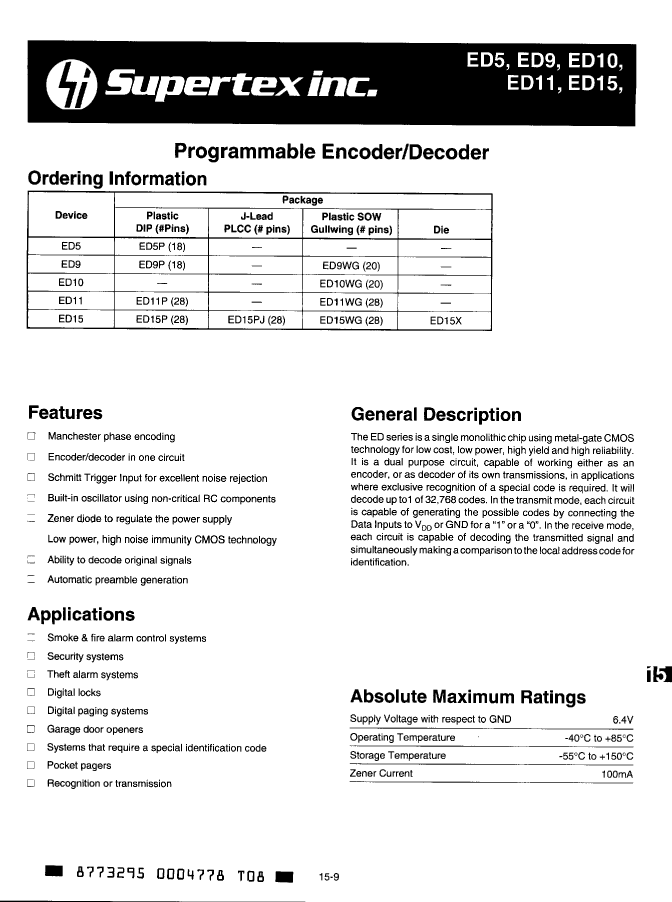

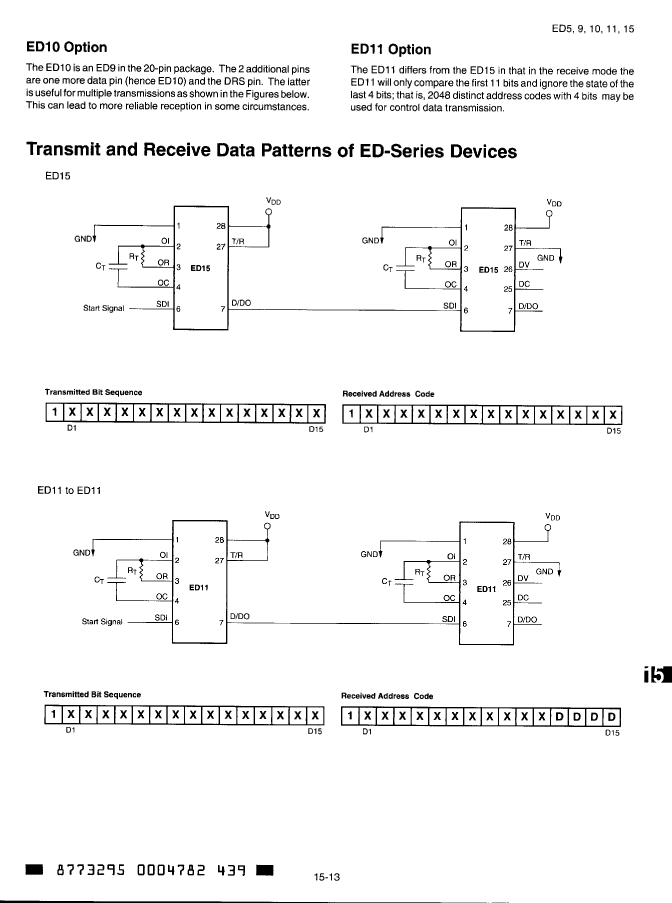

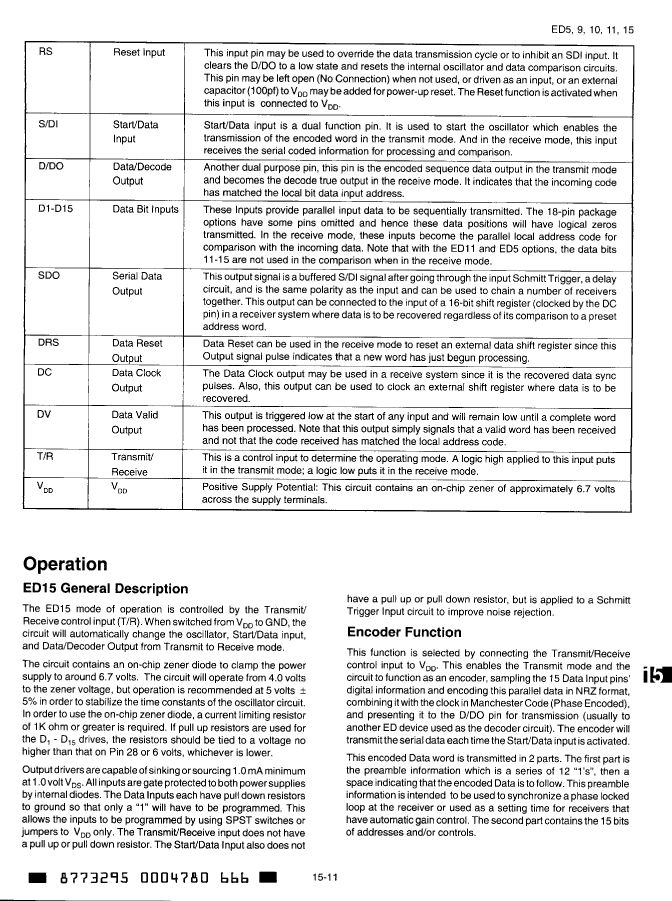

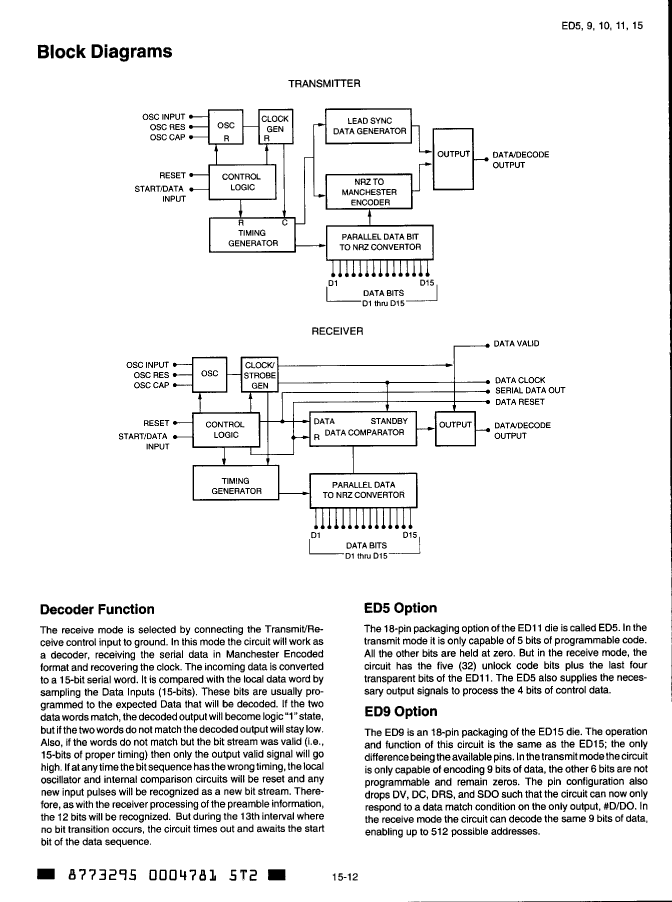

Preview

Download Datasheet

View All

ED10WG Related Products

	ED10WG	ED15WG	ED15PJ	ED15X
Description	IC,ENCODER/DECODER,CMOS,TSSOP,20PIN,PLASTIC	IC,ENCODER/DECODER,CMOS,SOP,28PIN,PLASTIC	IC,ENCODER/DECODER,CMOS,LDCC,28PIN,PLASTIC	IC,ENCODER/DECODER,CMOS,DIE
package instruction	1.27 MM PITCH, SO-20	SOP, SOP28,.5	QCCJ, LDCC28,.5SQ	DIE, DIE OR CHIP
Reach Compliance Code	compliant	compli	not_compliant	compliant
JESD-30 code	R-PDSO-G20	R-PDSO-G28	S-PQCC-J28	R-XUUC-N28
Number of functions	1	1	1	1
Number of terminals	20	28	28	28
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED
encapsulated code	SOP	SOP	QCCJ	DIE
Encapsulate equivalent code	TSSOP20,.25	SOP28,.5	LDCC28,.5SQ	DIE OR CHIP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	CHIP CARRIER	UNCASED CHIP
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Telecom integrated circuit types	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER	MANCHESTER ENCODER/DECODER
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	J BEND	NO LEAD
Terminal location	DUAL	DUAL	QUAD	UPPER
Is it Rohs certified?	incompatible	incompatible	incompatible	-
JESD-609 code	e0	e0	e0	-
length	12.8 mm	17.9 mm	11.43 mm	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum seat height	2.65 mm	2.65 mm	4.572 mm	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
width	7.5 mm	7.5 mm	11.43 mm	-
Base Number Matches	-	1	1	1
