PS1R50-104SBB-L datasheet, PDF

Datasheet> All Categories > The connector> The connector> PS1R50-104SBB-L

PS1R50-104SBB-L: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size262KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS1R50-104SBB-L Overview

Board Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

PS1R50-104SBB-L Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.102 inch
subject depth	0.197 inch
body length	0.42 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Manufacturer's serial number	PS1
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

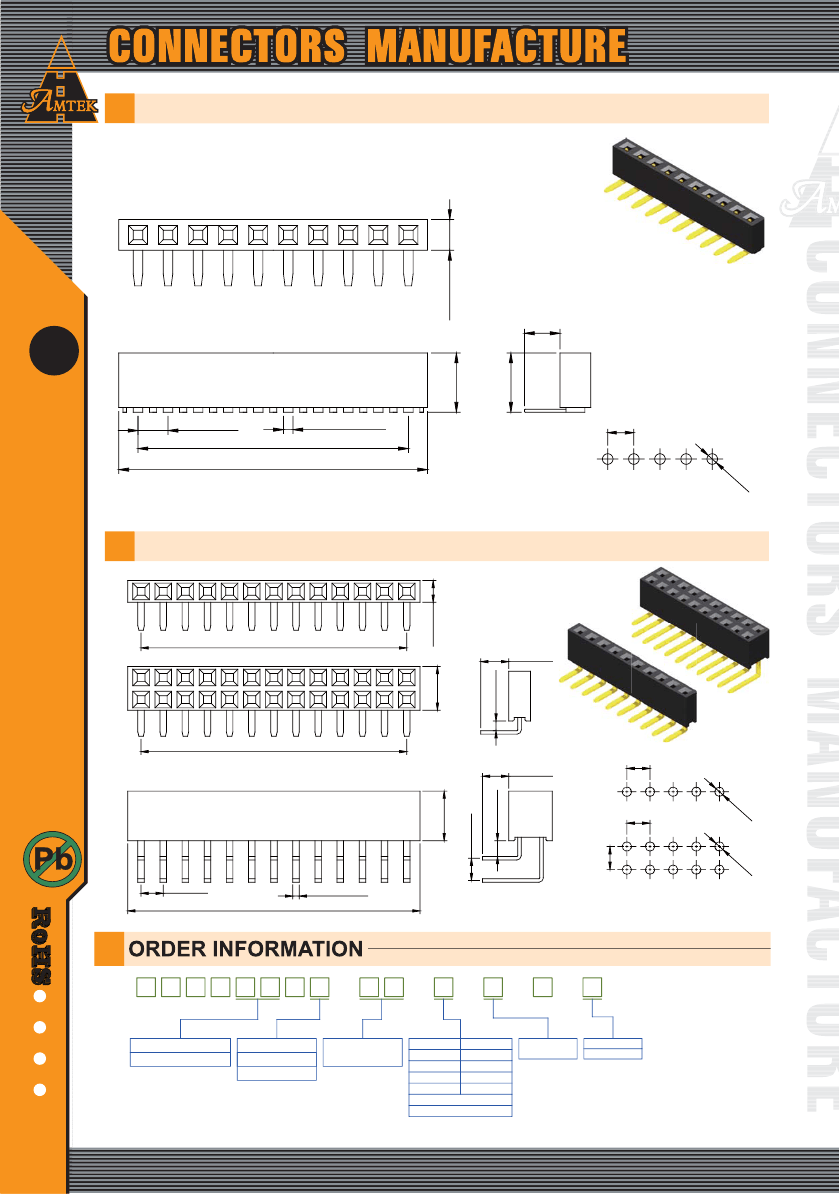

Female Header 2.54mm 1 Row H=5.0mm Right Angle Type

Specifications

Current Rate:3 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:PBT or Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

emale Header 2.54mm

Part No.:PS1R50-1XX-L/U

Female Header 2.54mm 1 & 2 Row H=5.7mm Right Angle Type

Part No.:PS1R57-1/2XX-L/U

P S 1 R X X - X

X X

50:Insulator Height H=5.0mm

57:Insulator Height H=5.7mm

1:Single Row

2:Dual Row

(Dual For PS1R57 Only)

No. of Contacts per row

(02~40)

G:Gold Flash

GA:5u"

GB:10u"

GC:20u"

GD:30u"

S:Selective

SA:5u"

SB:10u"

SC:20u"

SD:30u"

B:Black Insulator

L:RoHS + P.B.T

U:RoHS + Nylon 6T

T:Tin Plated

TE:Tin 200u"

Standard Recommended

2-118

www.amtek-co.com.tw
