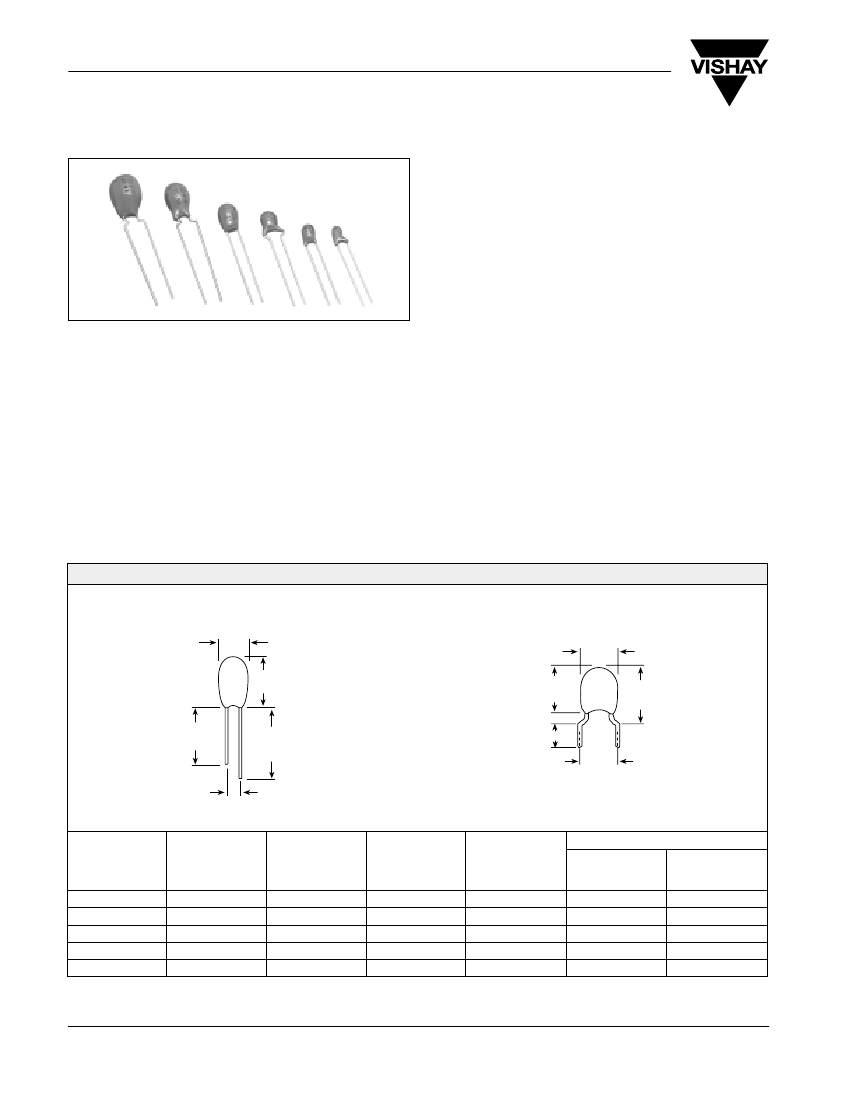

Model 199D
Vishay Sprague
Solid Tantalum Capacitors
Solid-Electrolyte T
ANTALEX
®
Capacitors Resin-Coated, Radial-Lead
Economy and high performance are combined in the Type
199D resin-coated, radial-lead, solid-electrolyte T
ANTALEX®
capacitor. These are rugged, reliable capacitors featuring
low leakage current and low dissipation factor.
Type 199D capacitors are available in six miniature case
sizes and three lead styles suitable for a broad range of
consumer, commercial and industrial equipment. All case
sizes are available in standard tape and reel packaging per
EIA-RS-468.
Standard ratings include replacements for Type 196D
capacitors.
At + 85
°
C:
Leakage current shall not exceed 10 times the
values listed in the Standard Ratings Tables.
At + 125
°
C:
Leakage current shall not exceed 15 times
the values listed in the Standard Ratings Tables.
Life Test:
Capacitors shall withstand rated DC voltage
applied at + 85°C for 1000 hours with a circuit resistance
no greater than 3 ohms.
Following the life test:
1. DCL shall not exceed 125% of the initial requirement.
2. Dissipation Factor shall meet the initial requirement.
3. Change in capacitance shall not exceed
±
10%.
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55°C to + 85°C. (To + 125°C
with voltage derating.)
Capacitance Tolerance:
At 120 Hz, + 25°C.
±
20%,
±
10% standard.
±
5%, special order.
Dissipation Factor:
At 120 Hz, + 25°C. Dissipation
factor, as determined from the expression 2πfRC, shall not
exceed the values listed in the Standard Ratings Tables.
DC Leakage Current (DCL Max.):
At + 25
°
C:
Leakage current shall not exceed the values
listed in the Standard Ratings Tables.
DIMENSIONS
in inches [millimeters]
Lead Style 1
"Long/Short"
D
Max.
Lead Style 6
"Outside Hockeystick"
D
Max.
L
Max.
L
Max.
H
Max.
Cathode
Length
Anode
Length
Lead Length
S
.200
±
.030
[5.1
±
.76]
S
.100
±
.030
[2.5
±
.76]
LEAD SIZE
CASE
CODE
A
C
D
E
F
DIAMETER
D (Max.)
0.177 [4.40]
0.216 [5.50]
0.236 [6.00]
0.340 [8.60]
0.380 [9.60]
LENGTH
L (Max.)
0.280 [7.11]
0.360 [9.14]
0.400 [10.16]
0.492 [12.50]
0.650 [16.50]
SEATED HEIGHT
H (Max.)*
0.340 [8.64]
0.420 [10.67]
0.460 [11.68]
0.552 [14.02]
0.710 [18.03]
LEAD SPACING
All
All
All
E2**
E2**
AWG NO.
24
24
24
24
24
NOM. DIA.
0.020 [0.51]
0.020 [0.51]
0.020 [0.51]
0.020 [0.51]
0.020 [0.51]
* Maximum Seated Height is identical to Maximum Length for units ordered with Lead Style 'A'. ** Lead spacing Tol.
±
.050 ( ).
www.vishay.com
58
Document Number: 40020
Revision 18-Jun-01
Model 199D
Vishay Sprague
STANDARD RATINGS
CAPACITANCE
(
µ
F)
2.2
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
68.0
100.0
150.0
Max. DCL
CASE
PART NUMBER*
PART NUMBER*
@ + 25
°
C
CODE
CAP. TOL.
±
20%
CAP. TOL.
±
10%
(
µ
A)
16 WVDC @ + 85
°
C, SURGE = 20 V . . . 10 WVDC @ + 125
°
C, SURGE = 12 V
A
A
B
B
C
C
D
D
E
E
F
F
199D225X0016A_ _
199D335X0016A_ _
199D475X0016B_ _
199D685X0016B_ _
199D106X0016C_ _
199D156X0016C_ _
199D226X0016D_ _
199D336X0016D_ _
199D476X0016E_ _
199D686X0016E_ _
199D107X0016F_ _
199D157X0016F_ _
199D225X9016A_ _
199D335X9016A_ _
199D475X9016B_ _
199D685X9016B_ _
199D106X9016C_ _
199D156X9016C_ _
199D226X9016D_ _
199D336X9016D_ _
199D476X9016E_ _
199D686X9016E_ _
199D107X9016F_ _
199D157X9016F_ _
0.5
0.5
0.7
1.0
1.5
2.4
3.5
4.0
5.0
6.0
7.0
8.0
Max. DF
@ + 25
°
C
120 Hz
(%)
6
6
6
6
8
8
8
8
8
8
10
10
20 WVDC @ + 85
°
C, SURGE = 26 V . . . 13 WVDC @ + 125
°
C, SURGE = 16 V
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
68.0
100.0
B
B
C
C
D
D
E
E
F
F
199D335X0020B_ _
199D475X0020B_ _
199D685X0020C_ _
199D106X0020C_ _
199D156X0020D_ _
199D226X0020D_ _
199D336X0020E_ _
199D476X0020E_ _
199D686X0020F_ _
199D107X0020F_ _
199D335X9020B_ _
199D475X9020B_ _
199D685X9020C_ _
199D106X9020C_ _
199D156X9020D_ _
199D226X9020D_ _
199D336X9020E_ _
199D476X9020E_ _
199D686X9020F_ _
199D107X9020F_ _
0.8
1.0
1.5
2.0
2.5
3.0
4.0
5.0
6.0
7.0
6
6
6
8
8
8
8
8
8
10
25 WVDC @ + 85
°
C, SURGE = 33 V . . . 17 WVDC @ + 125
°
C, SURGE = 21 V
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
68.0
A
A
A
B
B
C
C
D
D
E
E
F
199D105X0025A_ _
199D155X0025A_ _
199D225X0025A_ _
199D335X0025B_ _
199D475X0025B_ _
199D685X0025C_ _
199D106X0025C_ _
199D156X0025D_ _
199D226X0025D_ _
199D336X0025E_ _
199D476X0025E_ _
199D686X0025F_ _
199D105X9025A_ _
199D155X9025A_ _
199D225X9025A_ _
199D335X9025B_ _
199D475X9025B_ _
199D685X9025C_ _
199D106X9025C_ _
199D156X9025D_ _
199D226X9025D_ _
199D336X9025E_ _
199D476X9025E_ _
199D686X9025F_ _
0.5
0.5
0.5
0.8
1.0
1.5
2.5
3.0
4.0
5.0
6.0
7.0
4
6
6
6
6
6
8
8
8
8
8
8
35 WVDC @ + 85
°
C, SURGE = 46 V . . . 23 WVDC @ + 125
°
C, SURGE = 28 V
0.1
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
A
A
A
A
A
A
A
A
B
B
C
D
D
E
E
F
F
199D104X0035A_ _
199D154X0035A_ _
199D224X0035A_ _
199D334X0035A_ _
199D474X0035A_ _
199D684X0035A_ _
199D105X0035A_ _
199D155X0035A_ _
199D225X0035B_ _
199D335X0035B_ _
199D475X0035C_ _
199D685X0035D_ _
199D106X0035D_ _
199D156X0035E_ _
199D226X0035E_ _
199D336X0035F_ _
199D476X0035F_ _
199D104X9035A_ _
199D154X9035A_ _
199D224X9035A_ _
199D334X9035A_ _
199D474X9035A_ _
199D684X9035A_ _
199D105X9035A_ _
199D155X9035A_ _
199D225X9035B_ _
199D335X9035B_ _
199D475X9035C_ _
199D685X9035D_ _
199D106X9035D_ _
199D156X9035E_ _
199D226X9035E_ _
199D336X9035F_ _
199D476X9035F_ _
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.7
1.0
1.5
2.3
3.5
4.0
5.0
6.0
7.0
4
4
4
4
4
4
4
6
6
6
6
6
8
8
8
8
8
*Insert capacitance tolerance code "X5"; for
±
5% units (special order). To specify Lead Style/Spacing insert the last
two characters in the Part Number: Use the appropriate codes shown in the How to Order and Lead Style/Spacing
Table.
www.vishay.com
60
Document Number: 40020
Revision 18-Jun-01
Model 199D
Vishay Sprague
STANDARD RATINGS
CAPACITANCE
(
µ
F)
CASE
CODE
PART NUMBER*
CAP. TOL.
±
20%
PART NUMBER*
CAP. TOL.
±
10%
Max. DCL
@ + 25
°
C
(
µ
A)
Max. DF
@ + 25
°
C
120 Hz
(%)
50 WVDC @ + 85
°
C, SURGE = 65 V . . . 33 WVDC @ + 125
°
C, SURGE = 40 V
0.1
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
22.0
A
A
A
A
A
A
B
C
C
D
D
F
F
F
F
199D104X0050A_ _
199D154X0050A_ _
199D224X0050A_ _
199D334X0050A_ _
199D474X0050A_ _
199D684X0050A_ _
199D105X0050B_ _
199D155X0050C_ _
199D225X0050C_ _
199D335X0050D_ _
199D475X0050D_ _
199D685X0050F_ _
199D106X0050F_ _
199D156X0050F_ _
199D226X0050F_ _
199D104X9050A_ _
199D154X9050A_ _
199D224X9050A_ _
199D334X9050A_ _
199D474X9050A_ _
199D684X9050A_ _
199D105X9050B_ _
199D155X9050C_ _
199D225X9050C_ _
199D335X9050D_ _
199D475X9050D_ _
199D685X9050F_ _
199D106X9050F_ _
199D156X9050F_ _
199D226X9050F_ _
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.7
1.1
1.5
2.0
3.0
4.0
5.0
6.0
4
4
4
4
4
4
4
6
6
6
6
6
8
8
8
STANDARD REEL PACKAGING SPECIFICATIONS PER EIA RS-468
In inches [millimeters]
*Insert capacitance tolerance code "X5"; for
±
5% units (special order). To specify Lead Style/Spacing insert the last two
characters in the Part Number: Use the appropriate codes shown in the How to Order and Lead Style/Spacing Table.
A1 Lead Configuration
E2 Lead Configuration
0.118 [3.0]
Max.
1.270 [32.26]
Max.
.0354 + 0.030 - 0.020
[8.99 + 0.762 - 0.508]
0.630
±
0.020
[16.0
±
0.508]
0.728
±
0.020
[18.49
±
0.508]
Adhesive Tape
Lead Diameter
0.500
±
0.012
[12.70
±
0.305]
Carrier Tape
See Lead Style/Spacing
Table for Lead Spacing
Tape and Reel Packaging:
Type 199D radial-leaded
tantalum capacitors, (case codes A, B, C and D only) are
available tape and reeled per EIA-468.
Quantity of components per reel as follows:
Case
Code
A, B
C, D
E, F
Units Per Reel
(Minimum)
500
500
250
(Maximum)
2000
1500
500
CASE
CODE
A, B, C, D
A, B, C, D
E, F
OBSOLETE
A1, A6
B1, B6
E2, E7
LEAD STYLE
LEAD
SPACING
LL (Min)
(BULK)
1V1 (BULK), 2B1 (T & R) .100 + .024 - .016 0.187 [4.7]
[2.54 + .60 - .40]
XV1 (BULK), XB1 (T & R) .100 + .024 - .016 0.187 [4.7]
[2.54 + .60 - .40]
6V1 (BULK), 6B1 (T & R) .200 + .024 - .016 0.187 [4.7]
[5.08 + .06 - .40]
Note:
Lead space measured within 0.05 [1.27] of the body of the capacitor, or
from the bottom of the crimp. Lead Style ‘A’ may be supplied with .59 [15]
anode lead and .47 [12] cathode lead.
Document Number: 40020
Revision 18-Jun-01
www.vishay.com
61
