Model 5418 With Assembly Instructions
Do-It-Yourself Minipincer® Test Clip
FEATURES:
•
Ideal for conneting to small circuit board components
•
Use with Model #’s 5173, 3690, 122505A or any other Pomona “Do-It-Yourself” product to create custom
cables
•
Supports 20 to 22 AWG wire
MATERIALS:
Contact: Beryllium Copper, Alloy 165 per QQ-C-533, ¼ HM
Spring: Stainless Steel, 302
Finish: Contact – Gold plated per MIL-G-45204, Type 1, Class 00
Insulation: Glass filled Nylon
RATINGS:
Operating Temperature: +80°C. (+176°F.) Max.
Operating Voltage: 300 VRMS/DC
Current: 5 Amperes
ORDERING INFORMATION:
Model 5418-*
*=Color, -0 Black, -2 Red, -1 Brown, –3 Orange, -4 Yellow, -5 Green, -6 Blue, -7 Violet, -8 Gray, -9 White
All dimensions are in inches and metric. All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
5/21/02 SY/EH/LS
Last saved by PN
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90592
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 1 of 2
S:\Engineering\Release\DataSheets\FlukeDataSheet \d_AI_5418_2_01.doc
Model 5418 With Assembly Instructions
Do-It-Yourself Minipincer® Test Clip

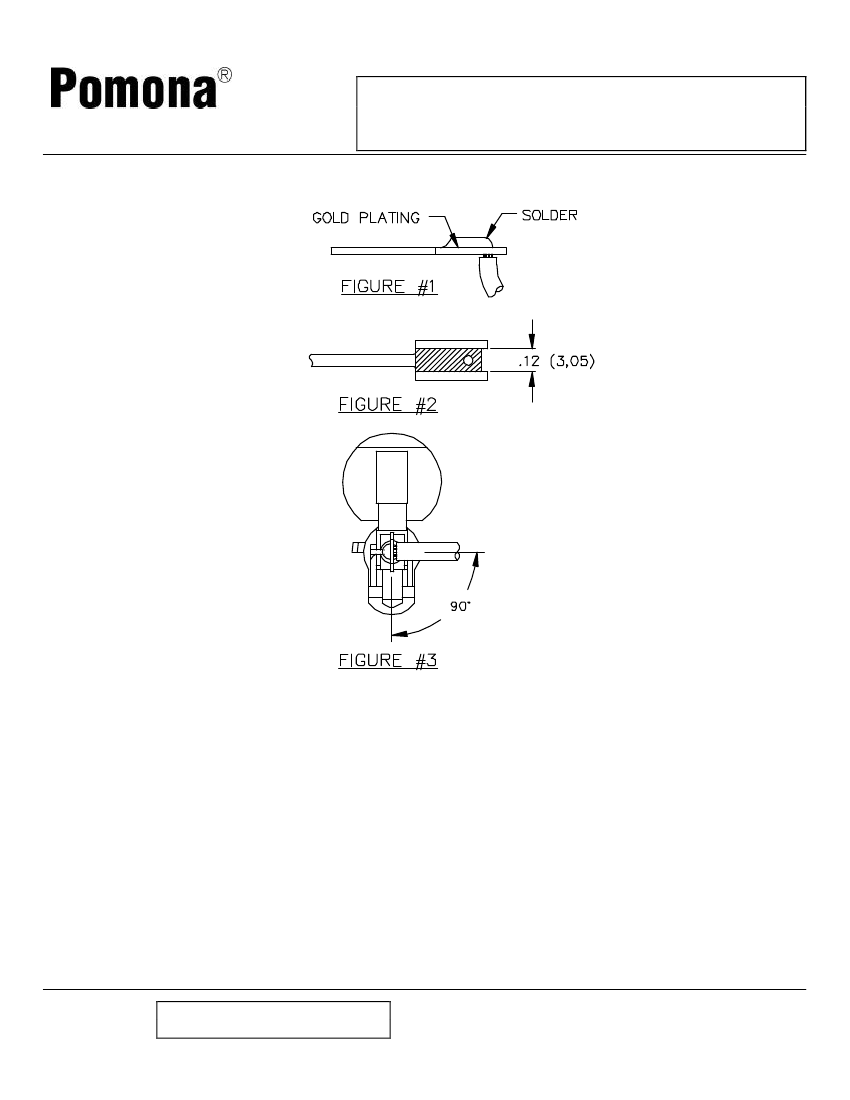

FIGURE #1
A. Remove the cap from housing assembly, the contact will now be exposed.
B. Insert the wire into the cap assembly allowing approximately 1 to 2 inches of wire to extend beyond the cap.
C. Strip wire 1/8 to 3/16 inches.
D. Insert exposed conductor through the hold in the contact and solder to surface.
FIGURE #2
E. Important: Solder must not extend beyond the indicated width.
FIGURE #3
F. Install the cap onto the housing assembly. Align the contact with the slots located on the cap.
All dimensions are in inches and metric. All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
5/21/02 SY/EH/LS
Last saved by PN
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90592
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
Page 2 of 2
S:\Engineering\Release\DataSheets\FlukeDataSheet \d_AI_5418_2_01.doc
