DM54LS367AJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DM54LS367AJ

DM54LS367AJ: DescriptionBus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16; Categorylogic logic; File Size143KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

DM54LS367AJ Overview

Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16

DM54LS367AJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	compliant
Other features	ONE FUNCTION WITH TWO BITS
Control type	ENABLE LOW
series	LS
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.304 mm
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Number of digits	6
Number of functions	1
Number of ports	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	24 mA
Prop。Delay @ Nom-Sup	16 ns
propagation delay (tpd)	25 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

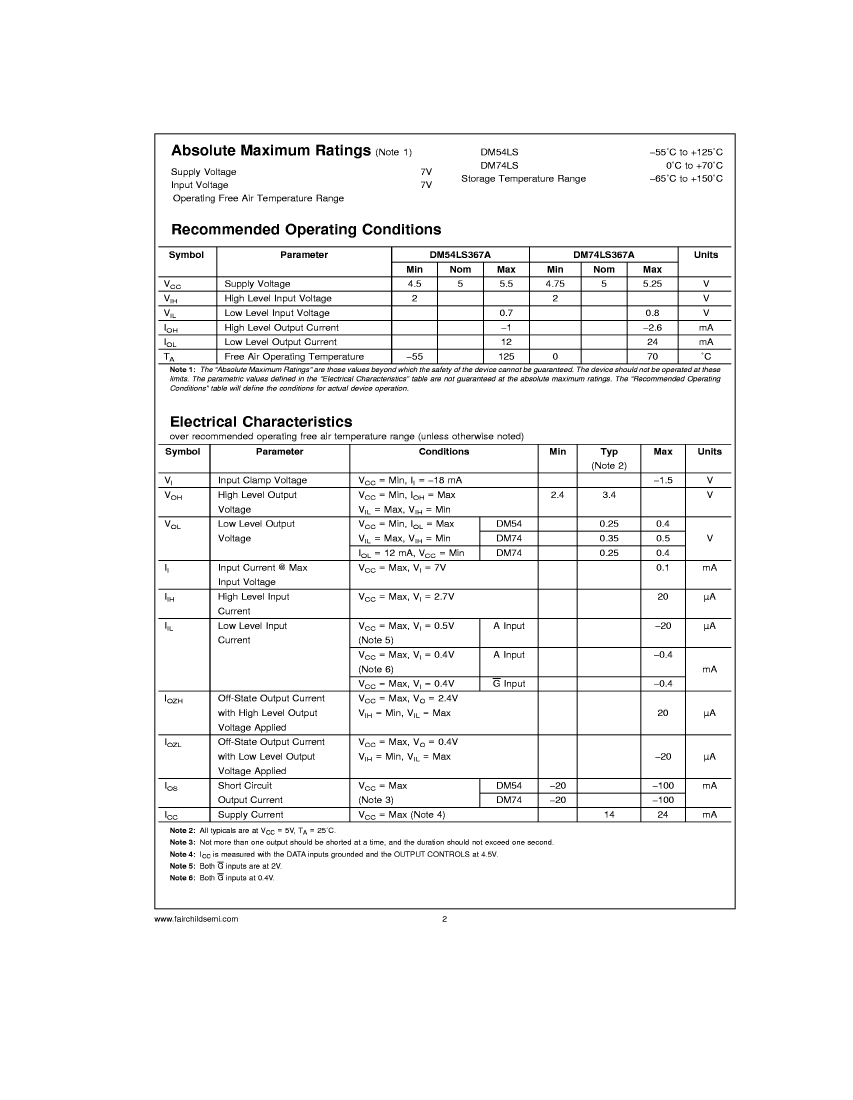

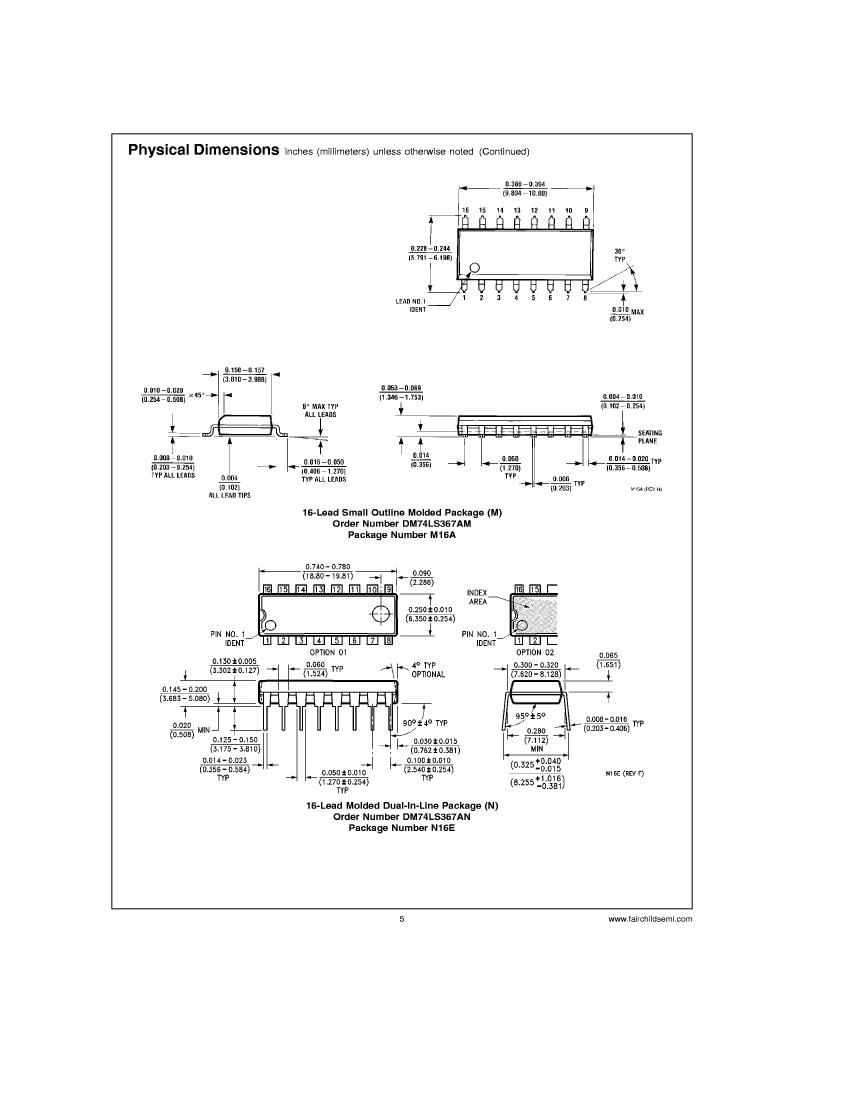

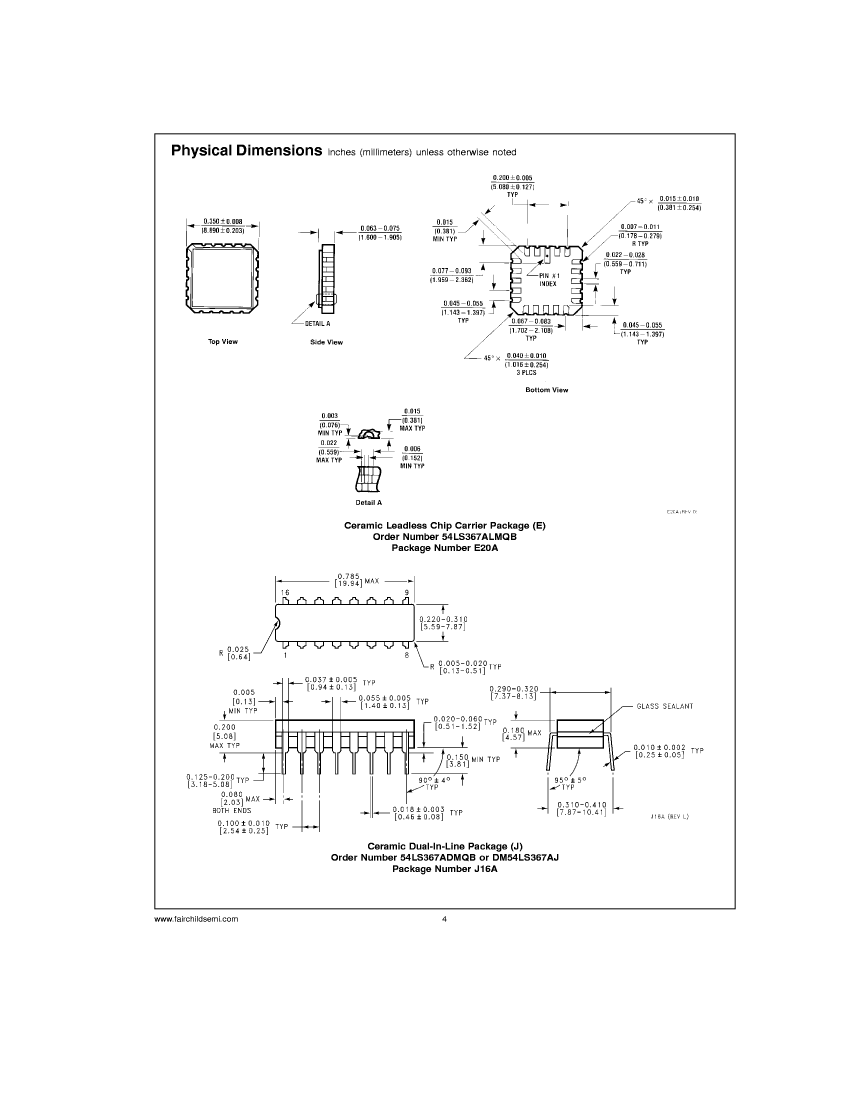

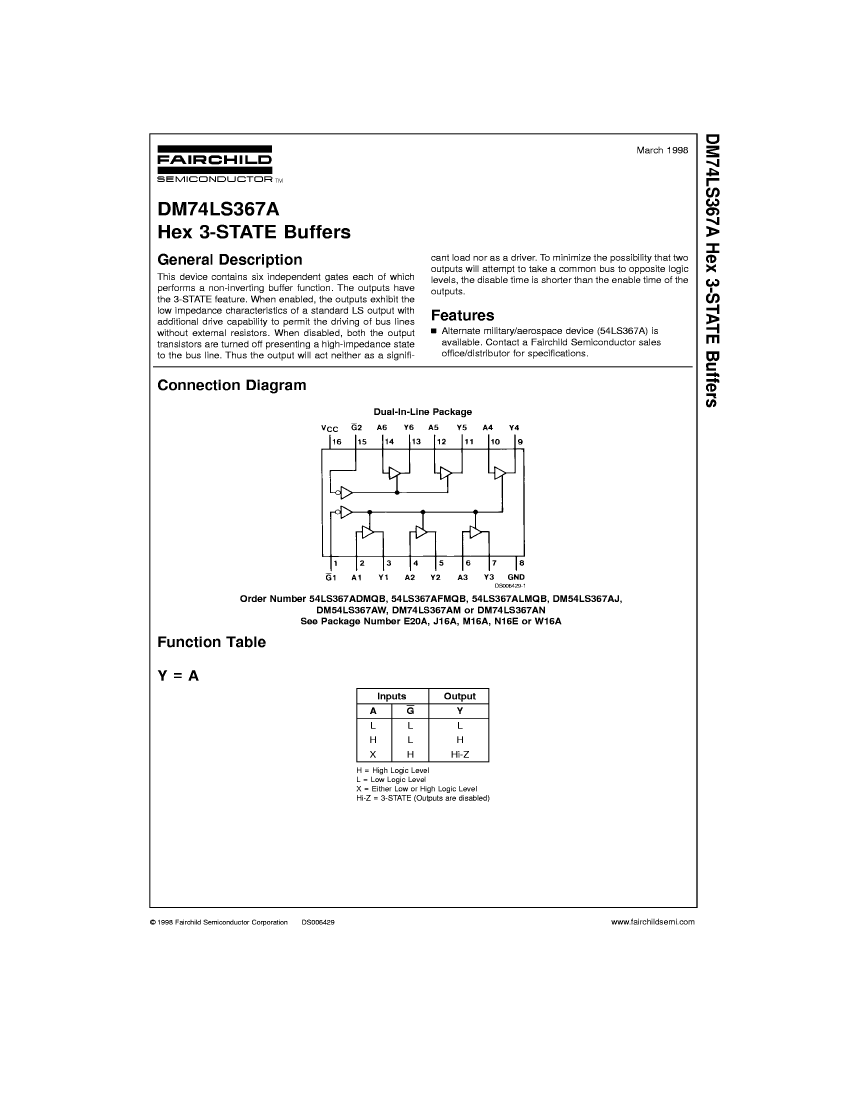

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DM54LS367AJ Related Products

	DM54LS367AJ	54LS367ALMQB	54LS367AFMQB	54LS367ADMQB	CHP1/2-100-24R0-J-13
Description	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDFP16, CERAMIC, FP-16	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16	Fixed Resistor, Metal Glaze/thick Film, 0.5W, 24ohm, 300V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 2010, MELF
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP16,.3	QCCN, LCC20,.35SQ	DFP, FL16,.3	DIP, DIP16,.3	MELF
Reach Compliance Code	compliant	compliant	compliant	unknown	compliant
Other features	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	ONE FUNCTION WITH TWO BITS	STANDARD: MIL-R-55342E, MIL-STD-202
JESD-609 code	e0	e0	e0	e0	e0
Number of terminals	16	20	16	16	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	CYLINDRICAL PACKAGE
Package form	IN-LINE	CHIP CARRIER	FLATPACK	IN-LINE	MELF
surface mount	NO	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	METAL GLAZE/THICK FILM
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Parts packaging code	DIP	QLCC	DFP	DIP	-
Contacts	16	20	16	16	-
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	-
series	LS	LS	LS	LS	-
JESD-30 code	R-GDIP-T16	S-CQCC-N20	R-GDFP-F16	R-GDIP-T16	-
length	19.304 mm	8.89 mm	9.6645 mm	19.304 mm	-
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	-
MaximumI(ol)	0.012 A	0.012 A	0.012 A	0.012 A	-
Number of digits	6	6	6	6	-
Number of functions	1	1	1	1	-
Number of ports	2	2	2	2	-
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	-
Output polarity	TRUE	TRUE	TRUE	TRUE	-
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	-
encapsulated code	DIP	QCCN	DFP	DIP	-
Encapsulate equivalent code	DIP16,.3	LCC20,.35SQ	FL16,.3	DIP16,.3	-
power supply	5 V	5 V	5 V	5 V	-
Maximum supply current (ICC)	24 mA	24 mA	24 mA	24 mA	-
Prop。Delay @ Nom-Sup	16 ns	16 ns	16 ns	16 ns	-
propagation delay (tpd)	25 ns	25 ns	25 ns	25 ns	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	5.08 mm	1.905 mm	2.032 mm	5.08 mm	-
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	-
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	-
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	-
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	-
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE	-
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	-
Terminal location	DUAL	QUAD	DUAL	DUAL	-
width	7.62 mm	8.89 mm	6.604 mm	7.62 mm	-
Base Number Matches	1	1	1	1	-
Filter level	-	MIL-STD-883 Class B	MIL-STD-883 Class B	MIL-STD-883 Class B	-
