Last Update:
6-10-10

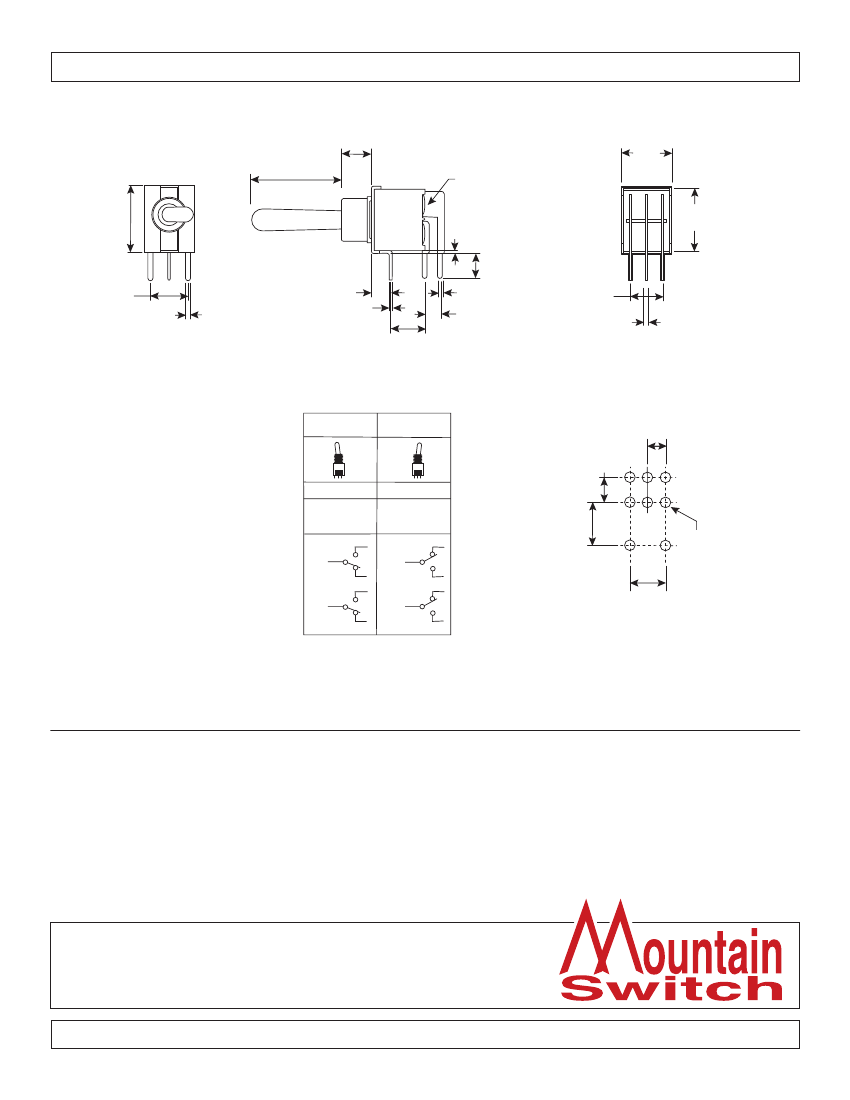

Dimensions: mm (in)
Ref. #:
MS-100955
10.16
(.40)
4.11
(.22)
Epoxy
Seal
.51
(.02)
1 4
3.30
(.13)
.76
(.03)
2.54
(.10)
5.08
(.20)
5.08
(.20)
8.13
(.32)
4 5 6
9.14
(.36)
10.16
(.40)
1 2 3
5.08
(.20)
.76
(.03)
4.18
(.165)
.40
(.0 16)
.51
(.02)
SWITCH FUNCTION
POS.1
POS.2
P.C. MOUNTING
2.54
(.10)
2.54
(.10)
ON
2-3, 5-6
1
2 Comm.
4
5 Comm.
6
5 Comm.
3
2 Comm.
4
6
(ON)
2-1, 5-4
1
3
5.08
(.20)
5.08
(.20)
ø1.09
(ø.043)
Electrical Specifications:
•
Contact Resistance: 20mΩ max. initial @ 2-4VDC 100mA
•
Insulation Resistance: 1,000MΩ min.
•
Dielectric Strength: 1,000 V RMS@ sea level.
•
Rating:
1A / 250 VAC
3A / 120 VAC or 28 VDC
Soldering Process:
•
Manual Soldering: Use soldering iron of 30 watts, controlled
•
at 350°C approximately 5 sec. while applying solder.
Wave Soldering: Recommended Soldering Temperature: 260±5°C
Duration of Solder Immersion: 5±1sec. (PCB is 1.6mm in thickness)
Mechanical Specifications:
•
Operating Temperature: -30°C to +85°C
•
Mechanical Life: 50,000 make-and-break cycles
Note:
•
RoHS compliant by exemption
Toggle Switch
108-2AD2T1613-EVX
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
