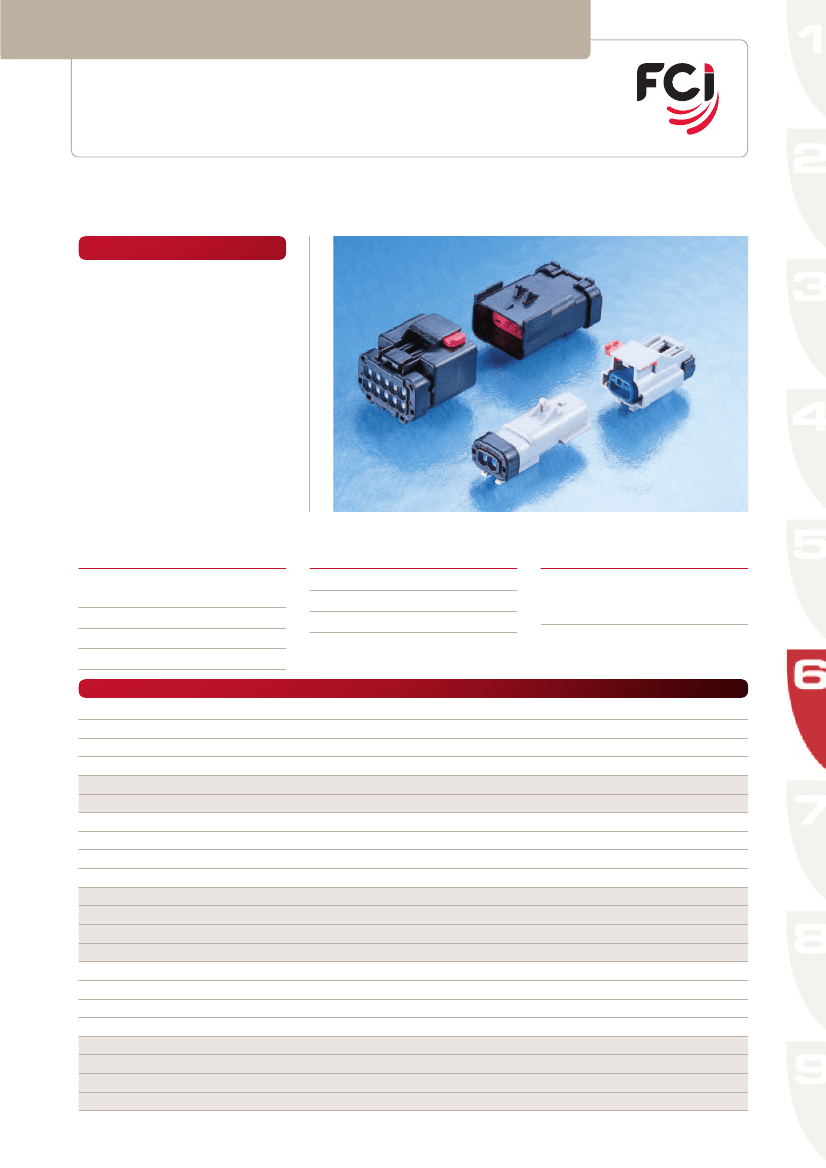

Engine Compartment Connectors
Coupling connectors
Apex
2/3/4/6/10/14 way sealed coupling housings for 2.8 mm terminals
Features
•
2-3-4-6-10 and 14 position
housings available
•
Single row 5.25 mm pitch for 2-3-4
position housings
•
Double row 5.25 x 6.40 mm pitch
for 6-10 and 14 position housings
•
Circumferencial interface seal on
female housing
•
Rear sealing ensured by a
pre-mounted grommet
•
Terminal position assurance (T.P.A.)
•
Connector position assurance (C.P.A.)
•
Fastening clip available
•
Mechanical polarization
•
Several colour codings available
Performance characteristics
•
Temperature range:
from -40°C to +125°C
Construction
•
Housing material:
•
Interface seal:
PA
Silicone
Silicone
Connector compatibility
•
Usable terminals:
- Apex 2.8 mm female terminals
- Apex 2.8 mm male terminals
•
Contact retention force:
•
Contact insertion force:
•
Connector mating force:
Part Numbers
54200206
54200207
54200208
54200209
54200210
54200211
54200308
54200309
54200310
54200311
54200312
54200313
54200314
54200315
54200409
54200410
54200411
54200412
54200413
54200414
54200415
54200416
> 90 N
< 30 N
< 90 N
•
Rear grommet seal:
No. of position
2
2
2
2
2
2
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
Terminal size
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
Type
Female housing
Female housing
Female housing
Female housing
Male housing
Male housing
Female housing
Female housing
Female housing
Female housing
Male housing
Male housing
Male housing
Male housing
Female housing
Female housing
Female housing
Female housing
Male housing
Male housing
Male housing
Male housing
Colour
Black
Light grey
Dark grey
Natural
Black
Light grey
Black
Light grey
Dark grey
Natural
Black
Light grey
Dark grey
Natural
Black
Light grey
Dark grey
Natural
Black
Light grey
Dark grey
Natural
6.19
Engine Compartment Connectors
Coupling connectors
Apex
2/3/4/6/10/14 way sealed coupling housings for 2.8 mm terminals
Part Numbers
54200608
54200609
54200610
54200611
54200612
54200613
54200614
54200615
54201009
54201010
54201011
54201012
54201013
54201014
54201015
54201016
54201017
54201018
54201411
54201412
54201413
54201414
54201415
54201416
54201417
54201418
No. of position
6
6
6
6
6
6
6
6
10
10
10
10
10
10
10
10
10
10
14
14
14
14
14
14
14
14
Terminal size
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
Type
Female housing
Female housing
Female housing
Female housing
Male housing
Male housing
Male housing
Male housing
Female housing
Female housing
Female housing
Female housing
Female housing
Female housing
Female housing
Male housing
Male housing
Male housing
Female housing
Female housing
Female housing
Female housing
Male housing
Male housing
Male housing
Male housing
Colour
Black
Light grey
Dark grey
Natural
Black
Light grey
Dark grey
Natural
Black
Light grey
Dark grey
Light green
Dark green
Orange
Aqua
Black
Light grey
Light green
Black
Light grey
Dark grey
Natural
Black
Light grey
Dark grey
Natural

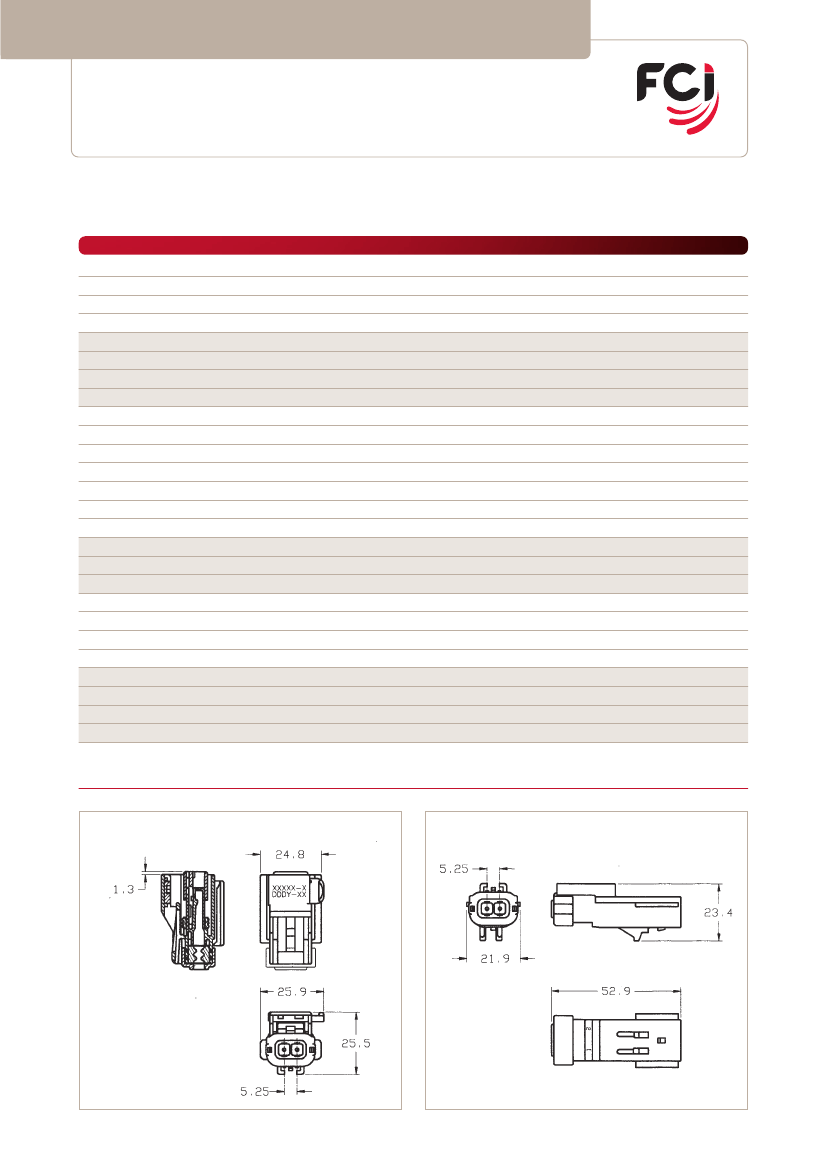

Dimensional characteristics
2 way female housing
2 way male housing
6.20
Engine Compartment Connectors
Coupling connectors
Apex
2/3/4/6/10/14 way sealed coupling housings for 2.8 mm terminals

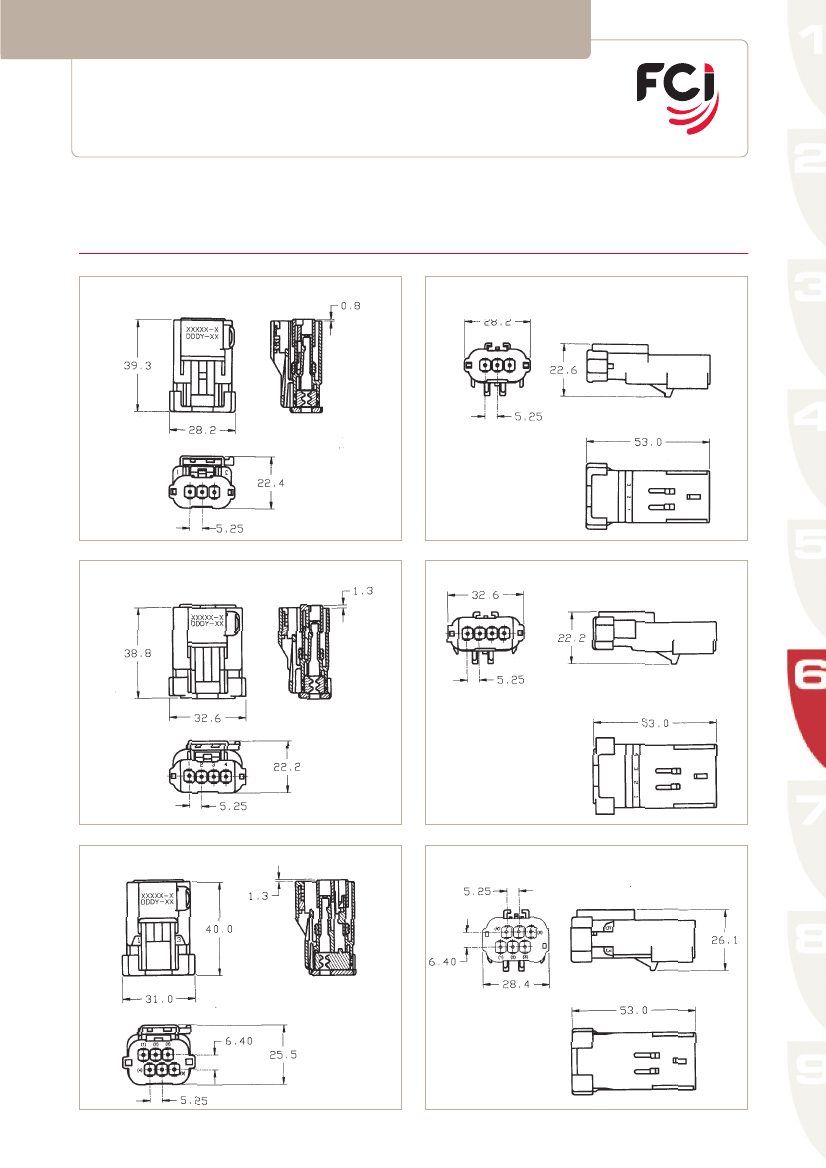

Dimensional characteristics
3 way female housing
3 way male housing
4 way female housing
4 way male housing
6 way female housing
6 way male housing
6.21
Engine Compartment Connectors
Coupling connectors
Apex
2/3/4/6/10/14 way sealed coupling housings for 2.8 mm terminals

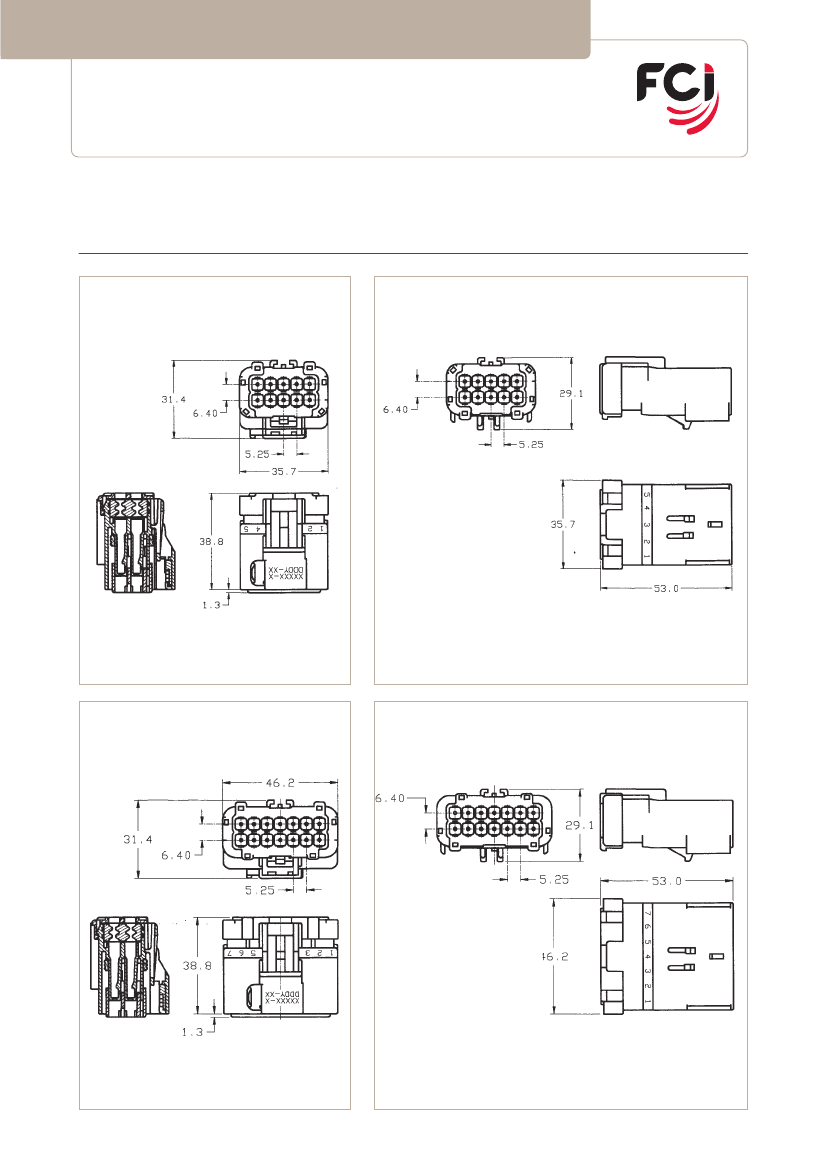

Dimensional characteristics
10 way female housing
10 way male housing
14 way female housing
14 way male housing
6.22
