BYM13-20 thru BYM13-60, SGL41-20 thru SGL41-60
Vishay General Semiconductor
Surface Mount Schottky Barrier Rectifier
FEATURES
• MELF Schottky rectifier
• Ideal for automated placement
• Guardring for overvoltage protection
• Low power losses, high efficiency
• Low forward voltage drop
• High surge capability
• Meets MSL level 1, per J-STD-020, LF maximum
peak of 250 °C
DO-213AB
• Solder dip 260 °C, 40 s
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
TYPICAL APPLICATIONS
For use in low voltage high frequency inverters,
freewheeling, dc-to-dc converters, and polarity
protection applications
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
T
J
max.
1.0 A
20 V to 60 V
30 A
0.50 V, 0.70 V
125 °C, 150 °C
MECHANICAL DATA
Case:
DO-213AB
Epoxy meets UL 94V-0 flammability rating
Terminals:
Matte tin plated leads, solderable per
J-STD-002 and JESD22-B102
E3 suffix for consumer grade, meets JESD 201 class
1A whisker test, HE3 suffix for high reliability grade
(AEC Q101 qualified), meets JESD 201 class 2
whisker test
Polarity:
Two bands indicate cathode end 1st band
denotes device type 2nd band denotes voltage type
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Denotes Schottky devices: 1st band is orange
Polarity color bands (2nd band) voltage type
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current (Fig. 1)
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load
Voltage rate of change (rated V
R
)
Operating junction temperature range
Storage temperature range
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
dV/dt
T
J
T
STG
- 55 to + 125
- 55 to + 150
SYMBOL BYM13-20 BYM13-30 BYM13-40 BYM13-50 BYM13-60
SGL41-20
Gray
20
14
20
SGL41-30
Red
30
21
30
SGL41-40
Orange
40
28
40
1.0
30
10 000
- 55 to + 150
SGL41-50
Yellow
50
35
50
SGL41-60
Green
60
42
60
V
V
V
A
A
V/µs
°C
°C
UNIT
Document Number: 88548
Revision: 29-Apr-08
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
www.vishay.com
47
BYM13-20 thru BYM13-60, SGL41-20 thru SGL41-60
Vishay General Semiconductor
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage
(1)
Maximum reverse
current at rated DC
blocking voltage
(1)
Typical junction
capacitance
TEST CONDITIONS
1.0 A
T
A
= 25 °C
T
A
= 100 °C
4.0 V, 1.0 MHz
SYMBOL
V
F
BYM13-20 BYM13-30 BYM13-40 BYM13-50 BYM13-60
SGL41-20
SGL41-30
0.50
0.5
I
R
10
110
5.0
80
mA
SGL41-40
SGL41-50
SGL41-60
UNIT
V
0.70
C
J
pF
Note:
(1) Pulse test: 300 µs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum thermal resistance
(1)
SYMBOL
R
θJA
R
θJT
BYM13-20 BYM13-30 BYM13-40 BYM13-50 BYM13-60
SGL41-20
SGL41-30
SGL41-40
75
30
SGL41-50
SGL41-60
UNIT
°C/W
Note:
(1) Thermal resistance junction to terminal, 0.24 x 0.24" (6.0 x 6.0 mm) copper pads to each terminal
ORDERING INFORMATION
(Example)
PREFERRED P/N
SGL41-40-E3/96
SGL41-40-E3/97
BYM13-40-E3/96
BYM13-40-E3/97
SGL41-40HE3/96
(1)
SGL41-40HE3/97
(1)
BYM13-40HE3/96
(1)
BYM13-40HE3/97
(1)
UNIT WEIGHT (g)
0.137
0.137
0.137
0.137
0.137
0.137
0.137
0.137
PREFERRED PACKAGE CODE
96
97
96
97
96
97
96
97
BASE QUANTITY
1500
5000
1500
5000
1500
5000
1500
5000
DELIVERY MODE
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
7" diameter plastic tape and reel
13" diameter plastic tape and reel
Note:
(1) Automotive grade AEC Q101 qualified
RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
1.0
30
0.75
SGL41-20 to SGL41-40
P.C.B. Mounted
on 0.24 x 0.24"
(6.0 x 6.0 mm)
Copper Land
Areas
Peak Forward Surge Current (A)
Resistive or
Inductive Load
Average Forward Current (A)
At Rated T
d
8.3
ms Single Half Sine-Wave
25
20
0.50
SGL41-50 and SGL41-60
15
0.25
10
0
0
25
50
75
100
125
150
175
5
1
10
100
Terminal Temperature (°C)
Number
of Cycles at 60 Hz
Figure 1. Forward Current Derating Curve
www.vishay.com
48
Figure 2. Maximum Non-Repetitive Peak Forward Surge Current
Document Number: 88548
Revision: 29-Apr-08
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
BYM13-20 thru BYM13-60, SGL41-20 thru SGL41-60
Vishay General Semiconductor
100
1000
T
J
= 125 °C
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mVp-p
Instantaneous Forward Current (A)
10
T
J
= 150 °C
Pulse
Width
= 300
µs
1
%
Duty Cycle
1
T
J
= 25 °C
Junction Capacitance (pF)
100
0.1
SGL41-20 to SGL41-40
SGL41-50 and SGL41-60
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
SGL41-20 to SGL41-40
SGL41-50 and SGL41-60
10
0.1
1
10
100
Instantaneous Forward
Voltage
(V)
Reverse
Voltage
(V)

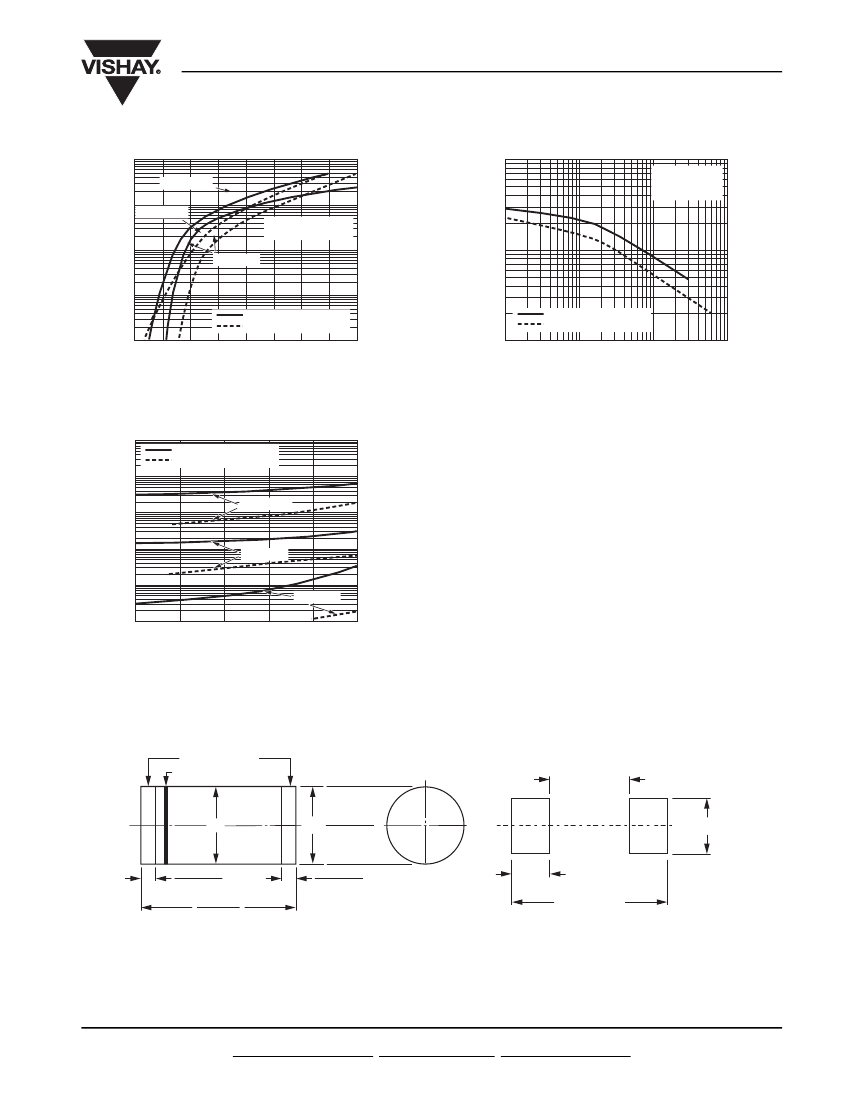

Figure 3. Typical Instantaneous Forward Characteristics
Figure 5. Typical Junction Capacitance
100
Instantaneous Reverse Current (mA)
SGL41-20 to SGL41-40
SGL41-50 and SGL41-60
10
T
J
= 125 °C
1
0.1
T
J
= 75 °C
0.01
T
J
= 25 °C
0.001
0
20
40
60
80
100
Percent of Rated Peak Reverse
Voltage
(%)
Figure 4. Typical Reverse Characteristics
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
DO-213AB
Solderable Ends
Mounting Pad Layout
0.138 (3.5) MAX.
1st Band
0
D2 = D1
+ 0.008 (0.20)
-
D2
D1 =
0.105 (2.67)
0.095 (2.41)
0.118 (3.0) MIN.
0.022 (0.56)
0.018 (0.46)
0.205 (5.2)
0.185 (4.7)
0.022 (0.56)
0.018 (0.46)
0.049 (1.25) MIN.
0.238 (6.0) REF.
1st
band
denotes type and positive end (cathode)
Document Number: 88548
Revision: 29-Apr-08
For technical questions within your region, please contact one of the following:
PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com
www.vishay.com
49
