Part Number

Search

39980-2103

Description
pluggable terminal blocks 3P plug SR bts clamp
CategoryThe connector    terminals
File Size35KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39980-2103 Overview

pluggable terminal blocks 3P plug SR bts clamp

39980-2103 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codeunknow
ECCN codeEAR99
Fastening methodSPRING LOADED
Manufacturer's serial number39980
Number of layers1
Rows1
Number of channels3
Rated current10 A
Rated voltage300 V
safety certificateUL
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Conductor cross section1.5 mm2
Wire gauge14 AWG
Base Number Matches1

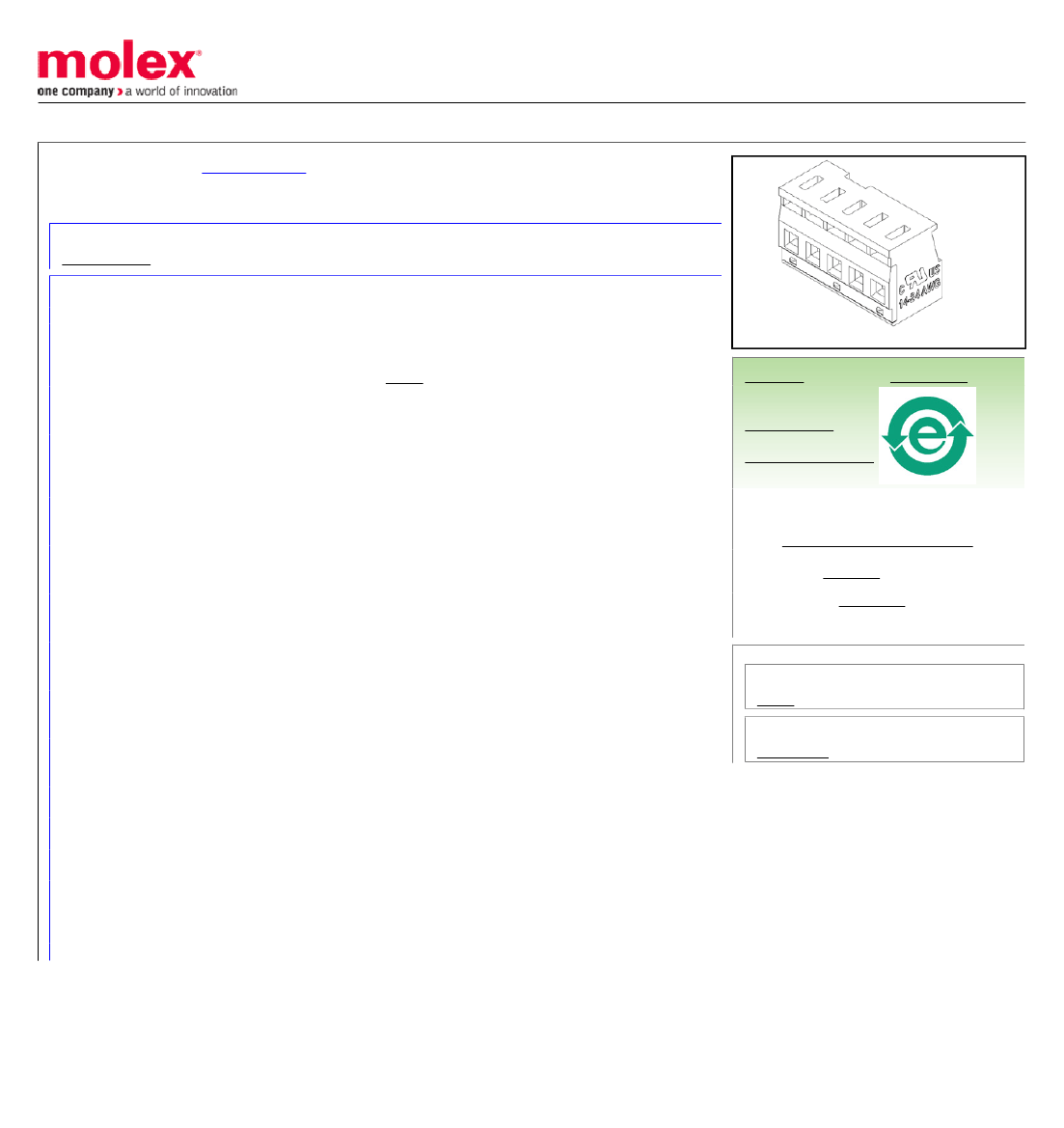

This document was generated on 10/29/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Documents:
Drawing (PDF)
0399802103
Obsolete
5.08mm (.200") Pitch Beau™ Eurostyle™ Spring Clamp Plug, 3 Circuits
Agency Certification
UL
E48521
General
Product Family
Series
Application
Component Type
Product Name
Type
Terminal Blocks
39980
Wire-to-Board
Plug
Eurostyle™Pluggable
Euro Block
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Resin
Number of Rows
Orientation
PCB Retention
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
3
Black
Horizontal
94V-0
Yes
Stainless Steel
High Temperature Thermoplastic
1
Vertical
N/A
No
5.08mm (.200")
5.08mm (.200")
Yes
Closed Ends
No
140°C
Surface Mount
14, 16, 18, 20, 22, 24
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39980Series
Mates With
39980-0403
Electrical
Current - Maximum per Contact
Voltage - Maximum
10A
300V
Material Info
Country of Origin
Old Part Number
MX, US
983903
Reference - Drawing Numbers
Sales Drawing
SD-39980-005
This document was generated on 10/29/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
