Part Number

Search

52271-0883

Description
ffc / fpc connector 1.0 fpc zif smt R/A btm Au 8cktembstppkg
CategoryThe connector
File Size27KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

52271-0883 Online Shopping

Suppliers Part Number Price MOQ In stock
52271-0883 - - View Buy Now

52271-0883 Overview

ffc / fpc connector 1.0 fpc zif smt R/A btm Au 8cktembstppkg

52271-0883 Parametric

Parameter NameAttribute value
MakerMolex
RoHSyes
Pitch1 mm
Installation angleRigh
Installation styleSMD/SMT
Shell materialPhosphor Bronze
Contact materialPhosphor Bronze
Contact platingTin-Bismuth over Nickel
Voltage rating50 VAC
Current rating0.5 A
Termination typeSolder Pi
Wire typeFFC/FPC

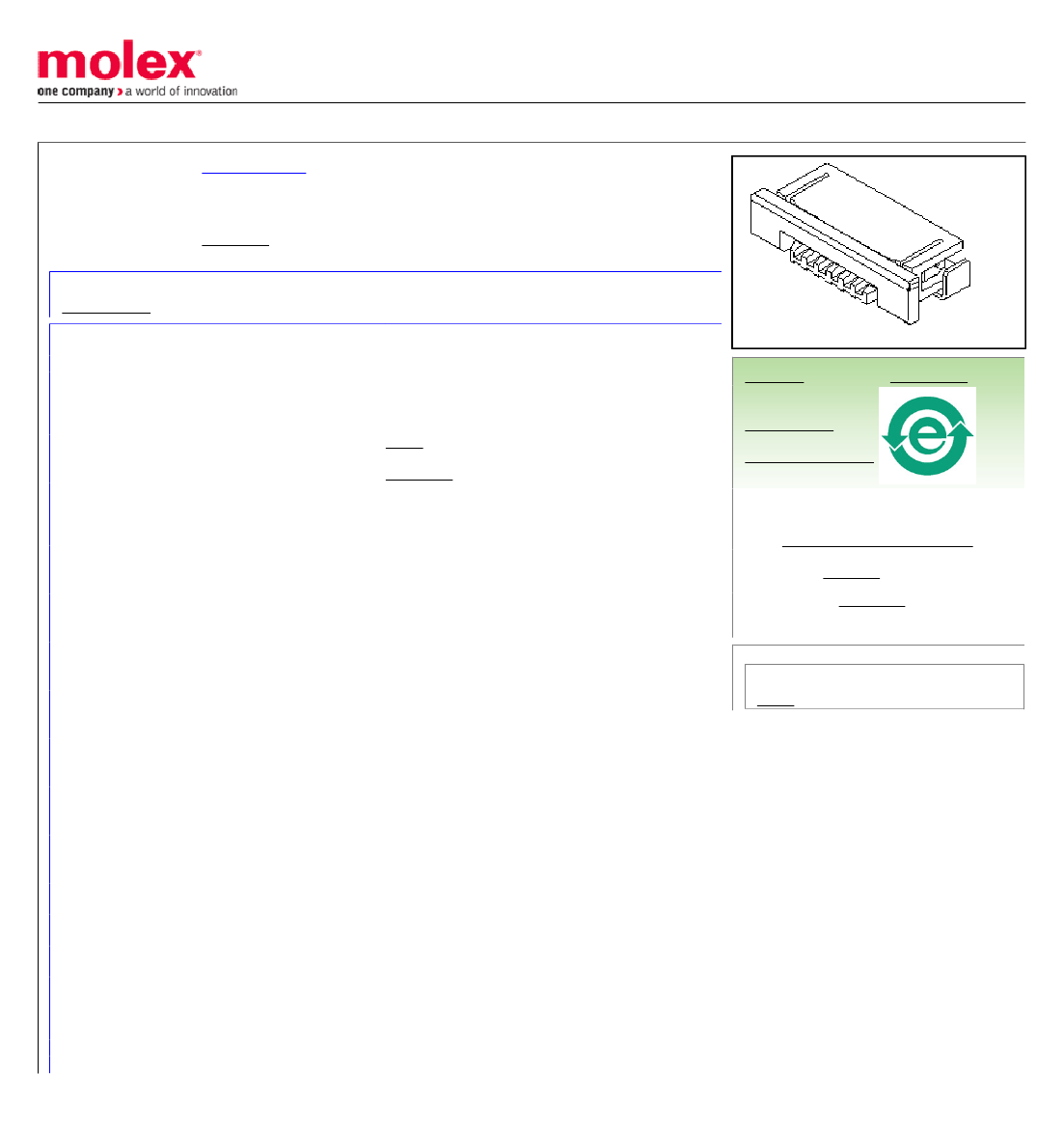

This document was generated on 11/25/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Replacement Part
Number:
Documents:
Drawing (PDF)
Series
0522710883
Obsolete
1.00mm (.039") Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Bottom Contact
Style, 8 Circuits, Lead-free, Gold (Au) Contact Plating, High Barrier Packaging
522710869
Agency Certification
CSA
UL
LR19980
E29179
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Product Name
Replacement Part Number
FFC/FPC Connectors
52271
N/A
522710869
Physical
Circuits (Loaded)
Color - Resin
Contact Position
Durability (mating cycles max)
Entry Angle
Flammability
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire/Cable Type
8
Natural
Bottom
30
90° Angle
94V-0
3.00mm (.118")
Phosphor Bronze
Gold
Tin
Nylon
1
Right Angle
No
Yes
Embossed Tape on Reel
1.00mm (.039")
1.00mm (.039")
Yes
No
-20°C to +85°C
Surface Mount
FFC/FPC
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
52271Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
50V AC (RMS)/DC
Material Info
Country of Origin
CN, JP
Reference - Drawing Numbers
Application Specification
Product Specification
Sales Drawing
AS-52271-001
PS-52271-054, RPS-52271-086, RPS-52271-090
SD-52271-038, SD-52271-041
