599-11-432-15-001428 datasheet, PDF

Datasheet> All Categories > The connector> socket> 599-11-432-15-001428

599-11-432-15-001428: DescriptionIC Socket, BGA432, 432 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size253KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

599-11-432-15-001428 Overview

IC Socket, BGA432, 432 Contact(s), ROHS COMPLIANT

599-11-432-15-001428 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	BGA ADAPTER
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	BGA432
Shell material	GLASS FILLED EPOXY
JESD-609 code	e4
Number of contacts	432
Base Number Matches	1

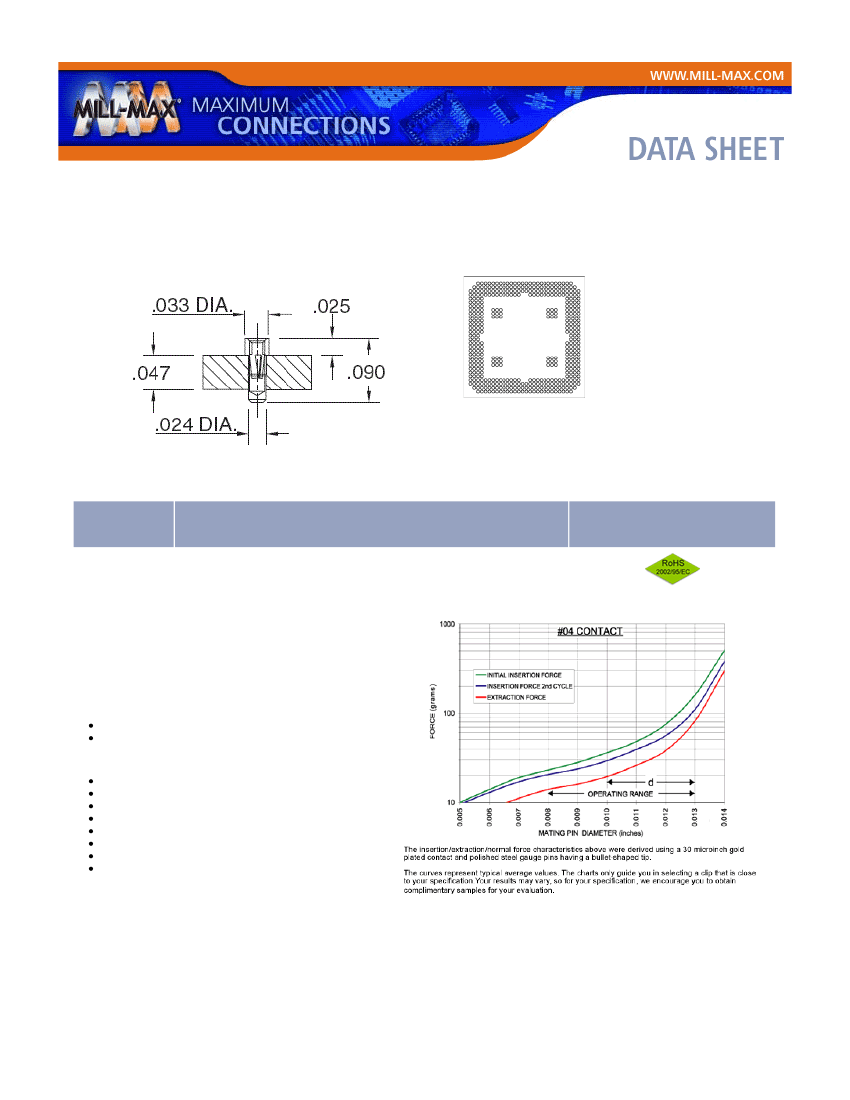

Preview

Download Datasheet

View All

Product Number: 599-11-432-15-001428

Description:

BGA Socket

1mm Grid; BGA Socket

Surface Mount

Accepts .008-.013" Leads

Plating Code:

Shell Plating:

10 μ" Gold over 100 μ" Nickel

Inner Contact Plating:

10 μ" Gold over 50 μ" Nickel

432-15-001

30 X 30

Pins

432

Mill-Max

Part

Number

599-11-432-15-001428

RoHS

Compliant

CONTACT:

Contact Used: #04, Standard 3 Finger Contact

Current Rating =

2 Amps

BERYLLIUM COPPER ALLOY

172 (UNS C17200) per

ASTM B 194

Properties of BERYLLIUM COPPER:

Chemical composition: Cu 98.1%, Be 1.9%

Temper as stamped: TD01

Properties after heat treatment (TH01):

Hardness: 36-43 Rockwell C

Mechanical Life: 100 Cycles Min.

Density: .298 lbs/in3

Electrical Conductivity: 22% IACS*

Resistance: 10 miliohms Max

Operating Temperature: -55°C/+125°C

Melting point: 980°C/865°C (liquidus/solidus)

Stress Relaxation†: 96% of stress remains after

1,000 hours @ 100 °C ; 70% of stress remains

after 1,000 hours @ 200 °C

*International Annealed Copper Standard, i.e. as a % of pure copper.

†Since BeCu loses its spring properties over time at high temperatures; it is rated for continuous use up to 150°C. For

applications up to 300°C, Mill-Max offers many contacts in Beryllium Nickel. Contact Tech Support for more info.

Mill-Max Mfg. Corp. Datasheet — Last Modified 6/6/2009

Page 1 of 2
