C&K CRD Series
10mm DIP Coded Rotary Switches
Features/Benefits
•
Process sealed – withstands
Typical Applications
•
Address switching applications
•
Data storage devices
•
Computer and peripherals
•
Instrumentation
I
DIP
soldering and cleaning
•
Thru-hole and surface mount models
•
Crisp, positive detent ensures actua-
tion
•
Computer and peripherals
•
Rohs compliant - options available
Specifications
CONTACT RATING: 0.4 V AC, DC 20 V max.
ELECTRICAL LIFE: 20,000 steps min. @ 5 V DC 10 mA.
MECHANICAL LIFE: 30,000 steps min.
CONTACT RESISTANCE: 100 milliohms max. initial
@ 2 V DC 10 mA.
INSULATION RESISTANCE: 1000 megohms min. @ 100 V DC
DIELECTRIC STRENGTH: 300 V AC for 1 minute.
OPERATING TEMPERATURE: -20°C to 85°C.
STORAGE TEMPERATURE: -40°C to 85°C.
OPERATING FORCE: 1000 grams max.
PACKAGING: Switches supplied in anti-static tubes in full quan-
tities only. This may affect order quantity. Surface mount
models with MO actuators available in tape and reel, 500
pieces per reel.
Materials
COVER: (PTH) PBT red; (SMT) PPA - red (UL 94V-0).
HOUSING: (PTH) PBT green; (SMT) PPA - natural (UL 94V-0).
ACTUATOR: 4/6 nylon PA-6T (UL 94V-0).
CONTACTS: Beryllium copper with gold plating.
TERMINALS: Brass with tin-lead plate.
RoHS, Version brass with gold plate over nickel plate.
NOTE:
For the latest information regarding RoHS compliance, please go to:
www.ittcannon.com/rohs.
Note:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
How To Order
Our easy Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete
listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.
C R D
Switch Function
CRD10R
10 position, BCD
CRD10C
10 position, BCD complement
CRD16R
16 position, Hexadecimal
CRD16C
16 position, Hexadecimal complement
Actuator
M0
Flush, screwdriver slot
L1*
Extended, screwdriver slot
W1*
Wheel
Packaging
(None)
Tube
R
Tape & Reel
(M0 actuator only)
Contact /Terminal Material
K
Gold/Tin-Lead
B
Gold/Gold
Terminations
A
Right angle, PC thru-hole
C
PC Thru-hole
S
Surface Mount
* Note - L1 and W1 actuators are not available in termination “S”
Dimensions are shown: Inch (mm )
Specifications and dimensions subject to change
I-32
www.ittcannon.com
C&K CRD Series
10mm DIP Coded Rotary Switches

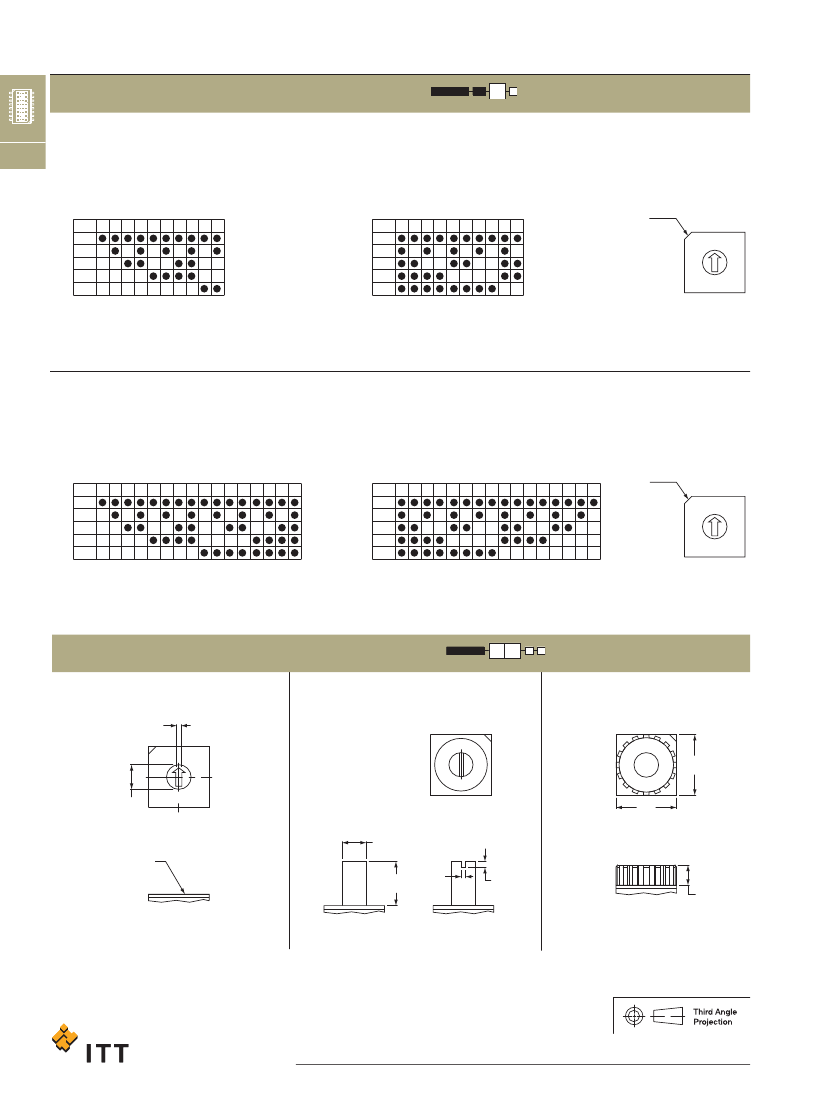

SWITCH FUNCTION
CRD10R
10 POSITION, BCD
ACTUATOR COLOR: RED
CRD10C
I
DIP
10 POSITION, BCD COMPLEMENT
ACTUATOR COLOR: ORANGE
POS. 0 1 2 3 4 5 6 7 8 9
C
1
2
4
8
POS. 0 1 2 3 4 5 6 7 8 9
C
1
2
4
PIN 1
INDICATOR
C&K
9
0
1
2 3
CRD10R
7
8
16 POSITION, HEXADECIMAL COMPLEMENT
ACTUATOR COLOR: WHITE
PIN 1
INDICATOR
8
CRD16R
16 POSITION, HEXADECIMAL
ACTUATOR COLOR: BLACK
CRD16C
POS. 0 1 2 3 4 5 6 7 8 9 A B C D E F
C
1
2
4
8
POS. 0 1 2 3 4 5 6 7 8 9 A B C D E F
C
1
2
4
8
B
C
D
E
ACTUATOR
M0
(STD.) FLUSH WITH SCREWDRIVER SLOT
.207
(0,70)
L1*
EXTENDED WITH SCREWDRIVER SLOT
W1*
WHEEL
9
8
7
6
4
5
6
9
0
1
7
8
5
4
3
7
8
.157
(4,00)
.394
(10,0)
Ø.157
(4,00)
.287
(7,30)
.027
(0,69)
.039
(0,99)
FLUSH ACTUATOR
NOTE:
Designed for #0 Phillips screwdriver.
* L1 and W1 actuators are not available in termination “S”
Dimensions are shown: Inch (mm )
Specifications and dimensions subject to change
I-34
www.ittcannon.com
D
C
B
A
.394
(10,0)
0
.130
(3,30)
6
7
89
A
4
5
6
F
0
1
2
XX
C&K
3
4
5
CRD16R
XX
9
2
1
0
F
E
2 3
2 3
1
4
5
6
C&K CRD Series
10mm DIP Coded Rotary Switches

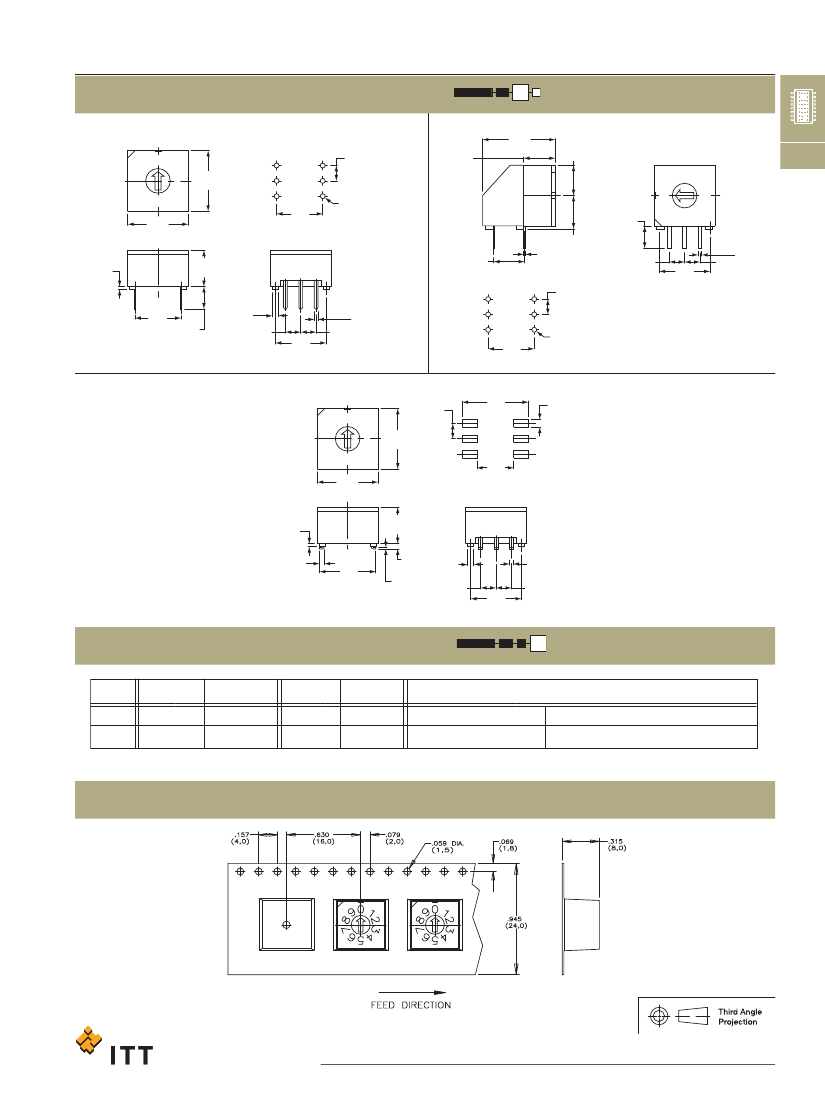

TERMINATIONS
C
PC THRU-HOLE
A
.394
(10,0)
1
C
4
8
C
2
.032 TYP.
(0,81)
.100
(2,54)
RIGHT ANGLE, PC THRU-HOLE
.472
(12,0)
.197
(5,00)
9
0
1
.205
(5,20)
I
9
0
1
7
8
2
3
.394
(10,0)
.236
(6,00)
.146
(3,70)
8
1
.217
(5,50)
.010
(0,25)
.100
(2,54)
.020
(0,51)
.200
(5,08)
1
8
C
2
.200
(5,08)
.100
(2,54)
.330
(8,38)
.300
(7,62)
.146
(3,70)
Ø.040
(1,02)
.100
(2,54)
.330
(8,38)
.024 TYP.
(0,60)
.100
(2,54)
C
4
.032 TYP.
(0,81)
S
SURFACE MOUNT
.100
(2,54)
TYP.
.430
(10,9)
8
1
C
4
C
2
.050
(1,27)
9
0
1
.394
(10,0)
.394
(10,0)
.236
(6,00)
.035
(0,89)
.010
(0,25)
.020
(0,51)
TYP.
.031
(0,79)
TYP.
.366
(9,30)
CONTACT MATERIAL
OPTION
CODE
RoHS
COMPLIANT*
NO
YES
RoHS
COMPATIBLE *
YES
YES
CONTACT
MATERIAL
GOLD
GOLD
TERMINAL
PLATING
TIN-LEAD
GOLD
LOW LEVEL/DRY CIRCUIT
LOW LEVEL/DRY CIRCUIT
RATING
0.4 VC MAX. @ 20 V AC or DC MAX.
0.4 VC MAX. @ 20 V AC or DC MAX.
K
B
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
4
5
6
7
8
.240
(6,10)
Ø.040
(1,02)
.100
(2,54)
.330
(8,38)
.024 TYP.
(0,60)
.100
(2,54)
TAPE & REEL
Dimensions are shown: Inch (mm )
Specifications and dimensions subject to change
I-35
www.ittcannon.com
7
8
.024 TYP.
.100
(0,60)
(2,54)
2 3
DIP
4
5
6
4
5
6
.300
(7,62)
2 3
