CMSH3-20
CMSH3-40
CMSH3-60
CMSH3-100
w w w. c e n t r a l s e m i . c o m
SURFACE MOUNT
SILICON SCHOTTKY RECTIFIER
3 AMP, 20 THRU 100 VOLTS
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMSH3-20 Series
3.0 Amp Surface Mount Silicon Schottky Rectifier
is a high quality, well constructed, highly reliable
component designed for use in all types of commercial,
industrial, entertainment, computer, and automotive
applications. To order devices on 16mm Tape and
Reel (3000/13” Reel), add TR13 suffix to part number.
MARKING CODE: SEE MARKING CODE TABLE ON
FOLLOWING PAGE

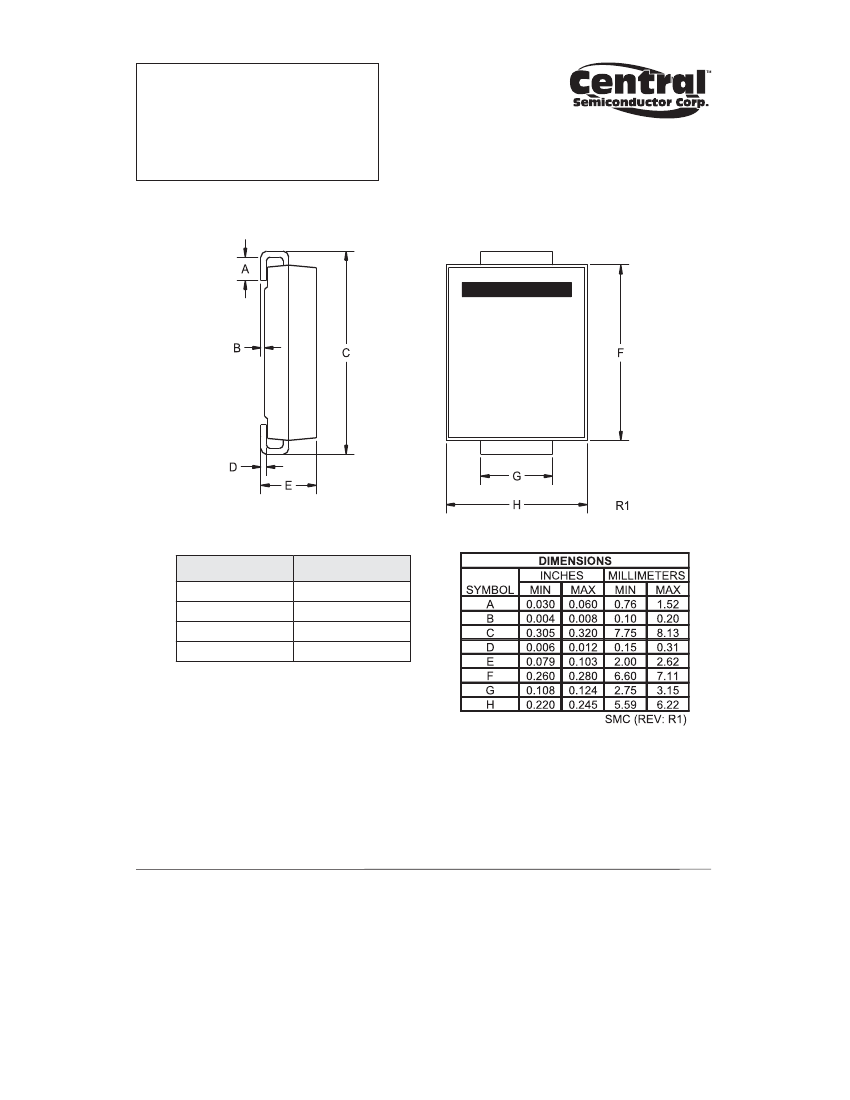

SMC CASE
FEATURES:
• Low cost
• Superior lot to lot consistency
• High reliability
• Special selections available
• “C” bend construction provides strain relief when
mounted on pc board
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
SYMBOL
Peak Repetitive Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Forward Current (TA=75°C)
Peak Forward Surge Current, tp=8.3ms
Operating and Storage Junction Temperature
Thermal Resistance
VRRM
VR
VR(RMS)
IO
IFSM
TJ, Tstg
Θ
JL
CMSH3
-20
20
20
14
CMSH3
-40
40
40
28
CMSH3
-60
60
60
42
3.0
150
CMSH3
-100
UNITS
100
100
71
V
V
V
A
A
°C
°C/W
-65 to +150
10
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
MAX
IR
IR
VF
VF
VF
VR=Rated VRRM
VR=Rated VRRM, TA=100°C
IF=3.0A (CMSH3-20, -40)
IF=3.0A (CMSH3-60)
IF=3.0A (CMSH3-100)
500
20
0.50
0.70
0.80
UNITS
µA
mA
V
V
V
R3 (8-February 2010)
