2 W
ATT
R
EGULATED
DC/DC C
ONVERTER
Product Data Sheet
HL02RYC
FEATURES
LOW COST
INTERNAL FILTERING
SURFACE MOUNT CONSTRUCTION
TEMPERATURE RANGE:
-25
°
C TO +70
°
C
INDUSTRY STANDARD PINOUT
ROHS COMPLIANT
OBSOLETE PRODUCT
Contact Factory for Replacement Model
DESCRIPTION
The HL02RYC Series offers an extensive selection of
input and output voltage combinations to choose from.
These miniature, regulated DC/DC converters come in
24 pin DIP and SMD packages. This small size is pos-
sible through the use of surface mount manufacturing
technologies.
The HL02RYC Series utilizes a 110 KHz push-pull
oscillator in the input stage with low-drop regulators on
the outputs, reducing the output noise and maintaining
good efficiency.
The use of surface mount construction and automated
manufacturing processes increase consistency and
reliability while reducing overall cost.
ABSOLUTE MAXIMUM RATINGS
Internal Power Dissipation.......................................................1.5W
Short Circuit Duration.............................................................30 Sec
Lead Temperature (soldering, 10 seconds max)................+300°C
ORDERING INFORMATION
HL02R xxyzz Y
Device Family
HL Indicates DC/DC Converter
Model Number
Where:
xx = Input Voltage
y = Number or Outputs (Single "S", Dual "D")
zz = Output Voltage
Package Option
RoHS Compliant
C
*
*
Note: Refer to Reflow Profile for SMD Models.
T
YPICAL PERFORMANCE CURVES
Specifications typical at T
A
= +25°C, nominal input voltage, rated output current unless
otherwise specified.
EFFICIENCY vs LOAD
100%
Efficiency
50%
0%
For full details go to
www.murata-ps.com/rohs
0%
25%
50%
75%
100%
Load
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
TDC_HL02RYC.B02
Page 1 of 3
ELECTRICAL SPECIFICATIONS
Specifications typical at T
A
= +25°C, nominal input voltage, rated output current unless otherwise specified.
NOMINAL
INPUT
VOLTAGE
MODEL
HL02R05S05YC
HL02R05S12YC
HL02R05S15YC
HL02R12S05YC
HL02R12S12YC
HL02R12S15YC
HL02R15S05YC
HL02R15S12YC
HL02R15S15YC
HL02R24S05YC
HL02R24S12YC
HL02R24S15YC
HL02R05D12YC
HL02R05D15YC
HL02R12D12YC
HL02R12D15YC
HL02R15D12YC
HL02R15D15YC
HL02R24D12YC
HL02R24D15YC
(VDC)
5
5
5
12
12
12
15
15
15
24
24
24
5
5
12
12
15
15
24
24
RATED
OUTPUT
VOLTAGE
(VDC)
5
12
15
5
12
15
5
12
15
5
12
15
±12
±15
±12
±15
±12
±15
±12
±15
RATED
OUTPUT
CURRENT
(mA)
400
166
134
400
166
134
400
166
134
400
166
134
±83
±67
±83
±67
±83
±67
±83
±67
INPUT CURRENT
MIN LOAD
(mA)
70
70
70
40
40
40
30
30
30
15
15
15
70
70
40
40
30
30
15
15
RATED LOAD
(mA)
640
580
580
280
250
250
230
200
200
135
120
120
640
640
270
270
220
220
135
135
2 W
ATT
R
EGULATED
DC/DC C
ONVERTER
HL02RYC
EFFICIENCY
(%)
62
69
69
60
67
67
58
67
67
62
67
67
62
62
62
62
61
61
62
62
Note: Other input to output voltages may be available. Please contact factory.
COMMON SPECIFICATIONS
PARAMETER
INPUT
Voltage Range
Specifications typical at T
A
= +25°C, nominal input voltage, rated output current unless otherwise specified.
CONDITIONS
MIN
4.75
11.4
14.25
22.8
TYP
5
12
15
24
30
MAX
5.25
12.6
15.75
25.2
100
UNITS
VDC
VDC
VDC
VDC
mAp-p
Reflected Ripple Current
ISOLATION
Rated Voltage
Test Voltage
Resistance
Capacitance
Leakage Current
OUTPUT
Rated Power
Voltage Setpoint Accuracy
Temperature Coefficent
Ripple & Noise
5V Output -- Singles Only
Line Regulation
Load Regulation
GENERAL
Switching Frequency
Package Weight
MTTF per MIL-HDBK-217, Rev. F
Ground Benign
60 Hz, 10 Seconds
500
500
1
25
2
V
ISO
= 240VAC, 60Hz
VDC
Vpk
G
pF
μArms
BW = DC to 10MHz
BW =10Hz to 2MHz
High Line to Low Line
Rated Load to No Load
2
±0.5
±0.02
25
10
250
±0.5
±0.5
110
12
±5
100
350
±1
±1
W
%
%/°C
mVp-p
mVrms
mVp-p
%
%
kHz
g
kHr
kHr
Circuit Stress Method
T
A
= +25°C
T
A
= +70°C
1100
20
TEMPERATURE
Specification
Operation
Storage
-25
-40
-40
+70
+85
+110
°C
°C
°C
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
TDC_HL02RYC.B02
Page 2 of 3
2 W
ATT
R
EGULATED
DC/DC C
ONVERTER

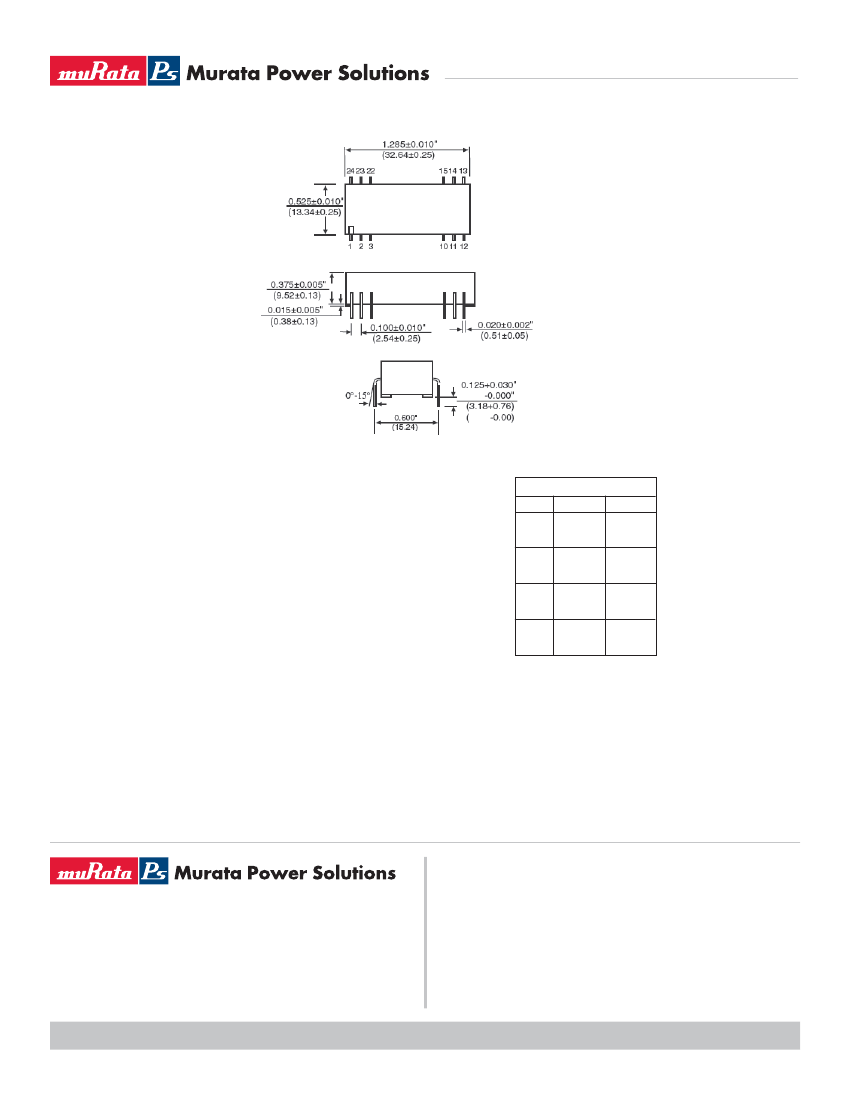

MECHANICAL
Package/Pinout "Y"
TOP VIEW
HL02RYC
HL02RxxyzzYC
SIDE VIEW
END VIEW
DIP PACKAGE
NU = Do Not Use.
NC = No Internal Connection.
Duplicate pin functions are internally connected.
All dimensions are in inches (millimeters).
GRID: 0.100 inches (2.54 millimeters)
Typically Marked with: specific model ordered,
date code, job code and Logo.
Pin base metal is phosphor bronze. Pin finish is
matte tin (100-300 microinches) over a nickel barrier
layer (5-40 microinches).
1
2
3
10
11
12
13
14
15
22
23
24
PIN CONNECTIONS
PIN#
SINGLES
+VIN
NU
NU
-VOUT
+VOUT
-VIN
-VIN
+VOUT
-VOUT
NU
NU
+VIN
DUALS
+VIN
-VOUT
Common
Common
+VOUT
-VIN
-VIN
+VOUT
Common
Common
-VOUT
+VIN
THROUGH-HOLE SOLDERING INFORMATION
These devices are intended for wave soldering or manual soldering.
They are not intended to be subject to surface mount processes under any circumstances.
The normal wave soldering process can be used with these devices where the device is subjected to a maxi-
mum wave temperature of 260°C for a period of no more than 10 seconds. Within this time and temperature
range, the integrity of the device’s plastic body will not be compromised and internal temperatures within the
converter will not exceed 175°C. Care should be taken to control manual soldering limits identical to that of
wave soldering.
USA:
Canada:
UK:
France:
Germany:
Japan:
China:
Singapore:
Mansfield (MA), Tel: (508) 339-3000, email: sales@murata-ps.com
Toronto, Tel: (866) 740-1232, email: toronto@murata-ps.com
Milton Keynes, Tel: +44 (0)1908 615232, email: mk@murata-ps.com
Montigny Le Bretonneux, Tel: +33 (0)1 34 60 01 01, email: france@murata-ps.com
München, Tel: +49 (0)89-544334-0, email: munich@murata-ps.com
Tokyo, Tel: 3-3779-1031, email: sales_tokyo@murata-ps.com
Osaka, Tel: 6-6354-2025, email: sales_osaka@murata-ps.com
Shanghai, Tel: +86 215 027 3678, email: shanghai@murata-ps.com
Guangzhou, Tel: +86 208 221 8066, email: guangzhou@murata-ps.com
Parkway Centre, Tel: +65 6348 9096, email: singapore@murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
Murata Power Solutions, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
Tel: (508) 339-3000 (800) 233-2765 Fax: (508) 339-6356
www.murata-ps.com email: sales@murata-ps.com
ISO 9001 REGISTERED
10/10/08
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2008 Murata Power Solutions, Inc.
www.murata-ps.com
TDC_HL02RYC.B02
Page 3 of 3
