BWR Models
1 5 - 2 0 W, D u a l O u t p u t D C / D C C o n v e r t e r s
FEATURES
Low cost! Highly reliable!
Proven SMT-on-pcb construction
Qual tested; HALT tested; EMC tested
Designed to meet UL/ EN60950-1,
BASIC insulation (48V
IN
models)
mark available (48V
IN
models)
Output voltages: ±5, ±12 or ±15 Volts
Ultra-wide input voltage ranges:
4.7-7.5V, 9-36V or 18-75V
Small packages, 2" x 2" x 0.45"
Industry-standard pinouts
Fully isolated, 1500Vdc guaranteed
Guaranteed efficiencies to 82%
–40 to +100°C operating temperature
Modifications and customs for OEM’s

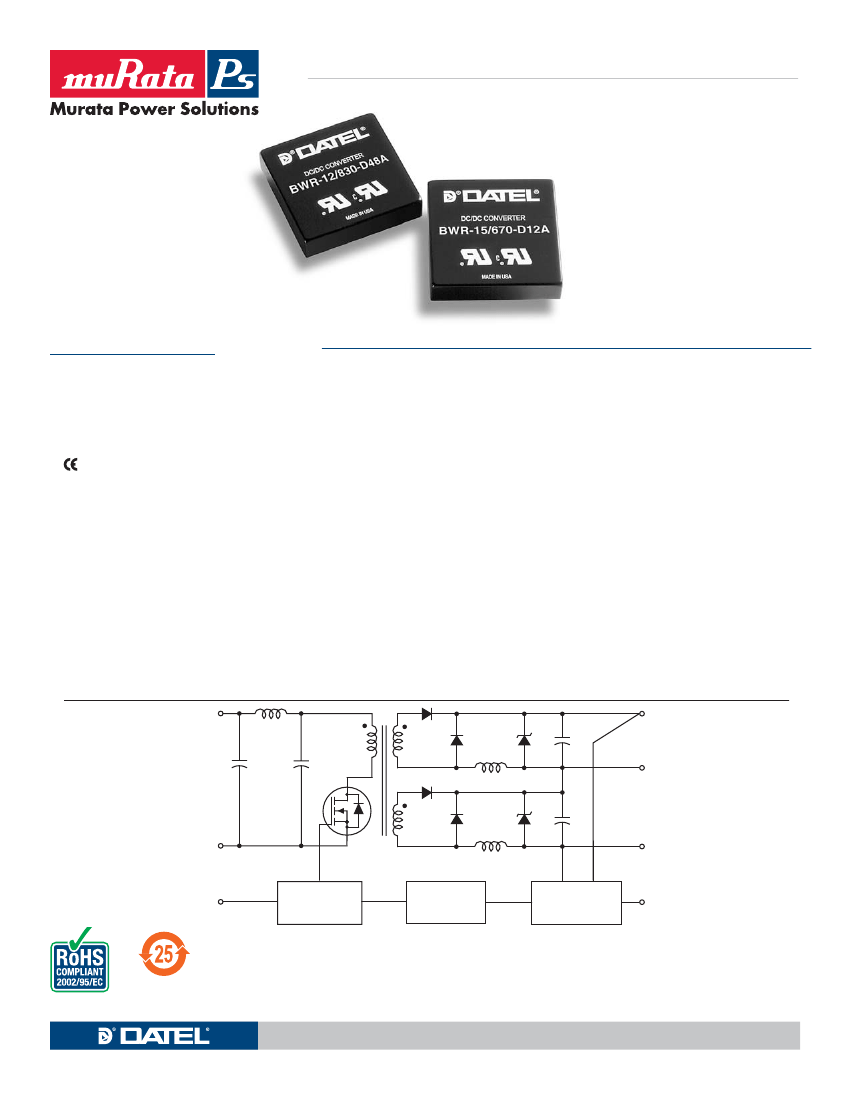

PRODUCT OVERVIEW
For your mid-range power requirements, it’s hard to beat the combination of low cost, proven
reliability and outstanding electrical performance offered by the
15-20W, dual-output models of MPS’s new A-Series DC/DC converters. These highly efficient, rugged
converters combine straightforward circuit topologies, the newest components, proven SMT-on-
pcb construction methods, and highly repeatable automatic-assembly techniques. Their superior
durability is substantiated by a rigorous in-house qualification program that includes HALT (Highly
Accelerated Life Testing).
The ultra-wide input voltage ranges of the A-Series duals (4.7-7.5V for "D5A" models, 9-36V
for "D12A" models and 18-75V for "D48A" models) make them excellent candidates for battery-
powered systems or for distributed power architectures. Their ±5, ±12 or ±15 Volt outputs cover
virtually all standard applications.
These popular power converters are fully isolated (1500Vdc guaranteed) and display excellent
line and load regulation (with specs as low as ±0.3% max. for line and ±0.5% max. for load). They
are completely I/O protected (input overvoltage shutdown and reverse-polarity protection, output
current limiting and overvoltage protection) and contain input (pi type) and output filtering to reduce
noise. They require no external components and offer true "plug-and-play" convenience.
These extremely reliable, cost-effective power converters are housed in standard 2" x 2" x
0.45" metal packages coated with electrically non-conductive materials. They offer industry-stan-
dard pinouts and are ideally suited for high-volume computer, telecom/datacom, instrumentation and
ATE applications.
+V
IN
(1)
+V
OUT
(5)
COMMON
(6)
–V
IN
(2)
–V
OUT
(7)
ON/OFF
CONTROL
(4)
PWM
CONTROLLER
OPTO
ISOLATION
REFERENCE &
ERROR AMP
TRIM
(8)
Typical topology is shown.
Figure 1. Simplified Schematic
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
MDC_BWR15_20_B02
Page 1 of 6
BWR Models
1 5 - 2 0 W, D u a l O u t p u t D C / D C C o n v e r t e r s
Performance Specifications and Ordering Guide
Output
Model
BWR-5/1500-D5A
BWR-5/1700-D12A
BWR-5/1700-D48A
BWR-12/625-D5A
BWR-12/830-D12A
BWR-12/830-D48A
BWR-15/500-D5A
BWR-15/670-D12A
BWR-15/670-D48A
Input
Regulation (Max.)
Line
±0.5%
±0.3%
±0.3%
±0.5%
±0.3%
±0.4%
±0.5%
±0.3%
±0.3%
V
OUT
(Volts)
±5
±5
±5
±12
±12
±12
±15
±15
±15
I
OUT
(mA)
±1500
±1700
±1700
±625
±830
±830
±500
±670
±670
R/N (mVp-p)
Typ.
50
75
75
75
75
75
75
75
75
Max.
100
100
100
120
100
100
150
100
100
Load
±1.0%
±0.5%
±0.5%
±1.0%
±0.5%
±0.5%
±1.0%
±0.5%
±0.5%
V
IN
Nom.
(Volts)
5
24
48
5
24
48
5
24
48
Range
(Volts)
4.7-7.5
9-36
18-75
4.7-7.5
9-36
18-75
4.7-7.5
9-36
18-75
I
IN
(mA)
75/3750
15/753
15/377
75/3750
30/1000
15/510
75/3659
30/979
15/484
Efficiency
Min.
79%
80.5%
81%
79%
81.5%
81%
80%
82%
82%
Typ.
80%
83%
83%
81%
83%
83%
82%
83%
84%
Package
(Case,
Pinout)
C4, P7
C4, P7
C4, P7
C4, P7
C4, P7
C4, P7
C4, P7
C4, P7
C4, P7
Typical at T
A
= +25°C under nominal line voltage and full-load conditions unless otherwise noted.
Ripple/Noise (R/N) measured over a 20MHz bandwidth.
Balanced loads, 20% to 100% load.
Nominal line voltage, no-load/full-load conditions.
PA R T N U M B E R S T R U C T U R E
M E C H A N I C A L S P E C I F I C AT I O N S
2.00
(50.80)
ME T A L C A S E
B WR
-
12
/
830
-
D48 A
-
C
Output Configuration:
B
= Bipolar
Wide Range Input
Nominal Output Voltages:
±5, ±12 or ±15 Volts
RoHS-6 Hazardous
Substance Compliant*
A-Series
High Reliability
Input Voltage Range:
D5
= 4.7-7.5 Volts (5V nominal)
D12
= 9-36 Volts (24V nominal)
D48
= 18-75 Volts (48V nominal)
0.45
(11.43)
Case C4
0.20 MIN
(5.08)
IN S U LA T E D B A S E
0.040 ±0.002 D IA .
(1.016 ±0.051)
1.800
(45.72)
0.10
(2.54)
Maximum Output Current
in mA from each output
0.200
(5.08)
5
* Contact Murata Power Solutions for availability
1
6
2
0.400
(10.16)
4
7
T E M P E R AT U R E D E R AT I N G
1.200
(30.48)
3 E Q . SP. @
0.400 ( 10.16)
2.00
(50.80)
20
19
18
17
16
15
C
B
A
0.100
(2.54)
B O T T O M V IE W
8
0.40
(10.16)
Output Power (Watts)
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
–40
0
40
45
50
55
60
65
70
75
80
85
90
95
100
BWR-5/1500-D5A
BWR-5/1700-D12A
BWR-5/1700-D48A
BWR-12/625-D5A
BWR-12/830-D12A
BWR-12/830-D48A
BWR-15/500-D5A
BWR-15/670-D12A
BWR-15/670-D48A
C
B
B
C
A
A
C
A
A
I/O Connections
Pin
1
2
3
4
5
6
7
8
Function P7
+Input
–Input
No Pin
On/Off Control
+Output
Common
–Output
Trim
Dimensions are in inches (mm shown for ref. only).
Third Angle Projection
Tolerances (unless otherwise specified):
.XX ± 0.02 (0.5)
.XXX ± 0.010 (0.25)
Angles ± 2˚
Components are shown for reference only.
Notes:
For "D5A" and "D12A" models,
the case is connected to pin
2 (–V
IN
).
For "D48A" models, the case is
connected to pin 1 (+V
IN
).
Ambient Temperature (°C)
www.murata-ps.com
Technical enquiries
email: sales@murata-ps.com, tel:
+1 508 339 3000
MDC_BWR15_20_B02
Page 2 of 6
