39901-0312 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 39901-0312

39901-0312: Descriptionpluggable terminal blocks 3.81mm 12 pos gold; CategoryThe connector terminals; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39901-0312 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39901-0312	-	-	View	Buy Now

39901-0312 Overview

pluggable terminal blocks 3.81mm 12 pos gold

39901-0312 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLYESTER, 94V-0
Fastening method	SCREW
Manufacturer's serial number	39901
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	12
Rated current	8 A
Rated voltage	300 V
safety certificate	UL; CSA
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	1 mm2
Wire gauge	16 AWG
Base Number Matches	1

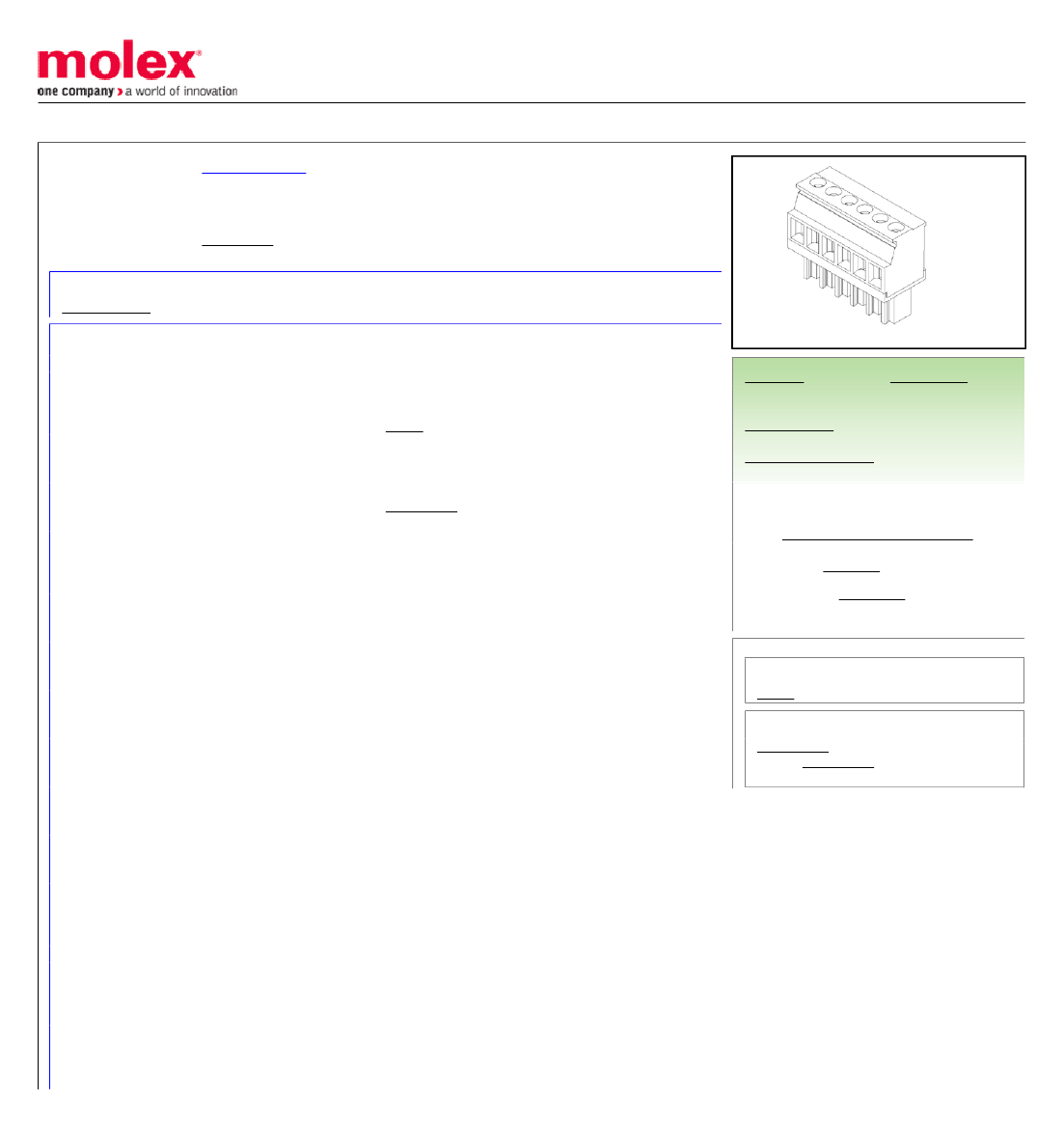

Preview

Download Datasheet

View All

This document was generated on 10/28/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Replacement Part

Number:

Documents:

Drawing (PDF)

0399010312

Obsolete

3.81mm (.150") Pitch Beau™ Eurostyle™ Vertical Plug, Front Wire Entry, Gold Plated,

12 Circuits

39513-3512

Agency Certification

E48521

Series

image - Reference only

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Product Name

Replacement Part Number

Type

Terminal Blocks

39901

Wire-to-Board

Front Wire Entry

Plug

Eurostyle™Pluggable

39513-3512

Euro Block

Physical

Circuits (Loaded)

Circuits (maximum)

Entry Angle

Flammability

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Retention

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Horizontal

94V-0

None

Beryllium Copper, Brass

Gold

Vertical

N/A

3.81mm (.150")

0.076µm (3µ")

Yes

Fully

130°C

16, 18, 20, 22, 24, 26

0.20 - 1.00

Search Parts in this Series

39901Series

Mates With

39901-0512 Vertical PCB Header, Gold (Au)

Plated, 39901-0712 Horizontal PCB Header,

Gold (Au) Plated

Electrical

Current - Maximum per Contact

Voltage - Maximum

10A

300V

Material Info

Country of Origin

Old Part Number

MX, US

900912-G30

Reference - Drawing Numbers

Sales Drawing

SD-39900-009
