39356-0003

Description
pluggable terminal blocks 3.5mm 3 ckt RT angle
CategoryThe connector
File Size27KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39356-0003 Online Shopping

Suppliers Part Number Price MOQ In stock
39356-0003 - - View Buy Now

39356-0003 Overview

pluggable terminal blocks 3.5mm 3 ckt RT angle

39356-0003 Parametric

Parameter NameAttribute value
MakerMolex
Product CategoryPluggable Terminal Blocks
RoHSyes
productPluggable Terminal Blocks
typeWire-to-Board
Pitch3.5 mm
Number of locations/contacts3
Wire gauge range24-16
Current rating10 A
Voltage rating300 V
Installation styleThrough Hole
Installation angleRigh
Contact platingTi
colorBlack
Flammability ratingUL 94 V-0
Shell materialThermoplastic, High Temperature
range of working temperature0 C to + 140 C
Maximum wire gauge (AWG)16
Minimum wire gauge (AWG)24
This document was generated on 11/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Replacement Part
Number:
Documents:

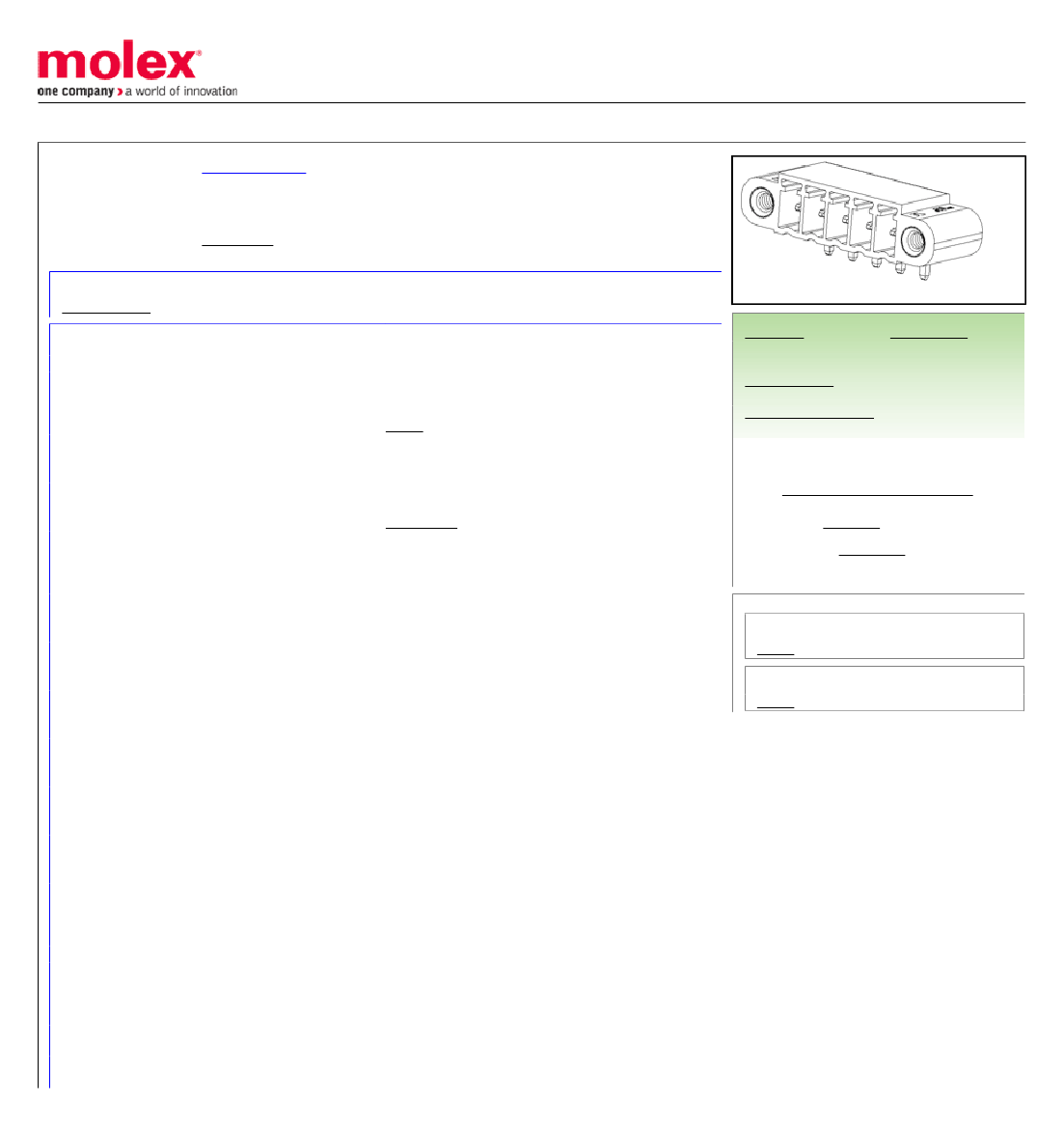

Drawing (PDF)
0393560003
Obsolete
3.50mm (.138") Pitch Beau™ Eurostyle™ Right Angle PCB Header, with Threaded
Retention Inserts, 3 Circuits
39506-1003
Series
image - Reference only
EU RoHS
China RoHS
Compliance Status
Not Reviewed
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
UL
E48521
General
Product Family
Series
Application
Comments
Component Type
Product Name
Replacement Part Number
Type
Terminal Blocks
39356
Wire-to-Board
Available in green, blue or orange and gold plated
contacts
PCB Header
Eurostyle™Pluggable
39506-1003
Euro Block
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Plating Mating
Material - Plating Termination
Material - Resin
Orientation
PC Tail Length
PCB Retention
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Wire Size AWG
3
Black
N/A
94V-0
Yes
Tin
Tin
High Temperature Thermoplastic
Right Angle
3.45mm (.136")
Yes
No
3.50mm (.138")
3.50mm (.138")
3.810µm (150µ")
3.810µm (150µ")
Yes
Closed Ends
No
140°C
N/A
Search Parts in this Series
39356Series
Mates With
39352 Plugs
Electrical
Current - Maximum per Contact
Voltage - Maximum
10A
300V
Solder Process Data
Lead-free Process Capability
Wave Capable (TH only)
Material Info
Country of Origin
Old Part Number
MX, US
355903
