ADP3330ART-285 Overview

high accuracy Ultralow IQ, 200 mA, sot-23, anycap? low dropout regulator

Preview

Download Datasheet

View All

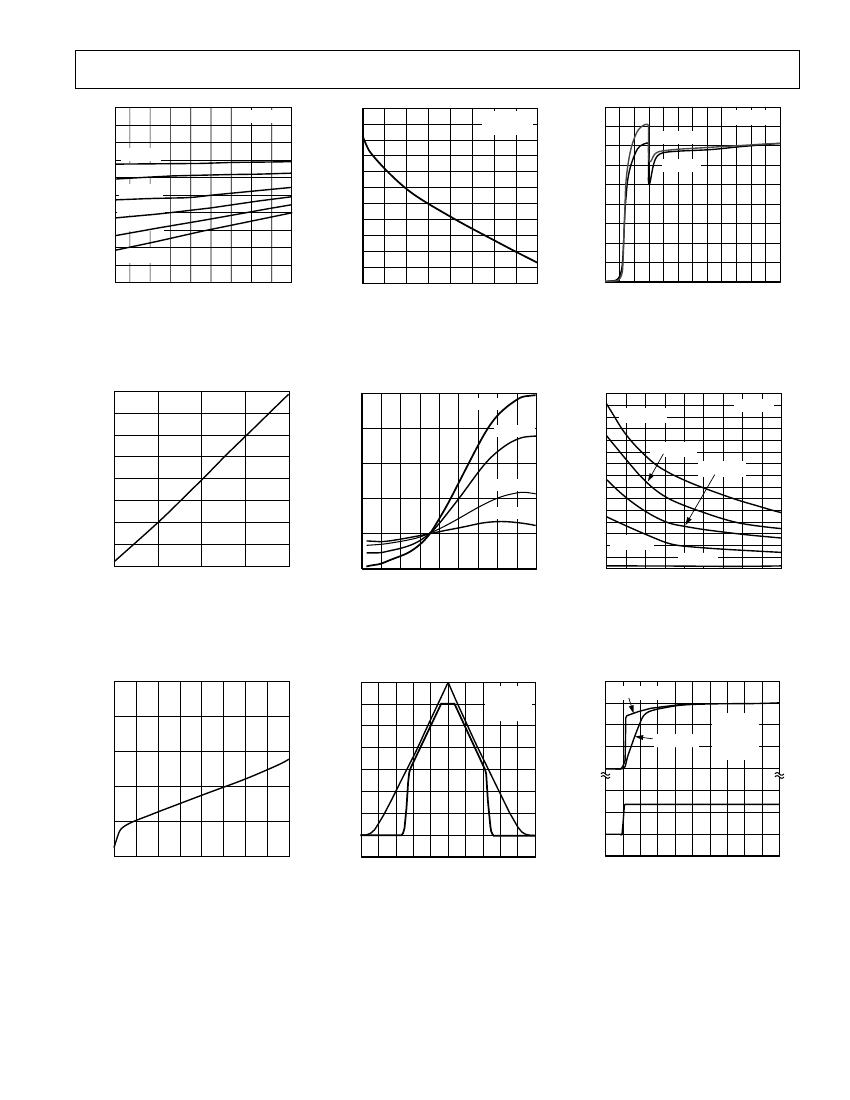

FEATURES

High Accuracy Over Line and Load: 0.7% @ +25 C,

1.4% Over Temperature

Ultralow Dropout Voltage: 140 mV (Typ) @ 200 mA

Requires Only C

= 0.47 F for Stability

anyCAP = Stable with Any Type of Capacitor

(Including MLCC)

Current and Thermal Limiting

Low Noise

Low Shutdown Current: <2 A

2.9 V to 12 V Supply Range

–40 C to +85 C Ambient Temperature Range

Ultrasmall Thermally Enhanced Chip-on-Lead™

SOT-23-6 6-Lead Package

APPLICATIONS

Cellular Telephones

Notebook, Palmtop Computers

Battery Powered Systems

PCMCIA Regulator

Bar Code Scanners

Camcorders, Cameras

ERR

High Accuracy Ultralow I

200 mA, SOT-23, anyCAP

™

Low Dropout Regulator

ADP3330

FUNCTIONAL BLOCK DIAGRAM

THERMAL

PROTECTION

OUT

ADP3330

DRIVER

BANDGAP

REF

GND

GENERAL DESCRIPTION

The ADP3330 is a member of the ADP330x family of precision

low dropout anyCAP voltage regulators. The ADP3330 operates

with an input voltage range of 2.9 V to 12 V and delivers a load

current up to 200 mA. The ADP3330 stands out from the con-

ventional LDOs with a novel architecture and an enhanced

process that enables it to offer performance advantages and

higher output current than its competition. Its patented design

requires only a 0.47

µF

output capacitor for stability. This

device is insensitive to output capacitor Equivalent Series

Resistance (ESR), and is stable with any good quality capaci-

tor, including ceramic (MLCC) types for space-restricted

applications. The ADP3330 achieves exceptional accuracy of

0.7% at room temperature and

1.4% over temperature, line

and load variations. The dropout voltage of the ADP3330 is

only 140 mV (typical) at 200 mA. This device also includes a

safety current limit, thermal overload protection and a shutdown

feature. In shutdown mode, the ground current is reduced to

less than 2

µA.

The ADP3330 has ultralow quiescent current

µA

(typ) in light load situations.

The SOT-23-6 package has been thermally enhanced using

Analog Devices’ proprietary Chip-on-Lead feature to maximize

power dissipation.

ERR

ADP3330

0.47 F

–

OUT

GND

OFF

–

OUT

0.47 F

Figure 1. Typical Application Circuit

anyCAP and Chip-on-Lead are trademarks of Analog Devices, Inc.

REV. A

Information furnished by Analog Devices is believed to be accurate and

reliable. However, no responsibility is assumed by Analog Devices for its

use, nor for any infringements of patents or other rights of third parties

which may result from its use. No license is granted by implication or

otherwise under any patent or patent rights of Analog Devices.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781/329-4700

World Wide Web Site: http://www.analog.com

Fax: 781/326-8703
