51241-0701 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 51241-0701

51241-0701: Descriptionpluggable terminal blocks 7.5 multi termcon crmp rechsg7cktblack; CategoryThe connector terminals; File Size33KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

51241-0701 Overview

pluggable terminal blocks 7.5 multi termcon crmp rechsg7cktblack

51241-0701 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Fastening method	CRIMP
Manufacturer's serial number	51241
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	7
Rated current	16 A
Rated voltage	400 V
safety certificate	UL; VDE; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	14 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

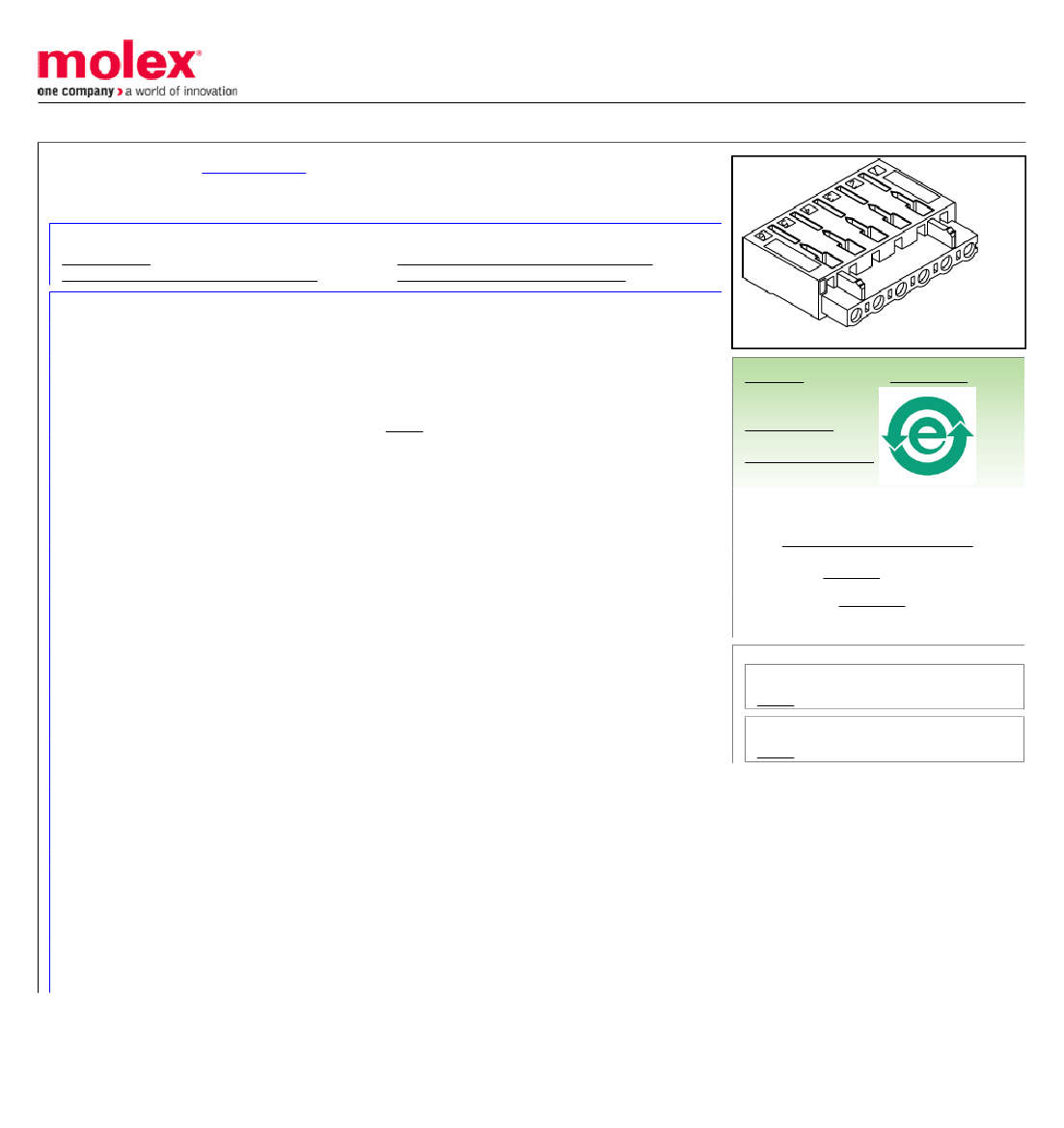

This document was generated on 11/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0512410701

Contact Molex

5.00mm (.197") Pitch MTC™ Spring Type Receptacle, 7 Circuits Version, Black Color

Documents:

Drawing (PDF)

Product Specification PS-51241-004 (PDF)

Product Specification PS-51241-005 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

TUV

LR19980

R72081037

E29179

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Reviewed

China RoHS

Series

General

Product Family

Series

Application

Component Type

Product Name

Type

Terminal Blocks

51241

Wire-to-Board

Plug

MTC™

Euro Block

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Entry Angle

Flammability

Lock to Mating Part

Material - Resin

Number of Rows

Orientation

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Wire Size AWG

Black

Vertical

94V-0

Yes

Polyester

Vertical

7.50mm (.295")

Yes

Fully

-30°C to +85°C

14, 16, 18

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

51241Series

Mates With

55759

Electrical

Current - Maximum per Contact

Voltage - Maximum

16A

400V

Material Info

Country of Origin

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-51241-004, PS-51241-005, RPS-51241-005,

RPS-51241-006, RPS-51241-007

SD-51241-003

This document was generated on 11/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
