SFC37S17.5K291B datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> SFC37S17.5K291B

SFC37S17.5K291B: DescriptionCAPACITOR, METALLIZED FILM, POLYPROPYLENE, 17.5uF, CHASSIS MOUNT, CAN; CategoryPassive components capacitor; File Size653KB，5 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

SFC37S17.5K291B Overview

CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 17.5uF, CHASSIS MOUNT, CAN

SFC37S17.5K291B Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	2036806029
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RATED AC VOLTAGE (V): 370
capacitance	17.5 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
high	73.914 mm
length	73.914 mm
Manufacturer's serial number	SF
Installation features	CHASSIS MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
Package form	Quick Connect
positive tolerance	10%
Rated (AC) voltage (URac)	370 V
series	SF
surface mount	NO
Terminal shape	BINDING POST
width	48.514 mm

Preview

Download Datasheet

View All

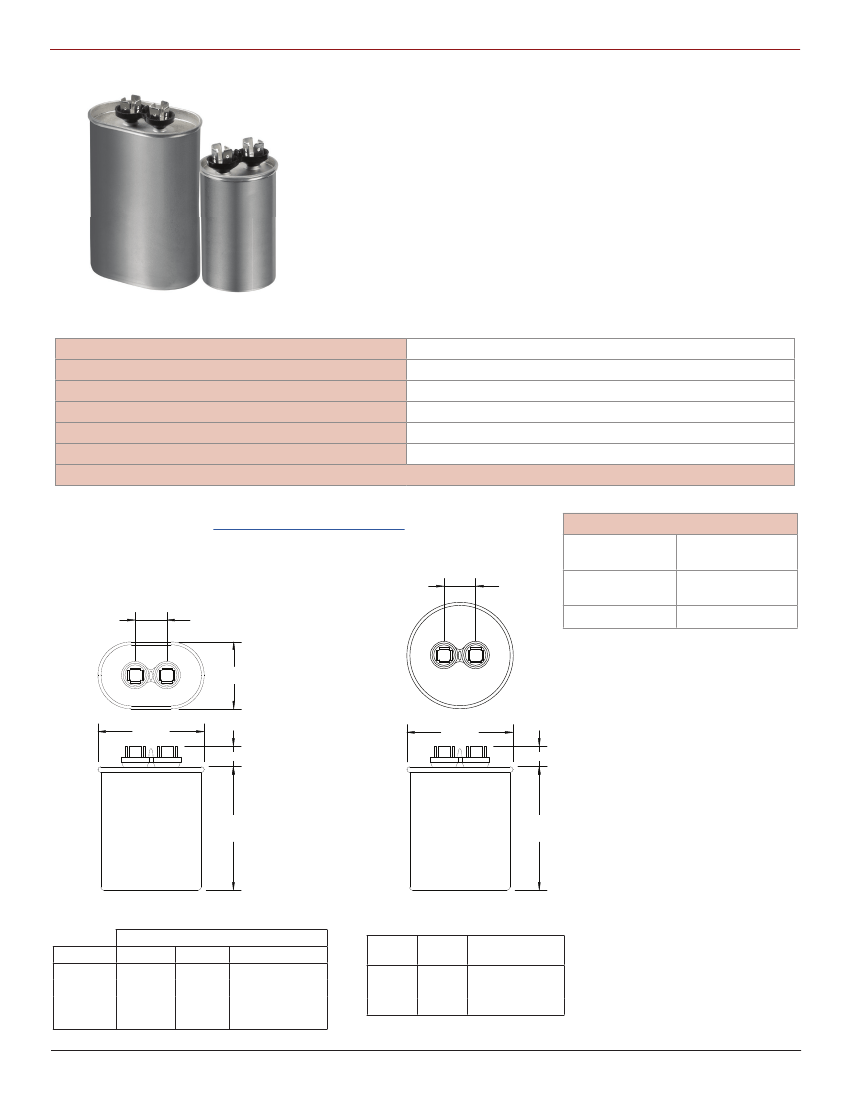

Type SF Motor-Run and Power Supply Capacitors

Oil Filled/Impregnated, AC Rated, Metallized Polypropylene Capacitors

Type SF, AC rated metallized polypropylene capacitors provide

starting torque and power factor correction for split phase

motors typically used in refrigeration and air conditioning motor-

run applications. Type SF also may be used to provide noise

suppression, voltage regulation and line current reduction in power

supply applications.

Highlights

Specifications

Capacitance Range

Capacitance Tolerance

Rated Voltage

Operating Temperature Range

Dissipation Factor

Service Life Objective

±10% standard, ± 6% and ±3% available

240 Vac to 660 Vac

<0.1%

–40 ºC to 70 ºC standard, 90 ºC available

RoHS Compliant

Dimensions

Oval Case Style

Click here to view hardware

Round Case Style

.81" ± .06"

D ± .06"

.50" Max.

H +.12"

-.06"

60,000 h with 94% survival rate

Construction Details

Case Material

Encapsulation

Terminal Material

Aluminum or Tin

Plated Steel

Enviromentally Safe

Dielectric Fluid

Tin Plated Steel

5.0 µF to 120.0 µF

.81" ± .06"

A ± .06"

B ± .06"

.50" Max.

H +.12"

-.06"

Note: The capacitor’s safety pressure

interrupter is designed to disconnect

the capacitor element as the cover

expands upward due to gas pressure

build up. Catastrophic failure may

result if movement of the cover and

or terminals are restricted. Rigid bus

bars are not recommended as they

may restrict movement of the cover

or terminals. Customers are advised to

provide at least 0.5” clearance above

the cover to allow for its expansion.

Dimensions (Inches)

2.16

2.69

2.91

3.66

See Ratings Table

Case Code

1.31

1.56

1.91

1.97

Case

Code

(Inches)

1.87

2.12

2.62

See Ratings Table

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830

- Self healing

- Fault current protection up to 10,000 amps AFC

- Low energy consumption

- 4 - tine, 1/4” quick connect lug terminals are standard

- Meets EIA Standard EIA-456-A

- UL recognized File Number E71645

- CSA File Number 223507

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and

data (collectively, the “Information”) in this datasheet or other publication are subject to change. The

customer is responsible for checking, confirming and verifying the extent to which the Information con-

tained in this datasheet or other publication is applicable to an order at the time the order is placed. All

Information given herein is believed to be accurate and reliable, but it is presented without any guaran-

tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability

for certain applications are based on the knowledge that the Cornell Dubilier company providing such

statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards

as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-

tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,

warranty or representation concerning the suitability for a specific customer application, use, storage,

transportation, or operating environment. The Information is intended for use only by customers who

have the requisite experience and capability to determine the correct products for their application. Any

technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference

to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),

and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although

Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design

and manufacturing of its products, in light of the current state of the art, isolated component failures may

still occur. Accordingly, customer applications which require a high degree of reliability or safety should

employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies

or other appropriate protective measures) in order to ensure that the failure of an electrical component

does not result in a risk of personal injury or property damage. Although all product-related warnings,

cautions and notes must be observed, the customer should not assume that all safety measures are indi-

cated in such warnings, cautions and notes, or that other safety measures may not be required.
