5768-50916 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5768-50916

5768-50916: DescriptionBoard Connector, 9 Contact(s), Female, Straight, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5768-50916 Overview

Board Connector, 9 Contact(s), Female, Straight, Surface Mount Terminal, Locking

5768-50916 Parametric

Parameter Name	Attribute value
Objectid	308961893
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.219 inch
subject depth	0.39 inch
body length	1.206 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P9
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
Contact style	SQ PIN-SKT
insulator material	NYLON
Manufacturer's serial number	5768
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	9

Preview

Download Datasheet

View All

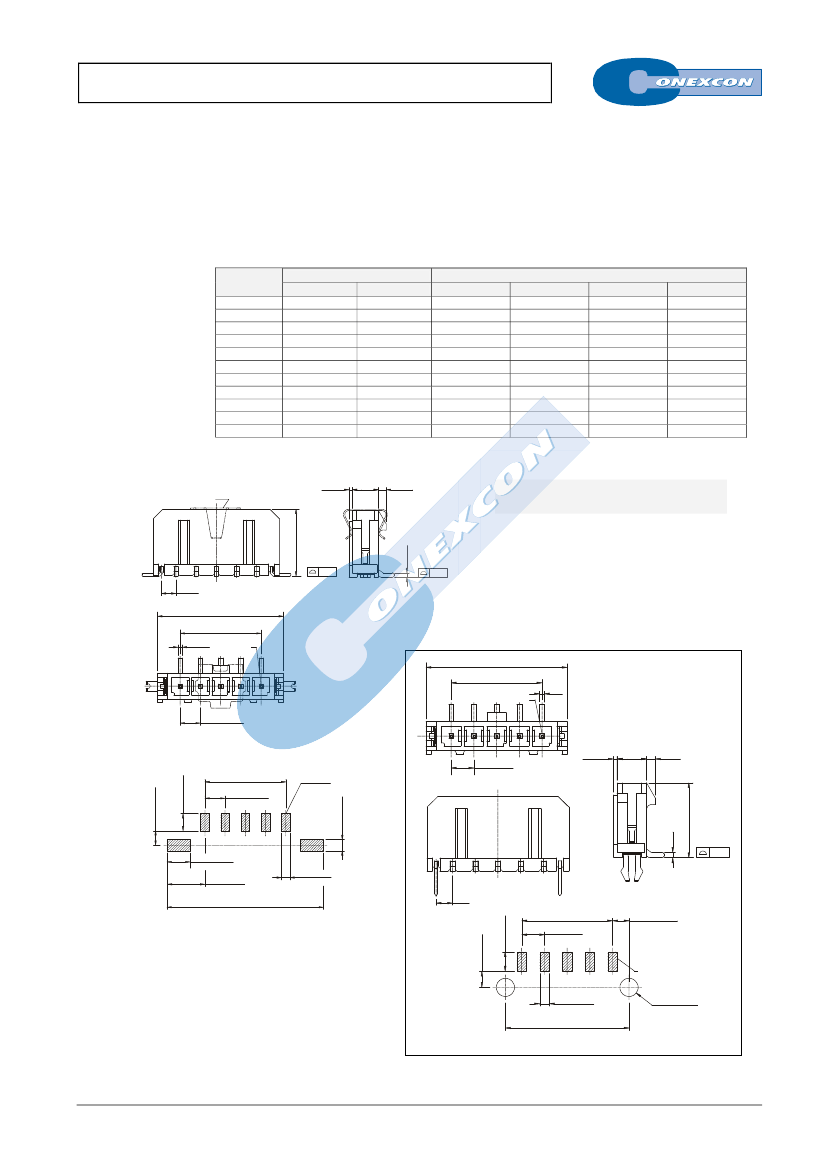

3.00mm MICRO POWER STRAIGHT HEADER

5768 SERIES.

Features

3.00mm(0.118”). For High Current / High Density



Mates with 5750 series housing

Positive lock . Current Rating: 5 A max.

Available with or without Metal board lock

Ordering and Dimensional Information



Available in 2 a 12 circuits in single row

Material: Nylon 9T UL 94V-0

Contact Material: Brass with different plating options

Dimensional Information

Circuit Size

Part Number

W/O Board Lock

5768 –

T021E

5768 –

T031E

5768 –

T041E

5768 –

T051E

5768 –

T061E

5768 –

T071E

5768 –

T081E

5768 –

T091E

5768 –

T101E

5768 –

T111E

5768 –

T121E

With Board Lock

5768 –

T022E

5768 –

T032E

5768 –

T042E

5768 –

T052E

5768 –

T062E

5768 –

T072E

5768 –

T082E

5768 –

T092E

5768 –

T102E

5768 –

T112E

5768 –

T122E

3.00 (.118)

6.00 (.236)

9.00 (.354)

12.00 (.472)

15.00 (.591)

18.00 (.709)

21.00 (.827)

24.00 (.945)

27.00 (1.063)

30.00 (1.181)

33.00 (1.299)

Dimensions

14.20 (.559)

17.20 (.677)

20.20 (.795)

23.20 (.913)

26.20 (1.031)

29.20 (1.150)

32.20 (1.268)

35.20 (1.386)

38.20 (1.504)

41.20 (1.622)

44.20 (1.740)

7.30 (.287)

10.30 (.406)

13.30 (.524)

16.30 (.642)

19.30 (.760)

22.30 (.878)

25.30 (.996)

28.30 (1.114)

31.30 (1.232)

34.30 (1.350)

37.30 (1.469)

9.65 (.380)

12.65 (.498)

15.65 (.616)

18.65 (.734)

21.65 (.852)

24.65 (.970)

27.65 (1.088)

30.65 (1.206)

33.65 (1.325)

36.65 (1.442)

39.65 (1.561)

T = Contact Plating

Metallic Pad

0.50

.020

3.86

.152

1.20

.047



0.1

T =

Tin plated

Recommended Finish

T =

Gold flash over 50µ” nickel.

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

.390

9.9

0.1

2.16

.085

0.64

.025

0.70

.028

E = Packing Options



E =

5.Tube

+ Metallic Pad

E =

Reel + Metallic Pad

Version with Metal board lock

0.64

.251

3.00±0.05

.118±.002

RECOMMENDED PCB LAYOUT

2.54±0.05

.100±.002

A±0.10

3.00±0.10

.118±.004

Circuit 1

1.65±0.05

.065±.002

3.00±0.05

.118±.002

0.50

.020

3.86

.152

1.2

.047

2.15±0.05

.085±.002

0.70

.028

9.9

.390

0.1

3.43±0.05

.135±.002

5.61±0.10

.221±.004

C±0.08

1.27±0.05

.050±.002

2.16

.085

2.54±0.05

.100±.002

A±0.10

3.00±0.10

.118±.004

2.16±0.05

.085±.002

Version without Metal board lock

.085±.002

2.16±0.05

1.27±0.05

.050±.002

C±0.08

Ø2.41±0.05

.095±.002

RECOMMENDED PCB LAYOUT

FULL LINE CATALOGUE
