8020-5-15-31: DescriptionD Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Plug; CategoryThe connector The connector; File Size538KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8020-5-15-31 Overview

D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Hole .112-.124, Plug

8020-5-15-31 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	308960434
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.488 inch
subject depth	0.429 inch
body length	1.535 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
maximum insertion force	3.336 N
Insulation resistance	1000000000 Ω
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	IDC
Total number of contacts	15
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

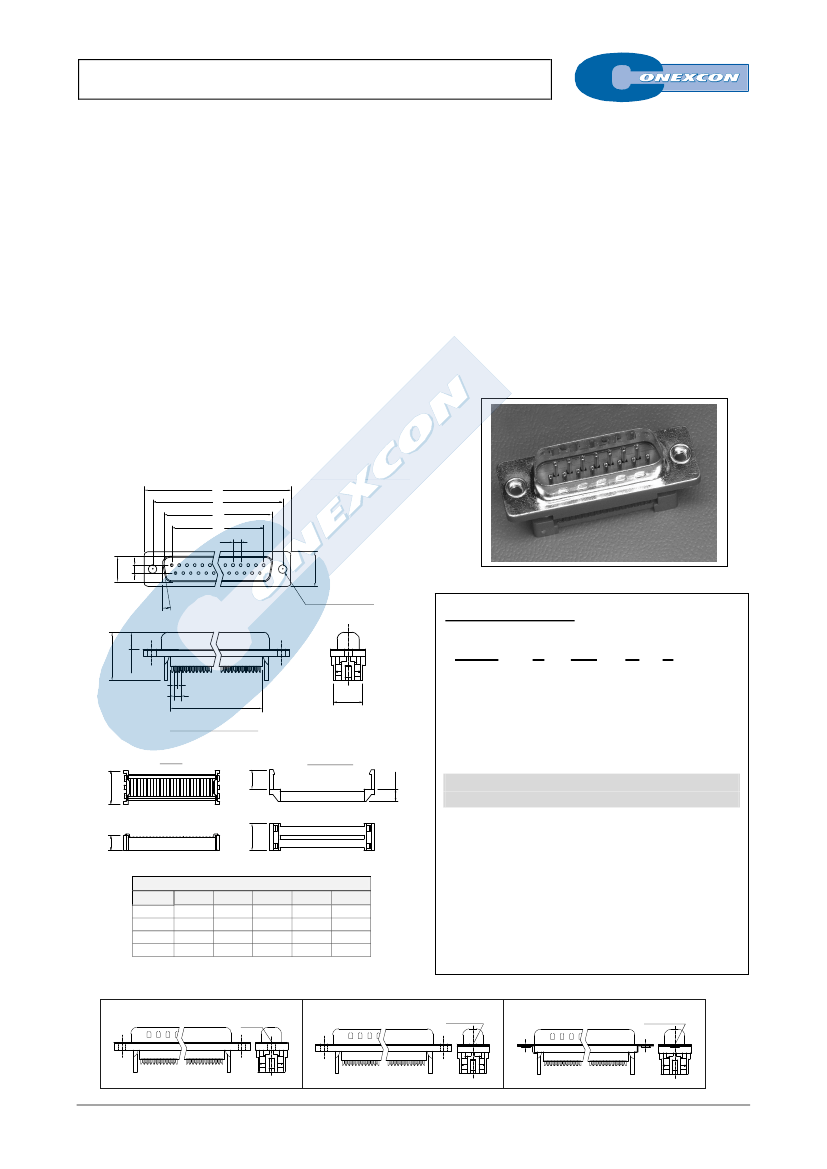

D-SUB IDC PLUG

8020 SERIES.

Insulation displacement.

General Features

Electrical Features



Available in 9, 15, 25 and 37 circuits

Mates with standard D sub female connectors

Wires range : 28 AWG O.D max. 0.85 mm

Accept cable 1.27 mm pitch 9127 Series

With strain relief



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: Glass-Filed Thermoplastic PBT, UL94V-0

Contact: Brass

Shell : Steel, 100µ' Tin Over 50µ' Min Copper

Clinch Nut : Brass, Nickel Plated

Screw lock : Brass, Nickel Plated

Operating temperature. -40ºC to +105ºC

RoHS compliant

Mechanical features

Insertion force per contact: < 0.34 Kgf

Withdrawal force per contact: < 0.22 Kgf

Withdrawal force per contact: > 0.030 Kgf

Durability: 500 cycles

Dimension Information

A

B

C

E

2.77

10.00

12.40

10º

ø3.05 clear hole

2.84

Ordering Information:

16.85

5.95

8020 -

1.27

2.54

T-

2

XX-

3

C

4

1

5

1

F

10.6

With Insulator Support

1. Connector Series

2. (T) Contact Plating

Cover

Strain Relief

12.85



7.4

4.7

T =

2.

Tin plated

T =

3.

Gold flash over nickel

Recommended Finish

T =

5.

15µ” gold over nickel

10.4

5.80

3. (XX) Number of circuits



DIMENSIONS (mm.)

CIRCUITS

9

15

25

37

A

30.50

39.00

53.08

69.25

B

25.00

33.32

47.04

63.50

C

18.05

26.35

40.95

55.60

E

11.08

19.39

33.24

49.86

F

13.10

20.70

33.68

50.30

Available in 9, 15, 25 and 37 circuits

3. (C) Connector Clinch nut options



C =

2.

With insulator support and #4-40 UNC

C =

3.

With insulator support and clear ø3.05 mm

C =

4.

W/O insulator support and clear ø3.05 mm

C = Connector options

C=2

C=3

Clear Hole

ø3.05 mm

#4-40 UNC

C=4

Clear Hole

ø3.05 mm

With insulator support

Without insulator support

A-XX
