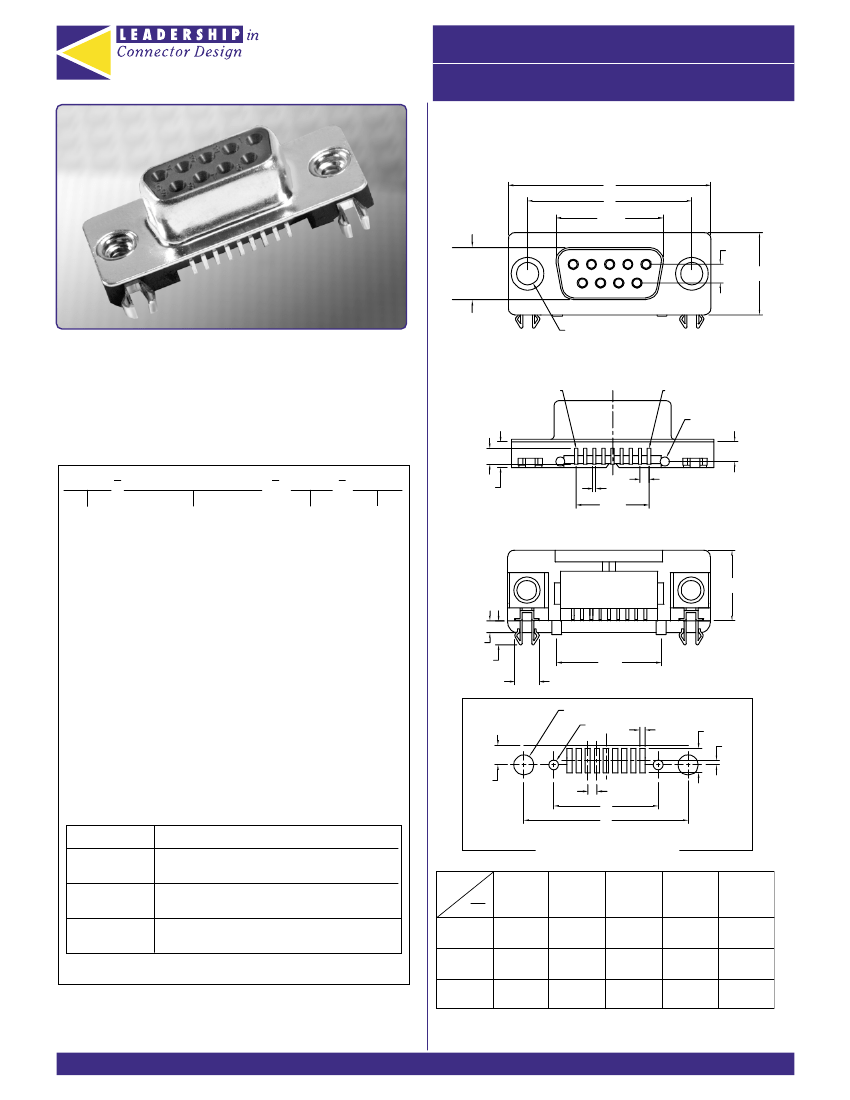

D-SUBMINIATURE CONNECTORS
KYCON
K202HT Series
K202HT Series Dimensions
Dimensions in mm
C
B
A, A1
8.36 Plug
Interior
7.90 Socket
Exterior
#4-40 UNC
Threaded Inserts
2.84
12.6
K202HT Series
Right Angle
Surface Mount
Ordering Information
K202HT
Series
2.4
pin 1 (plugs)
pin 1 (sockets)
2-Ø1.4
3.0
0.5
11.08
1.4
E9S
Configuration
N
Mounting
Option
Plating
Options
3.9
Series
K202HT - Kycon D-Subminiature Connector, Right Angle,
Ultra Short Footprint, Surface Mount,
Reflow Compatible
Configuration
E9S - 9 Socket Contacts (Receptacle)
E9P - 9 Pin Contacts (Plug)
B25S - 25 Socket Contacts (Receptacle)
B25P - 25 Pin Contacts (Plug)
E15S - 15 Socket Contacts High Density (Receptacle)*
Mounting Options
N - With Board Locks and (4-40) Riveted Threaded Inserts
NJ - With Board Locks, Riveted Threaded Inserts, and
4-40 Hex. Jack Screws Assembled to Connector
Plating Options
Designator
Standard
15
30
1.8
3.6
3.7
2-Ø3.05
2-Ø1.50
15.9
10.8
0.80
3.70
0.65
3.00
1.385
D
B
(Top View)
Plating Description
Gold flash over nickel on contacts. Tin/lead over
nickel on soldertails.
15µ" gold over nickel on mating end of contacts.
Tin/lead over nickel on soldertails.
30µ" gold over nickel on mating end of contacts.
Tin/lead over nickel on soldertails.
Recommended PCB Layout
Shell
Size In
mm
9
(E)
15
(E)
25
(B)
A
±.010
±0.25
.643
16.33
.643
16.33
1.511
38.38
A1
±.010
±0.25
.666
16.92
—
B
±.010
±0.25
.984
24.99
.984
24.99
1.852
47.04
C
±.010
±0.25
1.213
30.81
1.213
30.81
2.088
53.04
D
±.010
±0.25
.626
15.90
.609
15.46
1.498
38.06
Performance Specifications
(see page 4)
*Contact factory for specifications. 888-KYCON-22
1.534
38.96
A = Exterior of Female Shell (S)
A1 = Interior of Male Shell (P)
2002
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
5
D-SUBMINIATURE CONNECTORS
KYCON
Performance Specifications
Materials and Finish
Shell
Steel Material, Tin Finish, and Indentations (Dimples) on Plug Only
Insert
Standard: PBT Thermoplastic, Black Color, 30% Glass Filled, 94V-0 Rated
Reflow Compatible: High Temperature Thermoplastic, Black Color,
30% Glass Filled, 94V-0 Rated
Contact Material
Pin: Brass .040 (1.02) Diameter Standard; .030 (0.76) Diameter High Density
Socket: Phosphor Bronze (Precision Formed Contact)
Brass (Precision Machined Contact)
Contact Finish-Standard
Gold Flash Over 0.0001 (0.00254) Nickel on Mating End of Contacts
Tin/Lead Over Nickel or Gold Flash Over Nickel on Solder Tails
Riveted Insert
Brass Material, Nickel Finish
KYCON continues
its leadership in
D-Subminiature
connectors by
offering a complete
line of sizes and
options.
PC99 Colors Available:
• HD15: Blue
• DB15: Gold
• DB25: Burgundy
• DB09: Teal
Mechanical Characteristics
LR78160
Contact Retention
Precision Machined Contact 10 Lbs, Precision Formed Contact 10 Lbs
Contact Extraction Force
Typ. 4 Oz.
Contact Insertion Force
Typ. 9 Oz.
Durability
1,000 Insertion Cycles Min (With Standard Plating)
Operating Temperature Rating
-55°C to +125°C
Electrical Characteristics
Contact Current Rating
Precision Machined Contact 7.6 Amps
Precision Formed Contact 5.0 Amps (Except K99 Series)
Contact Resistance
Precision Machined Contact 5 Milliohms Max
Precision Formed Contact 8 Milliohms Max
Dielectric Withstanding Voltage
1000 V AC Min for 1 Minute
Insulation Resistance
5000 Megohms Min
Processing Characteristics
Soldering Temperature Rating
High Temperature Plastic: 230°C for 30 Seconds, 260°C for 10 Seconds
Plating Options
Designator Plating Description
KYCON Tech Support:
1-888-KYCON-22
or E-mail: sales@kycon.com
Standard
15
30
Gold Flash over Nickel on Contacts. Gold Flash over Nickel or Tin/Lead over Nickel on Solder Tails.
15µ" Gold over Nickel on Mating End of Contacts. Tin/Lead over Nickel on Solder Tails.
30µ" Gold over Nickel on Mating End of Contacts. Tin/Lead over Nickel on Solder Tails.
2002
4
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
