5031591010: Description1.50mm (.059") pitch clik-mate wire-to-board pcb receptacle, single row, through hole, vertical, without peg, 10 circuits; File Size205KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

5031591010 Overview

1.50mm (.059") pitch clik-mate wire-to-board pcb receptacle, single row, through hole, vertical, without peg, 10 circuits

Preview

Download Datasheet

View All

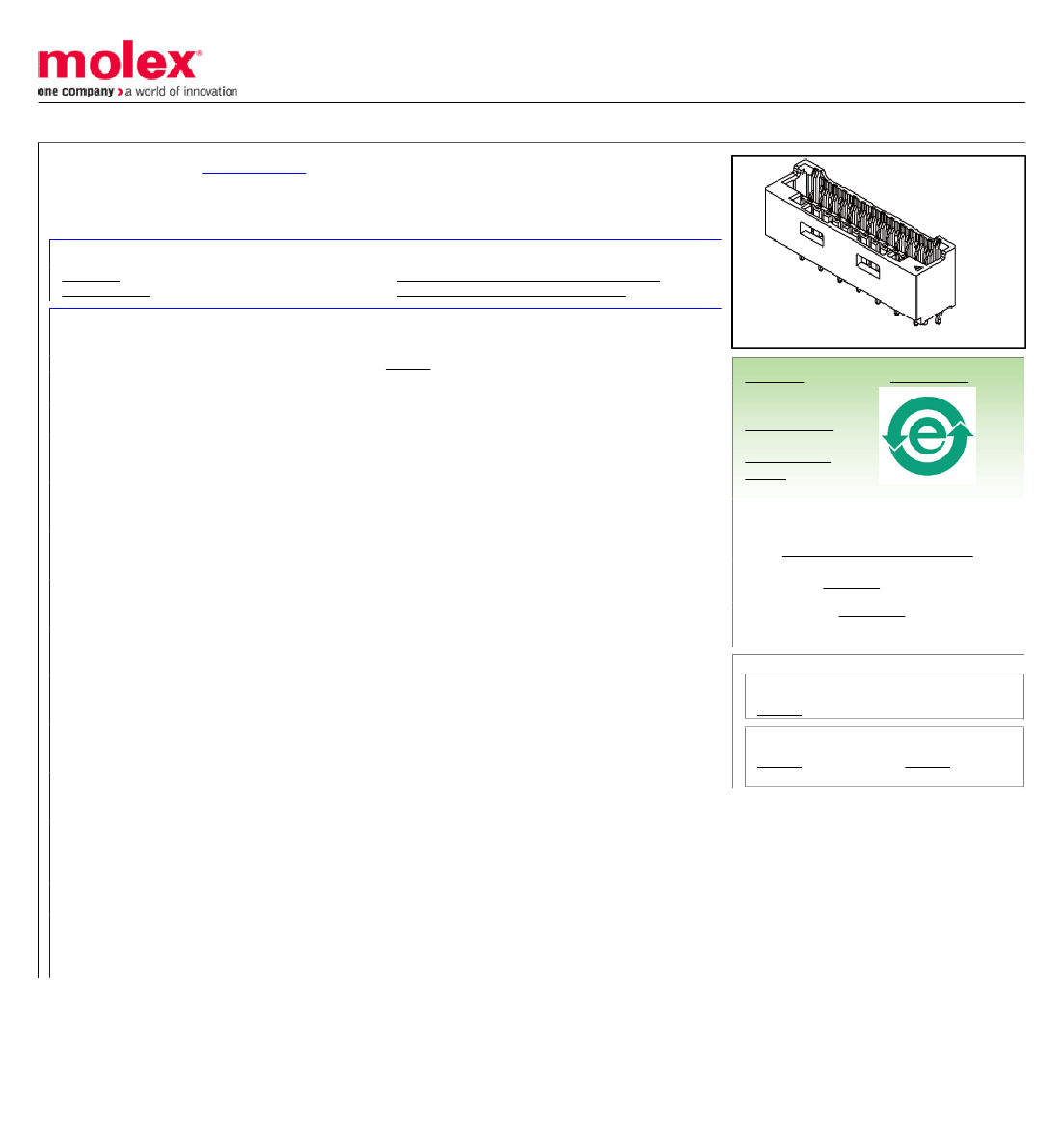

This document was generated on 04/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

5031590710

Active

1.50mm (.059") Pitch CLIK-Mate™ Wire-to-Board PCB Receptacle, Single Row,

Through Hole, Vertical, without Peg, 7 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-503159-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

PCB Receptacles

503159

Wire-to-Board

CLIK-Mate™

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Product Name

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Beige

Yes

Copper Alloy

Tin

Vertical

Yes

0.062 In

1.60 mm

Tray

0.059 In

1.50 mm

Yes

-25°C to +85°C

Through Hole

Search Parts in this Series

503159Series

Mates With

502578 Crimp Housing . 502579 Crimp

Terminal

Electrical

Current - Maximum per Contact

Voltage - Maximum

100V

Material Info

Reference - Drawing Numbers

Product Specification

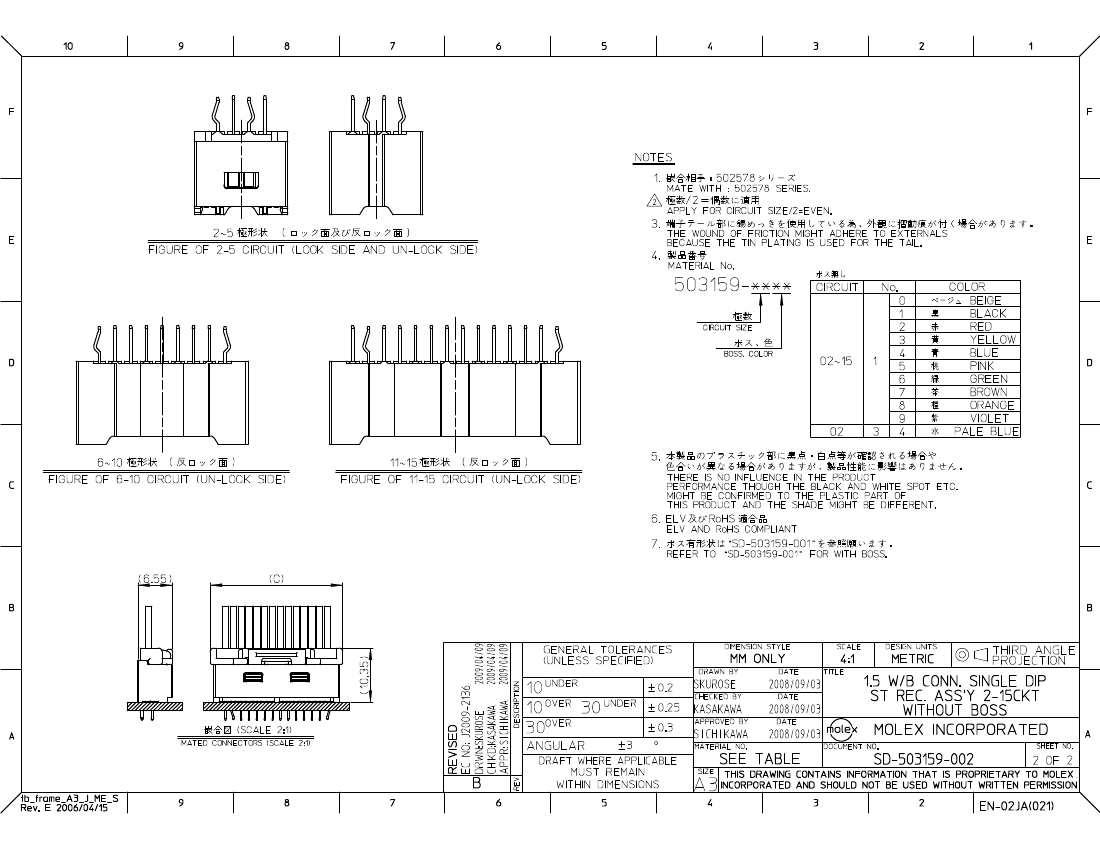

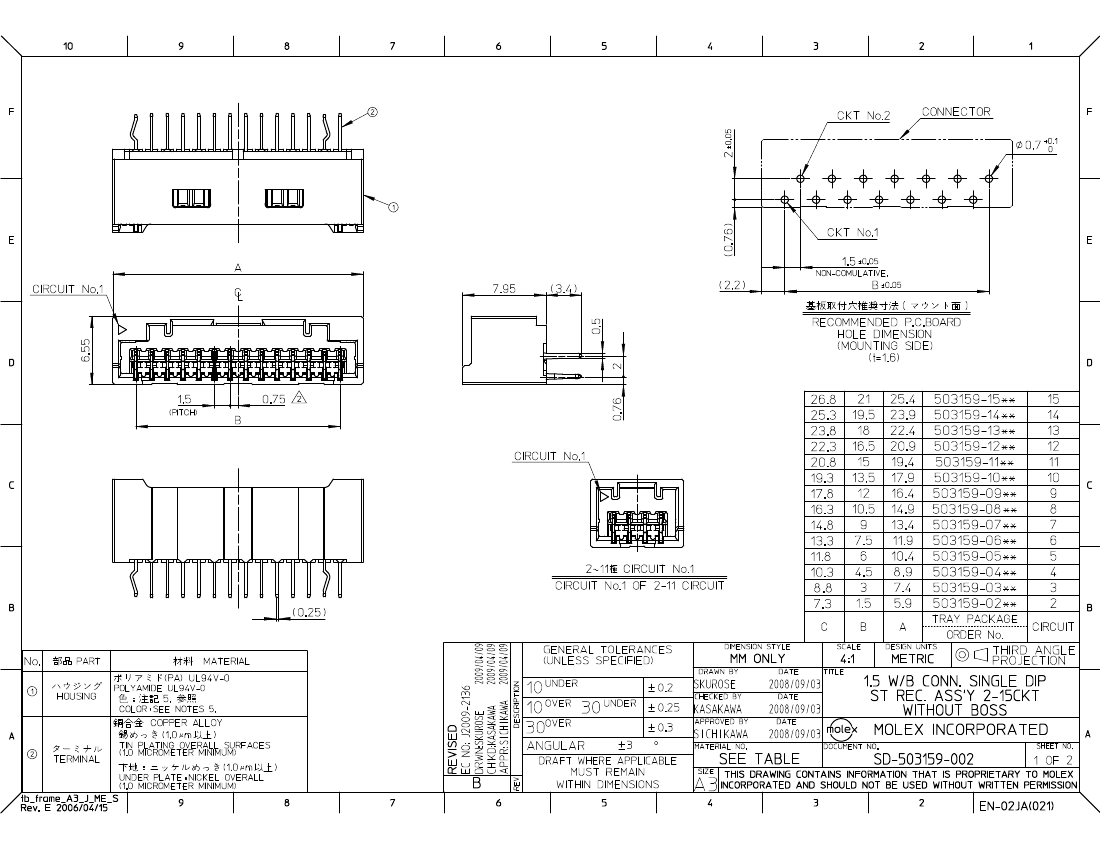

Sales Drawing

PS-503159-001, RPS-503159-001, RPS-503159-003

SD-503159-002

This document was generated on 04/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
