90151-3208: Description2.54mm (.100) pitch C-grid iii? PC board connector, dual row, vertical, 8 circuits; CategoryThe connector The connector; File Size207KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

90151-3208 Overview

2.54mm (.100) pitch C-grid iii? PC board connector, dual row, vertical, 8 circuits

90151-3208 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	90151
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

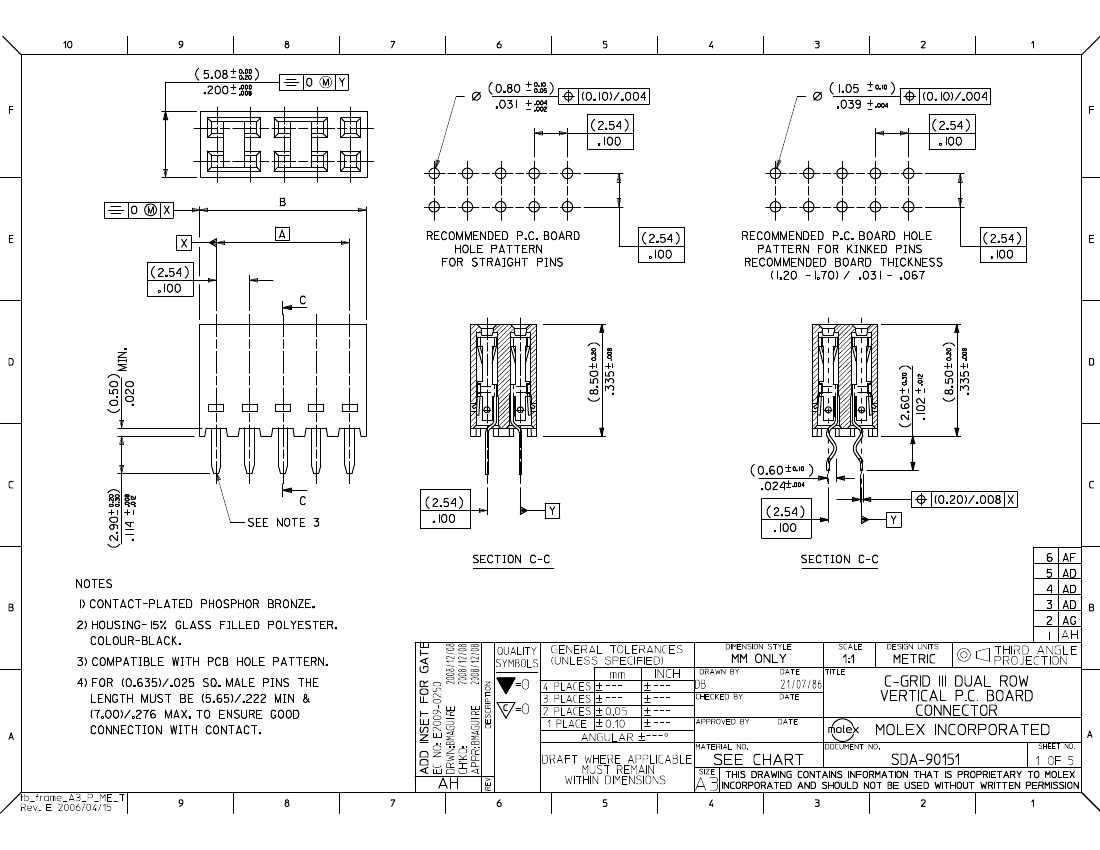

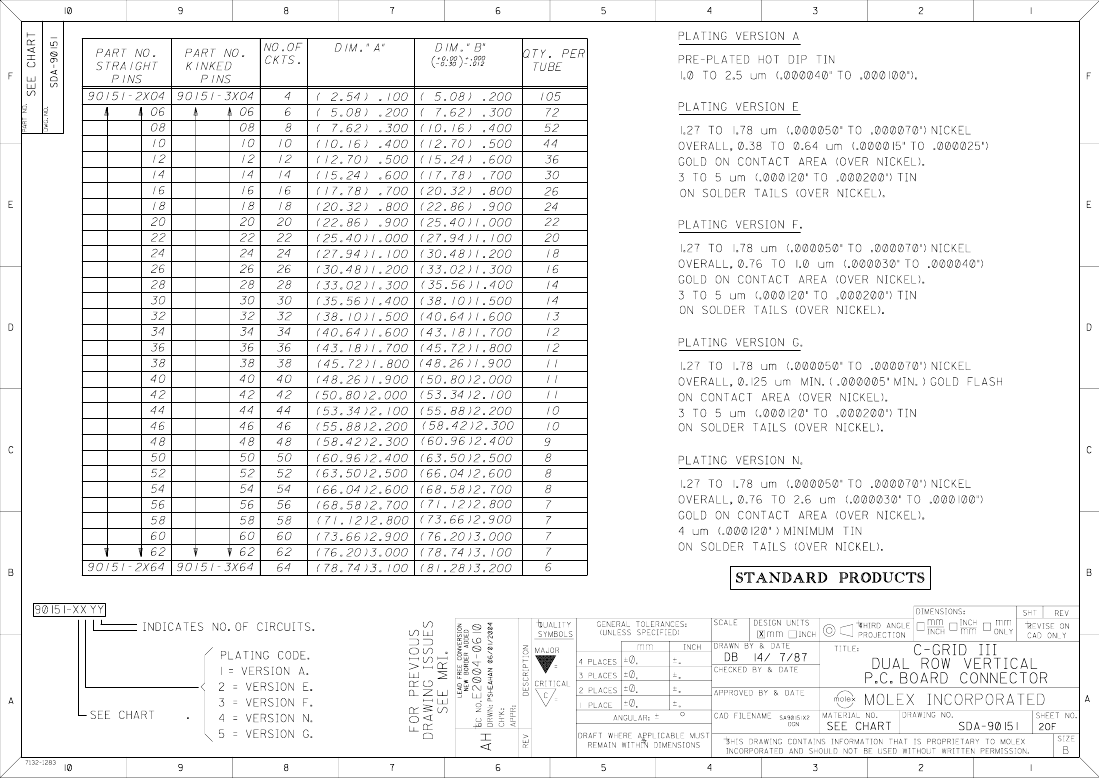

Preview

Download Datasheet

View All

This document was generated on 05/24/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

0901512306

Active

cgrid__sl_products

2.54mm (.100") Pitch C-Grid III™ PC Board Connector, Dual Row, Vertical, 6 Circuits

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Overview

Product Name

PCB Receptacles

90151

Board-to-Board

cgrid__sl_products

C-Grid III™

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Black

500

None

Phosphor Bronze

Gold

Tin

Polyester

Vertical

0.102 In

2.60 mm

None

0.031 In, 0.067 In

1.20 mm, 1.70 mm

Tube

0.100 In

2.54 mm

0.100 In

2.54 mm

30.4

0.76

120

Yes

-55°C to +125°C

Through Hole

Search Parts in this Series

90151Series

Mates With

0.64mm (.025") square pins

Electrical

Current - Maximum per Contact

Grounding to PCB
