Miniature Push-Pull Circular Connectors
HR25A Series

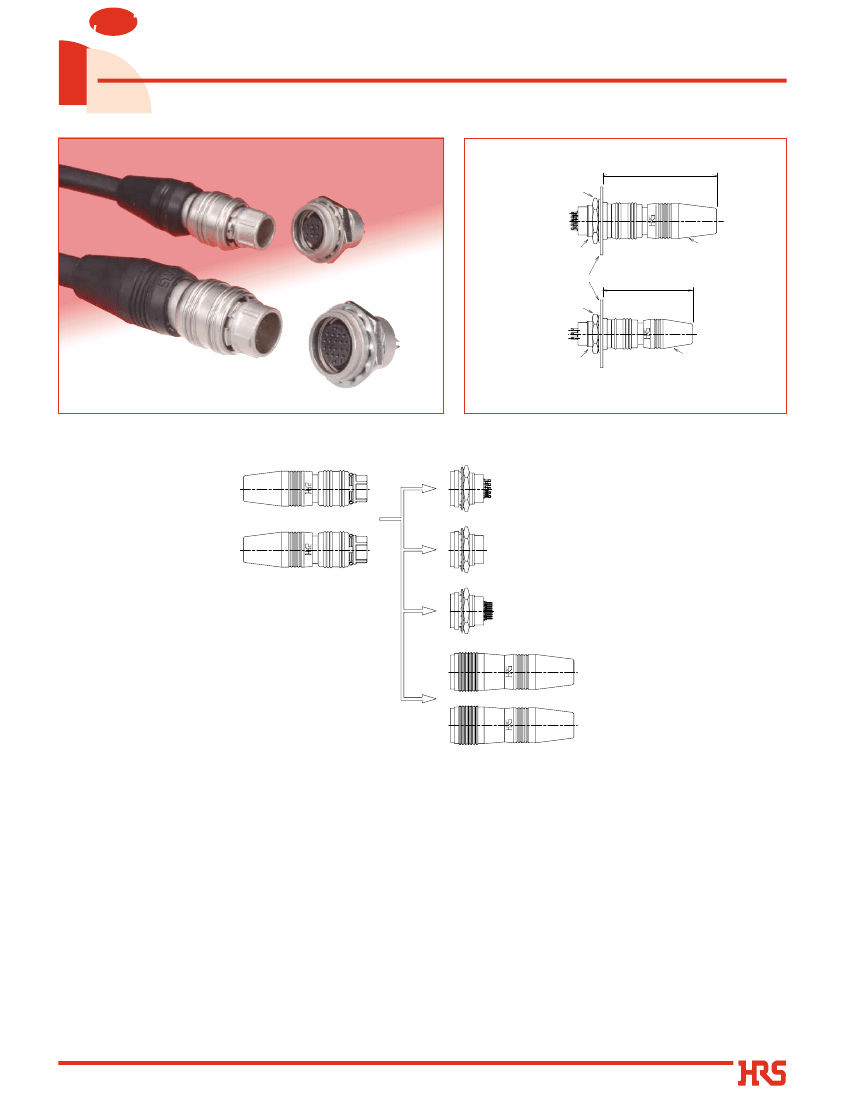

Mated dimensions
40.3
Hex nut
Receptacle
Panel
Hex nut
Plug
12, 16 and 20 positions
31.8
Receptacle
Plug
4, 6 and 8 positions
*shown without the cable.
B
Connecting combinations

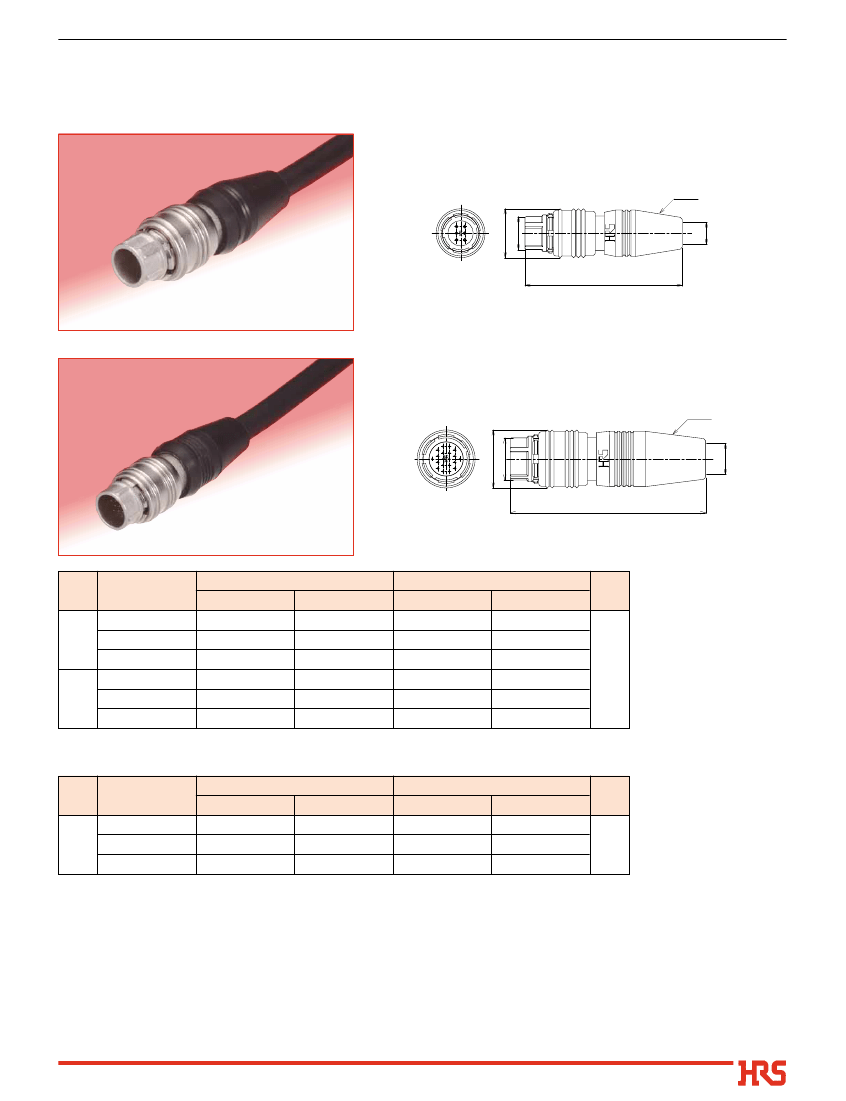

Plugs
Solder termination
Receptacles – Jacks
Solder termination
Crimp termination
Crimp termination
PC board mounting
Jack- solder termination
Jack – crimp termination
s
Features
1. Small size – high density
Outside diameters - plugs (max): 11 mm : 4,6 and 8 positions
13 mm : 12,16 and 20 positions
2. Simple push-in/ pull-out mating / un-mating
Polarized for correct insertion by a straight push-in movement.
Built-in lock release mechanism securely locks mated connectors while allowing quick disconnection by simply pulling on the plug release collar.
3. Several mounting number of positions, styles and terminations
Number of positions : 4, 6, 8, 12, 16 and 20
Connectors
:Plugs, jacks, receptacles
Terminations
:Solder, crimp or PC board through-hole (receptacles only)
Choice of socket or pin contacts for plugs and receptacles.
4. Metal shells
Secure lock between the metal shells provides excellent ground connection required in applications requiring EMI protection.
s
Applications
CCD cameras, measuring instruments, entertainment centers, medical equipment and other applications requiring use of
reliable
small circular connectors.
2009.3
1
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products
SeriesqMiniature
or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HR25A
have been discontinued,
Push-Pull Circular Connectors
s
Specifications
Current rating
Ratings
Voltage rating
30 V AC, 42 V DC
Storage temperature range
-25ç to +85ç (Note 1)
1A
Operating temperature range
-25ç to +85ç
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Durability
5. Vibration
1,000 Mø min.
Specification
100 V DC
Conditions
No flashover or insulation breakdown
30 mø max.
Contact resistance: 50 mø max.
No electrical discontinuity of 10 µs or longer
No damage, cracks or parts dislocation.
Insulation resistance: 5 Mø min. (at high humidity)
100 V AC / one minute (test voltage)
1 A DC
No damage, cracks or parts dislocation 1,000 cycles
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm 5 minute cycle,
10 cycles in each of the 3 axis
6. Humidity
Insulation resistance: 50 Mø min. (when dry)
No damage, cracks or parts dislocation.
96 hours at 40ç, and humidity of 90 to 95%
7. Temperature cycle
Insulation resistance: 1,000 Mø min.
Temperature :-55ç
Time
/
+15ç to +35ç
/
+85ç
/
+15ç to +35ç
/
30min.
/
2to 3 min.
5 cycles
:30min.
/
2to 3 min.
Note: The term “storage” refers to connectors stored for long period of time prior to termination or mounting.
s
Material
Item
Outer shell
Plugs
Jacks
Insulator
Gasket, boots
Contacts
Outer shell
Receptacles
Insulator
Contacts
Zinc alloy
PPS
Ethylene propylene rubber
Phosphor bronze
Zinc alloy
PPS
Phosphor bronze
Gold plated
Gold plated
Nickel plated
Material
Finish
Nickel plated
Remarks
––––
––––
UL94V-0
––––
––––
––––
––––
––––
––––
UL94V-0
––––
––––
s
Ordering information
HR 2 5 A - 7 P - 6 S C
(ππ)
1
2
3
4
5
6
7
1
Series name: HR25A Series
2
Shell size: Outside diameter of plug mating portion
3
Connector type: P : Plug
R : Receptacle
J : Jack
4
Number of contacts: 4, 6, 8, 12, 16, 20
5
Contact type:
S : Female contacts
P : Male contacts
6
Termination type: Blank : Solder
C
: Crimp
D
: DIP
7
Other specifications: 2 numerical digits will be
added when there is a specifications change other
than shown in positions
1
to
6
.
2
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products
SeriesqMiniature
or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
HR25A
have been discontinued,
Push-Pull Circular Connectors
s

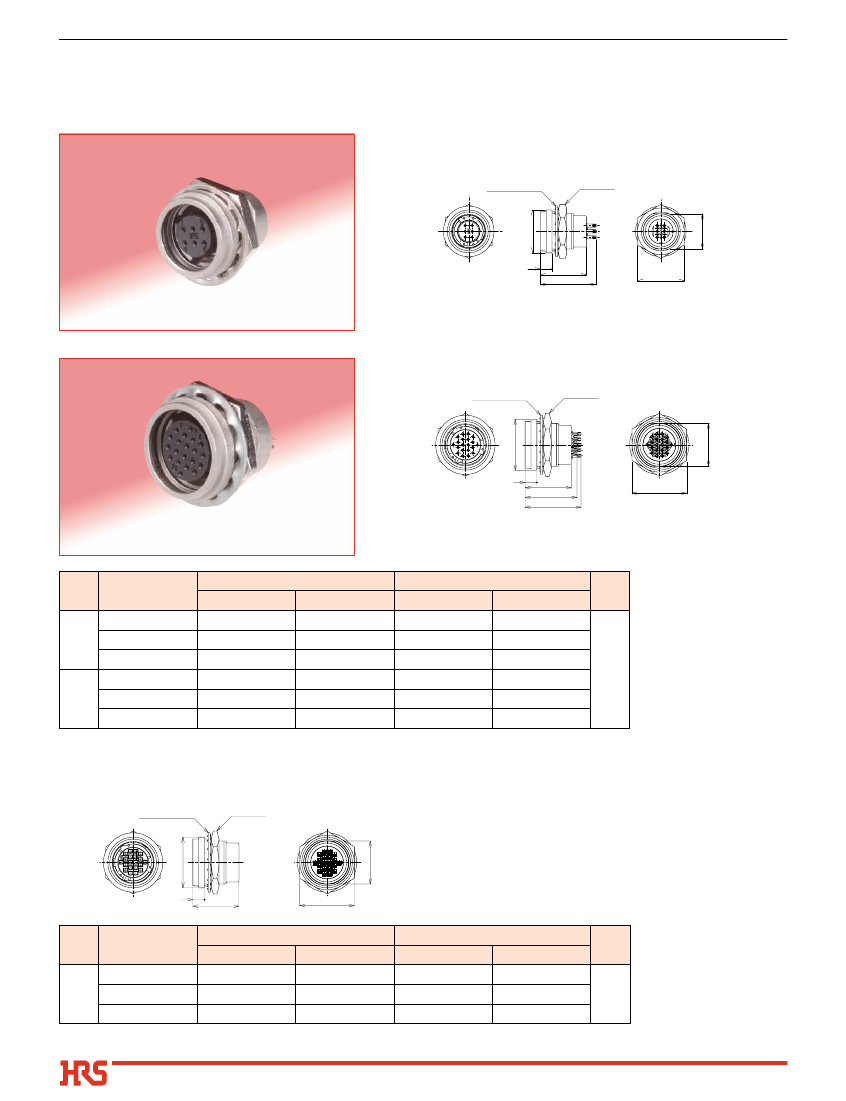

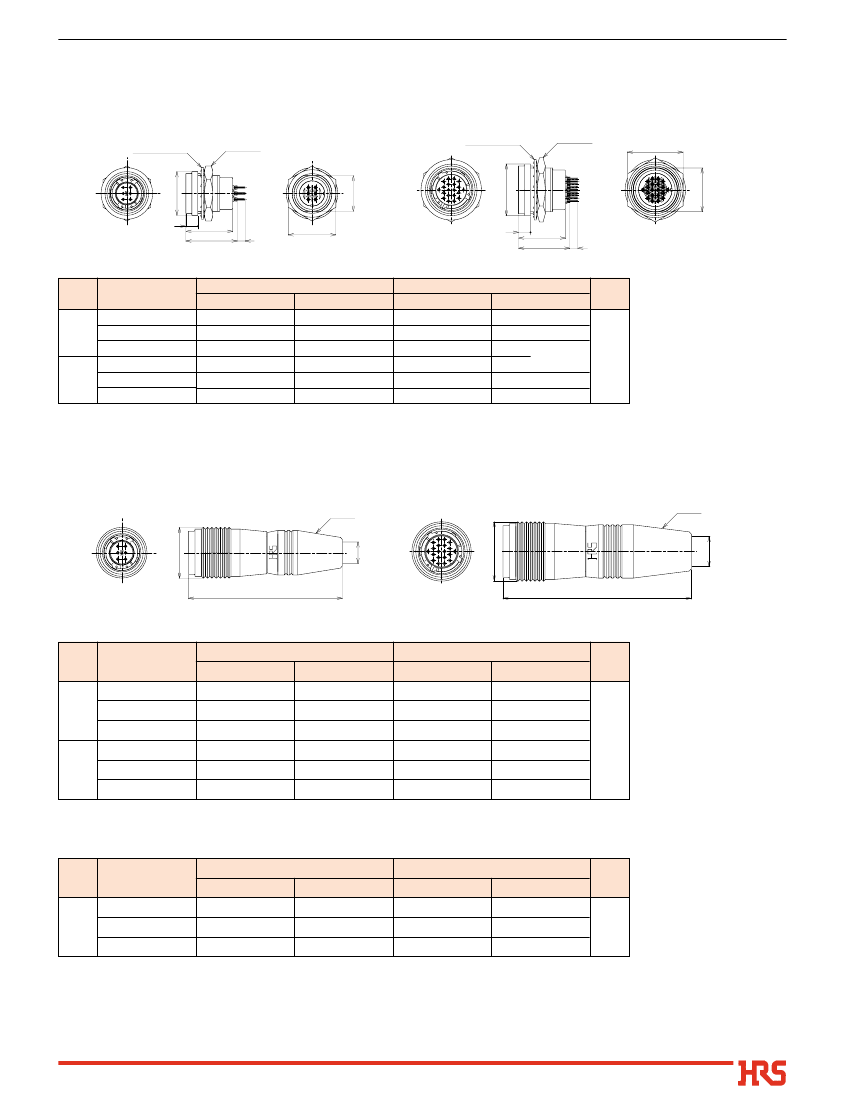

Receptacles
qSolder
termination (contacts inserted)
Shell size: 7
Lock washer
Hex nut
6
3
Ø11
3
6
1
4
3
11.8
14.3
12HEX
HR25A-7R-6S
Shell size: 9
Lock washer
Hex nut
Ø13
15
20
2
3
11.8
13.3
14.3
14HEX
HR25A-9R-20S
All dimensions: mm
Shell
Number of contacts
size
4
7
6
8
12
9
16
20
Male contact
Part Number
HR25A-7R-4P
HR25A-7R-6P
HR25A-7R-8P
HR25A-9R-12P
HR25A-9R-16P
HR25A-9R-20P
CL No.
125-0623-8
125-0621-2
125-0620-0
125-0618-8
125-0616-2
125-0614-7
Female contact
Part Number
HR25A-7R-4S
HR25A-7R-6S
HR25A-7R-8S
HR25A-9R-12S
HR25A-9R-16S
HR25A-9R-20S
CL No.
125-0622-5
125-0603-0
125-0619-0
125-0617-5
125-0615-0
125-0601-5
RoHS
YES
qCrimp
termination (separate contacts required)
HR25A-9R-20SC
Lock washer
Hex nut
Ø13
3
11.8
14HEX
11
All dimensions: mm
Shell
Number of contacts
size
12
9
16
20
Pin contact
Part Number
HR25A-9R-12PC
HR25A-9R-16PC
HR25A-9R-20PC
CL No.
125-0659-5
125-0657-0
125-0654-1
Female contact
Part Number
HR25A-9R-12SC
HR25A-9R-16SC
HR25A-9R-20SC
CL No.
125-0658-2
125-0656-7
125-0655-4
RoHS
YES
4
11
9
4
A
1 2
20
1
5
19 A
20 16
5
