ULN2003AP datasheet, PDF - EEWORLD Datasheet

ULN2003AP: Description7ch darlington sink driver; CategoryDiscrete semiconductor The transistor; File Size745KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

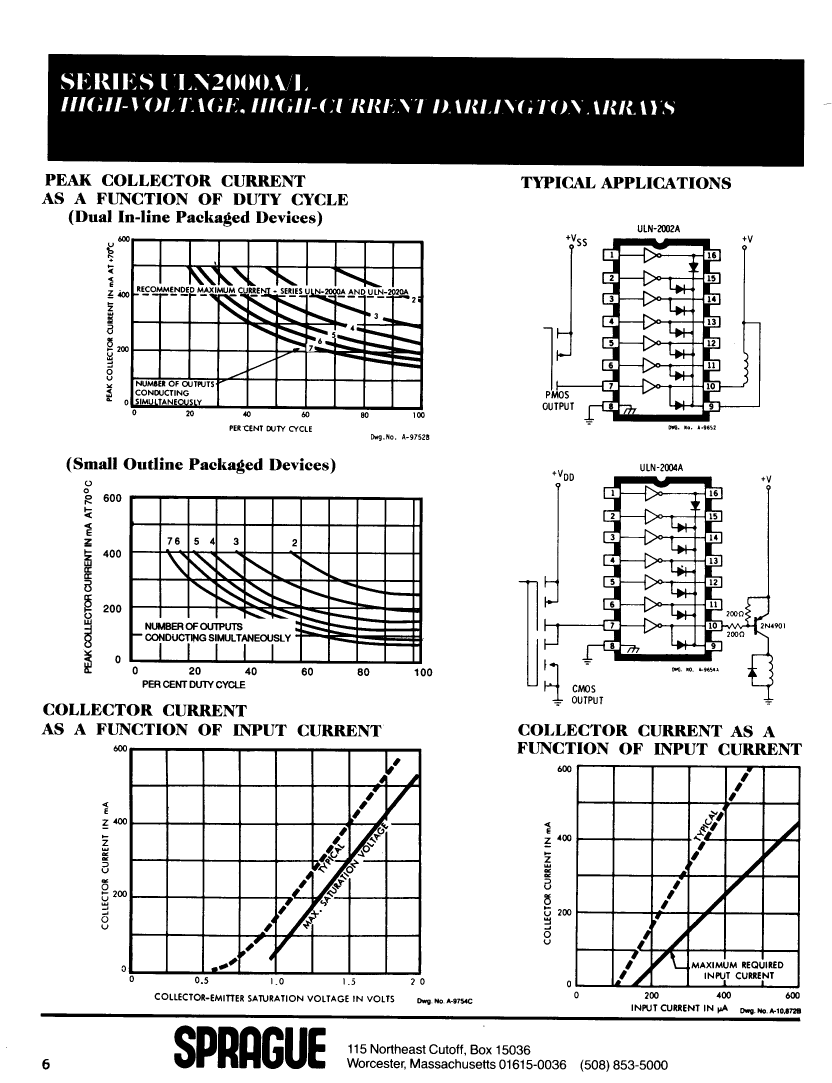

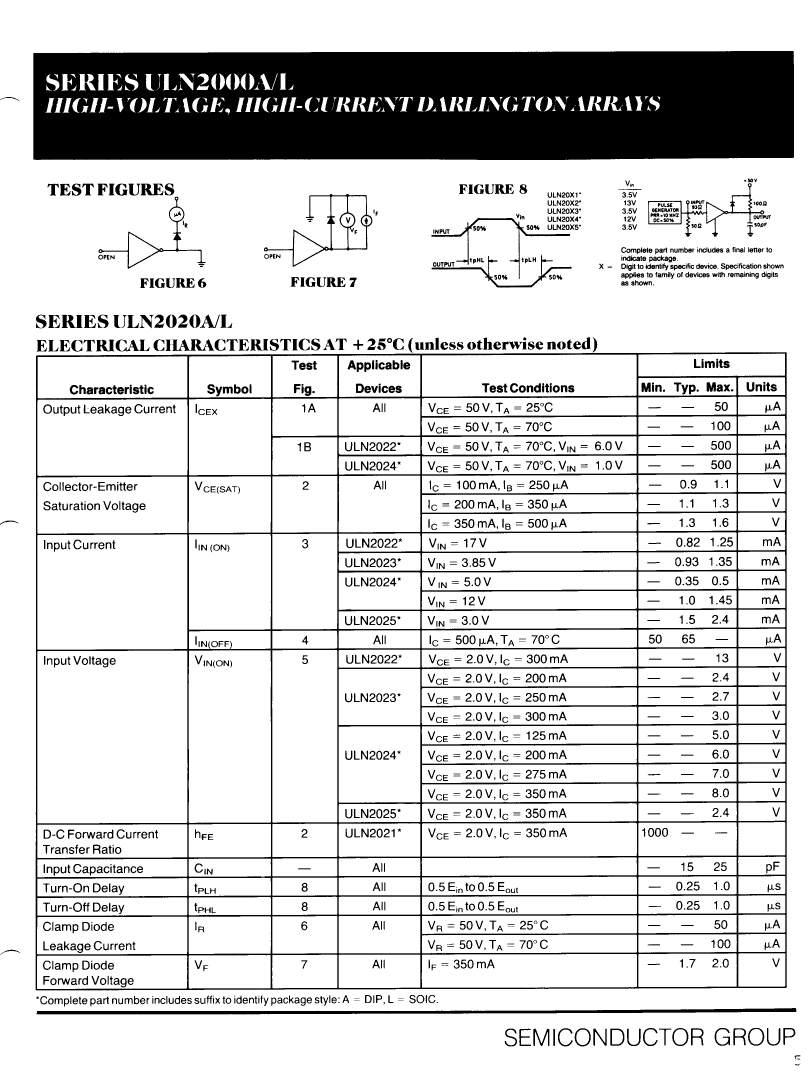

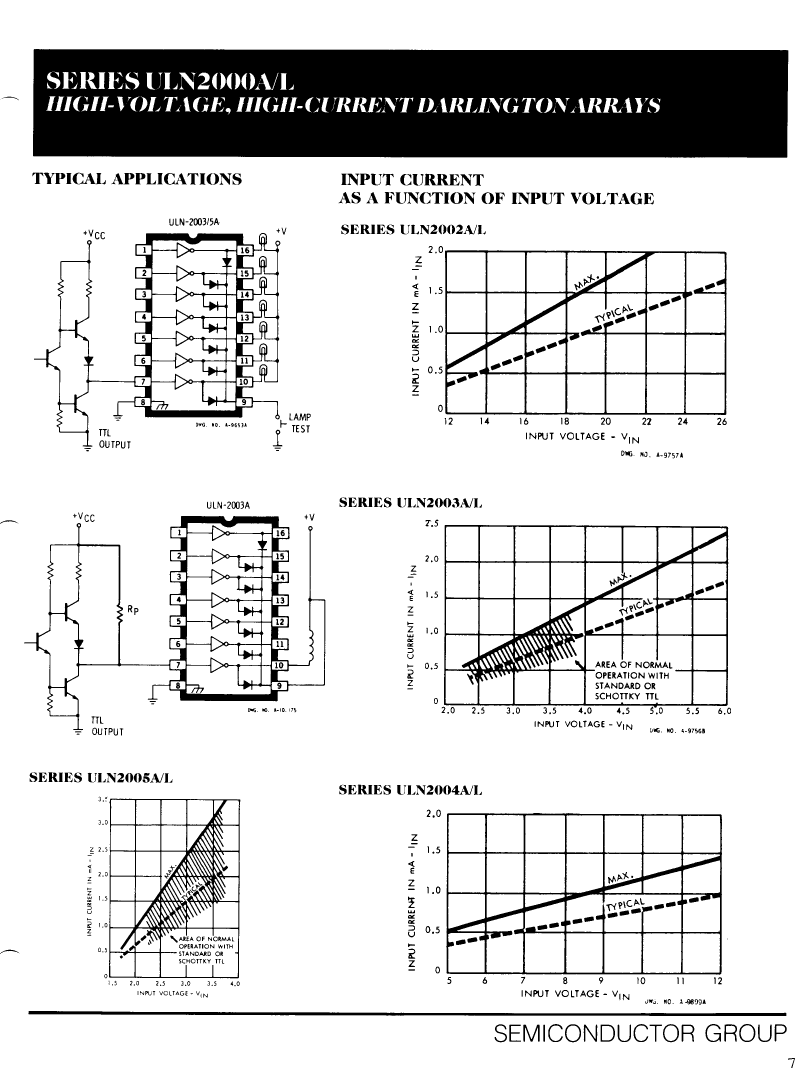

ULN2003AP Overview

7ch darlington sink driver

Parameter Name	Attribute value

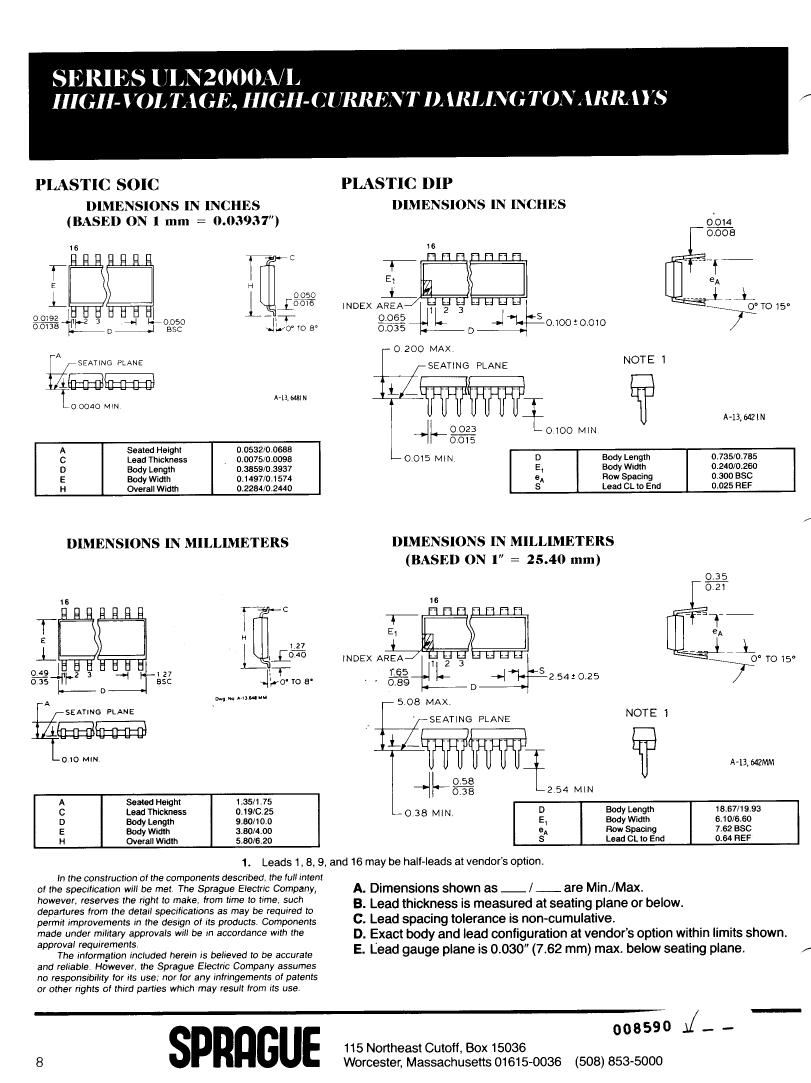

Parts packaging code	DIP
package instruction	0.300 INCH, PLASTIC, DIP-16
Contacts	16
Reach Compliance Code	unknow
Other features	LOGIC LEVEL COMPATIBLE
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	50 V
Configuration	COMPLEX
Minimum DC current gain (hFE)	1000
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of components	7
Number of terminals	16
Maximum operating temperature	85 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
VCEsat-Max	1.6 V
Base Number Matches	1

	ULN2003AP	ULN2003AFW	ULN2004AP
Description	7ch darlington sink driver	7ch darlington sink driver	7ch darlington sink driver
Parts packaging code	DIP	SOIC	DIP
package instruction	0.300 INCH, PLASTIC, DIP-16	0.150 INCH, PLASTIC, SOL-16	0.300 INCH, PLASTIC, DIP-16
Contacts	16	16	16
Reach Compliance Code	unknow	unknow	unknow
Other features	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE	LOGIC LEVEL COMPATIBLE
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A
Collector-emitter maximum voltage	50 V	50 V	50 V
Configuration	COMPLEX	COMPLEX	COMPLEX
Minimum DC current gain (hFE)	1000	1000	1000
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16
Number of components	7	7	7
Number of terminals	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE
Polarity/channel type	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
VCEsat-Max	1.6 V	1.6 V	1.6 V
Base Number Matches	1	1	1
JESD-609 code	e0	-	e0
Terminal surface	TIN LEAD	-	TIN LEAD
