MMC-37P-YS206-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MMC-37P-YS206-0

Preview

MMC-37P-YS206-0: DescriptionCircular Connector, 37 Contact(s), Aluminum Alloy, Male, Plug,; CategoryThe connector The connector; File Size168KB，2 Pages; ManufacturerCristek Interconnects Inc

Download Datasheet Parametric View All

MMC-37P-YS206-0 Overview

Circular Connector, 37 Contact(s), Aluminum Alloy, Male, Plug,

MMC-37P-YS206-0 Parametric

Parameter Name	Attribute value
Objectid	1052524391
Reach Compliance Code	compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	8
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	YELLOW CHROMATE CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Total number of contacts	37

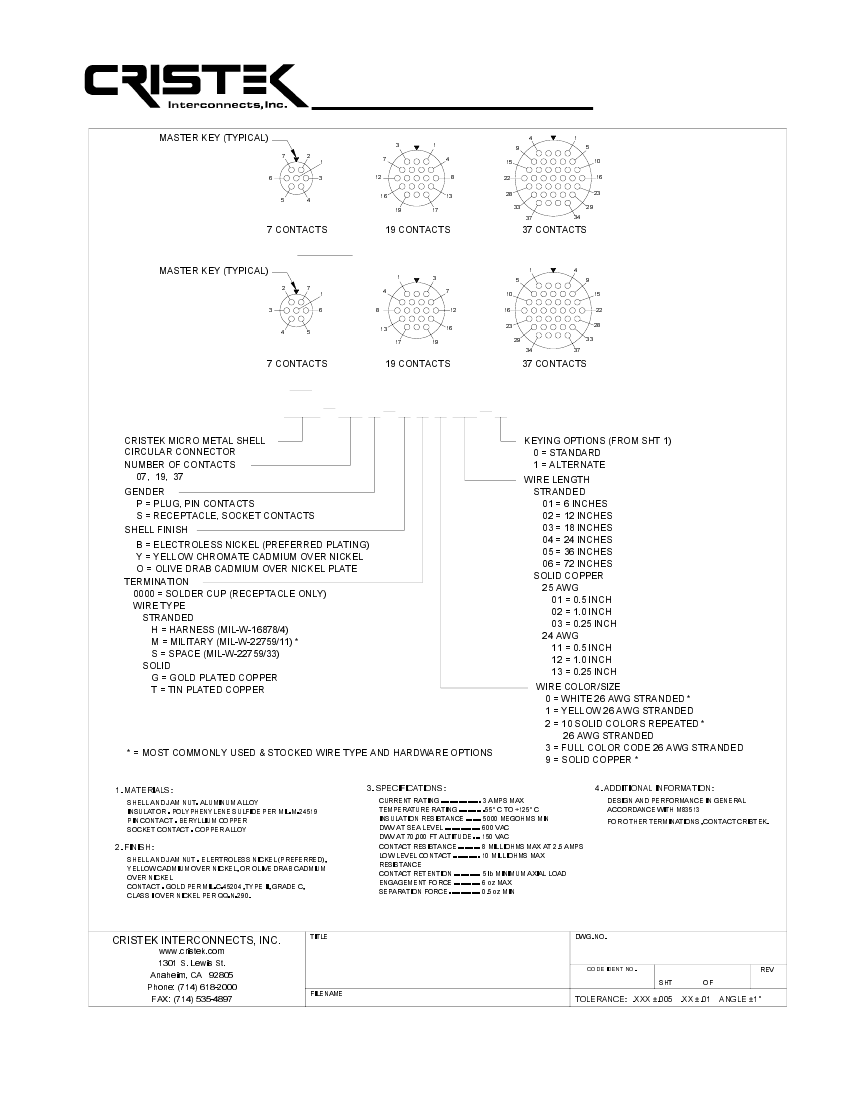

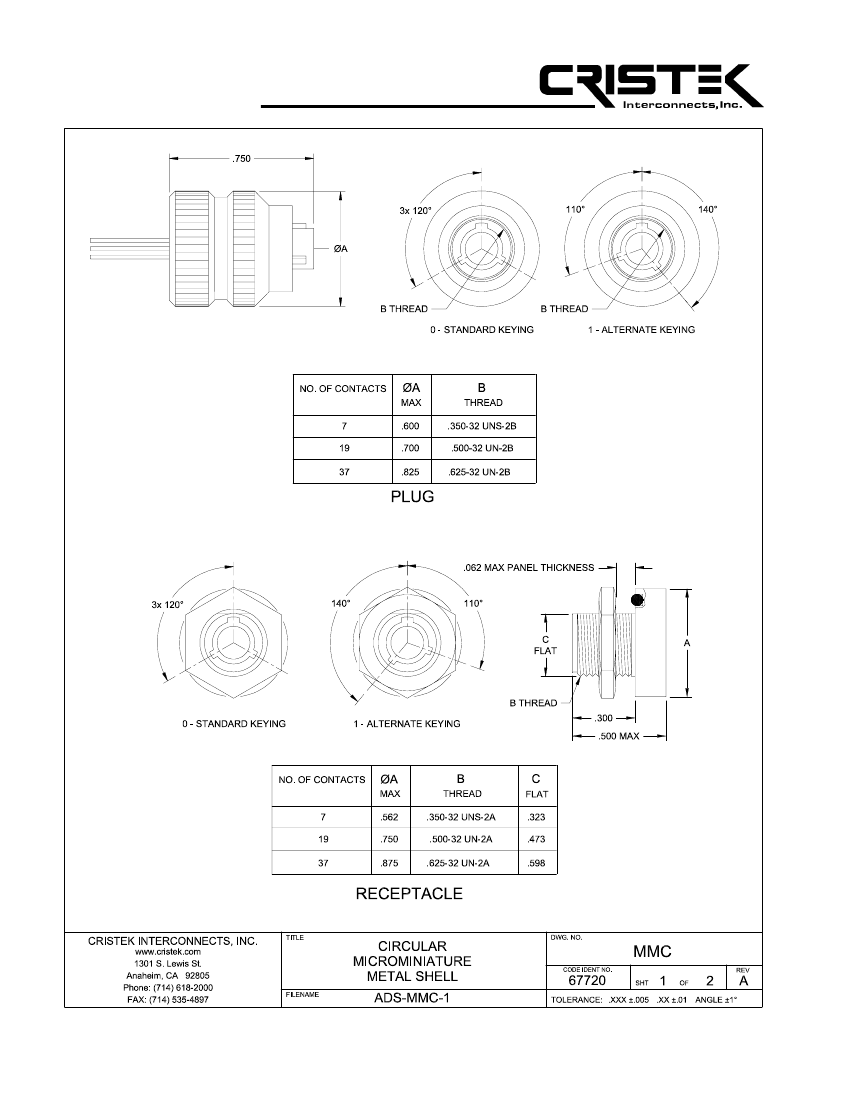

MMC-37P-YS206-0 Preview
