70018-0009: Description2.54mm (.100") pitch, SL single row wire-to-wire panel mount, 10 circuits; File Size189KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

70018-0009 Overview

2.54mm (.100") pitch, SL single row wire-to-wire panel mount, 10 circuits

Preview

Download Datasheet

View All

This document was generated on 06/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

0050650208

Active

cgrid__sl_products

2.54mm (.100") Pitch, SL™ Single Row Wire-to-Wire Panel Mount, 8 Circuits

Packaging Specification (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19980

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Component Type

Overview

Product Name

Accessories

70018

Branch

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Color - Resin

Flammability

Lock to Mating Part

Material - Resin

Packaging Type

Black

94V-0

Yes

Polyester

Bag

Material Info

Old Part Number

70018-0007

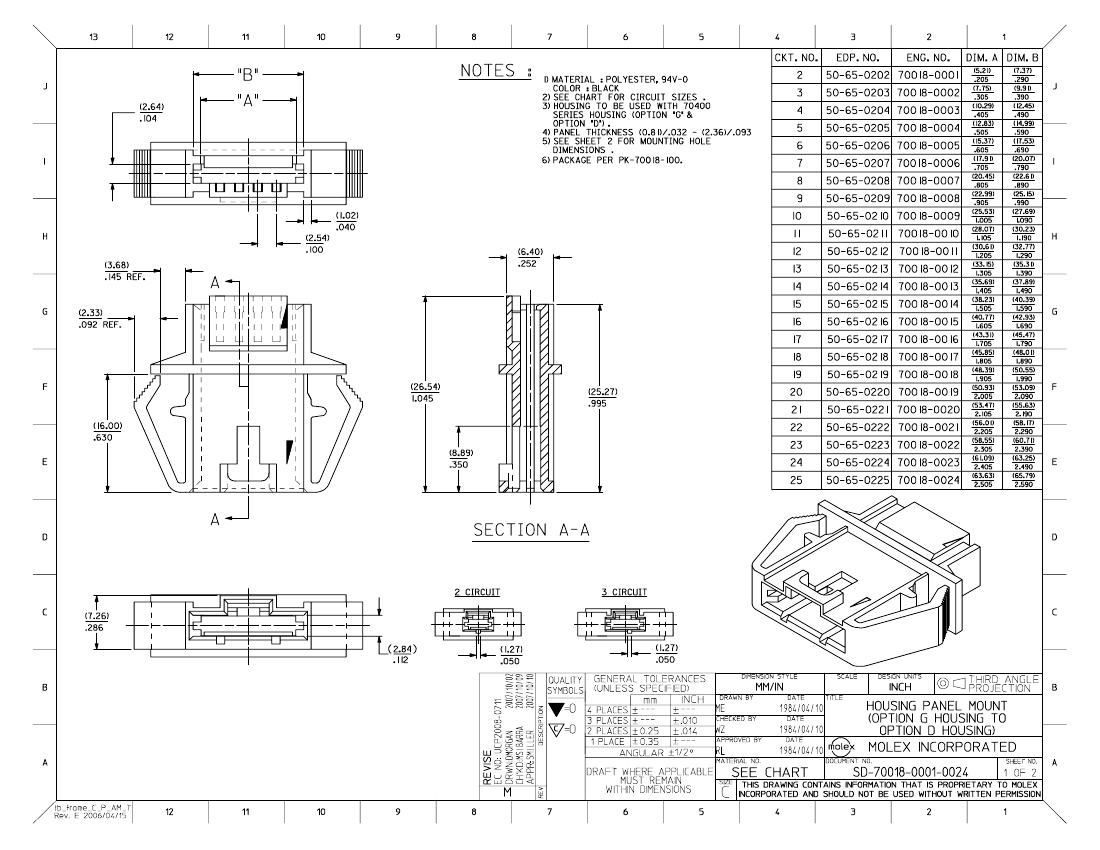

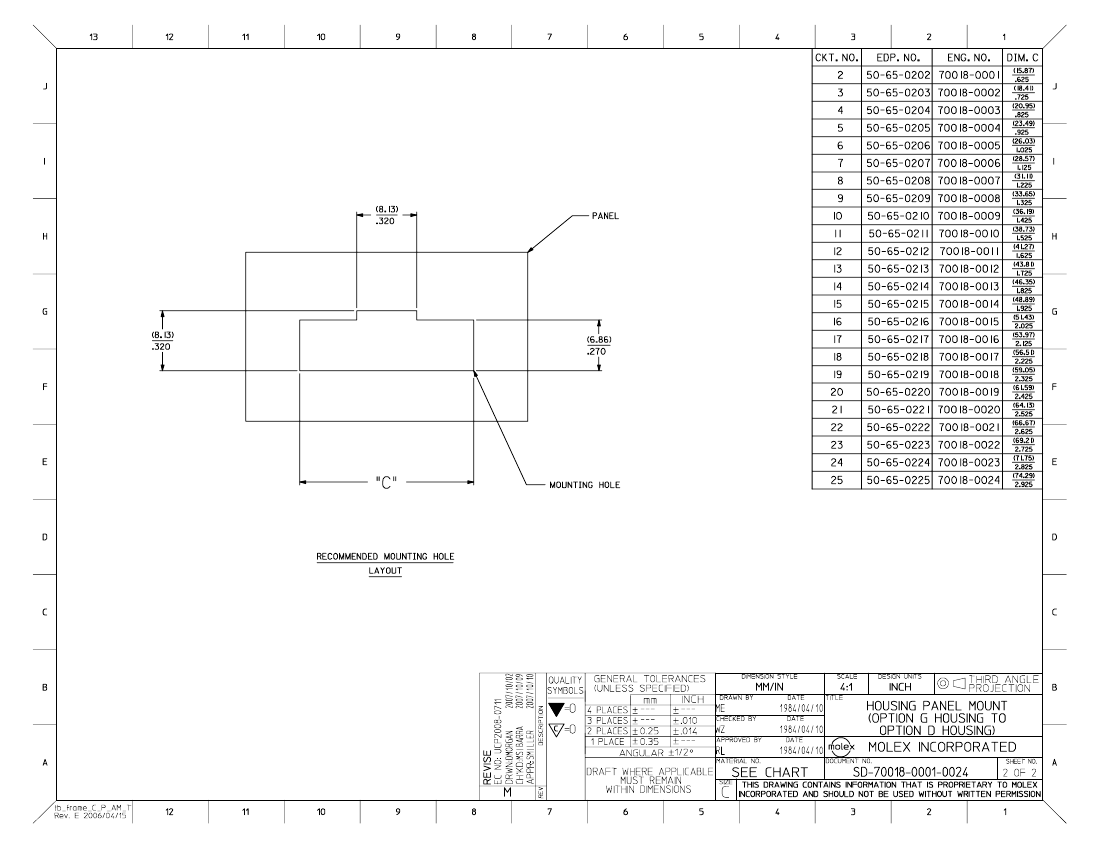

Reference - Drawing Numbers

Sales Drawing

SD-70018-0001-0024

Search Parts in this Series

70018Series

Use With

70066 SL™ Crimp Housing. 70475 SL™

IDT Connector Assembly. 70431 SL™ FFC/

FPC Connector

This document was generated on 06/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
