DIP and D Subminiature Jumpers
Features:
• Aries offers a wide array of DIP/D Subminiature jumper configura-
tions and wiring possibilities for all your programming needs.
• Reliable, electronically tested solder connections.
• Cable is potted to provide strain relief.
• Protective covers are also provided on headers.
• 10-color cable allows for easy identification and tracing.
• 9 pin “D” connector available with 8 or 14 pin header.
• 15 pin “D” connector available with 14 or 16 pin header.
• 25 pin “D” connector available with 24 pin header.
• 37 pin “D” connector available with 40 pin header.
• 50 pin “D” connector available with two 24 pin headers.
• Consult factory for jumper lengths under 2.000 [50.80].
HEADER Specifications:
• Header body is red UL 94-HB Glass-filled Nylon. Consult factory
for UL 94V-0 rated material.
• Header pins are Brass, 1/2 hard.
• Header pin plating is 10µ [.25µm] min. Gold per MIL-G-45204 over
50µ [1.27µm] min. Nickel per QQ-N-290.
D-SUBMINIATURE CONNECTOR SPECIFICATIONS:
• Insulator is UL 94V-0 flame-retardant thermoplastic.
• Contacts are Copper Alloy.
• Contact plating is 100µ [2.54µm] min. Gold over Nickel.
CABLE SPECIFICATIONS:
• Insulation is UL Style 2697 Polyvinyl Chloride (PVC).
• Laminate is clear PVC, self-extinguishing.
• Conductors are 28 AWG, 7/36 strand, Tinned Copper per
ASTM B 33.
• Current rating=1 Amp @ 10°C [50°F] above ambient.
• Voltage rating=300 Volts.
• Temperature rating=176°F [80°C].
• Capacitance=13.0 pf/ft. [42.7pf/meter] nominal @1 MHz.
• Crosstalk: 10’ sample, 5 ns rise time with 2 lines driven.
Near end=4.7%; Far end=4.3% nominal.
• Propagation delay=1.5 ns/ft. [4.9 ns/meter] nominal.
• Insulation resistance=1010 Ohms (10 ft. [3 meters] min.).
Mounting Considerations:
•Suggested PCB hole size=.033 ± .002 [.86 ± .05].
Note: Aries specializes in custom design and production. In addition to
the standard products shown on this page, special materials, platings,
sizes, and configurations can be furnished, depending on quantities.
Aries reserves the right to change product specifications without notice.
ORDERING INFORMATION
XXX-XXX-XXX
No. of contacts
(“D” connector)
M=male “D”
connector
F=female “D”
connector
Termination style
(A, B, C, D, E, or M,
F for male or female
“D” connector)
No. of termination
contacts
Length “L” in inches:
“D” to DIP=2.000 [50.80] min.
“D” to “D”=3.000 [76.20] min.
HEADER
DETAIL
A
LL
DIMENSIONS
:
INCHES
[
MILLIMETERS
]
“L” ± .125
All tolerances ± .005 [.13]
unless otherwise specified
Numbers
shown pin side
for reference
only.

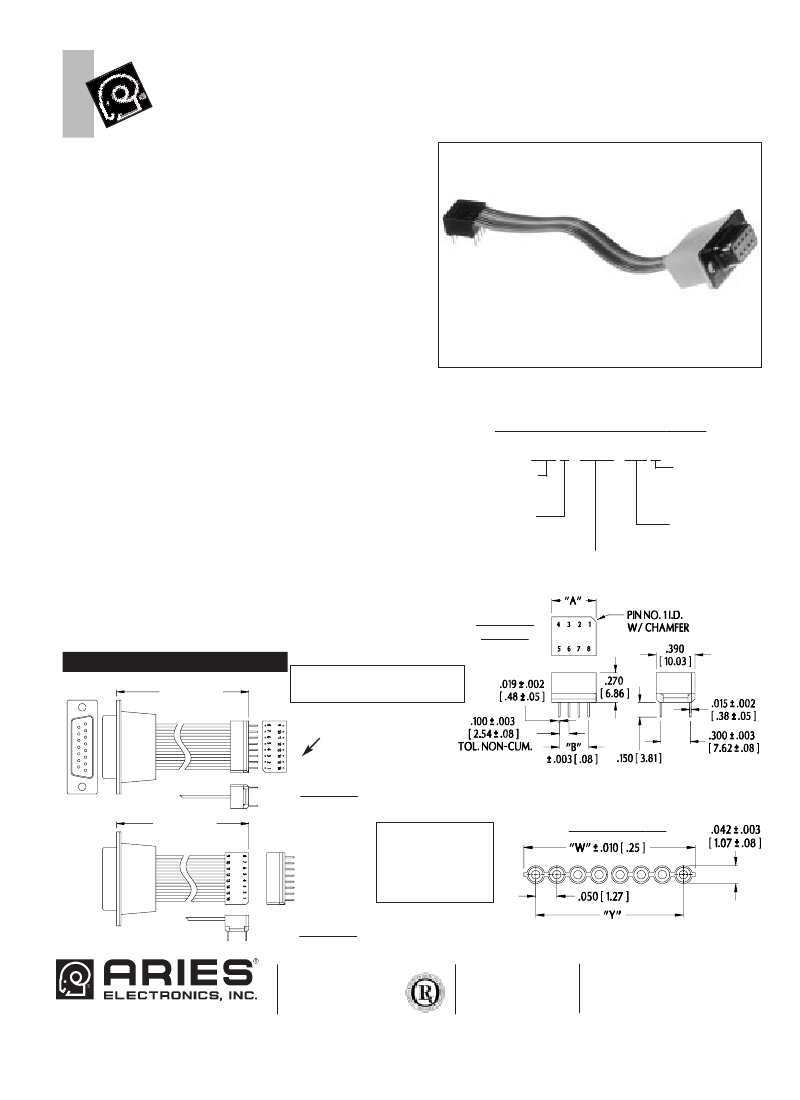

STYLE A
“L” ± .125
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .095 [2.41]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
See Data Sheet
11017 for other
configurations
and additional
information.
CABLE DETAIL
STYLE B
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX: (908) 996-3891
“W”=(NO. OF CONDUCTORS X .050 [1.27]) + .005 [.08]
“Y”=(NO. OF CONDUCTORS - 1) X .050 [1.27]
UK/IRELAND/GB
TEL: +44 870 240 0249
FAX: +44 1653 600493
uking@arieselec.com
EUROPE/MAINLAND/HOLLAND
TEL: +31 78 615 94 65
FAX: +31 78 615 43 11
11016
europe@arieselec.com
http://www.arieselec.com • info@arieselec.com
REV.B
PRINTOUTS OF THIS DOCUMENT MAY BE O OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
UT
DIP and D Subminiature Jumpers
(cont.)
“L” ± .125
“L” ± .125
Note: All DIP header chamfers (pin
1 I.D.) shown with female “D” con-
nector. For male “D” connector, pin
1 is in diagonally opposite corner.

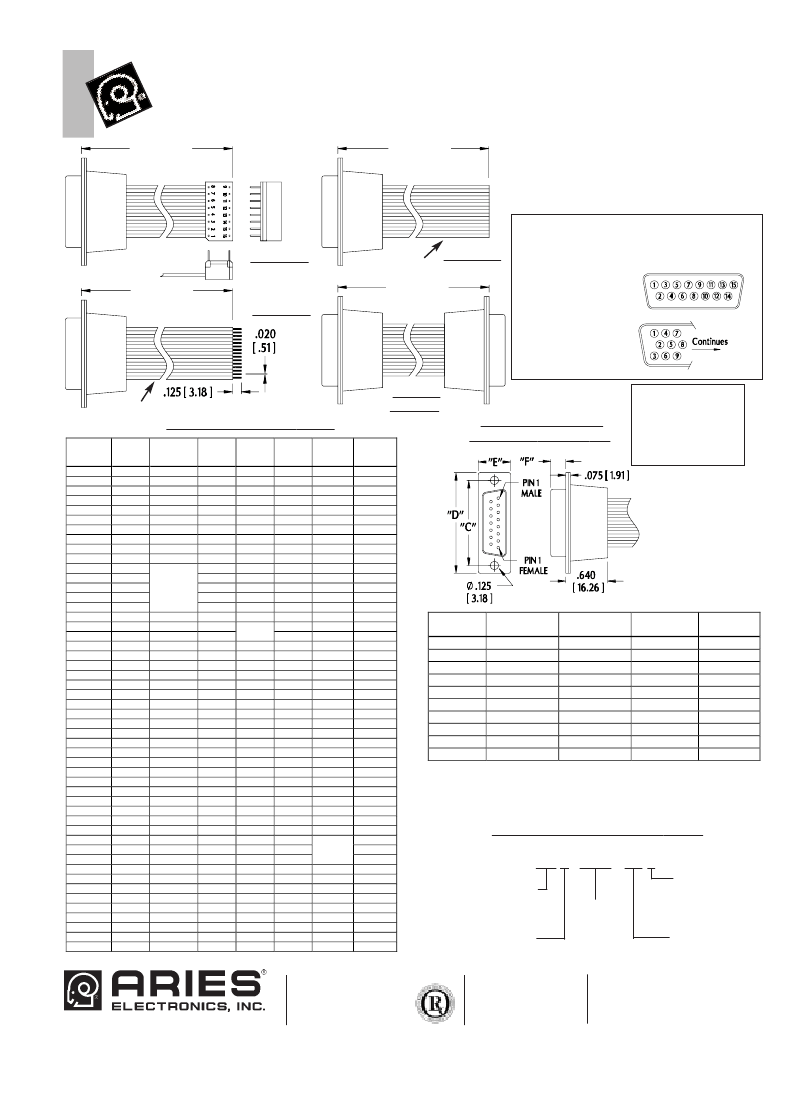

Typical wiring
sequence for
termination Style D
and E, male “D”
connector shown
contact side.
50 contact
“D” connector
9, 15, 25, & 37
contact
“D” connector
STYLE C
“L” ± .125
Wire 1
STYLE E
“L” ± .125
STYLE D
Wire 1
WIRING LIST - “D” TO DIP
“D”
Connecto
r
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
9 “D”
8 DIP
1
2
3
4
Dummy
8
7
6
5
9 “D”
14 DIP
1
2
3
4
5
14
13
12
11
DIP
6
thru
10 Dummy
15 “D”
14 DIP
1
2
3
4
5
6
7
Dummy
14
13
12
11
10
9
8
15 “D”
16 DIP
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
DIP 9
Dummy
25 “D”
24 DIP
1
2
3
4
5
6
7
8
9
10
11
12
Dummy
24
23
22
21
20
19
18
17
16
15
14
13
37 “D”
40 DIP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
DIP
20,21,22
Dummy
STYLE
M OR F
50 “D”
(2) 24 DIP
1B
24B
2B
23B
3B
22B
4B
21B
5B
20B
6B
19B
7B
18B
8B
17B
8B
4A
22A
3A
23A
2A
24A
1A
Dummy
Dummy
13B
12B
14B
11B
15B
10B
16B
21A
15A
20A
6A
19A
7A
18A
8A
17A
9A
16A
10A
15A
11A
14A
12A
13A
D SUBMINIATURE
CONNECTOR DETAIL
See Data Sheet
11016 for other
configurations
and additional
information.
No. of
Pins
9 Male
9 Female
15 Male
15 Female
25 Male
25 Female
37 Male
37 Female
50 Male
50 Female
Dim.
“C”
.984 [24.99]
.972 [24.69]
1.310 [33.27]
1.312 [33.33]
1.850 [46.99]
1.850 [46.99]
2.500 [63.50]
2.500 [63.50]
2.406 [61.11]
2.406 [61.11]
Dim.
“D”
1.220 [30.99]
1.219 [30.96]
1.545 [39.24]
1.542 [39.17]
2.094 [53.19]
2.094 [53.19]
2.737 [69.52]
2.740 [69.60]
2.640 [67.06]
2.643 [67.13]
Dim.
“E”
.494 [12.55]
.494 [12.55]
.494 [12.55]
.494 [12.55]
.494 [12.55]
.494 [12.55]
.494 [12.55]
.494 [12.55]
.494 [12.55]
.494 [12.55]
Dim.
“F”
.325 [8.26]
.243 [6.17]
.232 [5.89]
.243 [6.17]
.230 [5.84]
.243 [6.17]
.230 [5.84]
.243 [6.17]
.230 [5.84]
.243 [6.17]
Minimum length “L”=
“D” to DIP: 2.000 [50.80]
“D” to “D”: 3.000 [76.20]
ORDERING INFORMATION
X X X - X X X - X X X
Termination style
(A, B, C, D, E, or
No. of contacts
M, F for male or
(“D”-connector)
female “D” con-
Length “L”
nector)
M=male “D”
in inches
connector
No. of termina-
F=female “D”
tion contacts
connector
EUROPE/MAINLAND/HOLLAND
UK/IRELAND/GB
TEL: +44 870 240 0249 TEL: +31 78 615 94 65
FAX: +31 78 615 43 11
FAX: +44 1653 600493
11017
europe@arieselec.com
uking@arieselec.com
REV.B
http://www.arieselec.com • info@arieselec.com
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX: (908) 996-3891
