SFSR150E6-20.945-I-T&R: DescriptionSeries - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size94KB，2 Pages; ManufacturerSunny Electronics Corp; Websitehttp://www.sunny.co.kr; Environmental Compliance

Download Datasheet Parametric View All

SFSR150E6-20.945-I-T&R Overview

Series - Fundamental Quartz Crystal,

SFSR150E6-20.945-I-T&R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7015178959
package instruction	UM-1, 2 PIN
Reach Compliance Code	unknown
Other features	AT-CUT; TR
Ageing	3 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	50 ppm
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	20.945 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L7.9XB3.2XH8.1 (mm)/L0.311XB0.126XH0.319 (inch)
Series resistance	30 Ω
surface mount	NO

Preview

Download Datasheet

View All

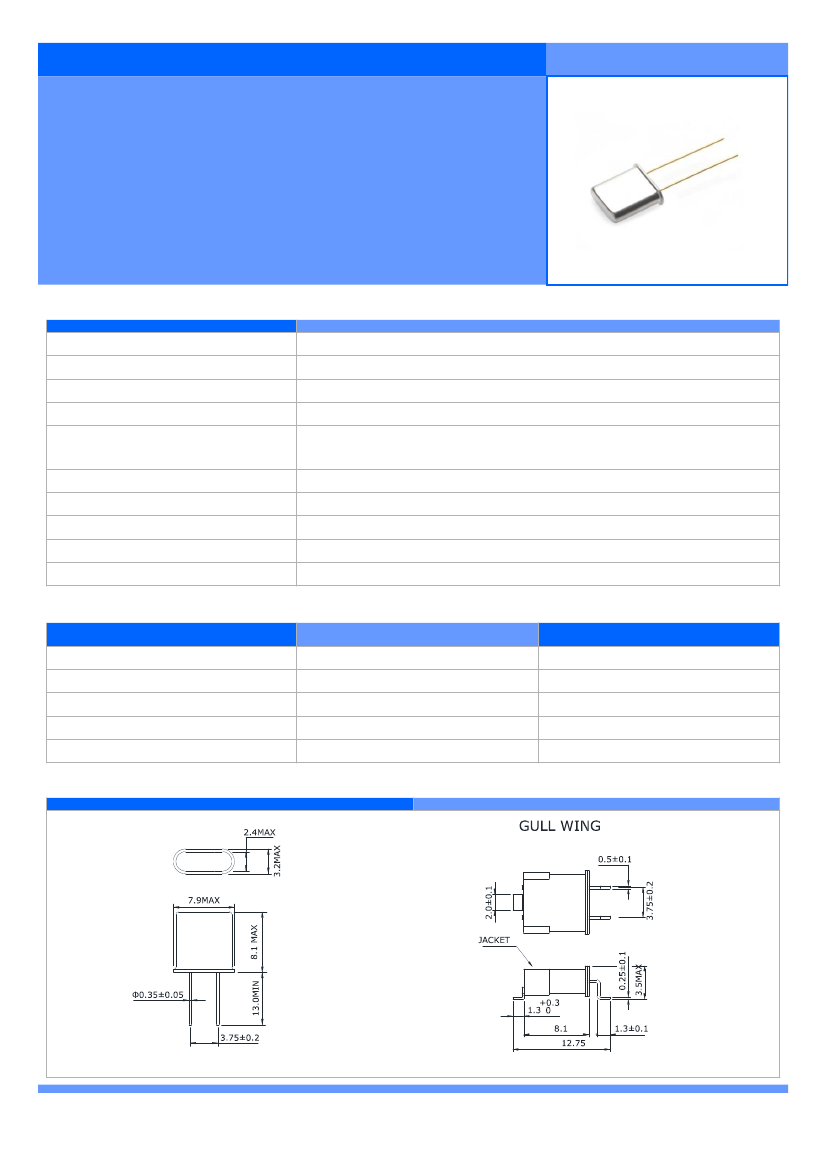

CRYSTAL UNIT

UM TYPE

UM-1

-

UM Type Package

AT-Cut Crystal Design

Tight Tolerance/Stability

Wide Temperature Range

Frequencies to 150.000 MHz Available

Pb-free and RoHS Compliance

■ ELECTRICAL SPECIFICATIONS

Frequency Range

Operating Temperature Range

Storage Temperature Range

Frequency Tolerance (at 25 ℃)

Frequency Stability

Over Operating Temperature Range

Load Capacitance (CL)

Drive Level

Shunt Capacitance (C0)

Aging (at 25 ℃)

Insulation Resistance

7.000 to 150.000 MHz

-20 to +70 ℃, -40 to +85 ℃, or specify

-40 to +85 ℃

±15, ±30, ±50 ppm(STD), or specify

±10 to ±50 ppm(-20 to +70 ℃)

±20 to ±100 ppm(-40 to +85 ℃)

18 pF(STD), Custom CL≥10 pF or Series Resonant

100 ㎼(1000 ㎼ Max.)

7.0 pF Max.

±3 ppm/year Max.

500 MΩ Min. at 100 V

DC

■ EQUIVALENT SERIES RESISTANCE(ESR)

Frequency Range(MHz)

7.000 ~ 9.999

10.000 ~ 15.999

16.000 ~ 60.000

30.000 ~ 79.999

80.000 ~ 150.000

ESR(Ω Max.)

80

60

30

80

Mode of Oscillation

Fundamental

3rd overtone

■ MECHANICAL DIMENSIONS

(mm)

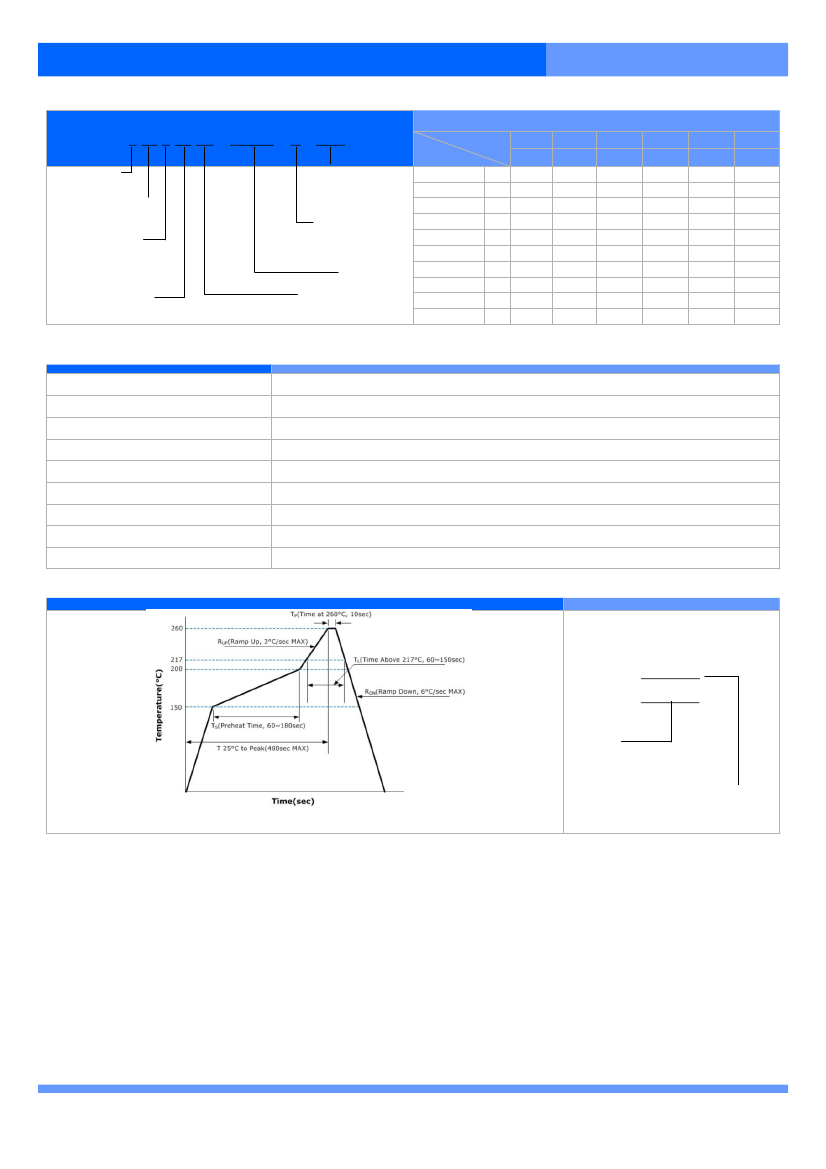

http://www.sunny.co.kr

SUNNY ELECTRONICS CORP
