HRM060CN04WB1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> HRM060CN04WB1

HRM060CN04WB1: DescriptionFixed Attenuator, 0MHz Min, 12400MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size35KB，2 Pages; ManufacturerSmiths Group

Download Datasheet Parametric View All

HRM060CN04WB1 Overview

Fixed Attenuator, 0MHz Min, 12400MHz Max,

HRM060CN04WB1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Smiths Group
Reach Compliance Code	compliant
Nominal attenuation	6 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	23.01 dBm
JESD-609 code	e4
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

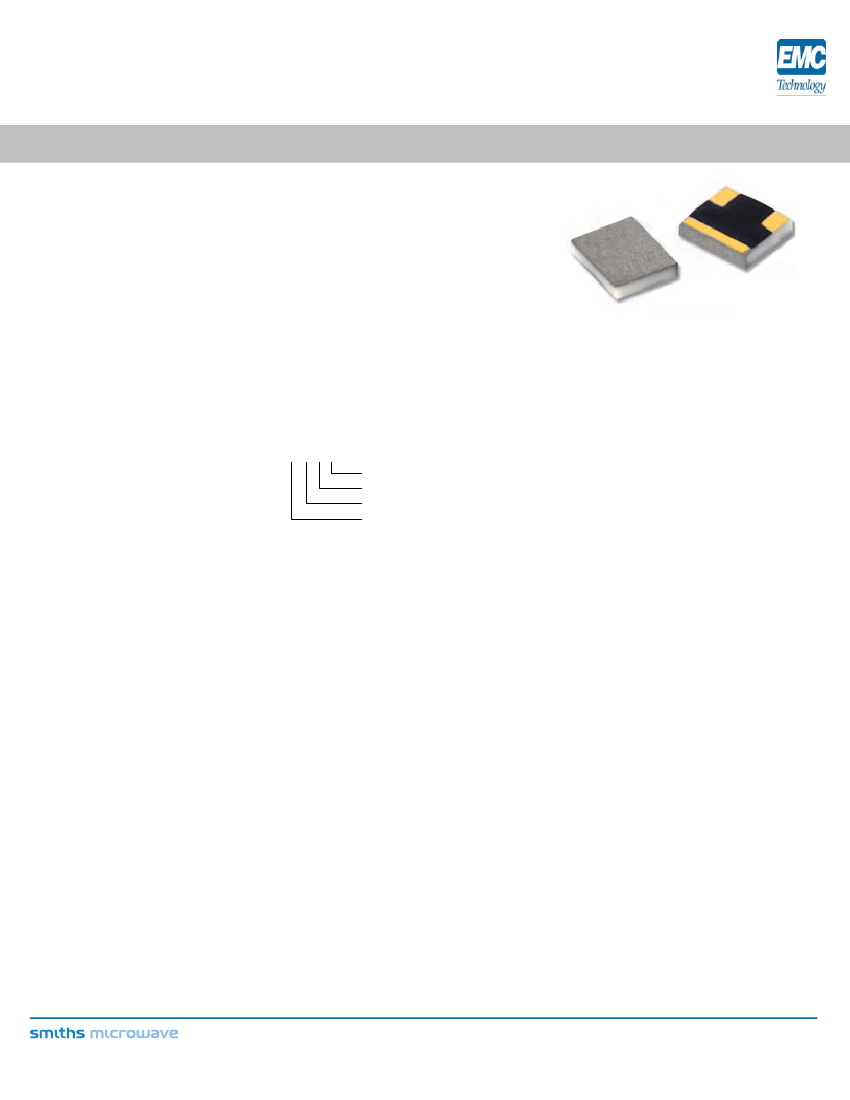

ATTENUATOR

HIGH RELIABILITY CHIP 200 MILLIWATT

DATA SHEET

FEATURES

Small Footprint

High Power

Surface Mount

Low VSWR

Easy Installation

Wide Attenuation Offering

PART SERIES: HRMXXXXXXXWB1

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators/Circulators

Military

Instrumentation

SHEET 1 OF 2

Dwg 1009855

EN 16-0900

Revision F

GENERAL DESCRIPTION

EMC Technology offers the widest selection of chip attenuators worldwide. We offer a line of fixed attenuators in a high-reliability S-level

common platform for space, military, and aerospace designs. The standard parts eliminate the need for costly and time-consuming

drawings and specifications meeting the specification and testing requirements of Mil-PRF-55342. Parts may be ordered 100% tested to

Group A with the option to add Group B or Group C. With our smart part numbering system, companies may designate the level of

testing they require simply by indicating Group A, B, & C at the appropriate location in the part number.

ORDERING INFORMATION

Part Identifier:

HRMXXXXXXXWB1

-3

XX-Temperature Coefficient of Attenuation 1 x 10 dB/dB/°C

X-Attenuation Shift Negative or Positive

XX-Test Code: 0A=Group A; 0B=Group B; 0C=Group C

XX-dB Value

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

Attenuation Values Available:

Attenuation Accuracy @ 25ºC:

VSWR:

Input Power

Temperature Coefficient Tolerance:

50 ohms

DC – 12.4 GHz

1-8 dB in 1 dB increments

± 0.5 dB @ 1GHz

1.30:1 Max @ 1GHz

200 Milliwatts Full Rated Power To 125°C, Derated Linearly to 0 Watts at 150 °C.

± 0.001 dB/dB/ºC

Temperature Coefficient of Attenuation:-0.003, -0.004, -0.005, -0.006, -0.007, and -0.009 dB/dB/ºC

2.0 ENVIRONMENTAL

Operating Temperature:

-55˚C to +150˚C

3.0 MARKING

Unit Marking:

None

4.0 QUALITY ASSURANCE

Verify 100% Visual Pre-Cap Inspection Performed Per TP-8965.

Perform Group A, B and/or C testing as indicated by the part number per TP-8965.

Test Data requirements

Test data required for customer see TP-8965.

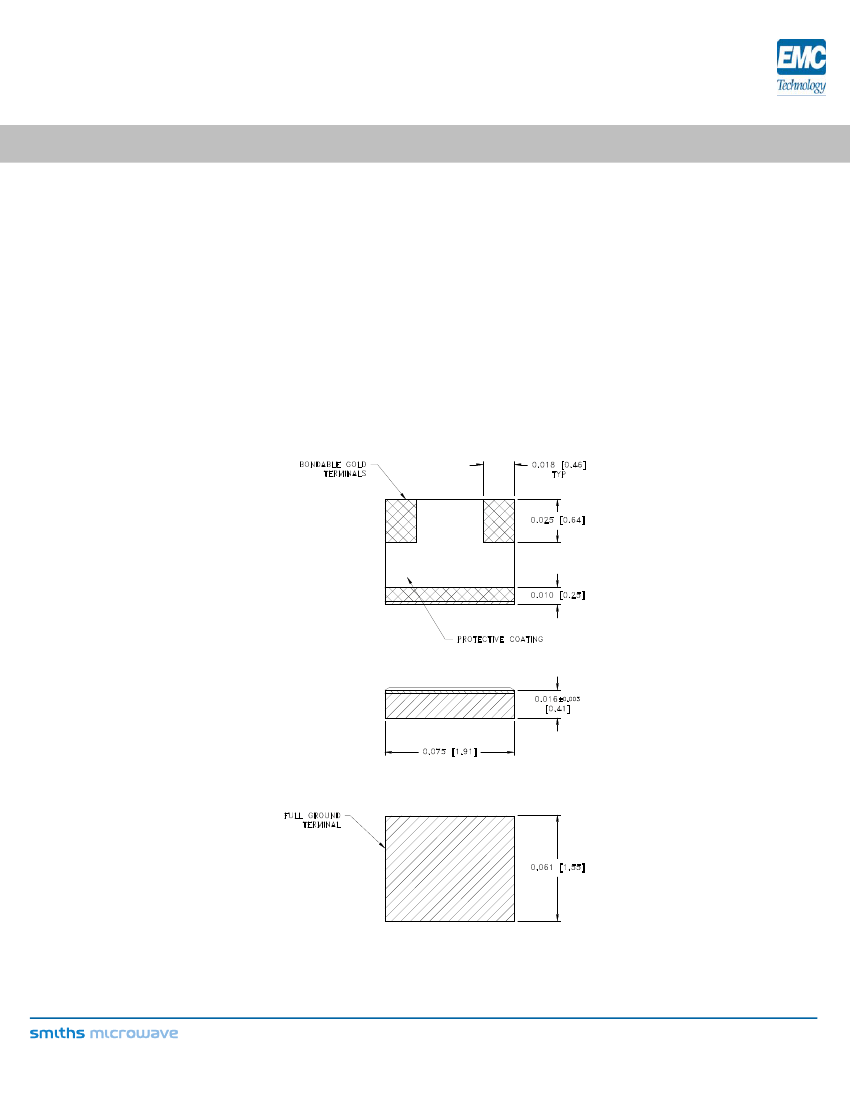

Form 423F147

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
