5561S-04

Description
Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.118 inch Pitch, Solder Terminal, Locking,
CategoryThe connector    The connector
File Size101KB,1 Pages
ManufacturerNeltron Industrial Company Ltd
Environmental Compliance
Download Datasheet Parametric View All

5561S-04 Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.118 inch Pitch, Solder Terminal, Locking,

5561S-04 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid145150929648
Reach Compliance Codecompliant
Board mount optionsPEG
body width0.345 inch
subject depth0.39 inch
body length0.382 inch
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact point genderMALE
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Filter functionNO
Insulation resistance1000000000 Ω
insulator materialNYLON
Plug contact pitch0.118 inch
Match contact row spacing0.118 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing3 mm
Rated current (signal)5 A
GuidelineUL
Terminal length0.126 inch
Terminal pitch3 mm
Termination typeSOLDER
Total number of contacts4
UL Flammability Code94V-0

5561S-04 Preview

Neltron
Connectors
RoHS Compliant
5561 Series
3.0mm Wafer Connectors
TUV
SUD
TUV
SUD
TUV
SUD

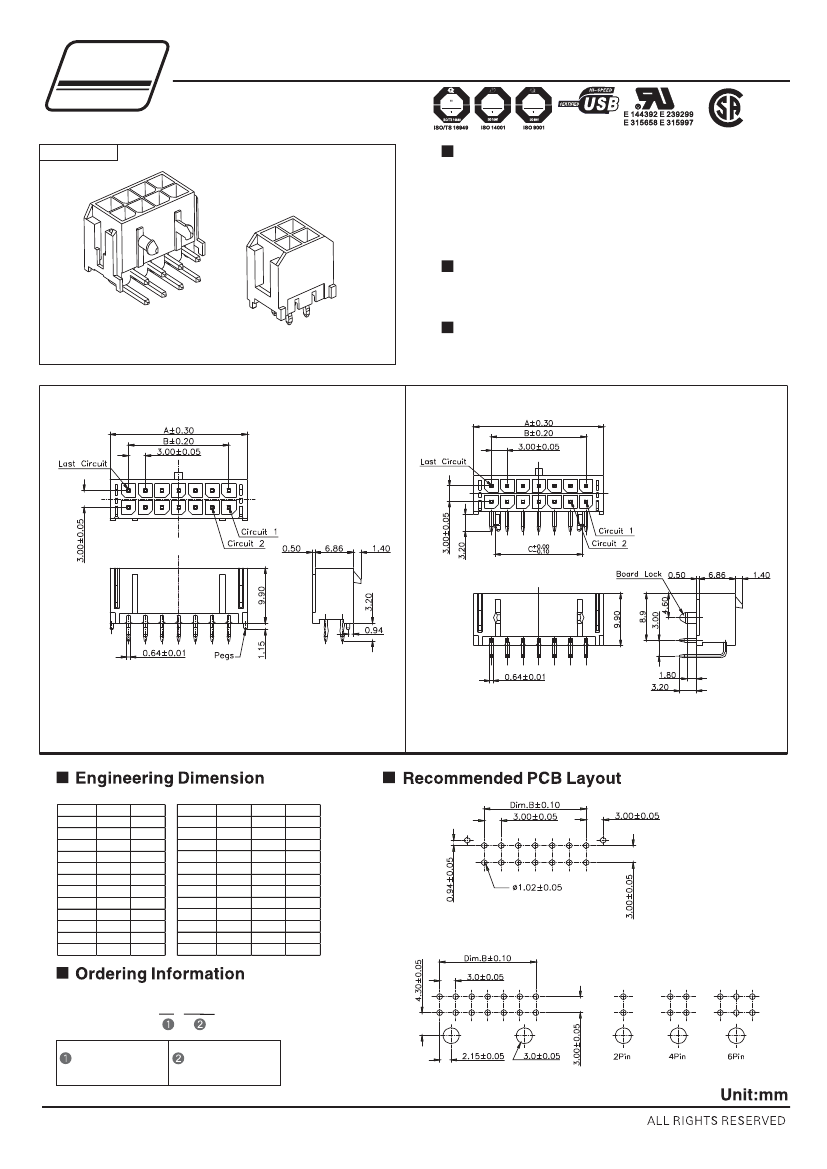

Specifications
Current rating:5.0A AC/DC
Voltage rating:250V AC/DC
Contact resistance:10m ohm. max.
Insulation resistance:1000M ohm. Min.
Withstanding voltage:1500V AC for one minute
Operating temperature range:-25
to +105
Material and Finish
55
61
XX
R-
1
56
S-X
X
Wafer Insulator:Nylon 46(UL94V-0)
Contact Pin:Copper Alloy Tin Plated
5
Connection
5561S(R)-XX Mates With 5560-XX
P/N:5561S-XX
P/N:55 61R-XX
P/N:5561S-XX
Circuits
2
4
6
8
10
12
14
16
18
20
22
24
Dim.A
6.70
9.70
12.70
15.70
18.70
21.70
24.70
27.70
30.70
33.70
36.70
39.70
Dim.B
---
3.00
6.00
9.00
12.00
15.00
18.00
21.00
24.00
27.00
30.00
33.00
P/N:5561R-XX
Circuits
2
4
6
8
10
12
14
16
18
20
22
24
Dim.A
6.70
9.70
12.70
15.70
18.70
21.70
24.70
27.70
30.70
33.70
36.70
39.70
Dim.B
---
3.00
6.00
9.00
12.00
15.00
18.00
21.00
24.00
27.00
30.00
33.00
Dim.C
2.90
2.90
2.90
7.60
10.60
13.60
16.60
19.60
22.60
25.60
28.60
31.60
P/N:5561S-XX
5561 S - XX
S:Straight Type
R:Right Angle Type
No. Of Contacts
P/N:5561R-XX
