750G2-R05 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 750G2-R05

750G2-R05: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

750G2-R05 Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Locking, Receptacle

750G2-R05 Parametric

Parameter Name	Attribute value
Objectid	303811024
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.402 inch
subject depth	0.653 inch
body length	1.083 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	750G2-R
Plug contact pitch	0.197 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	5.0038 mm
Termination type	SOLDER
Total number of contacts	5

Preview

Download Datasheet

View All

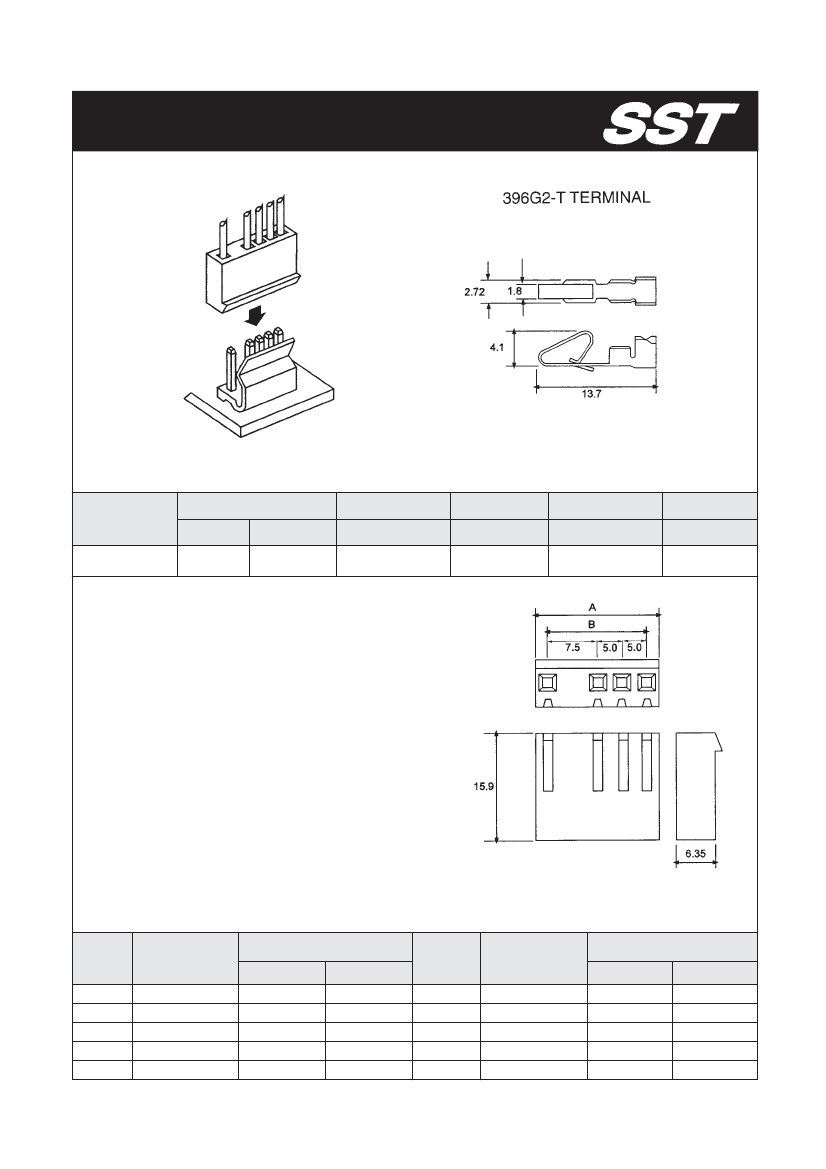

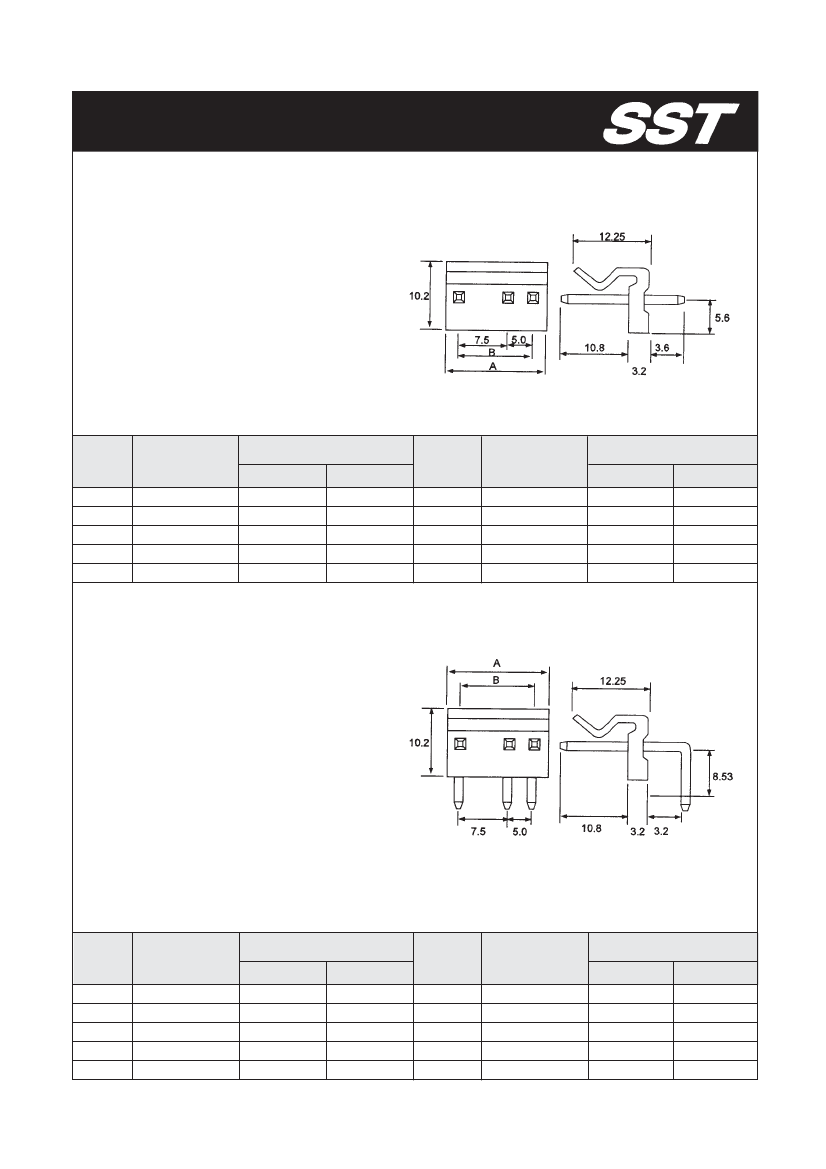

750G2 CONNECTOR SYSTEM

.295” (7.5mm) / .197” (5.0mm) pitch wire-to-board type

WIRE RANGE

PART NO.

AWG#

396G2-T

18-24

0.83-0.22

MATERIAL/

FINISH

BRASS/TIN

THICKNESS

0.25

INSULATION

O.D.(mm)

3.0-1.5

REEL

PCS

7000

750G2-H SERIES HOUSING

MATERIAL : NYLON 66 UL 94V-0

ACCEPT 396G2-T TERMINAL

MATE WITH 750G2-V(R) HEADER

CURRENT RATING : 7A AC,DC

VOLTAGE RATING : 250V AC,DC

CONTACT RESISTANCE : 20m MAX

INSULATION RESISTANCE : 1000M MIN

WITHSTANDING VOLTAGE : 1500V AC/MINUTE

TEMPERATURE RANGE : -25ºC TO +85ºC

POLES

PART NO.

750G2-H02

750G2-H03

750G2-H04

750G2-H05

750G2-H06

DIMENSIONS (mm)

POLES

12.50

17.50

22.50

27.50

32.50

7.50

12.50

17.50

22.50

27.50

750G2-H07

750G2-H08

750G2-H09

750G2-H10

PART NO.

DIMENSIONS (mm)

37.50

42.50

47.50

52.50

32.50

37.50

42.50

47.50
