241A26430X datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 241A26430X

Preview

241A26430X: DescriptionD Subminiature Connector; CategoryThe connector The connector; File Size127KB，2 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

241A26430X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	241A26430X	-	-	View	Buy Now

241A26430X Overview

D Subminiature Connector

241A26430X Parametric

Parameter Name	Attribute value
Objectid	1295091572
Reach Compliance Code	compliant
Board mount options	SPLIT BOARD LOCK
body width	0.509 inch
body length	2.744 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
contact mode	STAGGERED
Contact style	RND PIN-SKT
empty shell	NO
Filter function	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	4-40 UNC
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Guideline	CSA; UL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	37

Preview

Download Datasheet

View All

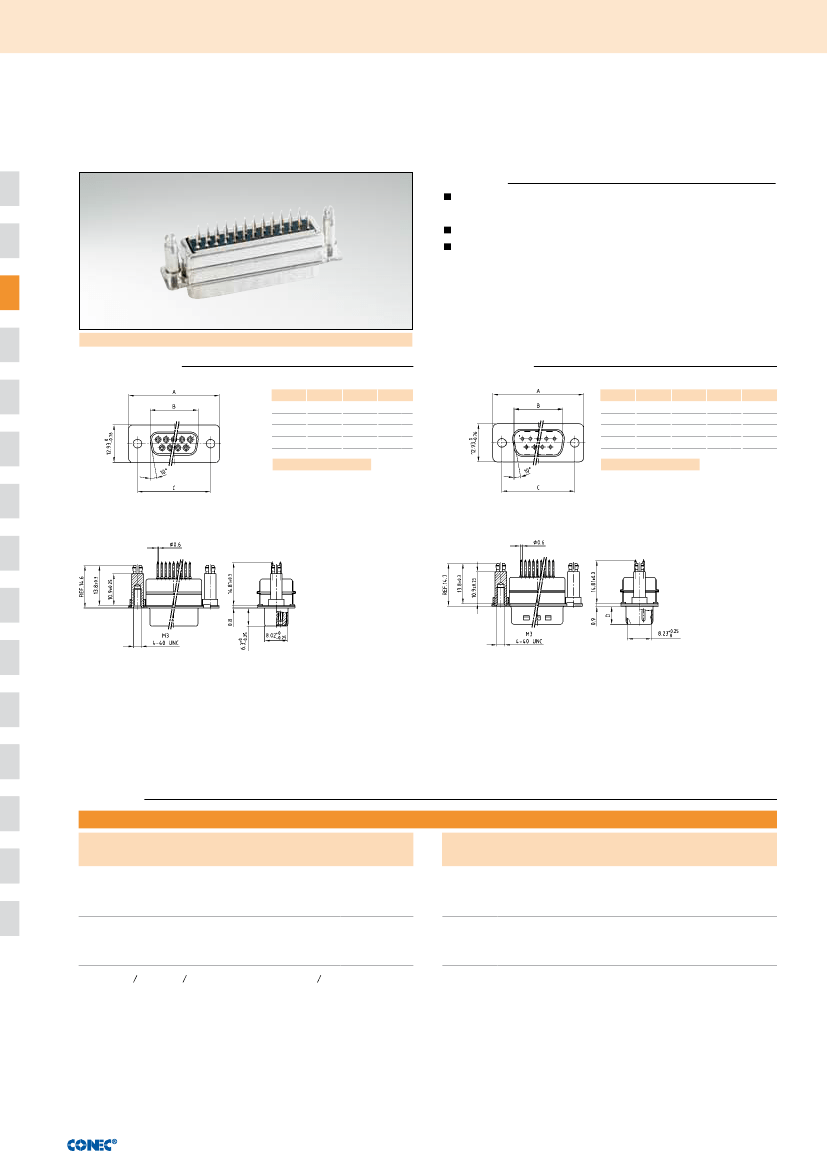

Filt e r D- S UB Co n nec to rs

π

-Filter D-SUB Standard

Solder pin – Straight – Precision machined contacts

Description

Mounting style:

with 4-40 UNC or M3 threaded rear spacer with PCB clip

Quality class 3 (also available in quality class 1)

Shell: Steel tin plated (brass tin plated on request)

RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784

Socket connector

No. of pos.

09

15

25

37

Plug connector

A

-0.76

31.19

39.52

53.42

69.70

B

-0.25

16.46

24.79

38.50

54.96

C

25.00

33.30

47.04

63.50

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

No. of pos.

09

15

25

37

A

-0.76

31.19

39.52

53.42

69.70

B

+0.25

16.79

25.12

38.84

55.30

C

25.00

33.30

47.04

63.50

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

D

-0.3

6.12

5.99

PCB layout: Kat1kFUA

Mounting style: Threaded rear spacer with PCB clip

Order data

Capacitance 2 x 180 pF

Socket connector

No. of pos. Mounting style

09

15

25

37

09

15

25

37

4-40 UNC Threaded rear spacer PCB clip

M3 Threaded rear spacer PCB clip

Plug connector

Part Number

242 A 26260

242 A 26270

242 A 26280

242 A 26290

242 A 26420

242 A 26430

242 A 26440

242 A 26450

X

No. of pos. Mounting style

09

15

25

37

09

15

25

37

4-40 UNC Threaded rear spacer PCB clip

M3 Threaded rear spacer PCB clip

Part Number

241 A 26360

241 A 26370

241 A 26380

241 A 26390

241 A 26520

241 A 26530

241 A 26540

241 A 26550

X

PCB clip .122” 3.1 ± .004” 0.10 mm hole diameter and .063” 1.6 mm circuit board thickness
