23-25VSXS18-1AXP-00 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 23-25VSXS18-1AXP-00

Preview

23-25VSXS18-1AXP-00: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size124KB，1 Pages; ManufacturerGSN Electronics

Download Datasheet Parametric View All

23-25VSXS18-1AXP-00 Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Receptacle

23-25VSXS18-1AXP-00 Parametric

Parameter Name	Attribute value
Objectid	304408813
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.354 inch
subject depth	0.65 inch
body length	1.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	23-25VSXS
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.7404 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	18

Preview

Download Datasheet

View All

Total Process Quality

23-25VSX

23-25VSXS

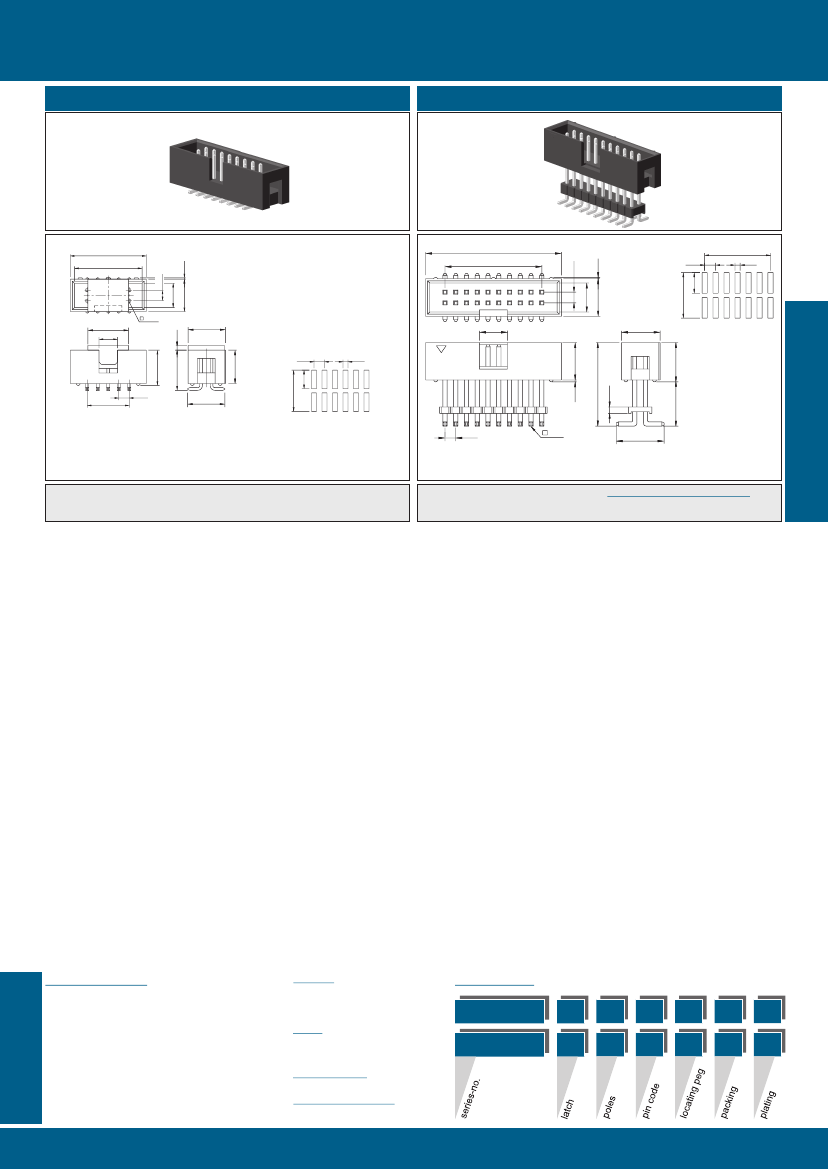

box header vertical SMT 2.54

GSN

2.54x(n/2)+7.61 ±0.20

0.25

2.54x(n/2)+5.32 ±0.20

2.54

2.54x(n/2)+7.61 ±0.2

0.25

2.54

2.54x(n/2-1)±0.15

2.54

4.75

2.54x(n/2-1) ±0.15

1.20

1.0

10.00

4.50

9.0

4.50

9.00

10.32

8.80

2.54

4.75

1.20

2.54

2.54x(n/2-1) ±0.15

2.54

0.635

C

available pole no:

10, 14, 16, 20, 24,

26, 30, 34, 40, 44,

50, 60, 64

available pole no.:

06 to 64

pin code

1A

1B

-A-

19.80

21.60

D

9.0

-C-

9.00

-D-

7.50

9.20

Shown fotos may differ to final product

Currently valid drawings are only on www.gsn.sg

In case of any doubt, please contact GSN

electrical data

contact material

insulator

flammability

dielectric strength

current rating

insulation resistance

operating temperature

soldering temperature

:

copper alloy

0.635 x 0.635 mm

thermoplastic

UL 94V-0

plating

00= flash gold

60= selective flash gold

order code

23-25VS

23-25VSXS-

X-

10-

1A

X

P-

00

latch

: 500V AC

: 3A

: 5000 Meg Ohm min

: -40°C to +105°C

: 260°C max / 10 sec

X= without

S= short

L= long

X=without

locating peg

possible packing

P=tray, T=tube

support@gsn.sg

E10

IDC + box header

0.635

6.40

8.75

8.80

10.50

A

0.20

2.50

9.00

10.50

6.40

8.75
