70280-0039 datasheet, PDF - EEWORLD Datasheet

70280-0039: Description2.54mm (.100") pitch C-grid? breakaway header, dual row, vertical, high temperature, 78 circuits, tin (Sn) Plating, 2.72mm (.107") PC tail length; File Size423KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

70280-0039 Overview

2.54mm (.100") pitch C-grid? breakaway header, dual row, vertical, high temperature, 78 circuits, tin (Sn) Plating, 2.72mm (.107") PC tail length

Preview

Download Datasheet

View All

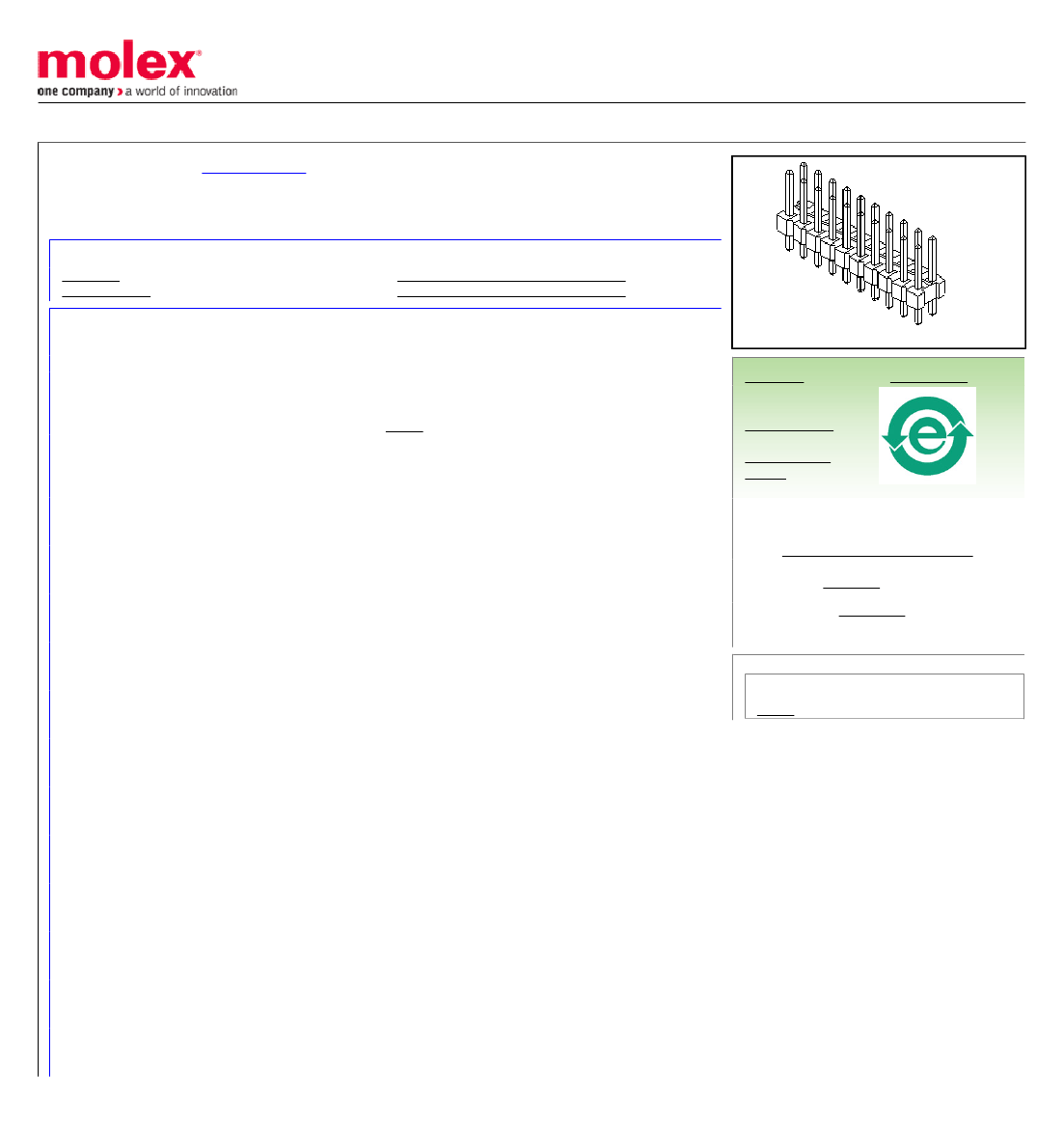

This document was generated on 04/08/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0010897081

Active

2.54mm (.100") Pitch C-Grid® Breakaway Header, Dual Row, Vertical, High

Temperature, 8 Circuits, Tin (Sn) Plating, 2.72mm (.107") PC Tail Length

Documents:

3D Model

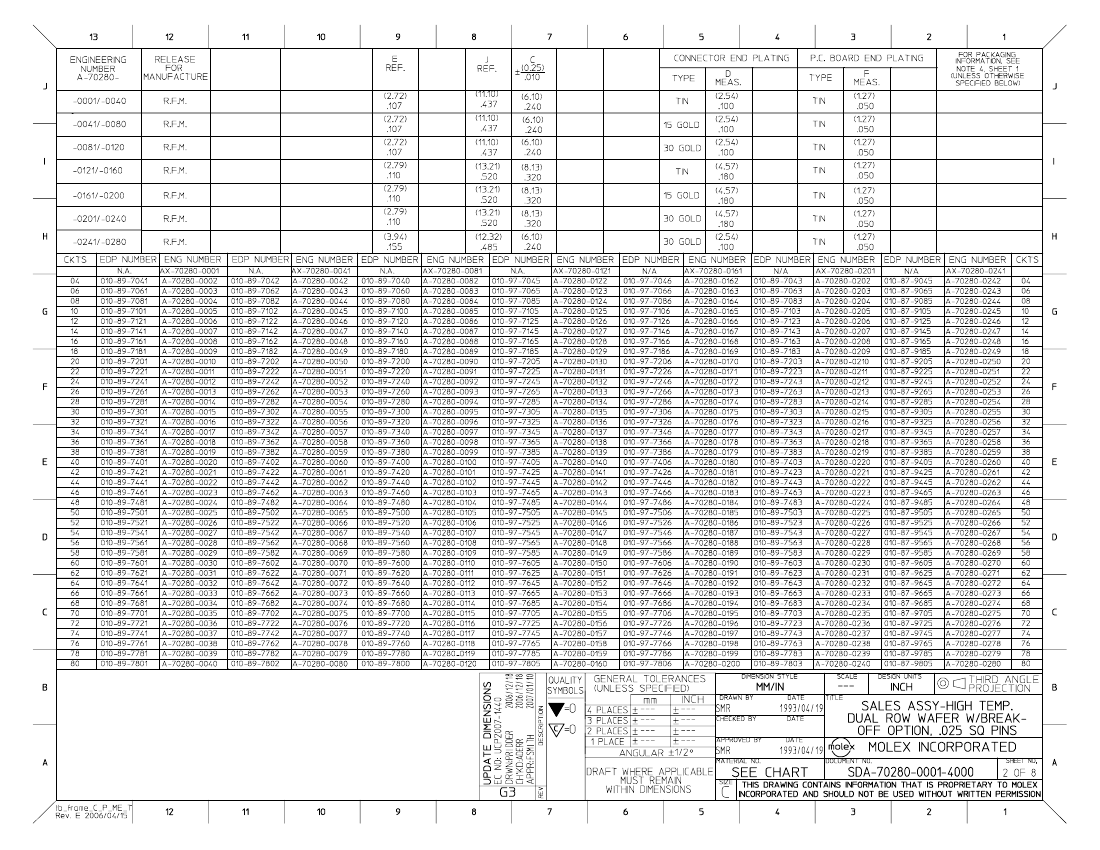

Drawing (PDF)

Product Specification PS-70280 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Product Name

PCB Headers

70280

Board-to-Board, Wire-to-Board

C-Grid®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Yes

Black

94V-0

None

Copper Alloy

Tin

High Temperature Thermoplastic

Vertical

0.110 In

2.79 mm

None

0.062 In

1.60 mm

Bag

0.100 In

2.54 mm

152.4

3.81

152.4

3.81

Yes

-40°C to +105°C

Through Hole

Search Parts in this Series

70280Series

70280-0039 Related Products

	70280-0039	70280-0004
