310721070: Description2.54mm (.100") H-dac 64?, 5 way male housing assembly, single-row, polarizationa, with xmas tree attachment; File Size408KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

310721070 Overview

2.54mm (.100") H-dac 64?, 5 way male housing assembly, single-row, polarizationa, with xmas tree attachment

Preview

Download Datasheet

View All

This document was generated on 04/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0310721070

Active

H-DAC™ 64 Single Row

2.54mm (.100") H-DAC 64™, 5 Way Male Housing Assembly, Single-Row, Polarization

A, with Xmas Tree Attachment

Documents:

Drawing (PDF)

Application Specification (PDF)

Product Specification PS-31067-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

Crimp Housings

31072

Polarization Option A, Black

H-DAC™ 64 Single Row

H-DAC 64™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Comments

Overview

Product Name

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Polarized to Mating Part

Ports

Stackable

Temperature Range - Operating

Black

Male

None

Yes

Modified Polystyrene, Polyester

Bag

0.100 In

2.54 mm

0.100 In

2.54 mm

Yes

-40°C to +100°C

Search Parts in this Series

31072Series

Mates With

H-DAC 64™, 5 Way Receptacle Assembly

310721010

Use With

See Product Spec

Electrical

Current - Maximum per Contact

11A, 9A

Material Info

Reference - Drawing Numbers

Product Specification

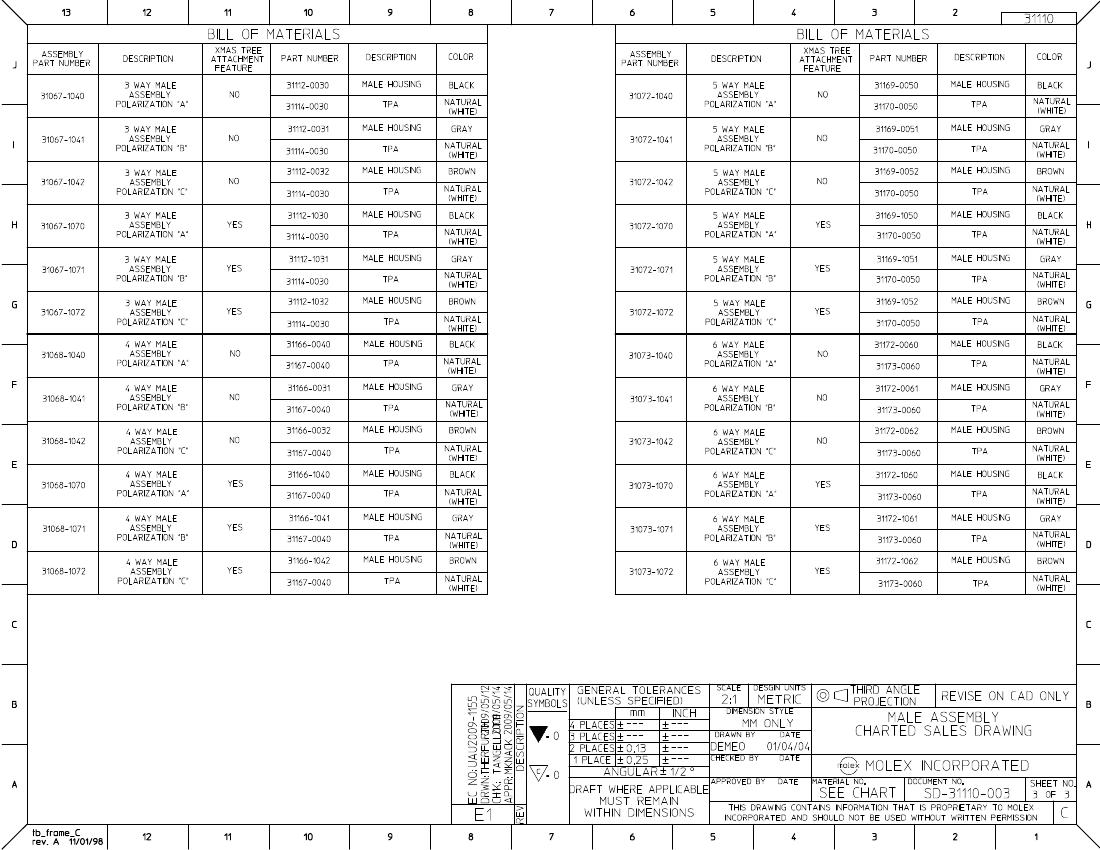

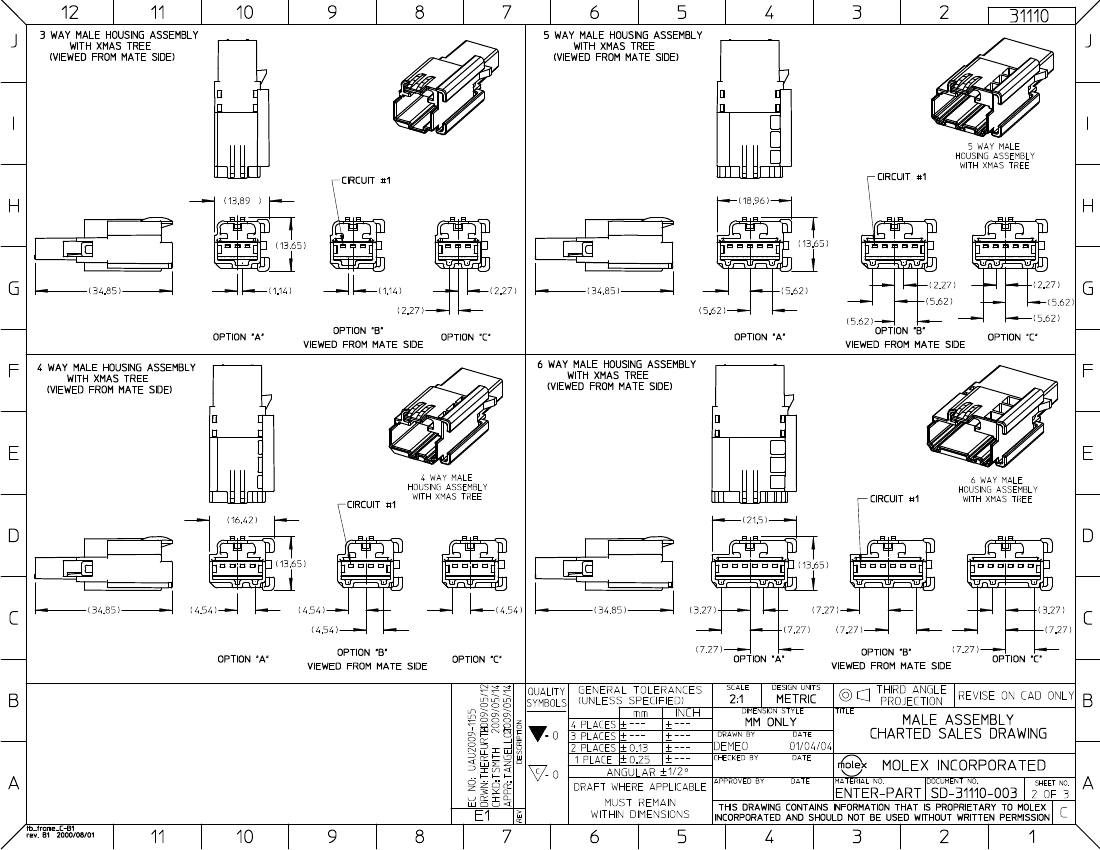

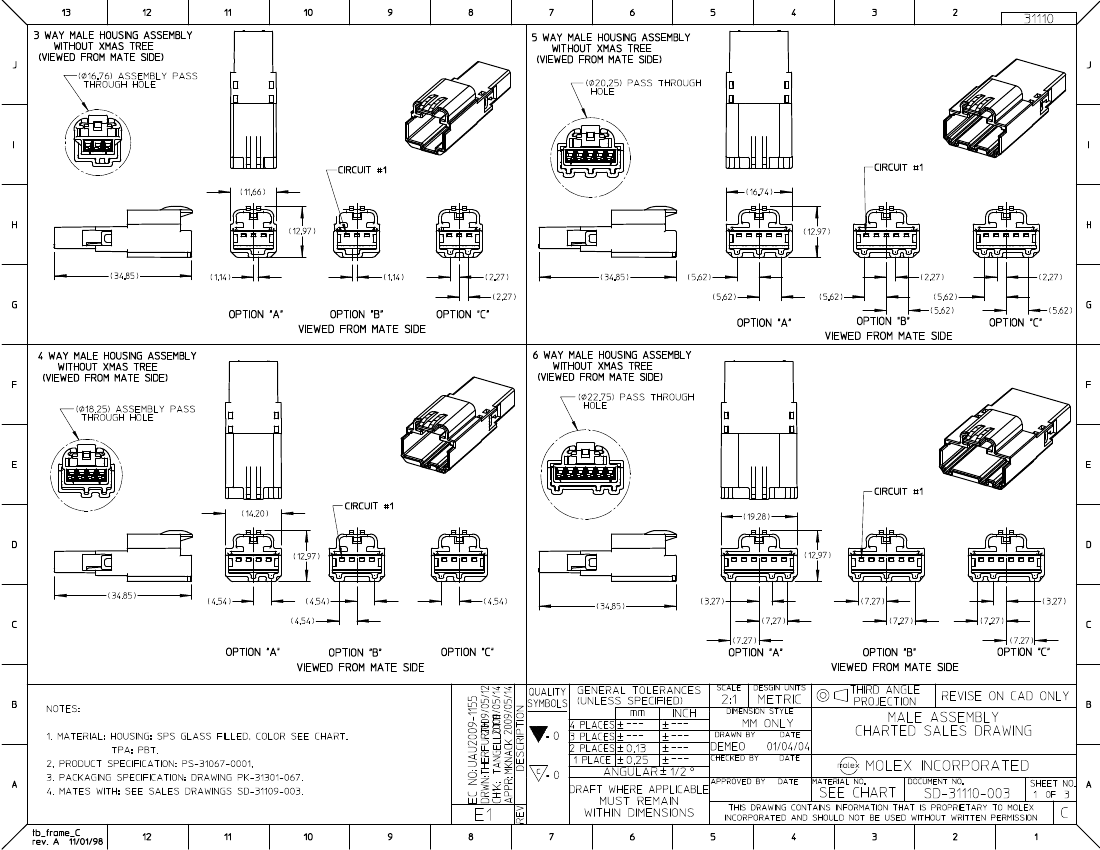

Sales Drawing

PS-31067-0001

SD-31110-003

This document was generated on 04/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
