54123/BEX

Description
Monostable Multivibrator, TTL/H/L Series, 2-Func, CDIP16, CERAMIC, DIP-16
Categorylogic    logic
File Size220KB,6 Pages
ManufacturerYAGEO
Websitehttp://www.yageo.com/
Download Datasheet Parametric Compare View All

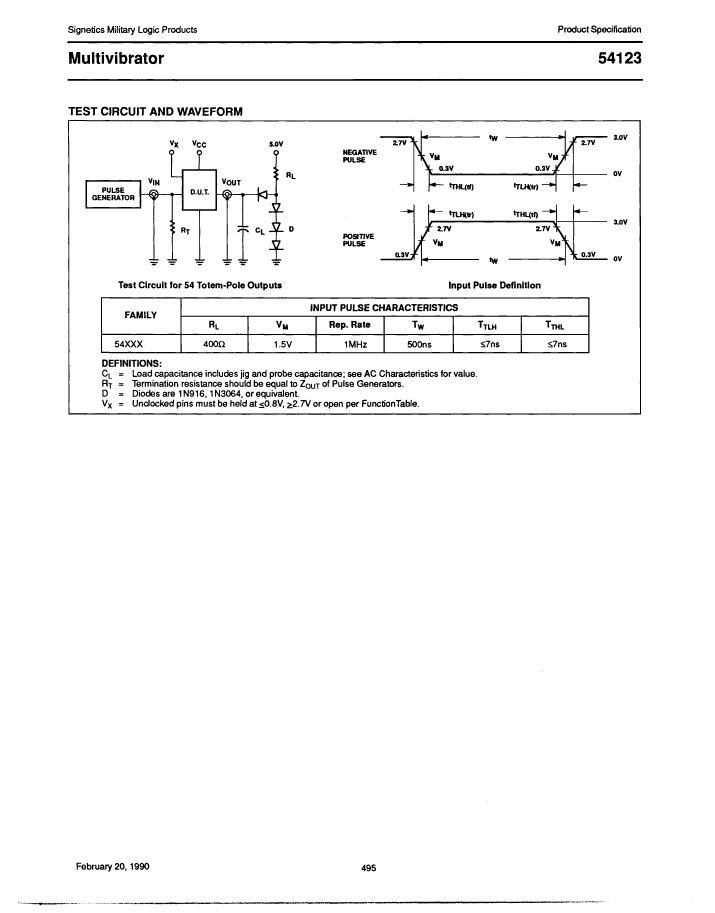

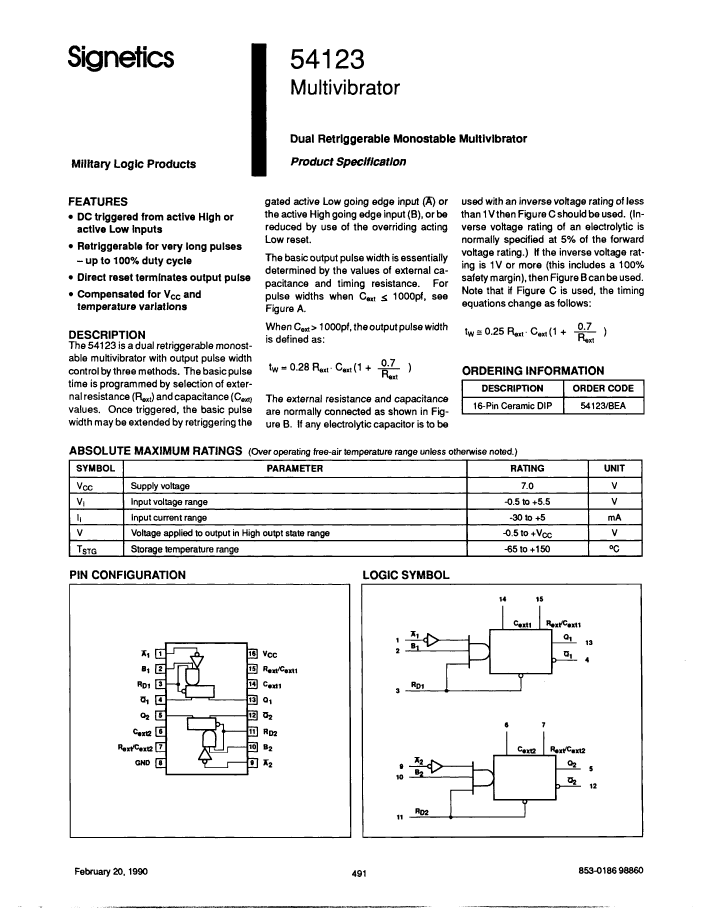

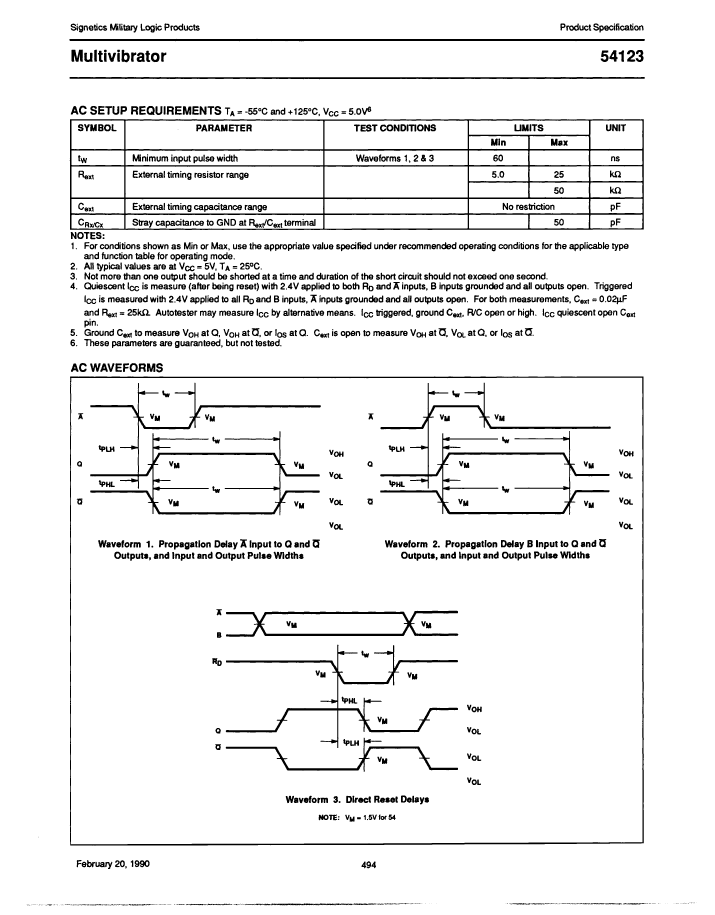

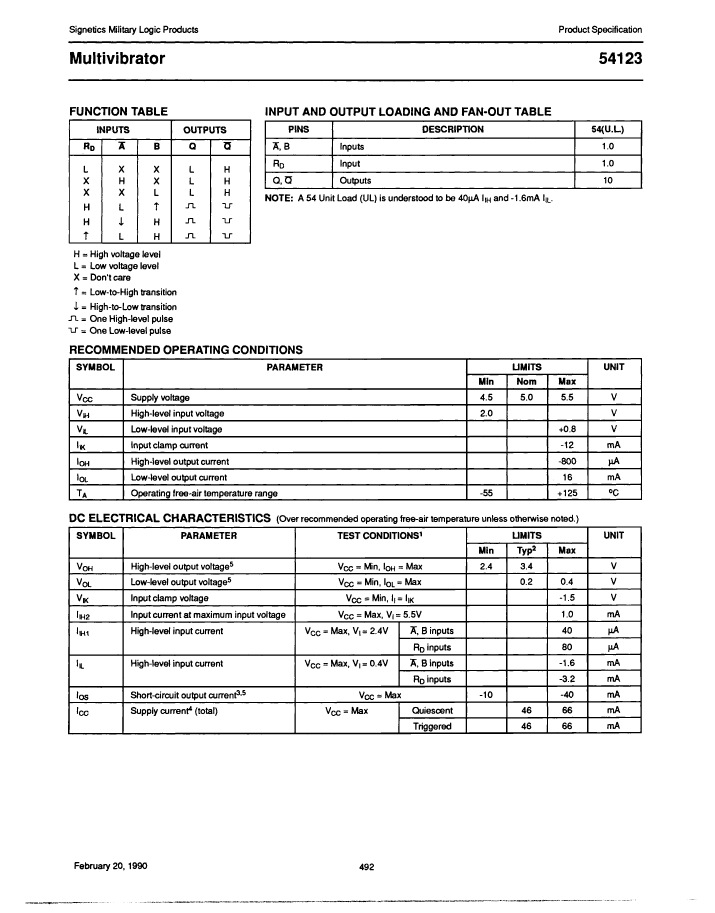

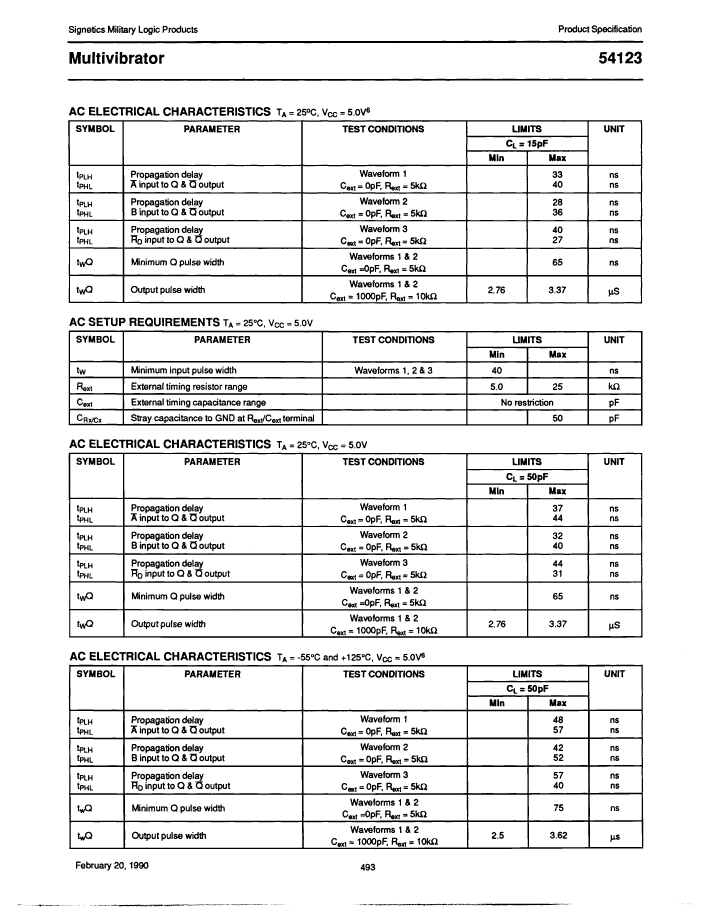

54123/BEX Overview

Monostable Multivibrator, TTL/H/L Series, 2-Func, CDIP16, CERAMIC, DIP-16

54123/BEX Parametric

Parameter NameAttribute value
Parts packaging codeDIP
package instructionDIP,
Contacts16
Reach Compliance Codeunknow
seriesTTL/H/L
JESD-30 codeR-CDIP-T16
Logic integrated circuit typeMONOSTABLE MULTIVIBRATOR
Number of data/clock inputs2
Number of functions2
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output polarityCOMPLEMENTARY
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
propagation delay (tpd)57 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Base Number Matches1

54123/BEX Related Products

54123/BEX 54123/BEA
Description Monostable Multivibrator, TTL/H/L Series, 2-Func, CDIP16, CERAMIC, DIP-16 Monostable Multivibrator, TTL/H/L Series, 2-Func, CDIP16
Reach Compliance Code unknow unknown
series TTL/H/L TTL/H/L
JESD-30 code R-CDIP-T16 R-CDIP-T16
Logic integrated circuit type MONOSTABLE MULTIVIBRATOR MONOSTABLE MULTIVIBRATOR
Number of data/clock inputs 2 2
Number of functions 2 2
Number of terminals 16 16
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Output polarity COMPLEMENTARY COMPLEMENTARY
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE
propagation delay (tpd) 57 ns 57 ns
Certification status Not Qualified Not Qualified
Maximum supply voltage (Vsup) 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V
surface mount NO NO
Temperature level MILITARY MILITARY
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location DUAL DUAL
Base Number Matches 1 1
