0671300801 datasheet, PDF - EEWORLD Datasheet

0671300801: Description1.27mm (.050") PC card header, one slot, flush profile, top mount, right anglesmt, without mylar, embossed tape on reel packaging, lead-free; File Size251KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

0671300801 Overview

1.27mm (.050") PC card header, one slot, flush profile, top mount, right anglesmt, without mylar, embossed tape on reel packaging, lead-free

Preview

Download Datasheet

View All

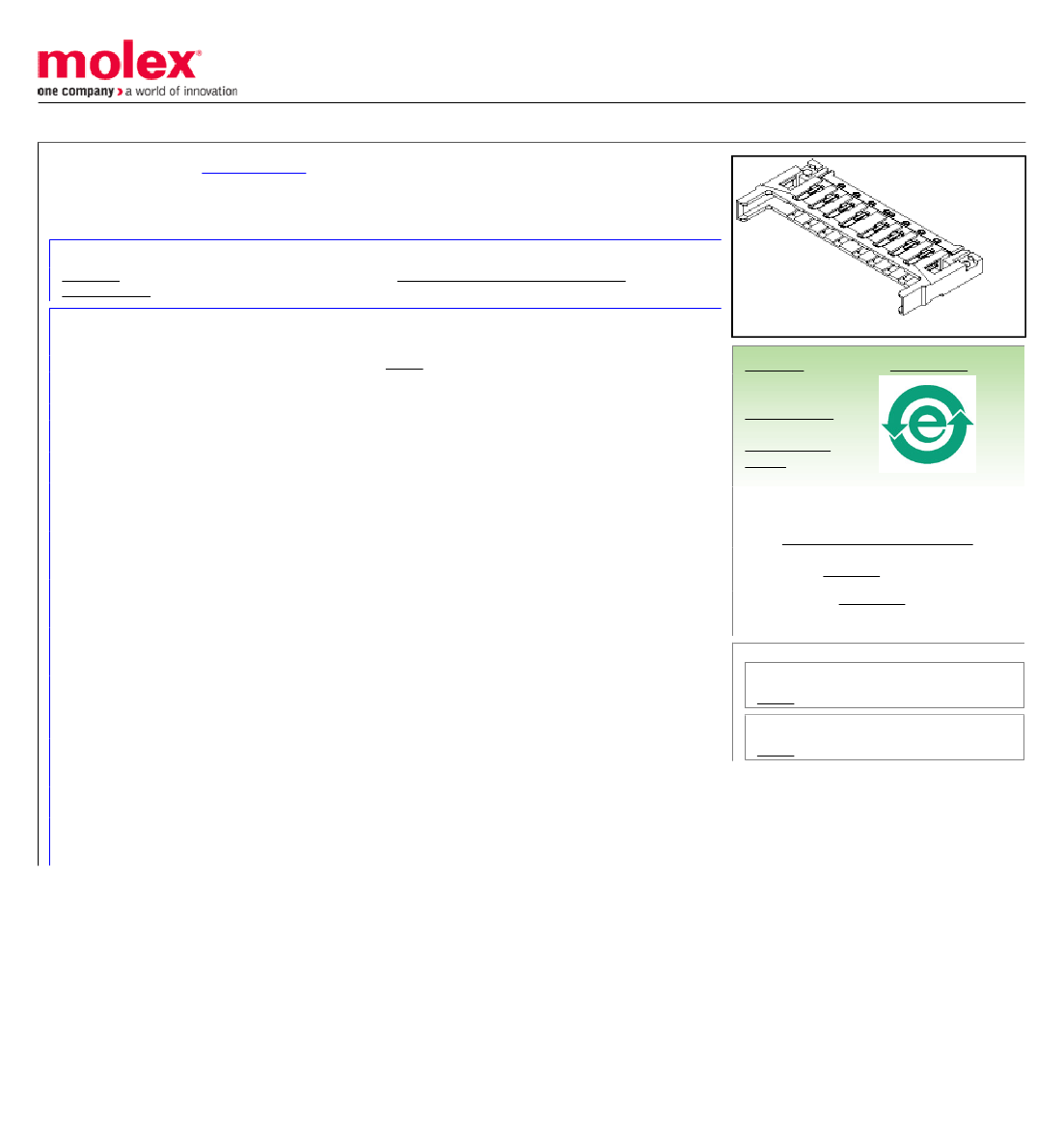

This document was generated on 04/05/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0671300801

Active

1.27mm (.050") PC Card Header, One Slot, Flush Profile, Top Mount, Right Angle,

SMT, without Mylar, Embossed Tape on Reel Packaging, Lead-free

Documents:

3D Model

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Button Type

Comments

Component Type

Product Name

Type

Memory Card Sockets

67130

N/A

Without Mylar

Header/Socket (Host)

CardBus

I, II

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Card Detection Switch

Circuits (Loaded)

Durability (mating cycles max)

Ejector Button Side

Entry Angle

Keying to Mating Part

PCB Locator

PCB Mounting Side

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Ports

Temperature Range - Operating

N/A

10,000

No Ejector Button Present

90° Angle (Side Entry)

Yes

Normal

Yes

Embossed Tape on Reel

0.050 In

1.27 mm

-20°C to +85°C

Search Parts in this Series

67130Series

Use With

67121 Ejector Mechanism

Electrical

Current - Maximum per Contact

Voltage - Maximum

Voltage Key

0.5A

100V AC

3.3V

Material Info

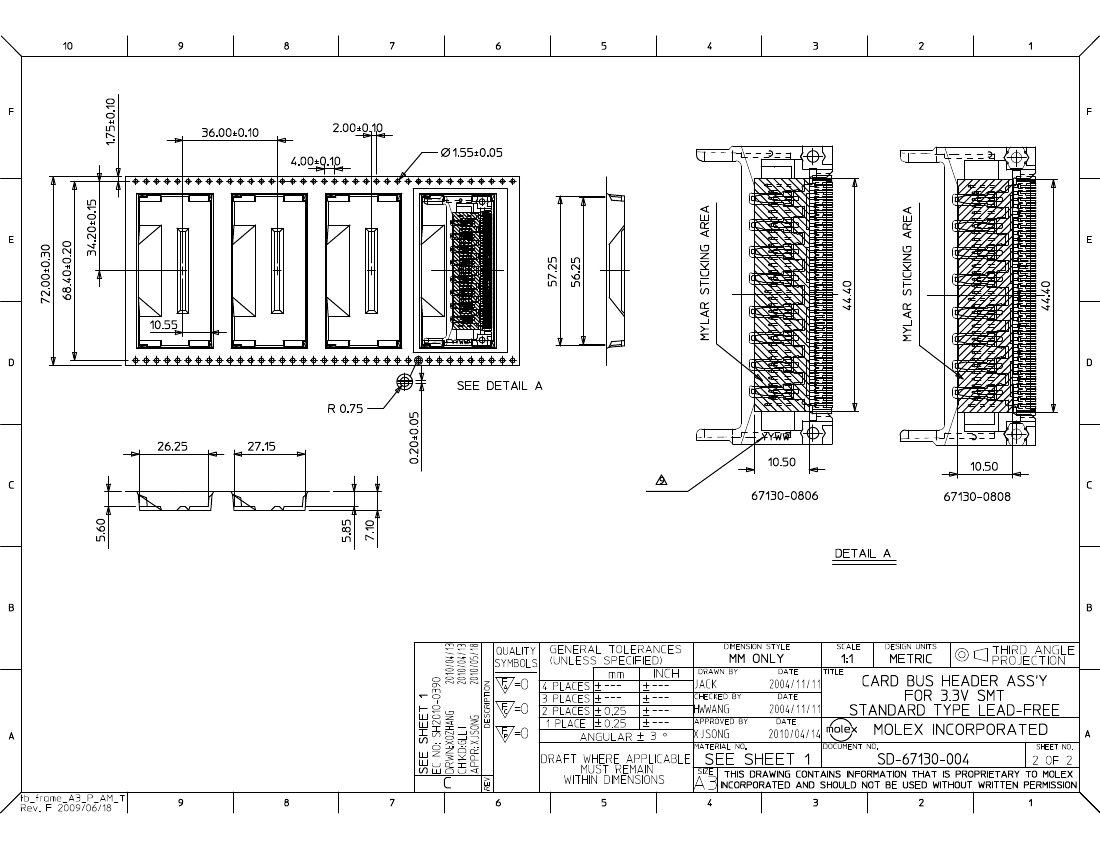

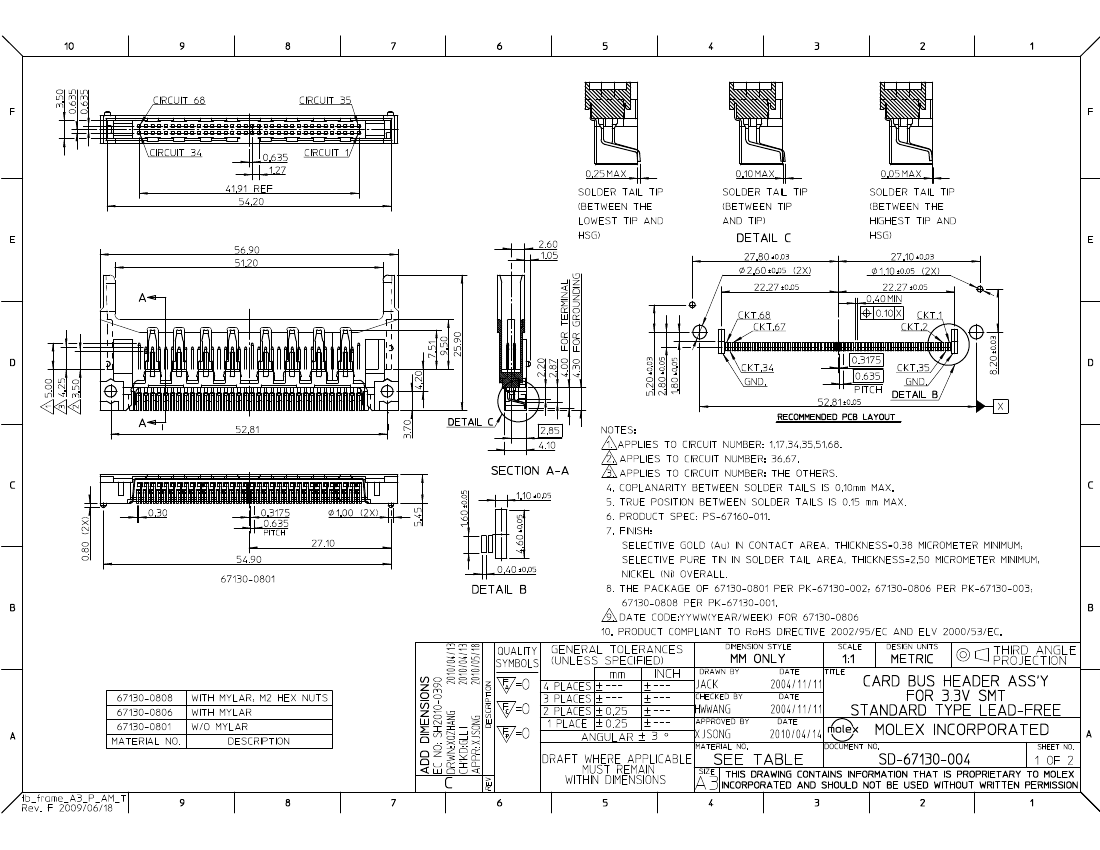

Reference - Drawing Numbers

Sales Drawing

SD-67130-004

This document was generated on 04/05/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
