NRCL25F2742TR13F

Description
Res,SMT,Thick Film,27.4K Ohms,200WV,1% +/-Tol,-100,100ppm TC,1210 Case
CategoryPassive components    The resistor
File Size106KB,4 Pages
ManufacturerNIC Components Corp
Environmental Compliance
Download Datasheet Parametric View All

NRCL25F2742TR13F Overview

Res,SMT,Thick Film,27.4K Ohms,200WV,1% +/-Tol,-100,100ppm TC,1210 Case

NRCL25F2742TR13F Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid252976603
Reach Compliance Codecompliant
Country Of OriginJapan, Mainland China, Taiwan
ECCN codeEAR99
YTEOL7.9
structureChip
JESD-609 codee3
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package height0.55 mm
Package length3.1 mm
Package formSMT
Package width2.6 mm
method of packingTR, 13 Inch
Rated power dissipation(P)0.33 W
resistance27400 Ω
Resistor typeFIXED RESISTOR
seriesNRCL
size code1210
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient100 ppm/°C
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Tolerance1%
Operating Voltage200 V

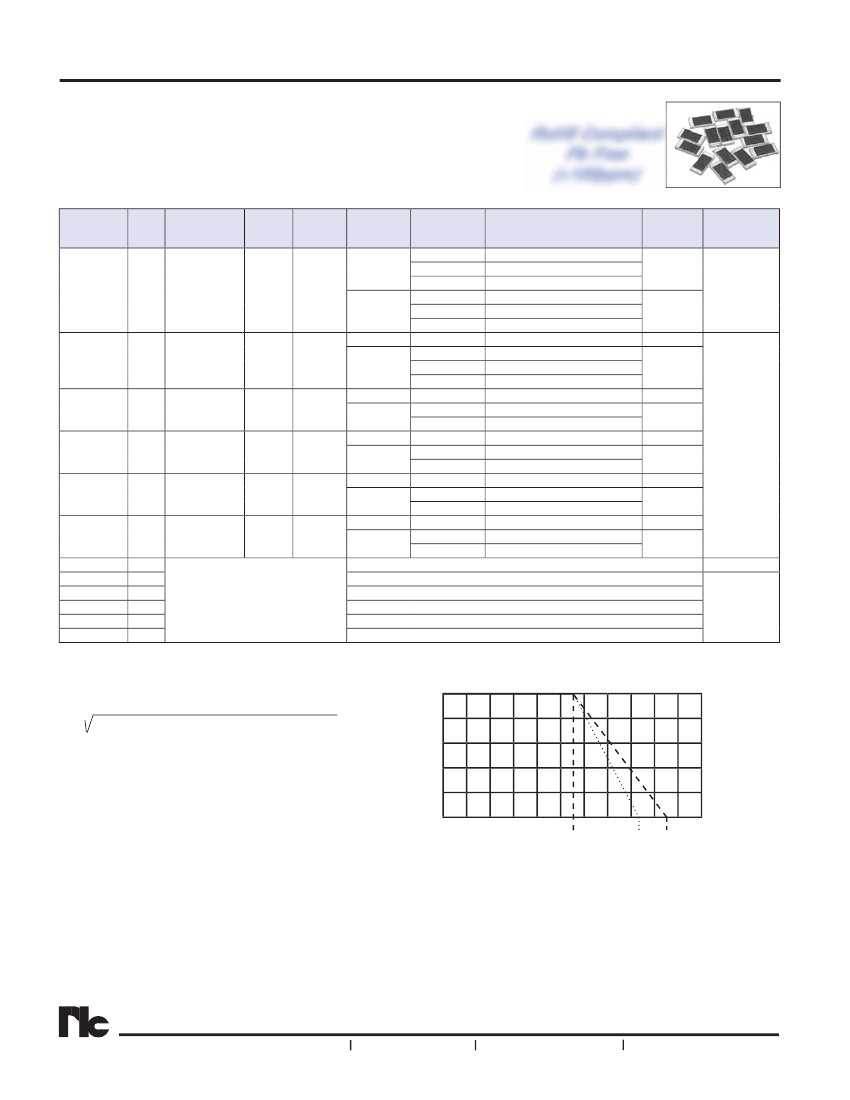

Pb-Free Thick Film Chip Resistors
FEATURES
• LEAD (Pb)-FREE CONSTRUCTION
• COMPLIES WITH RoHS DIRECTIVE 2002/95/EC WITHOUT EXEMPTIONS
• EIA STANDARD SIZING 0201 (1/20W), 0402 (1/16W), 0603 (1/10W), 0805 (1/8W), 1206
(1/4W) AND 1210 (1/3W)
• THICK FILM CONSTRUCTION USING HIGH PURITY ALUMINA SUBSTRATE WITH
PB-FREE RESISTIVE PASTE COVERED WITH PROTECTIVE OVERCOAT
• HIGH TEMPERATURE (+260°C) REFLOW SOLDERING COMPATIBLE
• AVAILABLE IN ZERO OHM (JUMPER)
Type
EIA
Size
NRCL Series
RoHS Compliant
Pb Free
(<100ppm)
NRCL02
0201
NRCL04
0402
NRCL06
0603
NRCL10
0805
NRCL12
1206
NRCL25
NRCL02ZO
NRCL04ZO
NRCL06ZO
NRCL10ZO
NRCL12ZO
NRCL25ZO
1210
0201
0402
0603
0805
1206
1210
Max.*1 Max.*2 Resistance Temperature
Resistance
Operating
Power Rating
Resistance
Working Overload Tolerance
Coefficient
Range
Temperature
at 70°C
Value
Voltage Voltage
(Code)
(ppm/°C)
(Ω)
Range (°C)
±200
100 ~ 1M
±1% (F)
+800/-100
1.0 ~ 9.76
E-24,E-96
+600/-0
10 ~ 97.6
1/20 (0.05) W
25V
50V
-55 ~ +125
±200
100 ~ 10M
+800/-100
1.0 ~ 9.1
E-24
±5% (J)
+600/-0
10 ~ 91
±1% (F)
±200
10 ~ 1M
E-24,E-96
+500/-300
1.0 ~ 9.1
1/16 (0.063) W
50V
100V
±5% (J)
±200
10 ~ 1M
E-24
±300
1.1M ~ 10M
±1% (F)
±100
10 ~ 1M
E-24,E-96
1/10 (0.10) W
50V
100V
+500/-300
1.0 ~ 9.1
±5% (J)
E-24
±200
10 ~ 10M
±1% (F)
±100
10 ~ 1M
E-24,E-96
-55 ~ +155
1/8 (0.125) W
150V
300V
+500/-300
1.0 ~ 9.1
±5% (J)
E-24
±200
10 ~ 1M
±1% (F)
±100
10 ~ 10M
E-24,E-96
1/4 (0.25) W
200V
400V
+500/-300
1.0 ~ 9.1
±5% (J)
E-24
±200
10 ~ 10M
±1% (F)
±100
10 ~ 1M
E-24,E-96
1/3 (0.33) W
200V
400V
+500/-300
1.0 ~ 9.1
±5% (J)
E-24
±200
10 ~ 10M
Rated Current 1.0A (0.05Ω max. DC Resistance)
-55 ~ +125
Rated Current 1.0A (0.05Ω max. DC Resistance)
Rated Current 1.0A (0.05Ω max. DC Resistance)
Zero Ohm Jumper
Rated Current 1.5A (0.05Ω max. DC Resistance)
-55 ~ +155
Rated Current 2.0A (0.05Ω max. DC Resistance)
Rated Current 2.5A (0.05Ω max. DC Resistance)
Power Derating Curve:
For operation above 70
°
C,
power rating must be derated according to the following chart:
100
80
RATE (%)
60
40
20
0
-20
20
60
100
140 160
125 155
o
Note *1
- Maximum allowable continuous Working Voltage
for all resistors is the lower of the two values:
“Maximum Working Voltage” as specified above
(or)
Power rating (Watts) x Resistance (Ohms)
Note *2
- Maximum allowable Overload voltage is 2.5 times the
Maximum Working Voltage (see Note *1 above).
C
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
1
