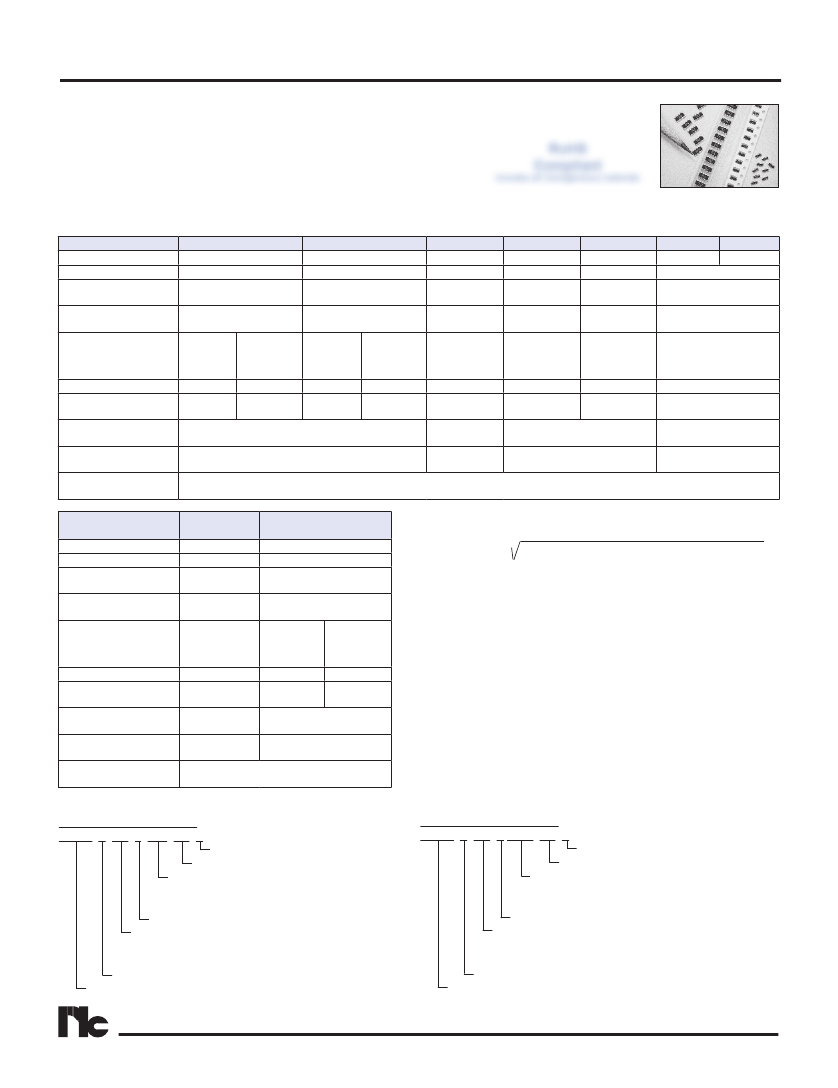

Chip Resistor Arrays/Networks
FEATURES
• SUPER MINIATURE SIZE AND LOW PROFILE
• HIGH DENSITY PACKAGING OFFERS SIGNIFICANT SPACE SAVINGS
RoHS
• LOWER PRODUCTION COSTS WITH LESS PLACEMENT (UP TO
Compliant
includes all homogeneous materials
8
RESISTORS IN ONE PACKAGE)
• STANDARD FOOTPRINTS MAKE CONVERSIONS EASY
*See Part Number System for Details
• BOTH FLOW AND REFLOW SOLDERING APPLICABLE
NRSN Series
SPECIFICATIONS
Type
Termination Type
Size W x L (mm)
No. of Resistors &
Circuit
Power Rating per
Resistor @ +70°C
Resistance Tolerance
NRSNØ4I2
Concave
1.0 x 1.0
2R Isolated
1/16 (.0625W)
J(±5%)
F(±1%)
J(±5%)
F(±1%)
NRSNA4I2
Convex
1.0 x 1.0
2R Isolated
1/16 (.0625W)
J(±5%)
G(±2%)
F(±1%)
J(±5%)
G(±2%)
F(±1%)
NRSNA6I2
Convex
1.6 x 1.6
2R Isolated
NRSNØ4I4
Concave
1.0 x 2.0
4R Isolated
NRSNA4I4
Convex
1.0 x 2.0
4R Isolated
NRSNØ6I4 NRSNA6I4
Concave
Convex
1.6 x 3.2
4R Isolated
1/16 (.0625W)
J(5%)
G(2%)
F(±1%)
10Ω ~ 1MΩ
±200ppm
50V
100V
1/16 (.0625W) 1/16 (.0625W) 1/16 (.0625W)
J(±5%)
G(±2%)
F(±1%)
J(±5%)
F(±1%)
J(±5%)
G(±2%)
F(±1%)
Resistance Range
1Ω
~ 9.1Ω
10Ω ~ 1MΩ 1Ω
~ 9.1Ω
10Ω ~ 1MΩ 10Ω ~ 1MΩ
1Ω ~ 1MΩ
10Ω ~ 1MΩ
Temperature
±650ppm ±250ppm ±650ppm ±250ppm
±200ppm
±200ppm
±200ppm
Coeffieient
Maximum Working
25V
50V
25V
Voltage*
Maximum Overload
50V
100V
50V
Voltage
Operating Temperature
-55°C ~ +125°C (derated as shown)
Range
Type
Termination Type
Size W x L (mm)
No. of Resistors &
Circuit
Power Rating per
Resistor @ +70°C
Resistance Tolerance
Resistance Range
Temperature
Coeffieient
Maximum Working
Voltage*
Maximum Overload
Voltage
Operating Temperature
Range
NRSNA6C
NRSNA6D
Convex
3.1 x 6.4
8R Common
1/16
(0.0625W)
J (5%)
22Ω ~ 1MΩ
±200ppm
50V
100V
NRSNA12I4
Convex
3.0 x 5.1
4R Isolated
1/8
(0.125W)
F (1%)
G (2%)
J (5%)
* Maximum allowable continuous voltage for all resistors is the
lower of the two values: “MAXIMUM WORKING VOLTAGE” as
specified, or
Power rating (WATTS) x Resistance (OHMS)
22Ω ~ 1MΩ 10Ω ~ 1MΩ
±200ppm
±200ppm
200V
400V
-55°C ~ +125°C (derated as shown)
PART NUMBER SYSTEM (E-96 VALUES)
PART NUMBER SYSTEM (E-24 VALUES)
NRSN A 4I2 F 1002 TR F
NRSN A 4I2 J 103 TR F
RoHS compliant
RoHS compliant
Tape & Reel Packaging
Tape & Reel Packaging
Resistance Code: First 3 figures are significant,
Resistance Code: First 2 figures are significant,
4th digit is the multiplier, “R”
3rd digit is the multiplier, “R”
indicates a decimal point.
indicates a decimal point.
Tolerance Code: F=1%
Tolerance Code: J=5%, G=2%, F=1%
Configuration Designator
Configuration Designator
(See circuit schematics and component
(See circuit schematics and component
diagrams for explanation)
diagrams for explanation)
Termination Type (A=Convexed, Ø=Concave)
Termination Type (A=Convexed, Ø=Concave)
Series
Series
1
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Chip Resistor Arrays/Networks
ZERO OHM PART DIMENSIONS (mm)
(Resistance <0.50 ohms)
Current
Rating
Type
(per
element)
Convex
1.0A*
NRSNA4I2ZOTRF
Concave
0.5A
NRSNØ4I2ZOTRF
Convex
0.5A
NRSNA6I2ZOTRF
Convex
1.0A*
NRSNA4I4ZOTRF
Concave
1.0A*
NRSNØ4I4ZOTRF
Convex
1.0A
NRSNA6I4ZOTRF
Concave
1.0A
NRSNØ6I4ZOTRF
*1.0A rating effective for production
starting November 2015
Term.
Type
W
1.00 ± 0.20
1.00 ± 0.20
1.6 ± 0.15
1.00 ± 0.20
1.00 ± 0.20
1.60 ± 0.15
1.60 ± 0.15
L
1.00 ± 0.10
1.00 ± 0.10
1.6 ± 0.15
2.00 ± 0.10
2.00 ± 0.10
3.20 ± 0.20
3.20 ± 0.20
P
0.67 nom.
0.50 nom.
0.76 nom.
0.50 nom.
0.50 nom.
0.80 nom.
0.80 nom.
T
0.30 ± 0.05
0.30 ± 0.10
0.45 ± 0.10
0.40 ± 0.10
0.40 ± 0.10
0.50 ± 0.10
0.55 ± 0.10
A
1
A
2
NRSN Series
B
C
0.25 ± 0.10
0.25 ± 0.10
0.30 ± 0.10
0.25 ± 0.10
0.25 ± 0.10
0.30 ± 0.15
0.45 ± 0.15
0.33 ± 0.10
-
0.15 ± 0.10
0.30 ± 0.10
-
0.20 ± 0.10
0.46 ± 0.10
-
0.30 ± 0.20
0.30 ± 0.10 0.40 ± 0.10 0.20 ± 0.10
0.30 ± 0.10
-
0.15 ± 0.10
0.45 ± 0.10 0.60 ± 0.10 0.30 ± 0.15
0.50 ± 0.10
-
0.35 ± 0.15
COMPONENT MARKING
NRSNØ4I2ZOTRF - (no markings)
NRSNA4I2ZOTRF - (no markings)
NRSNØ4I4ZOTRF - (no markings)
NRSNA4I4ZOTRF - (marked “000”)
NRSN6I2AZOTRF - (marked "000")
NRSNØ6I4ZOTRF - (marked “000”)
NRSNA6I4ZOTRF - (marked “000”)
Terminations
P
B
W
Terminations
P
Terminations
C
P
B
T
C
W
W
T
A
1
A
1
L
NRSNA4I2
T
L
NRSNØ4I2
A
1
C
L
NRSNA6I2
Terminations
P
B
C
W
A
1
P
A
2
T
L
NRSNA4I4, NRSNA6I4, NRSNA12I4
Terminations
C
W
B
A
1
L
NRSNØ4I4, NRSNØ6I4
T
3
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE

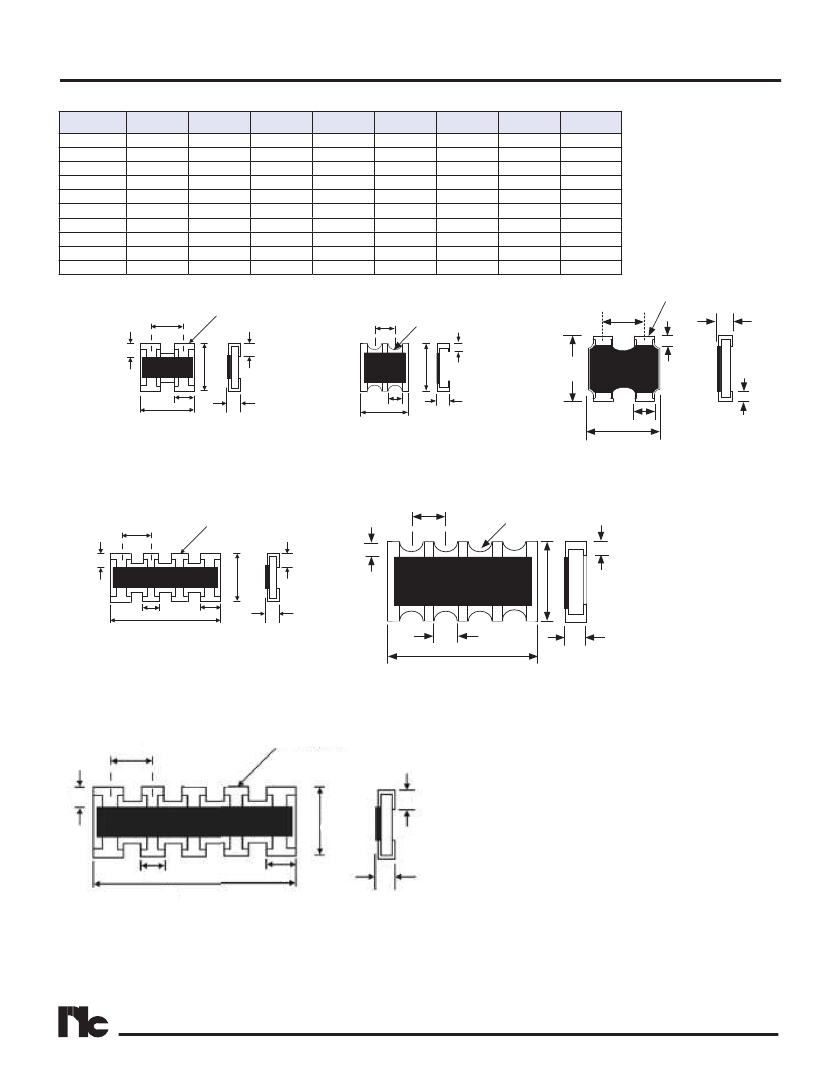

Chip Resistor Arrays/Networks
PART DIMENSIONS (mm)
Type
NRSNA4I2
NRSNØ4I2
NRSNA6I2
NRSNA4I4
NRSNØ4I4
NRSNA6I4
NRSNØ6I4
NRSNA6C8
NRSNA6D8
NRSNA12I4
W
1.00 ± 0.20
1.00 ± 0.20
1.6 ± 0.15
1.00 ± 0.20
1.00 ± 0.20
1.60 ± 0.15
1.60 ± 0.15
3.10 ± 0.20
3.10 ± 0.20
3.10 ± 0.20
L
1.00 ± 0.10
1.00 ± 0.10
1.6 ± 0.15
2.00 ± 0.10
2.00 ± 0.10
3.20 ± 0.20
3.20 ± 0.20
6.40 ± 0.20
6.40 ± 0.20
5.08 ± 0.20
P
0.67 nom.
0.50 nom.
0.76 nom.
0.50 nom.
0.50 nom.
0.80 nom.
0.80 nom.
1.27 nom.
1.27 nom.
1.27 nom.
T
0.30 ± 0.05
0.30 ± 0.10
0.45 ± 0.10
0.40 ± 0.10
0.40 ± 0.10
0.50 ± 0.10
0.55 ± 0.10
0.60 ± 0.20
0.60 ± 0.20
0.55 ± 0.10
A
1
0.33 ± 0.10
0.30 ± 0.10
0.46 ± 0.10
0.30 ± 0.10
0.30 ± 0.10
0.45 ± 0.10
0.50 ± 0.10
0.80 ± 0.20
0.80 ± 0.20
0.80 ± 0.20
A
2
-
-
-
0.40 ± 0.10
-
0.60 ± 0.10
-
1.05 nom.
1.05 nom.
-
B
0.15 ± 0.10
0.20 ± 0.10
0.30 ± 0.20
0.20 ± 0.10
0.15 ± 0.10
0.30 ± 0.15
0.35 ± 0.15
0.50 ± 0.20
0.50 ± 0.20
0.50 ± 0.20
C
0.25 ± 0.10
0.25 ± 0.10
0.30 ± 0.10
0.25 ± 0.10
0.25 ± 0.10
0.30 ± 0.15
0.45 ± 0.15
0.30 ± 0.20
0.30 ± 0.20
0.30 ± 0.20
NRSN Series
Terminations
P
B
W
Terminations
P
Terminations
C
P
B
T
C
W
W
T
A
1
A
1
L
NRSNA4I2
T
L
NRSNØ4I2
A
1
C
L
NRSNA6I2
P
P
B
W
Terminations
B
Terminations
C
W
C
A
1
A
2
T
A
1
L
NRSNØ4I4, NRSNØ6I4
T
Marked
E-24 2% & 5%
E-96 1%
L
NRSNA4I4, NRSNA6I4, NRSNA12I4
P
Terminations
B
W
C
A
1
L
NRSNA6D8, NRSNA6C8
A
2
T
Terminations (all sizes):
100% Sn finish over Ni Barrier
4
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE

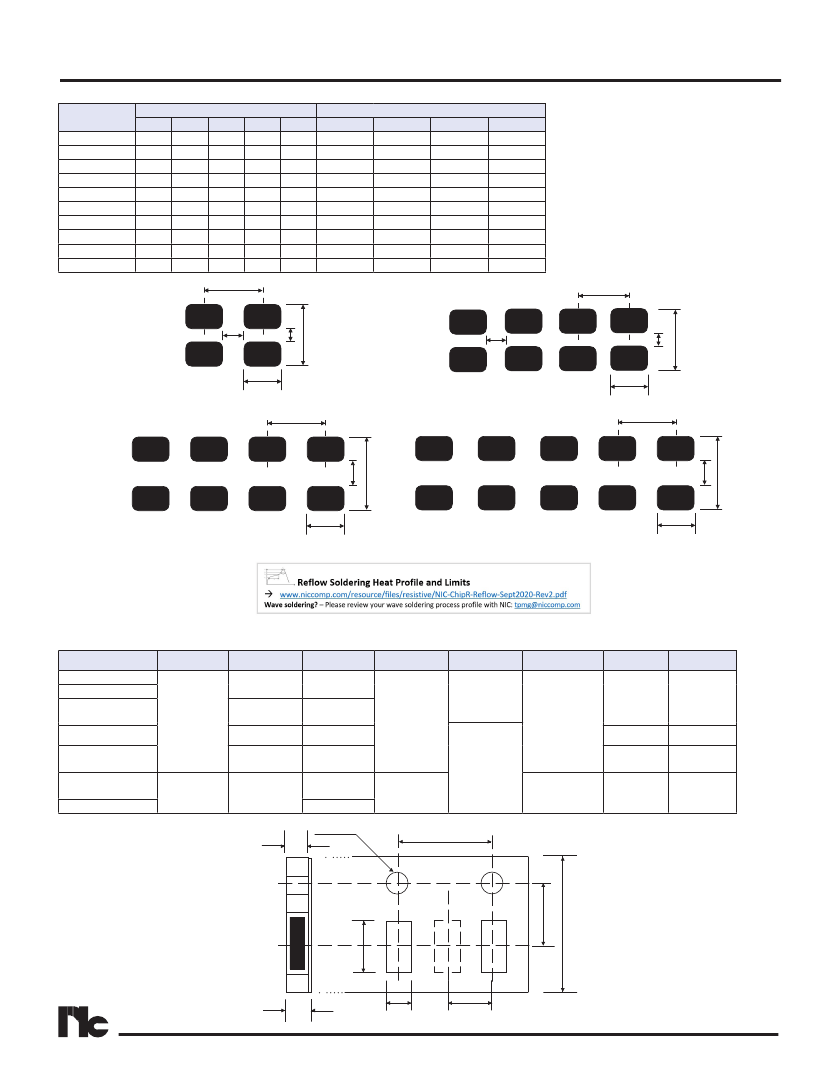

Chip Resistor Arrays/Networks
LAND PATTERN DIMENSIONS (mm)
Type
NRSNØ4I2
NRSNA4I2
NRSNA6I2
NRSNØ4I4
NRSNA4I4
NRSNØ6I4J
NRSNA6I4J
NRSNA6C8
NRSNA6D8
NRSNA12I4
A
0.50
0.50
0.80
0.50
0.50
1.00
1.00
2.20
2.20
2.20
Reflow Soldering
B
P
S
0.28 0.50 0.34
0.33 0.67 0.34
0.45 0.80 0.35
0.28 0.50 0.22
0.28 0.50 0.22
0.40 0.80 0.40
0.40 0.80 0.40
0.70 1.27
-
0.70 1.27
-
0.70 1.27
-
P
NRSN Series
F
-
-
-
-
-
4.6 ~ 5.6
4.6 ~ 5.6
F
2.00
2.00
2.40
2.00
2.00
2.60
2.60
4.20
4.20
4.20
Flow Soldering
A
B
P
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
0.7 ~ 0.9 0.3 ~ 0.35
0.8
0.7 ~ 0.9 0.3 ~ 0.35
0.8
P
S
A
F
S
A
F
B
NRSNØI2, NRSNA4I2, NRSNA6I2
P
B
NRSN04I4, NRSNA4I4, NRSN06I4 & NRSNA6I4
P
A
F
A
F
NRSNA12I4
B
NRSNA6D8, NRSNA6C8
B
TAPE DIMENSIONS (mm)
Type
NRSN04I2
NRSNA4I2
NRSN04I4
NRSNA4I4
NRSNA6I2
NRSN06I4
NRSNA6I4
NRSNA6C8
NRSNA6D8
NRSNA12I4
Material
A
1.20 ± 0.1
Paper
1.20 ± 0.1
1.80 ± 0.2
1.90 ± 0.1
Plastic
3.4 ± 0.1
B
1.207 ± 0.1
2.20 ± 0.1
1.8 ± 0.2
3.45 ± 0.1
6.6 ± 0.1
5.6 ± 0.1
φ1.5+0.1/-0.0
t
1
F
p1
2.0 ± 0.1
W
t
1
0.5 max.
t
2
1.0 max
0.94 max.
1.4 max.
1.0 ± 0.1
3.5 ± 0.05
8.0 ± 0.2
0.64 max.
1.0 max.
4.0 ± 0.1
5.5 ± 0.05
12.0 ± 0.2
-
4.0 ±0.1
F
B
W
t
2
A
P1
5
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
