51441-1172: Description0.50mm (.020") pitch easy-On? type ffc/fpc connector, right angle, smt, zif bottom contact style, 1.10mm (.043") mated height, 11 circuits, lead-free, Goldcontact plating; File Size494KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

51441-1172 Overview

0.50mm (.020") pitch easy-On? type ffc/fpc connector, right angle, smt, zif bottom contact style, 1.10mm (.043") mated height, 11 circuits, lead-free, Goldcontact plating

Preview

Download Datasheet

View All

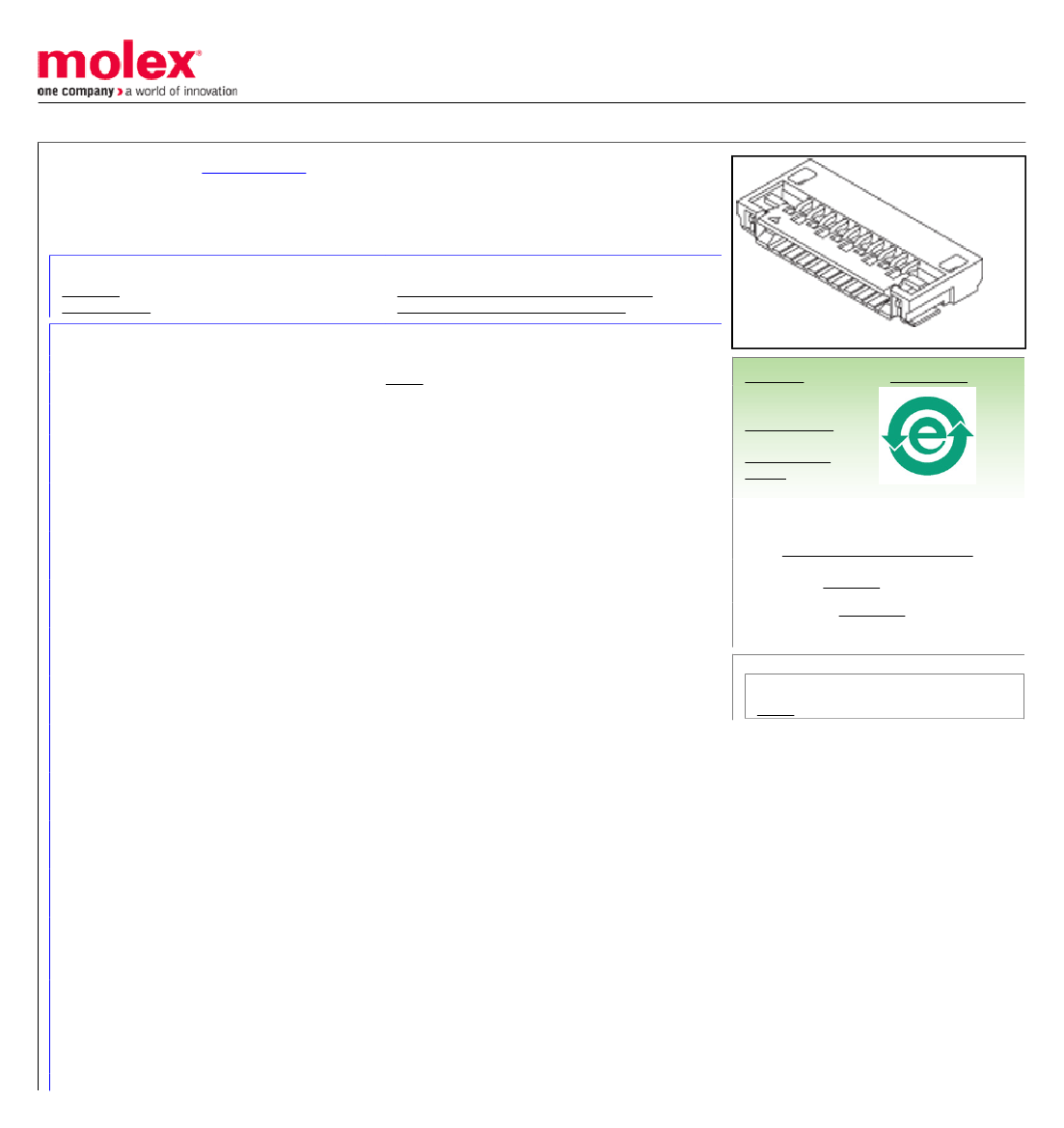

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0514410872

Active

0.50mm (.020") Pitch Easy-On™ Type FFC/FPC Connector, Right Angle, SMT, ZIF,

Bottom Contact Style, 1.10mm (.043") Mated Height, 8 Circuits,Lead-free, Gold Contact

Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-51441-006 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

FFC/FPC Connectors

51441

Easy-On™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Product Name

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Black, Natural

Bottom

90° Angle

0.043 In

1.10 mm

Phosphor Bronze

Gold

High Temperature Thermoplastic

Right Angle

None

Embossed Tape on Reel

0.020 In

0.50 mm

0.020 In

0.50 mm

0.1

0.05

Yes

-20°C to +85°C

Surface Mount

FFC/FPC

Search Parts in this Series

51441Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.5A

50V AC (RMS)/DC

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-51441-006, RPS-51441-021, RPS-51441-030

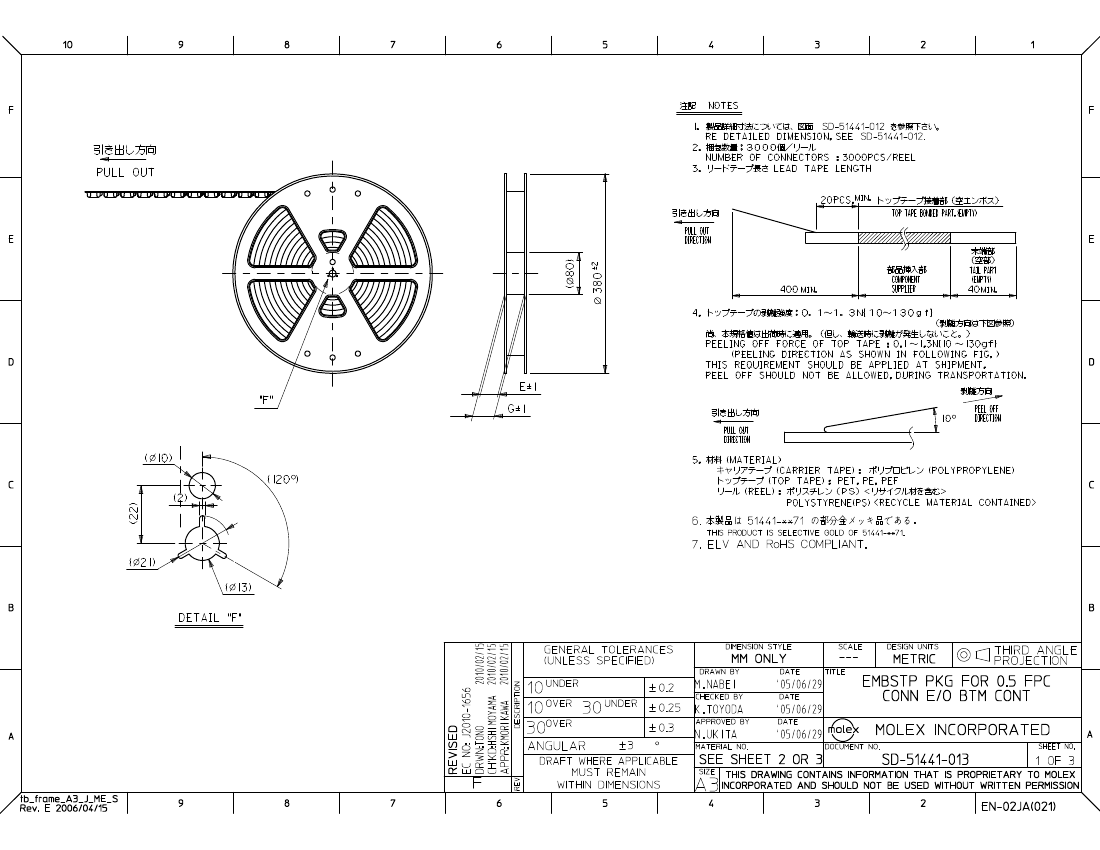

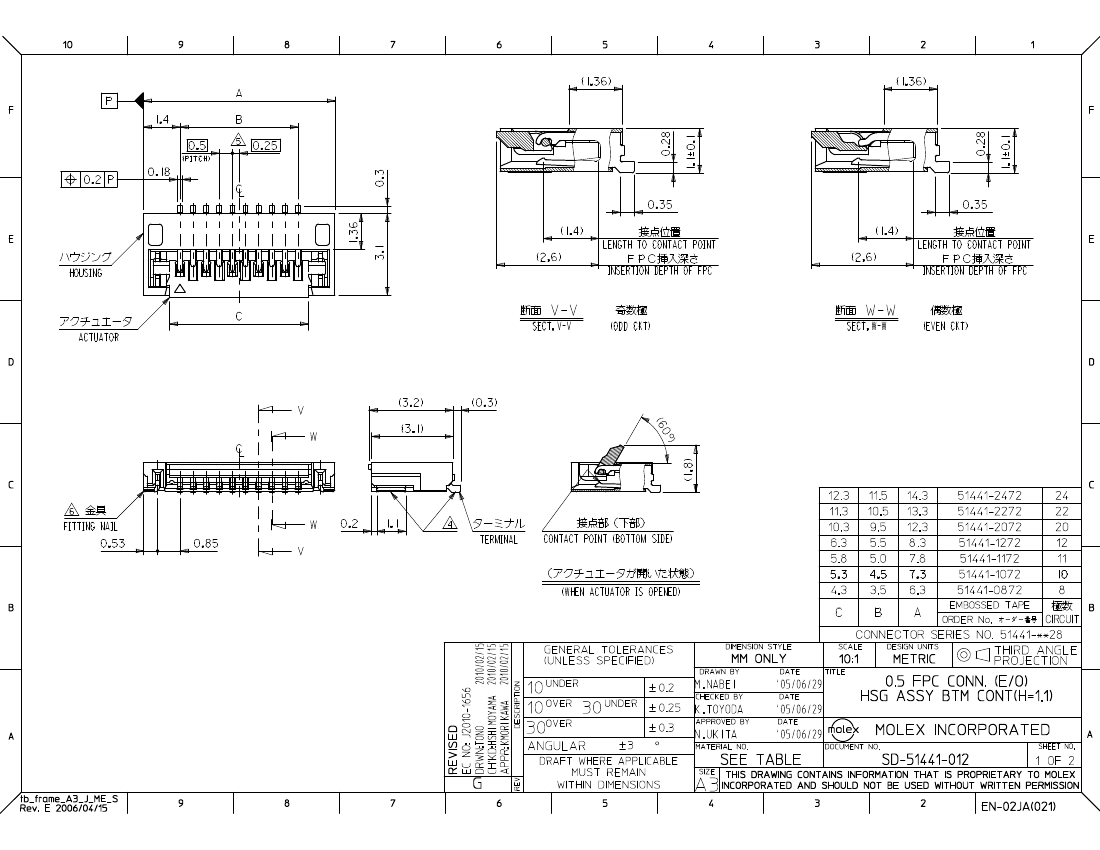

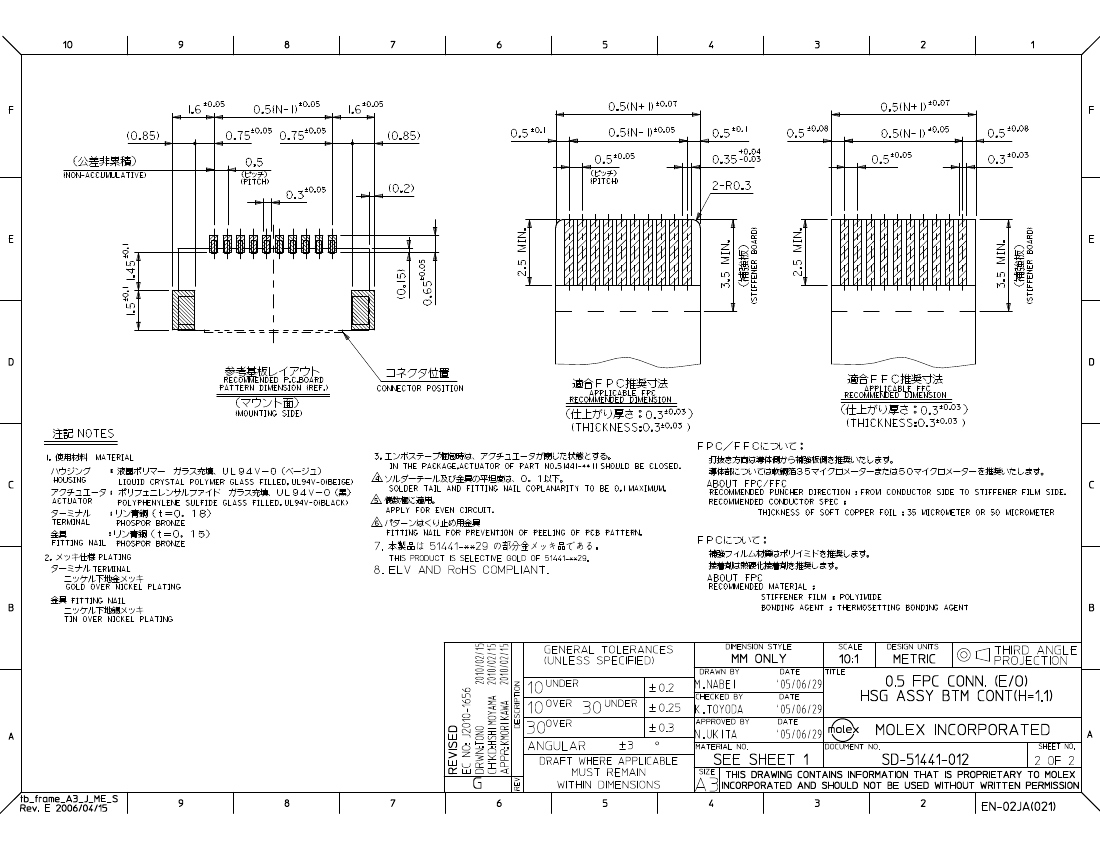

SD-51441-012, SD-51441-013
