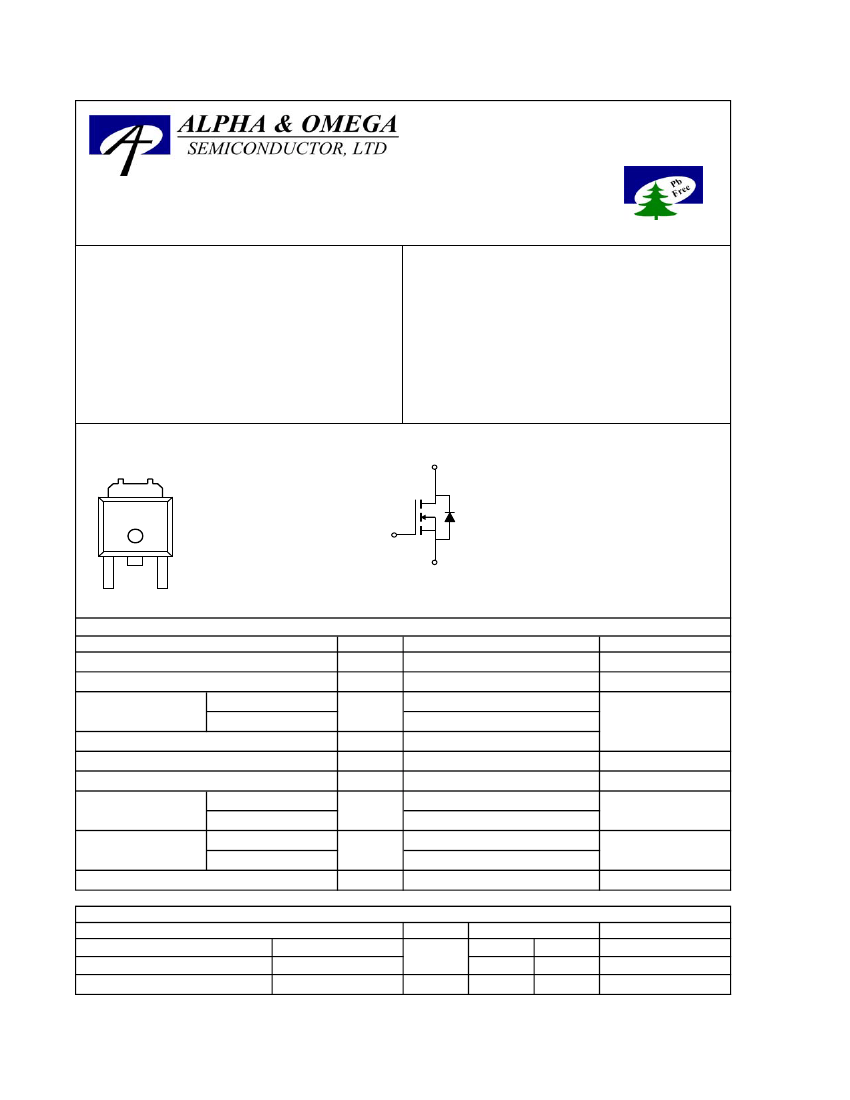

AOD420
N-Channel Enhancement Mode Field Effect Transistor
General Description
The AOD420 uses advanced trench technology to
provide excellent R
DS(ON)
and low gate charge. This
device is suitable for use as a load switch or in PWM
applications. Standard Product
AOD420 is Pb-free
(meets ROHS & Sony 259 specifications). AOD420L
is a Green Product ordering option. AOD420 and
AOD420L are electrically identical.
Features
V
DS
(V) = 30V
I
D
= 10A (V
GS
= 10V)
R
DS(ON)
< 28mΩ (V
GS
= 10V)
R
DS(ON)
< 42mΩ (V
GS
= 4.5V)
TO-252
D-PAK
D
Top View
Drain Connected
to Tab
G
S
G
D
S
Absolute Maximum Ratings T
A
=25°C unless otherwise noted
Parameter
Symbol
V
DS
Drain-Source Voltage
V
GS
Gate-Source Voltage
Continuous Drain
Current
G
Pulsed Drain Current
Avalanche Current
C
C
C
Maximum
30
±20
10
10
30
15
36
60
30
2.5
1.6
-55 to 175
Units
V
V
A
A
mJ
W
W
°C
T
C
=25°C
T
C
=100°C
I
D
I
DM
I
AR
E
AR
P
D
P
DSM
T
J
, T
STG
T
C
=25°C
Repetitive avalanche energy L=0.1mH
Power Dissipation
Power Dissipation
B
T
C
=100°C
T
A
=25°C
T
A
=70°C
A
Junction and Storage Temperature Range
Thermal Characteristics
Parameter
Maximum Junction-to-Ambient
A
A
Maximum Junction-to-Ambient
B
Maximum Junction-to-Case
Symbol
t
≤
10s
Steady-State
Steady-State
R
θJA
R
θJC
Typ
16.7
40
1.9
Max
25
50
2.5
Units
°C/W
°C/W
°C/W
Alpha & Omega Semiconductor, Ltd.
AOD420
Electrical Characteristics (T
J
=25°C unless otherwise noted)
Parameter
Symbol
STATIC PARAMETERS
BV
DSS
Drain-Source Breakdown Voltage
I
DSS
I
GSS
V
GS(th)
I
D(ON)
R
DS(ON)
g
FS
V
SD
I
S
Zero Gate Voltage Drain Current
Gate-Body leakage current
Gate Threshold Voltage
On state drain current
Static Drain-Source On-Resistance
V
GS
=4.5V, I
D
=7A
Forward Transconductance
V
DS
=5V, I
D
=10A
I
S
=1A,V
GS
=0V
Diode Forward Voltage
Maximum Body-Diode Continuous Current
Conditions
I
D
=250µA, V
GS
=0V
V
DS
=24V, V
GS
=0V
T
J
=55°C
V
DS
=0V, V
GS
= ±20V
V
DS
=V
GS
I
D
=250µA
V
GS
=4.5V, V
DS
=5V
V
GS
=10V, I
D
=10A
T
J
=125°C
1
40
21
31
32.5
15.6
0.75
1
10
710
V
GS
=0V, V
DS
=15V, f=1MHz
V
GS
=0V, V
DS
=0V, f=1MHz
120
72
1.1
14.4
V
GS
=10V, V
DS
=15V, I
D
=10A
7
2.6
2.7
5.6
V
GS
=10V, V
DS
=15V, R
L
=1.5Ω,
R
GEN
=3Ω
I
F
=10A, dI/dt=100A/µs
I
F
=10A, dI/dt=100A/µs
2.4
15.6
2.2
13.4
4.4
21
3.6
18
8.4
850
28
40
42
1.8
Min
30
1
5
100
3
Typ
Max
Units
V
µA
nA
V
A
mΩ
mΩ
S
V
A
pF
pF
pF
Ω
nC
nC
nC
nC
ns
ns
ns
ns
ns
nC
DYNAMIC PARAMETERS
C
iss
Input Capacitance
C
oss
C
rss
R
g
Output Capacitance
Reverse Transfer Capacitance
Gate resistance
SWITCHING PARAMETERS
Q
g
(10V) Total Gate Charge
Q
g
(4.5V) Total Gate Charge
Q
gs
Q
gd
t
D(on)
t
r
t
D(off)
t
f
t
rr
Q
rr
Gate Source Charge
Gate Drain Charge
Turn-On DelayTime
Turn-On Rise Time
Turn-Off DelayTime
Turn-Off Fall Time
Body Diode Reverse Recovery Time
Body Diode Reverse Recovery Charge
A: The value of R
θJA
is measured with the device mounted on 1in
2
FR-4 board with 2oz. Copper, in a still air environment with T
A
=25°C. The Power
dissipation P
DSM
is based on R
θJA
and the maximum allowed junction temperature of 150°C. The value in any given application depends on the user's
specific board design, and the maximum temperature of 175°C may be used if the PCB allows it.
B. The power dissipation P
D
is based on T
J(MAX)
=175°C, using junction-to-case thermal resistance, and is more useful in setting the upper dissipation
limit for cases where additional heatsinking is used.
C: Repetitive rating, pulse width limited by junction temperature T
J(MAX)
=175°C.
D. The R
θJA
is the sum of the thermal impedence from junction to case R
θJC
and case to ambient.
E. The static characteristics in Figures 1 to 6 are obtained using <300
µs
pulses, duty cycle 0.5% max.
F. These tests are performed with the device mounted on 1 in
2
FR-4 board with 2oz. Copper, in a still air environment with T
A
=25°C. The SOA curve
provides a single pulse rating.
G. The maximum current rating is limited by bond-wires.
Rev4: August 2005
THIS PRODUCT HAS BEEN DESIGNED AND QUALIFIED FOR THE CONSUMER MARKET. APPLICATIONS OR USES AS CRITICAL
COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS ARE NOT AUTHORIZED. AOS DOES NOT ASSUME ANY LIABILITY ARISING
OUT OF SUCH APPLICATIONS OR USES OF ITS PRODUCTS. AOS RESERVES THE RIGHT TO IMPROVE PRODUCT DESIGN,
FUNCTIONS AND RELIABILITY WITHOUT NOTICE.
Alpha & Omega Semiconductor, Ltd.
AOD420

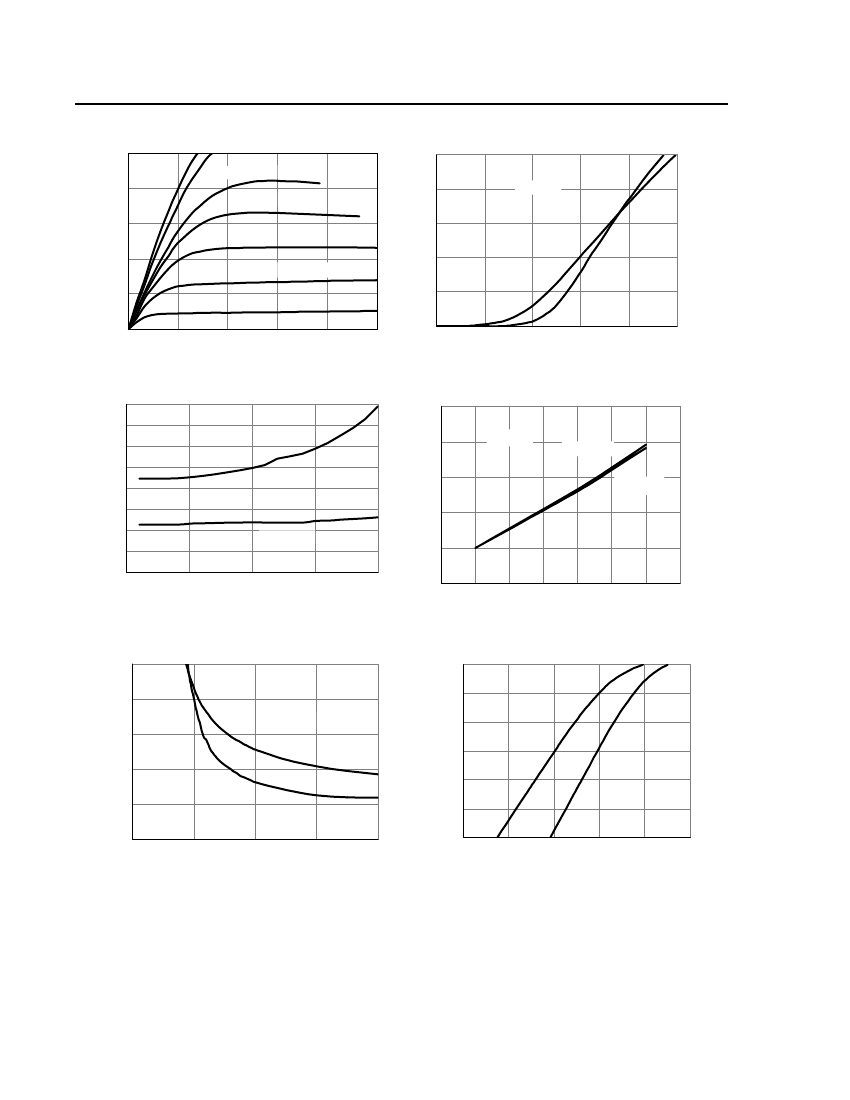

TYPICAL ELECTRICAL AND THERMAL CHARACTERISTICS
50
40
30
20
10
0
0
1
2
3
4
5
V
DS
(Volts)
Fig 1: On-Region Characteristics
50
10V
20
7V
5V
4.5V
I
D
(A)
16
12
8
4
0
1.5
2
2.5
3
3.5
4
V
GS
(Volts)
Figure 2: Transfer Characteristics
125°C
25°C
V
DS
=5V
I
D
(A)
4V
V
GS
=3.5V
3.0V
1.8
Normalized On-Resistance
1.6
1.4
1.2
1
0.8
0
25
50
75
100
125
150
175
Temperature (°C)
Figure 4: On-Resistance vs. Junction Temperature
I
D
=10A
45
40
R
DS(ON)
(mΩ)
35
30
25
20
15
10
0
5
10
15
20
I
D
(A)
Figure 3: On-Resistance vs. Drain Current and Gate
Voltage
60
50
I
D
=10A
R
DS(ON)
(mΩ)
125°C
30
20
10
2
4
6
8
10
V
GS
(Volts)
Figure 5: On-Resistance vs. Gate-Source Voltage
25°C
40
V
GS
=10V
V
GS
=4.5V
V
GS
=10V
V
GS
=4.5
1.0E+01
1.0E+00
1.0E-01
I
S
(A)
1.0E-02
1.0E-03
1.0E-04
1.0E-05
0.0
0.2
0.4
0.6
0.8
1.0
V
SD
(Volts)
Figure 6: Body-Diode Characteristics
125°
25°C
Alpha & Omega Semiconductor, Ltd.
AOD420

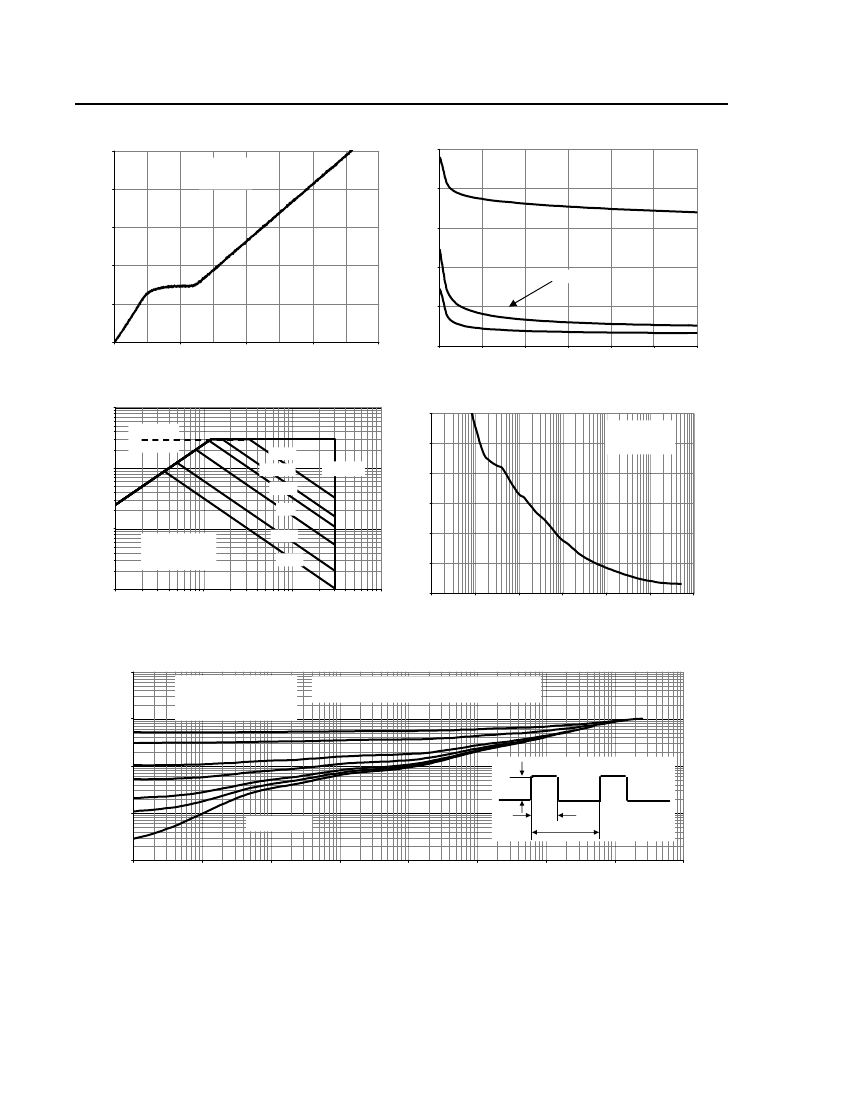

TYPICAL ELECTRICAL AND THERMAL CHARACTERISTICS
10
1000
V
DS
=15V
I
D
=10A
8
800
C
iss
4
Capacitance (pF)
6
V
GS
(Volts)
600
400
C
oss
C
rss
2
200
0
0
4
8
Q
g
(nC)
Figure 7: Gate-Charge Characteristics
12
16
0
0
5
10
15
V
DS
(Volts)
Figure 8: Capacitance Characteristics
20
25
30
100.0
60
R
DS(ON)
limited
50
T
J(Max)
=150°C
T
A
=25°C
1ms
10.0
10ms
0.1s
1s
100µs
40
Power (W)
I
D
(Amps)
30
1.0
T
J(Max)
=150°C
T
A
=25°C
10s
DC
20
10
0.1
0.1
1
10
100
0
0.001
0.01
0.1
1
10
100
1000
Pulse Width (s)
Figure 10: Single Pulse Power Rating Junction-to-Ambient (Note F)
V
DS
(Volts)
Figure 9: Maximum Forward Biased Safe Operating Area (Note F)
10
Z
θ
JA
Normalized Transient
1
Thermal Resistance
D=T
on
/T
T
J,PK
=T
A
+P
DM
.Z
θJA
.R
θJA
R
θJA
=50°C/W
In descending order
D=0.5, 0.3, 0.1, 0.05, 0.02, 0.01, single pulse
0.1
P
D
0.01
Single Pulse
T
on
T
0.001
0.00001
0.0001
0.001
0.01
0.1
1
10
100
1000
Pulse Width (s)
Figure 11: Normalized Maximum Transient Thermal Impedance (Note F)
Alpha & Omega Semiconductor, Ltd.
