MAMXSS0013
Low Cost MMIC Mixer
1400 - 2100 MHz
Features
•
•
•
•
•
•
•
•
•
•
+12 dBm Input Power @ 1 dB Compression
High Isolation, 28 dB LO to RF
+3 to +8 dBm LO Drive Level
DC - 500 MHz 3 dB IF Bandwidth
Does not require DC bias
Lead-Free SOT-25 Package
100% Matte Tin Plating over Copper
Halogen-Free “Green” Mold Compound
260°C Reflow Compatible
RoHS* Compliant Version of MD54-0006
Rev. V2
Functional Block Diagram
Description
M/A-COM’s MAMXSS0013 is a passive mixer that
achieves the performance of a double balanced
diode mixer in a lead-free SOT-25 package. The
MAMXSS0013 is ideally suited for use where high
level RF signals and very wide dynamic range are
required. Typical applications include frequency up/
down conversion, modulation and demodulation in
receivers and transmitters for base station and
portable systems.
The MAMXSS0013 uses FETs as mixing elements
to achieve very wide dynamic range in a low cost
plastic package. The mixer operates with LO drive
levels of +3 dBm to +8 dBm. The LO port may be
externally tuned for operation in various frequency
bands.
M/A-COM’s MAMXSS0013 is fabricated using a
mature 0.5 micron gate length GaAs MESFET
process. The process features full passivation for
increased performance and reliability.
The
MAMXSS0013 is 100% RF tested to ensure
performance specification compliance.
Pin Configuration
Pin No.
1
2
3
4
5
Pin Name
LO Port
Ground
Ground
RF Port
IF Port
Description
LO Input
Ground
Ground
RF Input
IF Output
External Circuitry Parts List
2,3
LO Frequency
Part
R1
L1
C1
1500 MHz
470
Ω
6.8 nH
3.3 pF
1710 MHz
470
Ω
4.7 nH
2.2 pF
2300 MHz
820
Ω
2.7 nH
2.2 pF
Ordering Information
1
Part Number
MAMXSS0013
MAMXSS0013TR-3000
MAMX-000013-001SMB
MAMX-000013-002SMB
MAMX-000013-003SMB
Package
Bulk Packaging
3000 piece reel
Sample Board 1500 MHz
Sample Board 1710 MHz
Sample Board 2300 MHz
2. The external LO matching network allows tuning from 1400
MHz to 2300 MHz.
The networks given above are
intended to serve as guidelines for matching in different bands.
3. All off-chip components are low-cost surface mount
components obtainable from multiple sources (0.060 in. x
0.030 in. or 0.080 in. x 0.050 in).
1. Reference Application Note M513 for reel size information.
1
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAMXSS0013
Low Cost MMIC Mixer
1400 - 2100 MHz
Electrical Specifications
4
:
RF = 1850 MHz (-10 dBm), LO = 1710 MHz (+5 dBm), IF = 140 MHz, T
A
= 25°C
Parameter
Conversion Loss
Isolation
LO to RF
LO to IF
RF to IF
RF Port
LO Port
3
IF Port
LO = +5 dBm, RF Freq: 1850 MHz
Two Tones at -10 dBm each, Tone spacing = 100 KHz,
IF = 140 MHz
Rev. V2
Test Conditions
Units
dB
dB
dB
dB
Ratio
Ratio
Ratio
dBm
dBc
Min.
—
—
—
—
—
—
—
—
—
Typ.
8.0
28
15
15
2.0:1
2.0:1
2.0:1
12
55
Max.
9.0
—
—
—
—
—
—
—
—
VSWR
Input 1 dB Compression
Two-Tone IM Ratio
5
4. With external LO Port matching. See functional block diagram.
5. IMR vs. RF drive can be calculated by the formula: IMR = 40-1.5*Pin.
Absolute Maximum Ratings
6,7
Parameter
RF Input Power
LO Drive Power
Operating Temperature
Storage Temperature
Spurious Table
4x
38.3 27.3
21.4 10.5
9.0
-0.9
1.9
-6.0
X
X
41.3
39.9
30.1
30.1
36.1
36.4
0
0
8.1
8.3
45.4
52.5
69.0
70.5
36.0
45.8
44.8
55.5
45.5
54.4
64.7
77.1
43.0
58.8
65.8
75.0
56.1
75.2
56.8
72.3
57.0
78.7
68.3
76.8
64.3
78.0
65.0
78.3
72.9
74.3
Absolute Maximum
+27 dBm
+27 dBm
-40°C to +85°C
-65°C to +150°C
Harmonic of LO
3x
2x
1x
0x
6. Exceeding any one or combination of these limits may cause
permanent damage to this device.
7. M/A-COM does not recommend sustained operation near
these survivability limits.
0x
1x
2x
3x
4x
Harmonic of RF
The spurious table shows the spurious signals resulting from the
mixing of the RF and LO input signals, assuming down
conversion. Mixing products are indicated relative to the IF. The
lower frequency mixing term is shown for two different RF input
levels. The top number is for an RF input power of 0 dBm, the
lower number is for -10 dBm.
|nF
RF
- mF
LO
|, RF = 0 dBm
|nF
RF
- mF
LO
|, RF = -10 dBm
RF Frequency = 1850 MHz
LO Frequency = 1710 MHz
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAMXSS0013
Low Cost MMIC Mixer
1400 - 2100 MHz

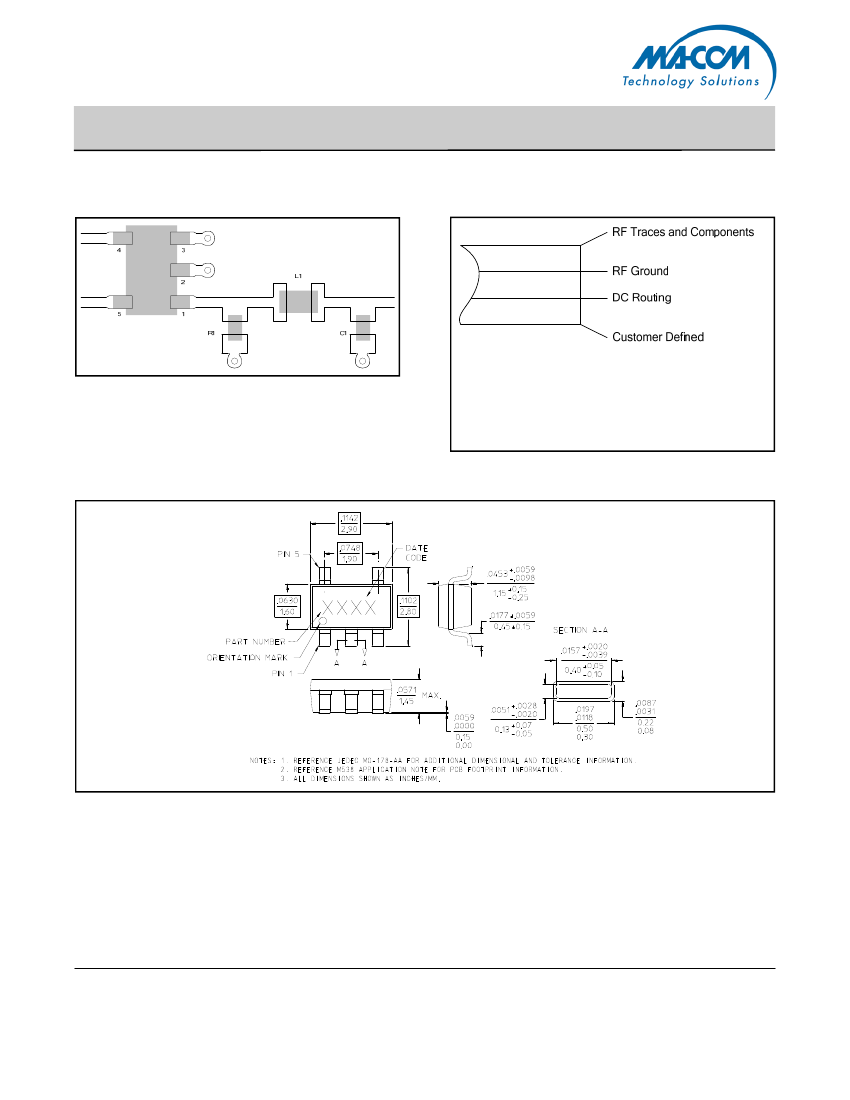

Recommended PCB Configuration
Layout View
Cross Section View
Rev. V2
The PCB dielectric between RF traces and RF ground layers
should be chosen to reduce RF discontinuities between 50
Ω
lines and package pins.
M/A-COM recommends an
FR-4 dielectric thickness of 0.008” (0.2 mm) yielding a 50
Ω
line width of 0.015” (0.38). The recommended metalization is 1
ounce copper.
Lead-Free SOT-25
†
†
Reference Application Note M538 for lead-free solder reflow recommendations.
Meets JEDEC moisture sensitivity level 1 requirements.
