357160190: Description2.36mm (.093") diameter pin wire-to-board terminal, female, brass, wire range 20-24 awg (0.52-0.20mm?), pre-Ni plated; CategoryThe connector Connector bracket; File Size88KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

357160190 Overview

2.36mm (.093") diameter pin wire-to-board terminal, female, brass, wire range 20-24 awg (0.52-0.20mm?), pre-Ni plated

357160190 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	CONTACT FINISH: TIN
Assembly name	CONTACT
Maximum number of cable entries	0.1062 inch
Minimum cable entry	0.059 inch
Connector bracket type	CONNECTOR ACCESSORY
Contact point gender	FEMALE
Contact style	ROUND SOCKET
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Material	BRASS
Installation method	STRAIGHT
Terminal length	0.22 inch
Terminal type	CRIMP
Maximum wire diameter	20 AWG
Minimum wire diameter	24 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

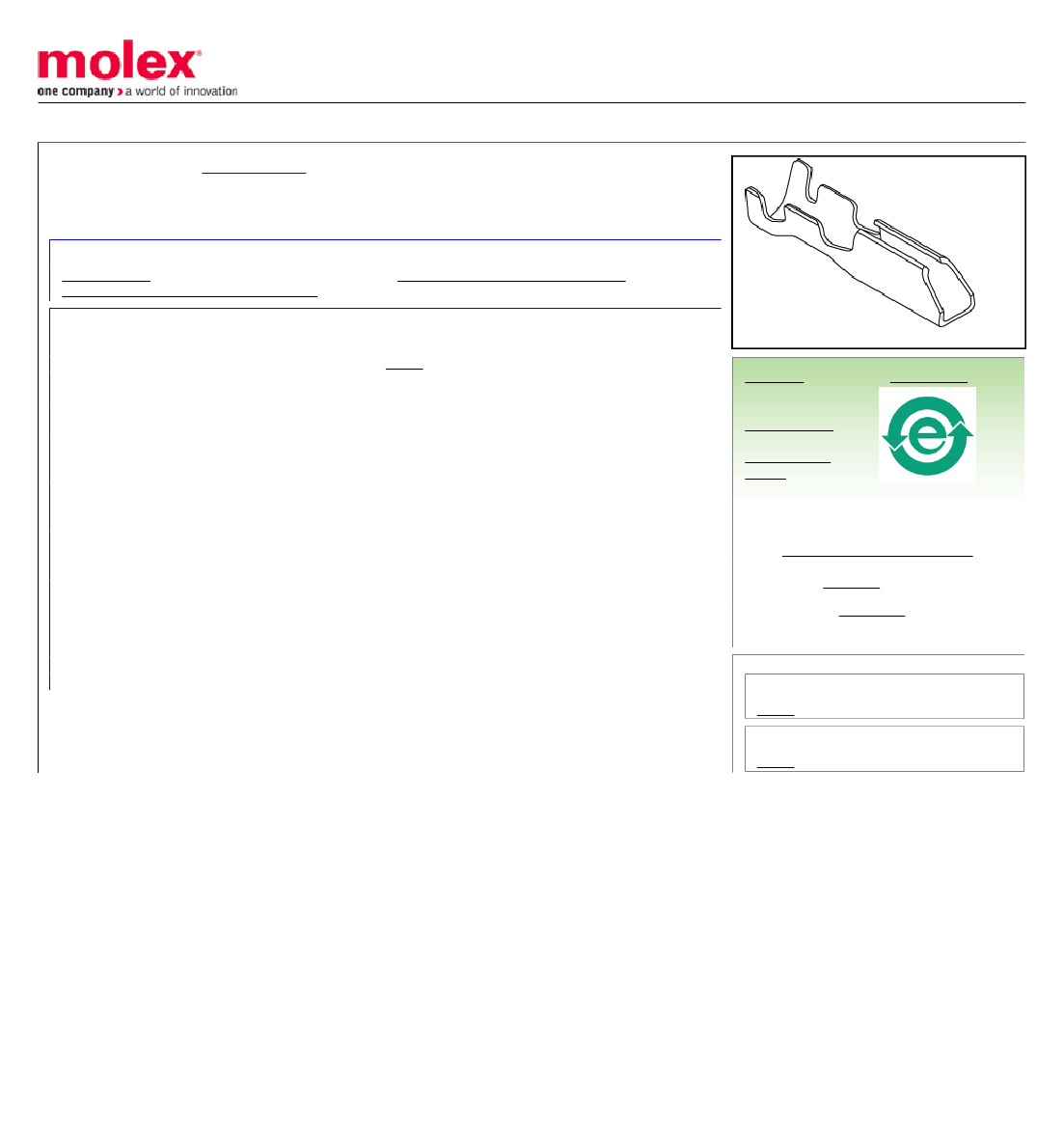

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0357160190

Active

2.36mm (.093") Diameter Pin Wire-to-Board Terminal, Female, Brass, Wire Range

20-24 AWG (0.52-0.20mm²), Pre-Ni Plated

Documents:

Drawing (PDF)

Product Specification PS-35106-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Crimp Quality Equipment

Product Name

Crimp Terminals

35716

Yes

N/A

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

PS-35106-001

SD-35716-001

Search Parts in this Series

35716Series

Use With

35183

Physical

Gender

Material - Metal

Material - Plating Mating

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Female

Brass

Nickel

Reel

Crimp or Compression

2.70mm (.106") max.

20, 22, 24

N/A

Material Info

Reference - Drawing Numbers

Product Specification

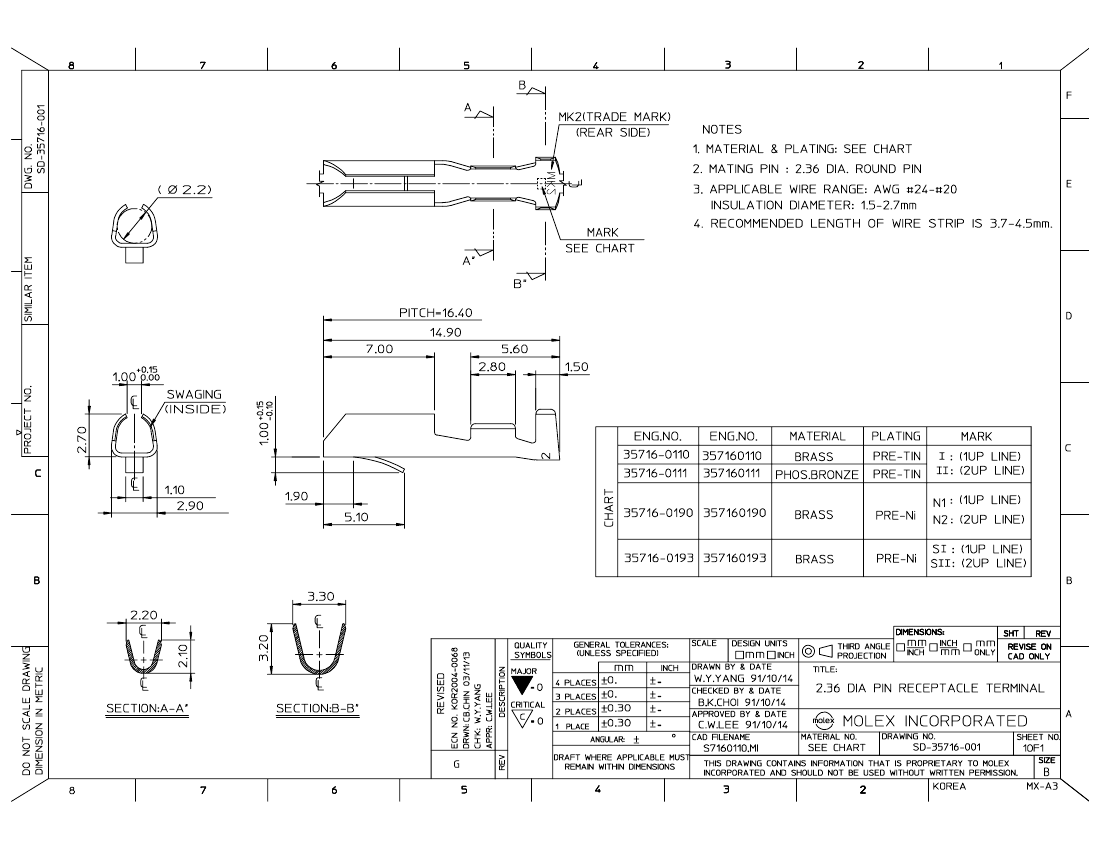

Sales Drawing

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
