TD62308APG/AFG
TOSHIBA Bipolar Digital Integrated Circuit Silicon Monolithic
TD62308APG,TD62308AFG
4ch Low Input Active High-Current Darlington Sink Driver
The TD62308APG/AFG is a non−inverting transistor array
which is comprised of four NPN darlington output stages and
PNP input stages.
This device is low−level input active driver and is suitable for
operation with 5-V TTL, 5-V CMOS and 5-V Microprocessor
which have sink current output drivers.
Application include relay, hammer, lamp and stepping motor
drivers.
The suffix (G) appended to the part number represents a Lead
(Pb)-Free product.
TD62308APG
Features
•
•
•
•
•
•
•
•
•
•
Output current (single output): 1.5 A (max)
High sustaining voltage output:
Output clamp diodes
Input compatible with TTL and 5 V CMOS
Low level active inputs
Standard supply voltage
Two V
CC
terminals V
CC1
, V
CC2
(separated)
GND and SUB terminal
=
Heat sink
Package type-APG: DIP-16 pin
Package type-AFG: HSOP-16 pin
50 V (min)
TD62308AFG
Weight
DIP16-P-300-2.54A: 1.11 g (typ.)
HSOP16-P-300-1.00: 0.50 g (typ.)

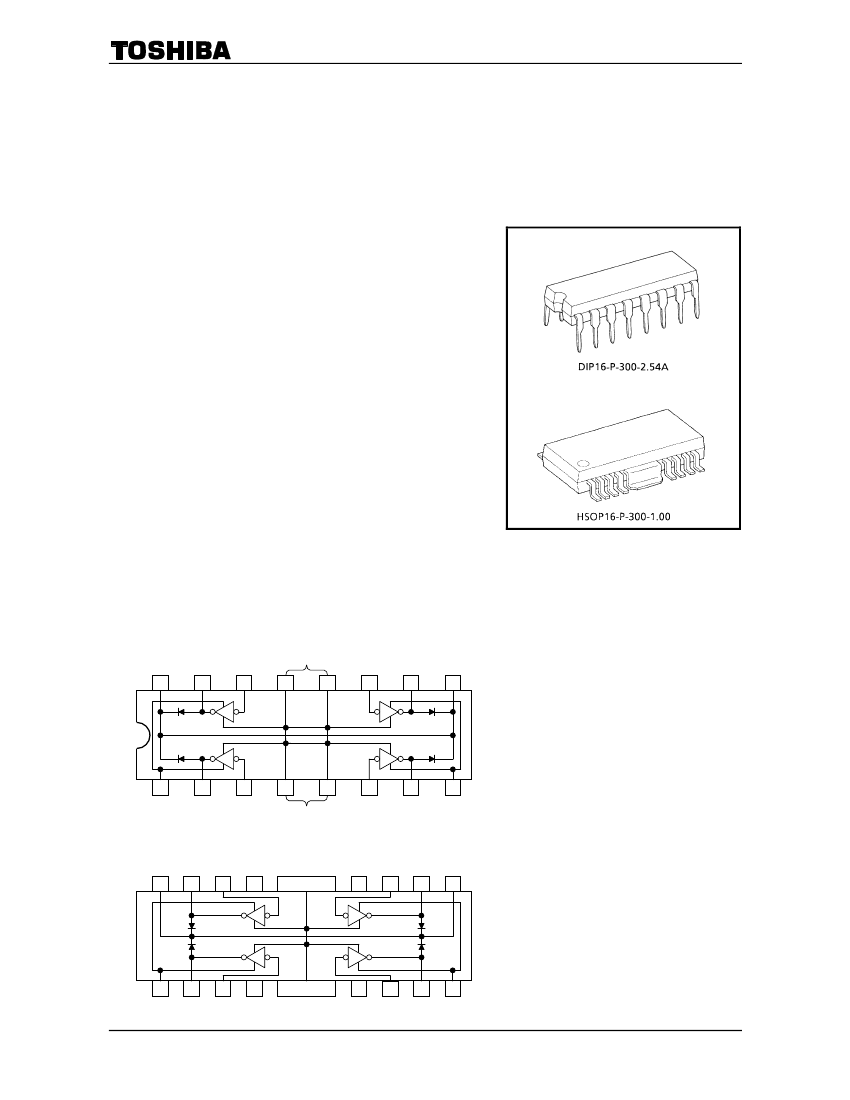

Pin Assignment (top view)
TD62308APG
COM
16
O4
15
I4
14
Heat sink
& GND
13
12
I3
11
O3
10
COM
9
1
V
CC1
2
O1
3
I1
4
5
Heat sink
& GND
Heat sink
& GND
6
I2
7
O2
8
V
CC2
TD62308AFG
COM
16
O4
15
I4
14
NC
13
NC
12
I3
11
O3
10
COM
9
1
V
CC1
2
O1
3
I1
4
NC
Heat sink
& GND
5
NC
6
I2
7
O2
8
V
CC2
1
2006-06-13
TD62308APG/AFG
Schematics
(each driver)
V
CC
2 kΩ
4k
Ω
Input
COMMON
600
Ω
Output
8.2 k
Ω
1.1 kΩ
GND
Note: The input and output parasitic diodes cannot be used as clamp diodes.
Precautions for Using
(1)
This IC does not include built-in protection circuits for excess current or overvoltage.
If this IC is subjected to excess current or overvoltage, it may be destroyed.
Hence, the utmost care must be taken when systems which incorporate this IC are designed.
Utmost care is necessary in the design of the output line, V
CC
, COMMON and GND line since IC may be
destroyed due to short−circuit between outputs, air contamination fault, or fault by improper grounding.
If a TD62308APG/AFG is being used to drive an inductive load (such as a motor, solenoid or relay), Toshiba
recommends that the diodes (pins 9 and 16) be connected to the secondary power supply pin so as to absorb
the counter electromotive force generated by the load. Please adhere to the device’s absolute maximum ratings.
Toshiba recommends that zener diodes be connected between the diodes (pins 9 and 16) and the secondary
power supply pin (as the anode) so as to enable rapid absorption of the counter electromotive force. Again,
please adhere to the device’s absolute maximum ratings.
(2)
Absolute Maximum Ratings
(Ta
=
25°C)
Characteristics
Supply voltage
Output sustaining voltage
Output current
Input current
Input voltage
Clamp diode reverse voltage
Clamp diode forward current
APG
Power dissipation
AFG
Operating temperature
Storage temperature
T
opr
T
stg
P
D
Symbol
V
CC
V
CE (SUS)
I
OUT
I
IN
V
IN
V
R
I
F
Rating
−0.5
to 10
−0.5
to 50
1.5
−10
−0.5
to 30
50
1.5
1.47/2.7
(Note 1)
0.9/1.4
(Note 2)
−40
to 85
−55
to 150
°C
°C
Unit
V
V
A/ch
mA
V
V
A
W
Note 1: On glass epoxy PCB (50
×
50
×
1.6 mm Cu 50%)
Note 2: On glass epoxy PCB (60
×
30
×
1.6 mm Cu 30%)
2
2006-06-13
TD62308APG/AFG
Recommended Operating Conditions
(Ta
=
−
40
to
85°C)
Characteristics
Supply voltage
Output sustaining voltage
Symbol
V
CC
V
CE (SUS)
Test Condition
⎯
⎯
DC1 circuit, Ta
=
25°C
APG
Output current
AFG
V
IN
Input voltage
Output ON
Output OFF
Clamp diode reverse voltage
Clamp diode forward current
APG
Power dissipation
AFG
P
D
V
IN (ON)
V
IN (OFF)
V
R
I
F
Ta
=
85°C
Ta
=
85°C
I
OUT
T
pw
=
25 ms
4 circuits
Ta
=
85°C
T
j
=
120°C
Duty
=
10%
Duty
=
50%
Duty
=
10%
Duty
=
50%
⎯
⎯
⎯
⎯
⎯
(Note 1)
(Note 2)
Min
4.5
0
0
0
0
0
0
0
0
V
CC
−1.0
⎯
⎯
⎯
⎯
Typ.
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Max
5.5
50
1250
1250
700
1250
390
25
V
CC
−3.6
V
CC
50
1.25
1.4
W
0.7
V
A
V
mA/ch
Unit
V
V
V
Note 1: On glass epoxy PCB (50
×
50
×
1.6 mm Cu 50%)
Note 2: On glass epoxy PCB (60
×
30
×
1.6 mm Cu 30%)
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Output leakage current
Symbol
I
CEX
Test
Circuit
1
Test Condition
V
CE
=
50 V, Ta
=
25°C
V
CE
=
50 V, Ta
=
85°C
I
OUT
=
1.25 A
I
OUT
=
0.75 A
⎯
⎯
⎯
⎯
V
R
=
50 V, Ta
=
25°C
I
F
=
1.25 A
V
CC
=
5.5 V, V
IN
=
0 V
V
CC
=
5.5 V, V
IN
=
V
CC
C
L
=
15 pF, V
OUT
=
50 V,
R
L
=
40
Ω
C
L
=
15 pF, V
OUT
=
35 V,
R
L
=
40
Ω
Min
⎯
⎯
⎯
⎯
V
CC
−1.6
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Typ.
⎯
⎯
⎯
⎯
⎯
⎯
⎯
−0.05
⎯
1.5
8.5
⎯
0.2
5.0
Max
50
100
1.8
V
1.3
25
V
V
CC
−3.6
10
−0.36
50
2.0
12.5
1.0
⎯
⎯
µA
mA
µA
V
mA/ch
µA
µs
µs
Unit
µA
Output saturation voltage
V
CE (sat)
High level
V
IH
V
IL
I
IH
I
IL
I
R
V
F
I
CC (ON)
I
CC (OFF)
t
ON
t
OFF
3
⎯
⎯
⎯
⎯
4
5
2
Input voltage
Low level
High level
Low level
Clamp diode reverse current
Clamp diode forward voltage
Output ON
Supply current
Output OFF
Turn-ON delay
Turn-OFF delay
Input current
6
6
3
2006-06-13
TD62308APG/AFG
Test Circuit
1. ICEX
V
CC
I
CEX
Open
V
CE
V
IN
I
IN
2. I
CC
V
CC
I
CC
Open
3. V
CE (sat)
V
CC
Open
I
OUT
V
IL
V
CE (sat)
4. I
R
V
CC
I
R
Open
V
R
5. V
F
V
CC
V
F
Open
I
F
6. t
ON
, t
OFF
Input
V
CC
Open
V
OUT
R
L
Pulse
generator
(Note 1)
V
IN
Output
C
L
=
15 pF
(Note 2)
Output
Input
90%
50%
10%
50
µs
t
ON
50%
t
OFF
V
OH
50%
V
OL
10%
t
r
(Note 1)
t
f
90%
50%
V
IH
=
5 V
Note 1: Pulse Width 50
µs,
Duty Cycle 10%
Output Impedance 50
Ω,
t
r
≤
5 ns, t
f
≤
10 ns
Note 2: C
L
includes probe and jig capacitance
4
2006-06-13

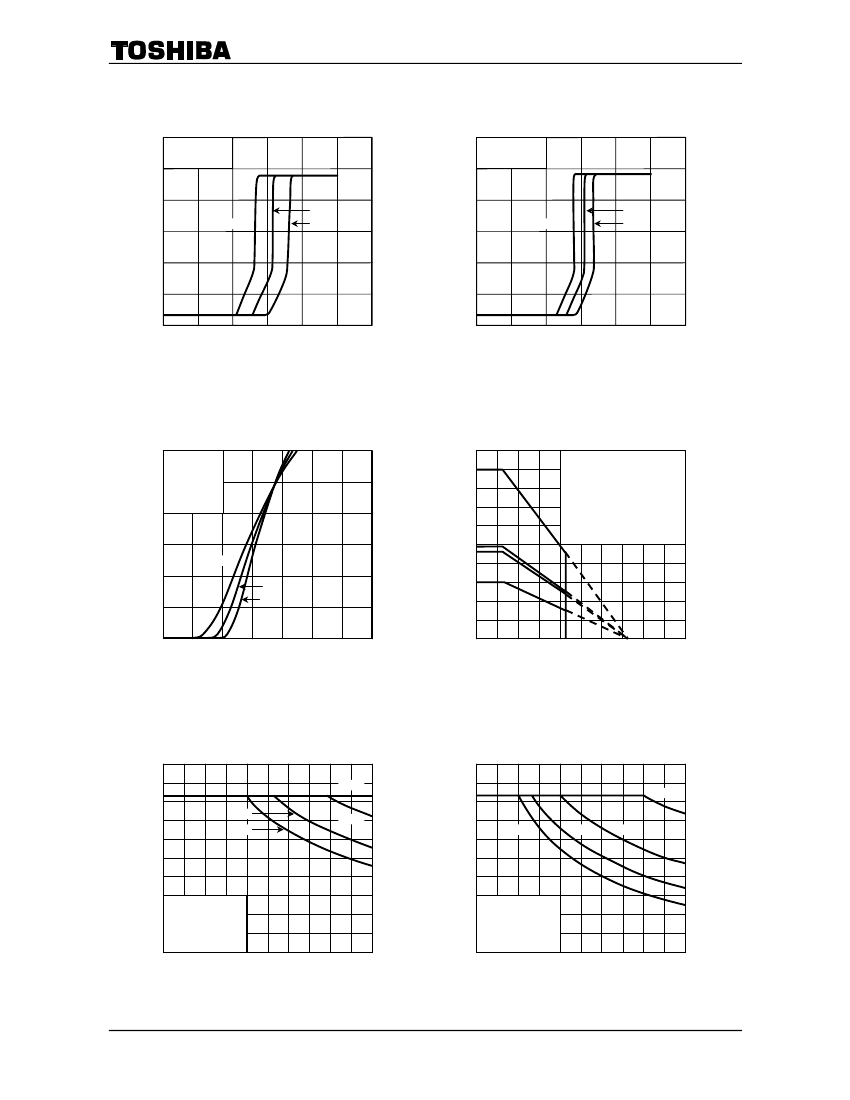

TD62308APG/AFG
V
OUT
– V
IN
30
Ta
=
25°C (typ.)
IOUT
=
0.9 A
30
VCC
=
5.0 V
IOUT
=
0.9 A
V
OUT
– V
IN
(V)
Output voltage
V
OUT
20
5.0
VCC
=
4.5 V
5.5
Output voltage
V
OUT
(V)
20
25
Ta
= −40°C
85
10
10
0
0
2
0
0
4
6
2
4
6
Input voltage
V
IN
(V)
Input voltage
V
IN
(V)
I
OUT
– V
CE
(sat)
1.5
(typ.)
VCC
=
5 V
VIN
=
0 V
1.0
3.0
(1)
P
D
– Ta
(1) DIP-16 pin
type-AP On PCB
(50
×
50
×
1.6 mm Cu 50%)
(2) DIP-16 pin type-AP free air
(3) Type-F, AF free air
(60
×
30
×
1.6 mm Cu 30%)
(2)
1.2
(3)
(4) PFP-16 pin free air
Output current I
OUT
P
D
(W)
25
−40
(mA)
2.4
1.8
Ta
=
85°C
0.5
Power dissipation
(4)
0.6
0
0
0.5
1.0
1.5
2.0
0
0
40
80
120
160
200
Output saturation voltage
V
IN
(V)
Ambient temperature
Ta
(°C)
I
OUT
– Duty cycle
1500
n
=
1
1500
I
OUT
– Duty cycle
n
=
1
(mA)
n
=
3
n
=
4
900
n
=
2
(mA)
1200
1200
n
=
4
900
n
=
3
n
=
2
Output current I
OUT
Output current I
OUT
600
600
TD62308APG
300
Ta
=
25°C
VCC
=
5.5 V
n-ch ON
0
0
20
40
60
80
100
TD62308APG
300
Ta
=
85°C
VCC
=
5.5 V
n-ch ON
0
0
20
40
60
80
100
Duty cycle
(%)
Duty cycle
(%)
5
2006-06-13
