I203-4CB3-1.000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> I203-4CB3-1.000MHZ

I203-4CB3-1.000MHZ: DescriptionHCMOS/TTL Output Clock Oscillator,; CategoryPassive components oscillator; File Size42KB，2 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

I203-4CB3-1.000MHZ Overview

HCMOS/TTL Output Clock Oscillator,

I203-4CB3-1.000MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1290988758
Reach Compliance Code	compliant
Maximum control voltage	3.15 V
Minimum control voltage	0.15 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	100%
Installation features	THROUGH HOLE MOUNT
Number of terminals	4
Nominal operating frequency	1 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 15 pF
physical size	20.7mm x 12.6mm x 5.46mm
longest rise time	10 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	55/45 %
Terminal surface	TIN SILVER COPPER OVER NICKEL

Preview

Download Datasheet

View All

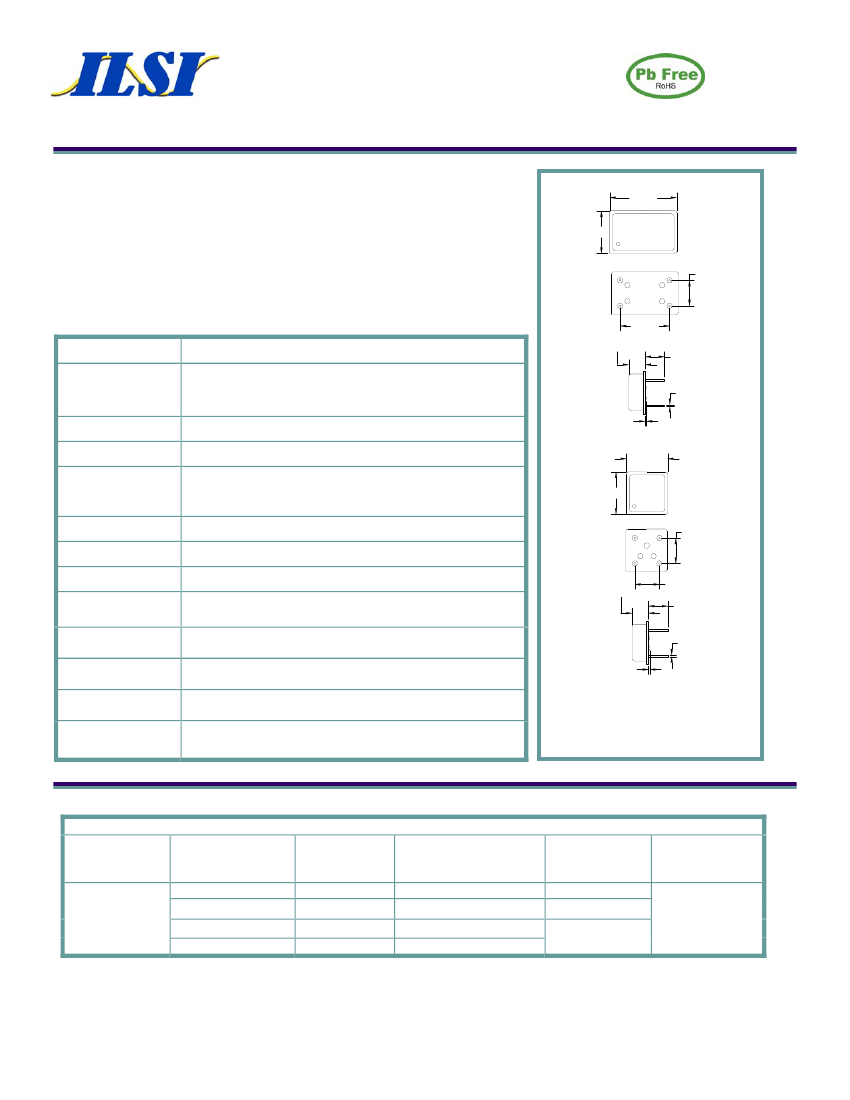

Leaded Oscillator, VCXO, TTL / HC-MOS

Metal Package, Full Size DIP and Half DIP

I202 / I203

Series

I203 Package

Product Features:

CMOS/TTL Compatible Logic Levels

Low Noise

Compatible with Leadfree Processing

RoHS Compliant

Applications:

12.6

20.7

Server & Storage

Sonet /SDH

802.11 / Wifi

T1/E1, T3/E3

7.62

15.24

Frequency

Output Level

HC-MOS

TTL

Duty Cycle

Rise / Fall Time

Output Load

HC-MOS

TTL

Frequency Stability

Supply Voltage

Current

Control Voltage

Slope

Jitter

Operating

Storage

1 MHz to 51.840 MHz

‘0’ = 0.1 Vcc Max., ‘1’ = 0.9 Vcc Min.

‘0’ = 0.4 VDC Max., ‘1’ = 2.4 VDC Min.

50% ±5%

10 nS Max.*

Fo < 50 MHz = 10 TTL, Fo > 50 MHz = 5 LSTTL

15 pF

See Frequency Stability Table

See Input Voltage Table, tolerance ±10 %

50 mA Max.*

5.1 Max.

6 Min.

0.048

0.36

I202 Package

12.6

7.62

1.65 VDC ±1.5 VDC for Vcc = 3.3 VDC, 2.5 VDC ±2.0 VDC for

VCC = 5.0 VDC

Positive

5.1 Max.

6 Min.

0.48

<1.0 pS RMS (12 kHz to 20 MHz)**

See Operating Temperature Table in Part Number Guide

-55

C to +125

0.36

Dimension Units: mm

Pin Connection

1 Control Voltage

2 GND

3 Output

4 Vcc

Package

Part Number Guide

Operating

Temperature

1 = 0° C to +70° C

Frequency

Stability

F =

±20

ppm

X =

±30

ppm

B =

±50

ppm

C =

±100

ppm

Sample Part Number: I202-1BC3-27.000 MHz

Pullability

Supply Voltage

Frequency

B =

±50

ppm min.

C =

±100

ppm min.

K =

±150

ppm min.

L =

±200

ppm min.

5 = 5.0 VDC

3 = 3.3 VDC

- 27.000 MHz

I202 -

I203 -

3 = -20° C to +70° C

4 = -30° C to +75° C

2 = -40° C to +85° C

NOTE: A 0.01 µF bypass capacitor is recommended between Vcc (pin 4) and GND (pin 2) to minimize power supply noise.

* Frequency, supply, and load related parameters. Frequency related, for additonal information contact your sales representative.

ILSI

America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

10/10_B

Specifications subject to change without notice

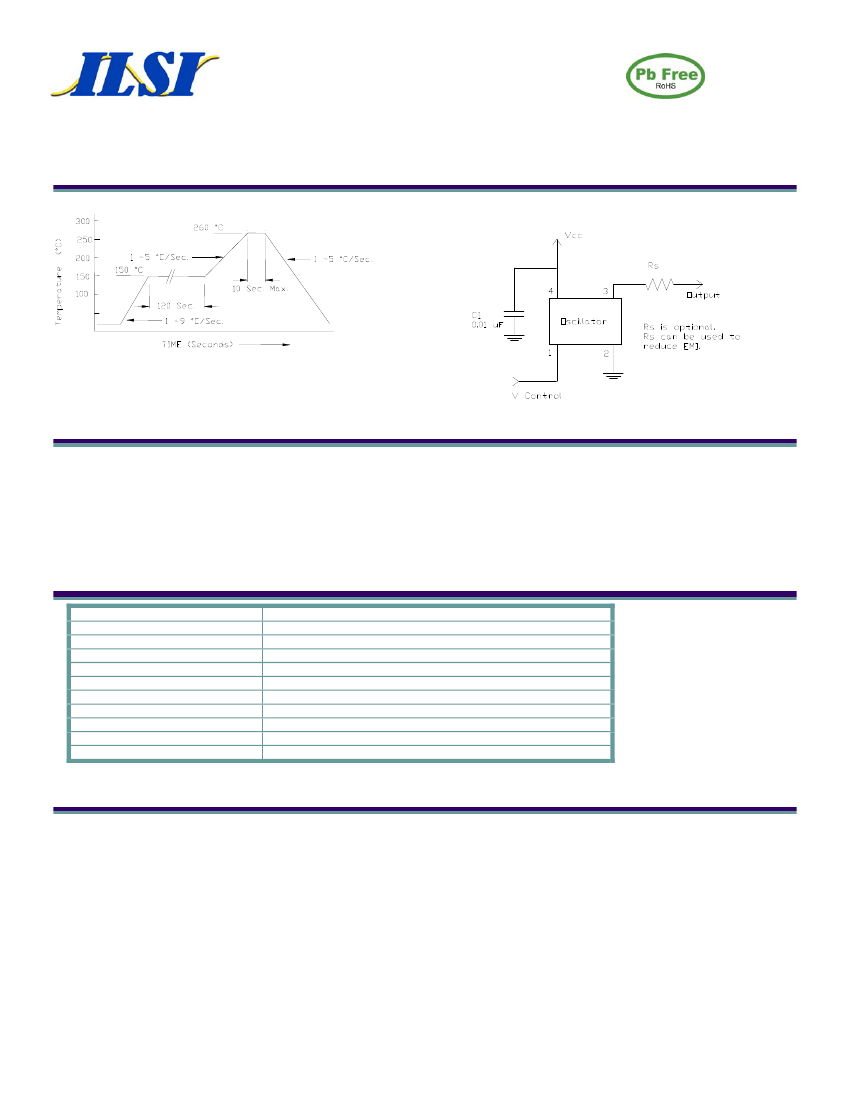

age 1
