5159PBT: DescriptionKK? cat ear crimp terminal 5159, 22-28 awg, reel, phosphor bronze, tin (Sn) Plating; File Size124KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

5159PBT Overview

KK? cat ear crimp terminal 5159, 22-28 awg, reel, phosphor bronze, tin (Sn) Plating

Preview

Download Datasheet

View All

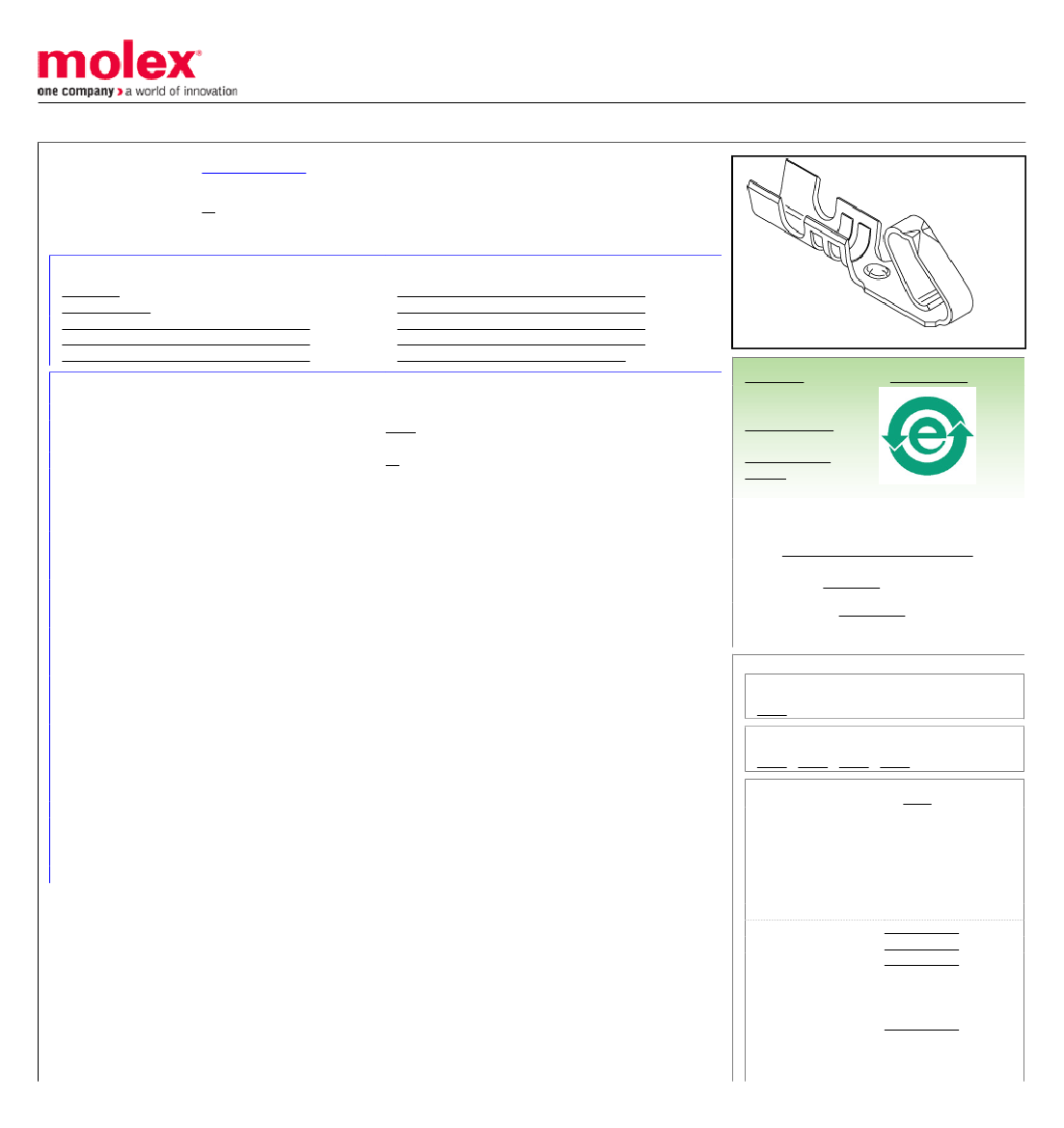

This document was generated on 06/01/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0008700048

Active

KK® Cat Ear Crimp Terminal 5159, 22-28 AWG, Reel, Phosphor Bronze, Tin (Sn)

Plating

Documents:

3D Model

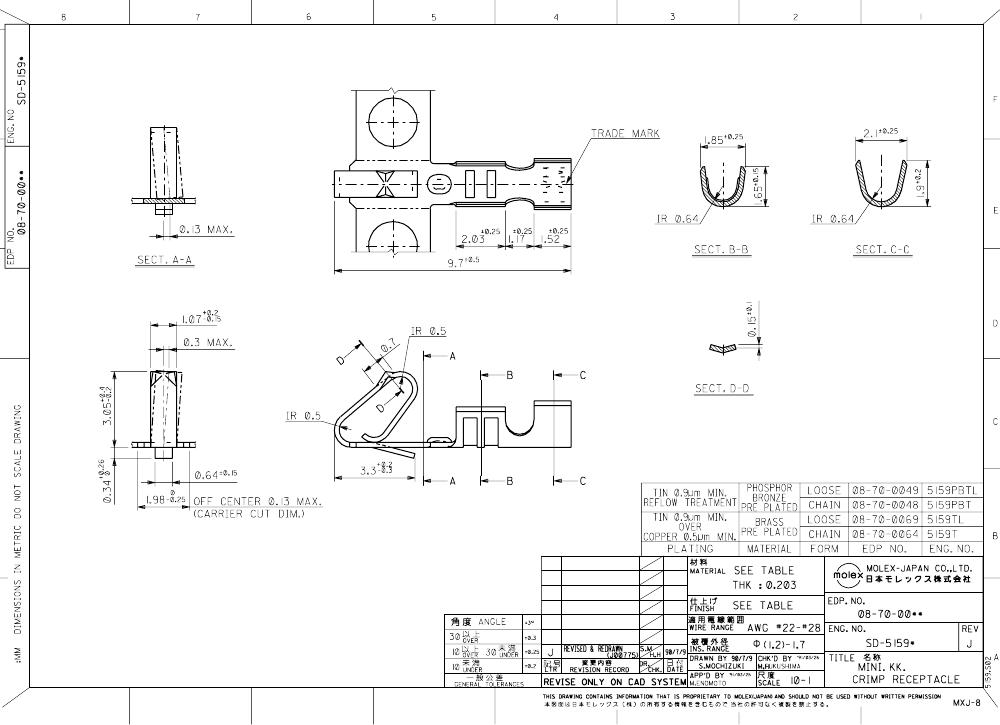

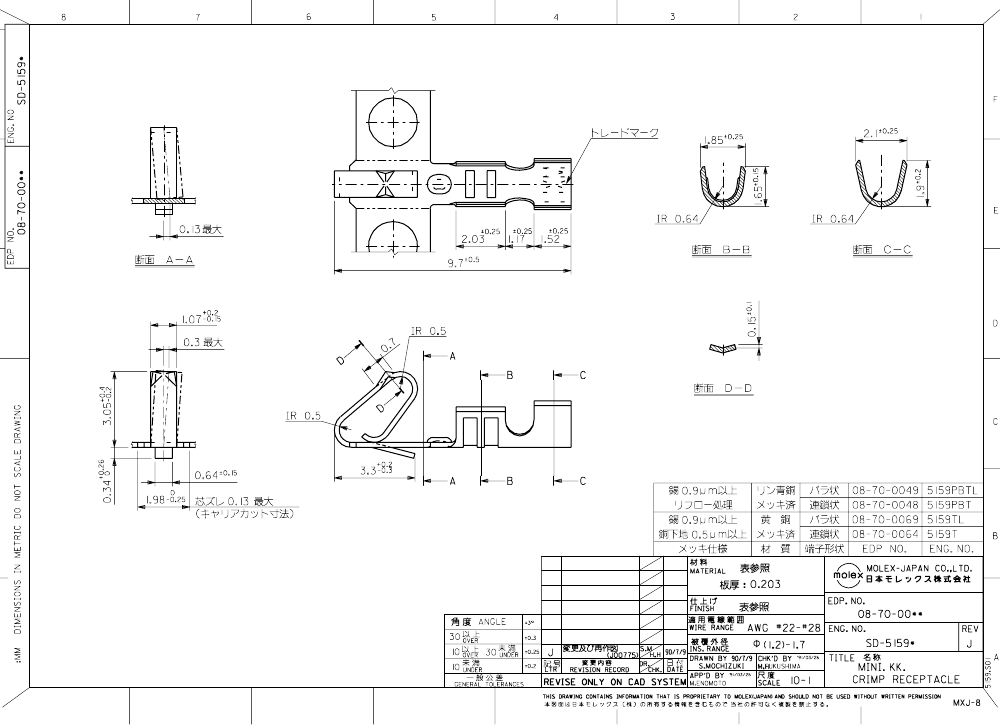

Drawing (PDF)

Product Specification PS-5045-001 (PDF)

Product Specification PS-5045-002 (PDF)

Product Specification PS-5047-001 (PDF)

Product Specification PS-5051-003 (PDF)

Product Specification PS-5051-004 (PDF)

Product Specification PS-5102-004 (PDF)

Product Specification PS-5159-003 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Crimp Quality Equipment

Overview

Product Name

Crimp Terminals

5159

Yes

Cat Ear, KK®

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Female

Phosphor Bronze

Tin

Reel

0.90

Crimp or Compression

1.20-1.70mm (.047-.067")

22, 24, 26, 28

N/A

Search Parts in this Series

5159Series

Use With

2695 , 5051 , 6471 , 3071

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Extraction Tool

0011030022

Insertion Tool

0638120000

Mini-Mac™

0638882000

Applicator, Use with

Large Wire Insulation

Diameter

Mini-Mac™

0638882100

Applicator, Use with

Small Wire Insulation

Diameter

Material Info

Old Part Number

5159PBT

Reference - Drawing Numbers

Packaging Specification

Product Specification

SPK-5159-001

PS-5045-001, PS-5045-002, PS-5047-001,

PS-5051-003, PS-5051-004, PS-5102-004,

PS-5159-003

SD-5159*

Sales Drawing
